Overview
The excitement of installing surround sound is so often countered by the headache of how to handle - and how to hide - the metres of cabling that goes with it.
Not so with the MusicCast Surround Lite system. Its elegant and compact soundbar connects to your TV with a single cable whilst the sub-woofer and surround speakers can be placed anywhere in the room - no audio cables required.
It sounds incredible. And, thanks to the MusicCast multi-room technology built in, it's compatible with Bluetooth, Airplay, network audio and internet radio and podcasts - as well as streaming sources such as Spotify and Tidal.

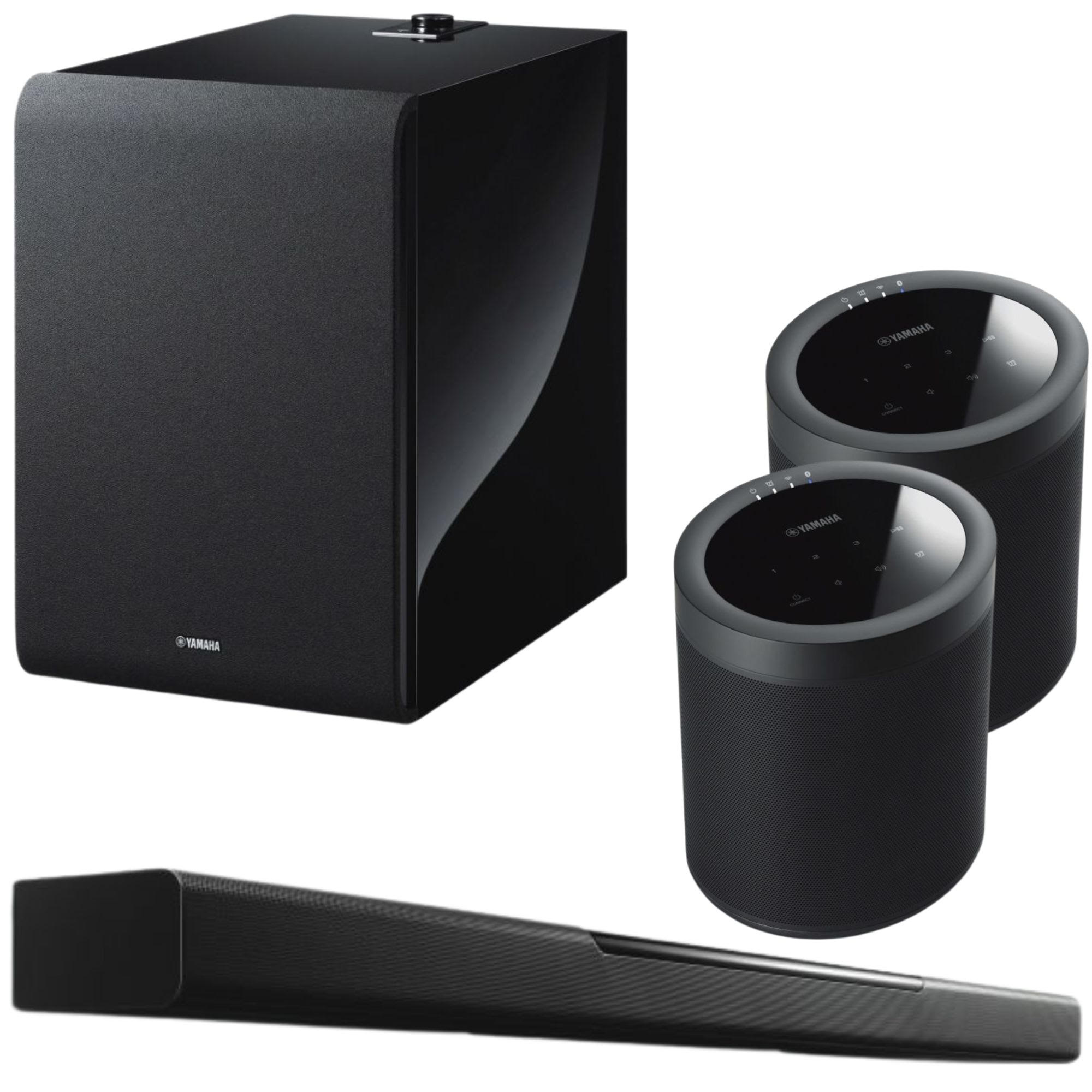

- Includes:
- MusicCast BAR 40 Soundbar
- MusicCast SUB 100 Sub-Woofer
- 2x MusicCast 20 Speakers
- 3D surround sound with DTS Virtual:X
- Clear Voice mode makes movie dialogue stand out and easier to hear
- Amazon Alexa and Google Assistant voice control compatibility
- Music streaming services built-in
- MusicCast multi-room technology
- High-Resolution Audio
- Qualcomm DDFA digital amplifier technology
- HDMI (ARC), optical, aux input, Ethernet connectivity
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: One Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
They’re all around me
Take your home cinema experience to new heights with sound that comes from above as well as all around you.
The MusicCast BAR 40 SW features DTS Virtual:X – immersing you in exhilarating 3D surround sound from a single bar solution.
What was that?
Say ‘goodbye’ to hard-to-hear dialogue with the MusicCast BAR 40.
Clear Voice modes brings the sound of narration and dialogue to the fore, while keeping the overall sound quality intact. Movies, TV shows, sports commentary, news casts - all instantly more clear and audible.
Sounds as good as it looks
The ideal surround sound system for those with limited space, the MusicCast BAR 40 delivers multi-channel audio in an elegant, space-saving design.
The slim profile allows for discreet placement in front of flat panel televisions without obscuring the screen, whilst the MusicCast SUB 100 Sub-Woofer can be placed discreetly out of sight.

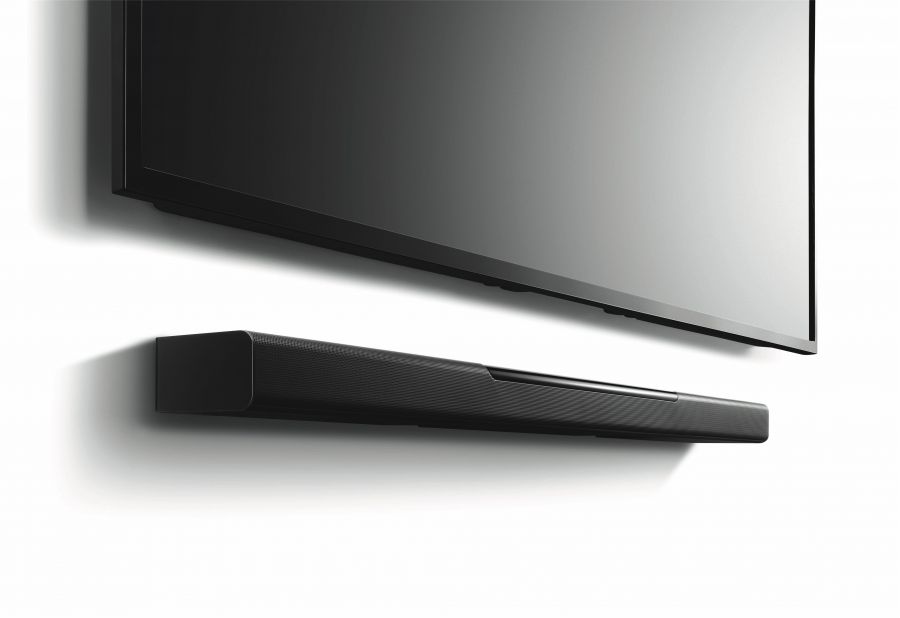

On the wall
Yamaha soundbars not only enhance the audio experience of watching movies at home but are also designed to be positioned discreetly in the room and complement modern televisions.
The ability to wall-mount the MusicCast soundbar guarantees a seamless installation and integration with existing furniture.
Connect
Connect it your way: Bluetooth, AirPlay, Wi-Fi, Optical and HDMI.
A world of music
Explore a world of music with music streaming services* built-in. Syncing your playlists and song likes from your smart phone or computer to the MusicCast Surround Lite system, music streaming services make it impossibly easy to either listen to your favourites or discover new music.
*Streaming service availability varies by region.
Multi-room Audio
MusicCast takes the headache out of multi-room audio. Simply connect all MusicCast devices to the same network and start sharing audio throughout the home.
Take MusicCast for a test drive by downloading the free MusicCast app and using the demo mode.
Let’s talk
“Alexa, ask MusicCast to play Favourite 1 in the kitchen.”
With Alexa voice control integration, all you have to do is ask. The MusicCast Surround Lite system offers full compatibility with Amazon’s range of voice control devices.
Welcome to the smart home.
*Availability of voice command control via Amazon Alexa varies by region.
Specs
MusicCast BAR 40 Soundbar:
General | Drivers | Four 4.6 cm (1-3/4”) woofers, Dual 2.5 cm (1") tweeters |
Output Power | 100 W total power: 50 W x 2 |
Power Consumption | 30 W |
Standby Power Consumption | 0.4 W (HDMI control, Network standby off), 0.5 W (HDMI control on, Network standby off), 1.9 W (HDMI control off, Network standby on), 2.1 W (HDMI control on, Network standby on) |
Dimensions (W x H x D) | 980 x 60 x 110.5 mm; 38-5/8” x 2-3/8” x 4-3/8” |
Weight | 2.7 kg; 6.0 lbs |
Input / Output | HDMI | 1 in / 1 out |
Digital Optical | 1 in |
Analog Audio | 1 in |
Subwoofer output | Yes (no wired connection needed with included MusicCast SUB 100 Sub-Woofer) |
HDMI | 4K Pass-through | Yes (50 / 60 Hz YCbCr=4:4:4, HDR10, Dolby Vision, HLG and HDCP2.2) |
3D Pass-through | Yes |
ARC | Yes |
CEC | Yes |
Auto Lip-Sync | Yes |
Sound Technology | Surround Technology | DTS Virtual:X |
Surround Mode | Music, TV programme, Movie, Sport, Game |
Compressed Music Enhancer | Yes (for Bluetooth) |
Bass Extended | Yes |
Audio Formats | Dolby Digital | Yes |
Dolby Pro Logic II | Yes |
DTS Digital Surround | Yes |
File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit |
Connectivity | Wireless Music Streaming | Yes |
Wi-Fi | Yes (2.4 / 5 GHz) |
MusicCast Surround | Yes |
AirPlay | Yes |
Bluetooth Version/Profile | Ver. 4.2 + EDR / A2DP, AVRCP |
Bluetooth Maximum Communication Range | 10m ; 33ft (*without obstructions) |
Other Features | App Control | Yes |
Learning Function | Yes |

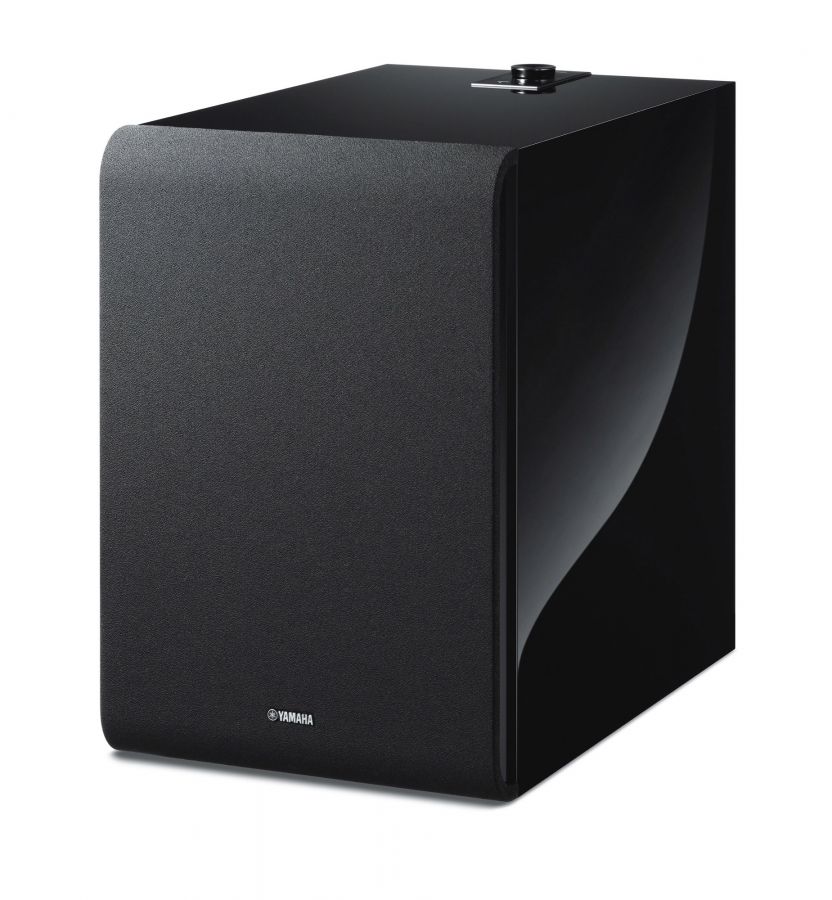

MusicCast SUB 100 Sub-Woofer:
Wi-Fi Compatibility | Yes (2.4 / 5 GHz) |
MusicCast Surround Compatibility | Yes |
MusicCast Stereo Compatibility | Yes |
Analog Audio Input | 1 (3.5 mm Stereo mini) |
Ethernet | Yes |
Driver | 20 cm (8”) cone |
Output Power | 130 W (5 ohms, 100 kHz, 10% THD) |
Frequency Response | 28–300 Hz |
Advanced YST | Yes |
Twisted Flare Port | Yes |
Auto Standby | Yes |
Dimensions (W x H x D) | 252 x 373 x 418 mm; 9-7/8” x 14-5/8” x 16-1/2” |
Weight | 12.5 kg; 27.6 lbs. |

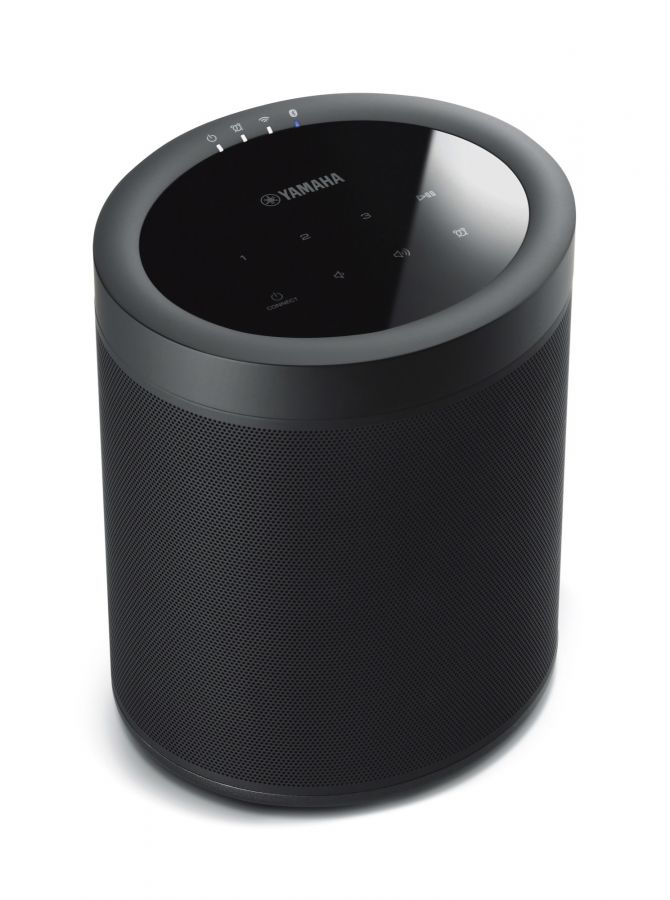

MusicCast 20 Rear/Portable Speakers:
Wi-Fi | Yes (2.4 / 5 GHz) |
MusicCast Surround | Yes (dual only) |
MusicCast Stereo | Yes |
AirPlay | Yes |
Bluetooth Version | Ver. 4.2 + EDR / A2DP, AVRCP |
Bluetooth Audio Codec | SBC, AAC* (*Receiving Only) |
Bluetooth Maximum Communication Range | 10 m / 32.8 ft. 10 in. (without interference) |
Compatible File Formats | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit |
Preset Memory | Yes |
Ethernet | Yes |
Alarm | Alarm, Snooze, Sleep |
Speaker Unit | 9 cm (3-1/2”) woofer x 1, 3 cm (1-1/8") soft dome tweeter x 1, Passive radiator x 2 |
Maximum Output Power | 40 W (Woofer 25 W + Tweeter 15 W) |
Power Supply | AC |
Power Consumption | 10 W |
Standby Power Consumption | 1.9 W (Network Standby ON, Bluetooth Standby ON), 0.3 W (Network and Bluetooth Standby OFF) |
Dimensions (W x H x D) | 150 x 186 x 130 mm; 5-7/8” x 7-3/8” x 5-1/8” |
Weight | 2.2 kg; 4.8 lbs |
| Product ID | AMUSICCASTSURROUNDSLIMLITE |
|---|
