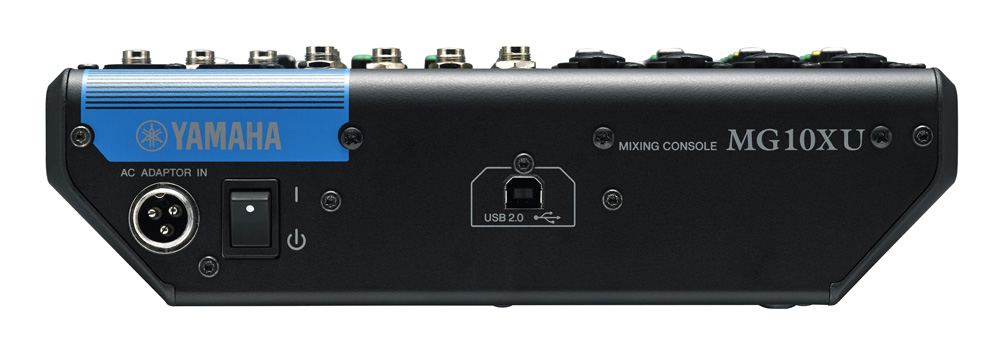

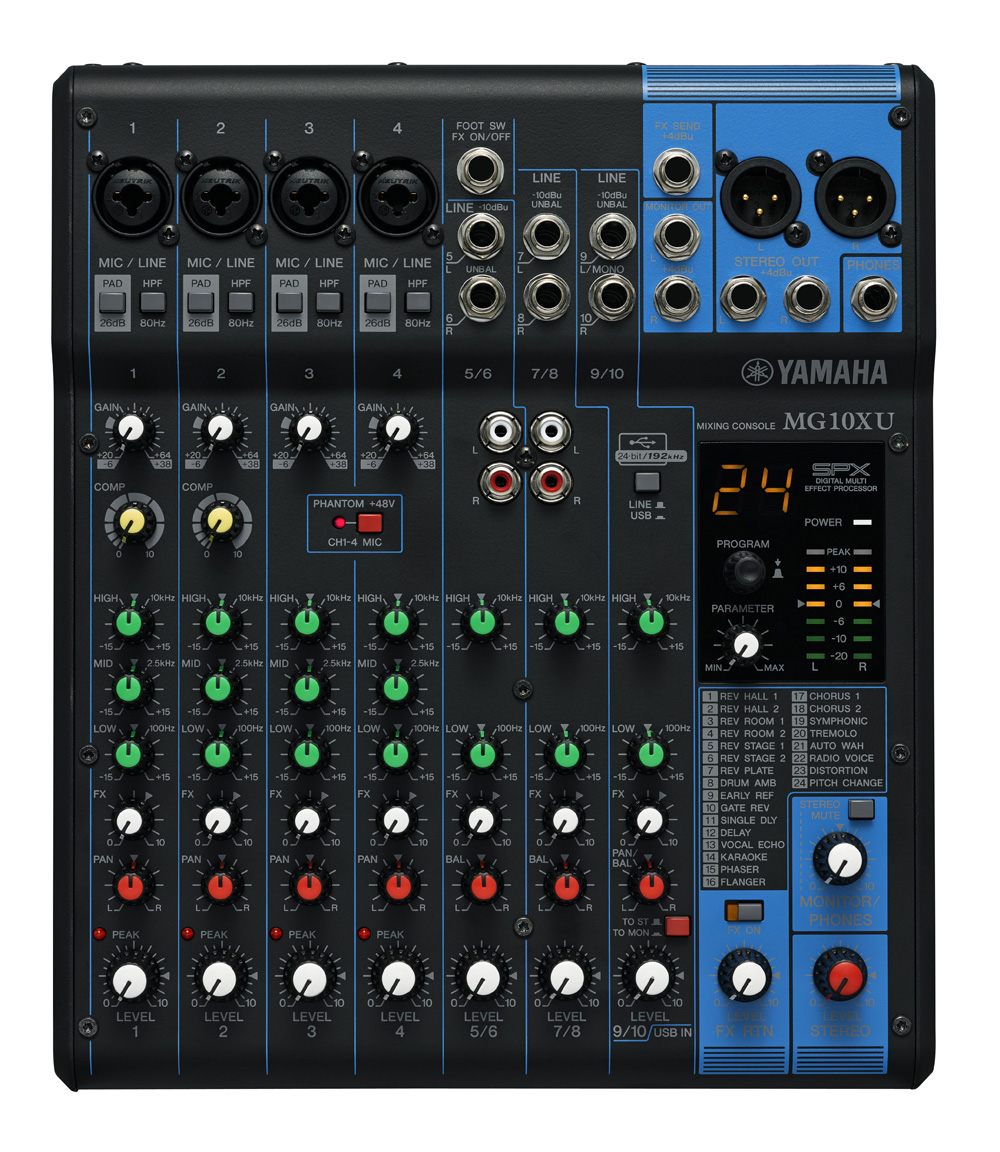

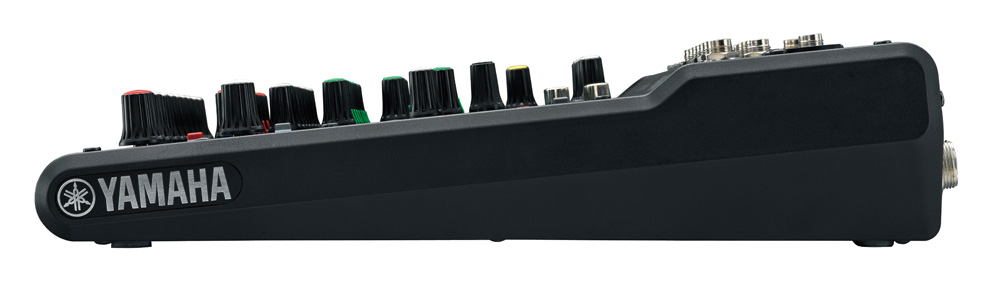

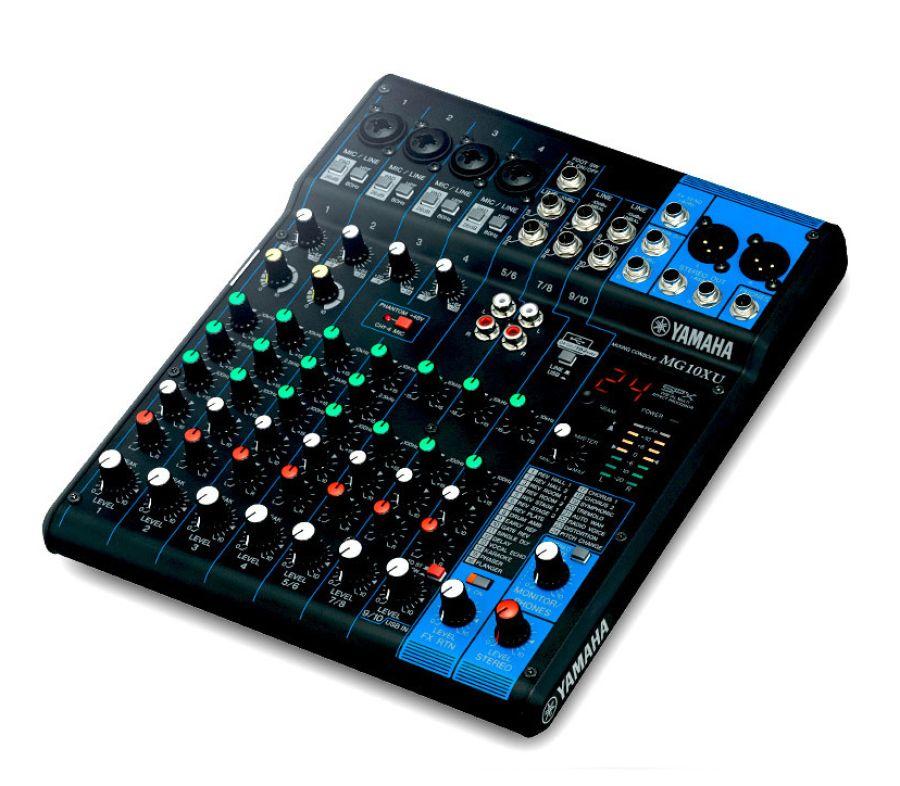

C Grade Refurbished MG10XU Mixer
Please note - This product may be ex-display, returned by a customer, or refurbished. It has visible cosmetic wear such as marks or scratches and may be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.
Completely redesigned for the 3rd Generation of MG mixers, the compact MG10XU features 4 class leading Class A D-PRE microphone preamps, Yamaha's acclaimed SPX effects and a stereo USB audio interface.
Features
The MG10XU has the following features:
- 10-Channel Mixing Console
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- D-PRE mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit / 192kHz 2in / 2out USB Audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase AI DAW software download version
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Metal chassis
- Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
- Net Weight: 2.1 kg (4.63 lbs.)
Specs
Outline
- Mixing capability On-board processors SPX algorithm: 24 programs
- I/O Phantom power +48 V
- Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
- Input Channels
Mono[MIC/LINE] 4
Stereo[LINE] 3 - Output Channels
STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 1 - Bus Stereo: 1, AUX[FX]: 1
- Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
General specifications
- Total harmonic distortion 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
- Frequency response +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) - Crosstalk -83 dB
- Power requirements PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
- Power consumption 22.9 W
- Dimensions
W 244 mm (9.6")
H 71 mm (2.8")
D 294 mm (11.6") - Net weight 2.1 kg (4.63 lbs.)
- Accessories
Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications
Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5 - Others Operating Temperature: 0 to +40˚C
