Line 6 **NEW** Helix HX Stomp XL Multi Effects Processor & Amp Modeller

Silver Edition

incl. VAT
**NEW** Helix HX Stomp XL Multi Effects Processor & Amp Modeller
**NEW** Helix HX Stomp XL Multi Effects Processor & Amp Modeller **NEW** Helix HX Stomp XL Multi Effects Processor & Amp Modeller **NEW** Helix HX Stomp XL Multi Effects Processor & Amp Modeller **NEW** Helix HX Stomp XL Multi Effects Processor & Amp Modeller


Line 6 HX Stomp XL - Silver Limited Edition

Compact Amp and Effects Processor

The HX stomp XL compact amp and effects processor delivers HX modelling in a professional-grade performace-ready pedal with eight captive-touch footswitches.

  • The power of HX Stomp — now with eight footswitches!
  • Exceptional sound quality with 123dB of dynamic range
  • Features the same SHARC DSP chip and HX Modelling as Helix processors
  • Eight capacitive-touch footswitches with colour-coded LED rings
  • More than 300 HX and legacy amps, cabs and effects — up to 8 simultaneous
  • Supports third-party impulse responses (IRs)
  • Includes world-class polyphonic pitch-shifting effects
  • Split/parallel signal paths for maximum routing flexibility
  • Dual expression pedal/footswitch input for greater creative control
  • Stereo effects loop (mono/stereo TRS send and stereo returns)


Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.

Click here for more information

Finance agreements are available to UK residents aged 18 or over, subject to status.

Deposit £0.00 (0%)

Duration - please choose one

Representative Example

Purchase Price:£2,026.00 Deposit:£239.00
Amount of Credit:£1,787.00 24 Monthly Payments:£89.44
Total Repayable:£2,385.56 Agreement Duration:24 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£2,289.00 Deposit:£260.00
Amount of Credit:£2,029.00 36 Monthly Payments:£73.64
Total Repayable:£2,911.04 Agreement Duration:36 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£1,125.00 Deposit:£300.00
Amount of Credit:£825.00 6 Monthly Payments:£137.50
Total Repayable:£1,125.00 Agreement Duration:6 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£3,545.00 Deposit:£240.00
Amount of Credit:£3,305.00 9 Monthly Payments:£367.22
Total Repayable:£3,545.00 Agreement Duration:9 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£1,260.00 Deposit:£200.00
Amount of Credit:£1,060.00 12 Monthly Payments:£92.93
Total Repayable:£1,315.16 Agreement Duration:12 Months
Rate of Interest (Fixed):9.89% pa 9.89% APR Representative
Purchase Price:£1,499.00 Deposit:£199.00
Amount of Credit:£1,300.00 18 Monthly Payments:£83.12
Total Repayable:£1695.16 Agreement Duration:18 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative


Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.

V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.


Helix 3.60 Firmware – What’s New?
The Helix 3.60 firmware update for Helix and HX hardware devices introduces three new amplifiers, including the Grammatico GSG, seven new guitar speaker cabinets featuring 12" speakers in various combinations, two new bass cabs, and two new effects:


  • Grammatico GSG: Based on the Grammatico GSG100
  • Line 6 Elmsley: Line 6 Original
  • Agua Sledge: Based on the Aguilar Tone Hammer

Guitar Cabs (Single & Dual Versions):

  • 1x12 Blue Bell: Captured from a 1x12" Vox AC-15 Blue Alnico
  • 1x12 Open Cream: Captured from a custom 1x12" open-back cab G12M-65
  • 1x12 Open Cast: Captured from a custom 1x12" open-back cab EVM12L
  • 2x12 Silver Bell: Captured from a 2x12" Vox AC-30TB Silver Alnico
  • 2x12 Match H30: Captured from a 2x12" Matchless DC-30 custom G12H-30
  • 2x12 Match G25: Captured from a 2x12" Matchless DC-30 custom G12M-25
  • 4x12 Greenback 20: Captured from a 4x12" Marshall "basketweave" G12M-20

Bass Cabs (Single & Dual Versions):

  • 1x12 Epicenter: Captured from a 1x12" Epifani Ultralight series
  • 4x10 Ampeg Pro: Captured from a 4x10" Ampeg PR-410HLF


  • Dark Dove Fuzz (Mono, Stereo): Based on the Electro-Harmonix Russian Big Muff
  • Triple Rotary (Mono, Stereo): Based on the Yamaha RA-200 rotary speaker (used by Pink Floyd)

All-Encompassing Guitar Processor
There's almost nothing it can't do - use HX Stomp XL as a complete guitar/bass workstation, a backup for your main rig, an add-on tone expander with other modellers or even as a professional-quality audio interface. The HX Stomp XL’s 'Command Centre' functionality, MIDI capabilities and external expression pedal jack also make it an ideal master controller for your entire setup.

300+ Amp, Cabs & Effects!
HX Stomp XL comes equipped with more than 300 amps, cabs and effects.  The 128 factory presets include both vintage and modern sounds based on highly-coveted gear, and there are also presets created specifically for bassists — catering for even the most demanding and musically-diverse of players.

Authentic Modelling
HX modelling digitally mirrors the circuitry of analogue amps and effects, component by component. Every model sounds and feels realistic, including  the notoriously hard-to-capture devices like vintage fuzzes and modulation effects. The HX Stomp XL nails the much-desired analogue "vibe".

Powerful SHARC DSP Chip
Featuring the same SHARC DSP chip found in Line 6's flagship Helix products, the HX Stomp XL can run up to 8 processing 'blocks' simultaneously. The extra assignable footswitches let you access and control these blocks in more powerful and efficient ways, meaning that the HX Stomp XL is simply designed to be more flexible for use onstage than the original HX Stomp.

Additional Appointments
Extra intuitive features include a choice of true bypass and DSP bypass with trails, a stereo effects loop that allows you to integrate external pedals or employ 4-cable method, a jack for two external footswitches or an expression pedal, third-party IR support, and a multi-channel 24-bit/96kHz USB audio interface.

'HX Edit' App
The free 'HX Edit' app lets you easily create, save and load presets, as well as customise nearly all pedal parameters. It’s also a preset librarian, IR loader, and more! This app enables you to extract the most from HX Stomp XL.

What Else Does HX Stomp XL Do?
The Line HX Stomp XL has some other small advantages over the standard HX Stomp. Hands-free 'Pedal Edit' mode lets you tweak presets with your feet, there are 4 snapshots per preset rather than 3, and you can access the '6 Switch Looper' without needing an external MIDI controller. Other than that, it's HX Stomp but with 5 extra switches!


  • DSP Processor: (1) SHARP ADSP-21469 @ 450 MHz
  • A/D/A Converters: 24-bit/192kHz
  • Chassis: Cast Aluminium
  • Colour Main Display LCD: 2.4"/6cm
  • Footswitch “Scribble Strip” LCDs: N/A
  • Capacitive-Touch Footswitches: 8
  • Bypass: Relay or DSP
  • Power: DC-3

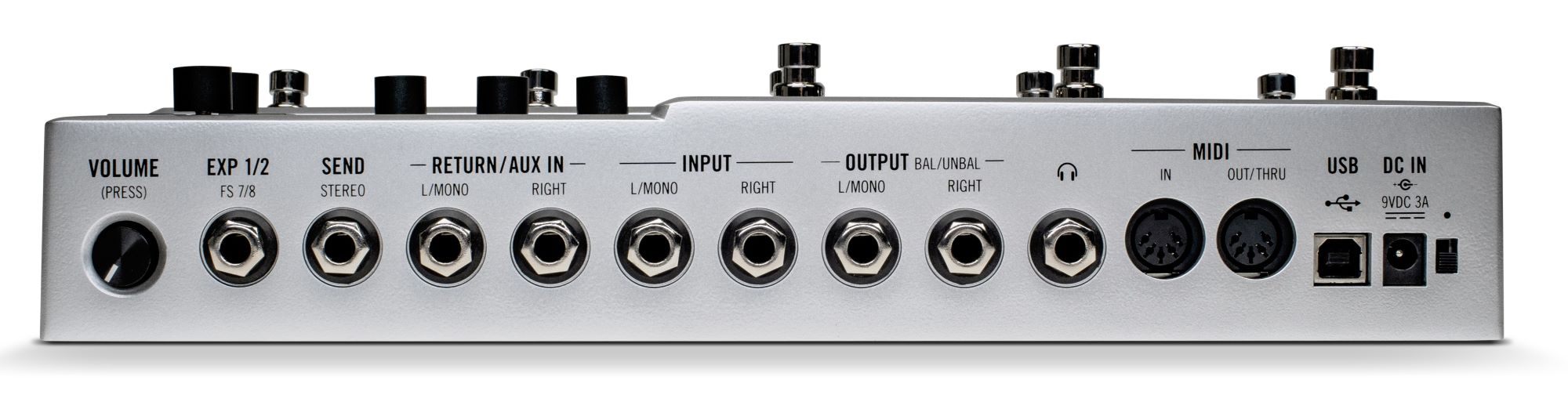

  • 1/4” Inputs: 4 (Main L/R, Return L/R)
  • 1/4” Outputs: 3 (Main L/R, Stereo TRS Send)
  • Headphone Output: 1/4" Stereo
  • Effect Loop(s): TRS Stereo Send, 2x Return
  • Expression Pedal In: EXP 1/2 (TRS; Shared with Footswitch 7/8)
  • External Amp Control Outputs: N/A
  • MIDI Controls In, Out/Thru
  • USB Audio Interface: 8-In, 6-Out with Re-Amping (4 Physical Ins/Outs)
  • Input Pad: Line/Inst(rument)
  • Variable Impedance: Input L (Mono), Right
  • Dynamic Range: 123dB
  • Preset Locations: 128 (32 Banks x 4 Presets)
  • Snapshots: 4 Per Preset
  • Custom Snapshot Names/Colors: N/A
  • Signal Flow Paths: 1 or 2 Stereo
  • Third-Party Impulse Responses (IRs): 128x 1024 or 2048-Point Mono
  • Looper Type: 6 Switch, 1 Switch, Shuffling
  • Looper Memory (Full-Speed): 60 Sec Mono, 30 Sec Stereo
  • Looper Memory (Half-Speed): 120 Sec Mono, 60 Sec Stereo
  • Global EQ: 3 Fully Parametric Bands + Variable Low/High Cut Filters
  • Footswitch Modes: Stomp, Preset, Snapshot, Looper, Pedal Edit
  • Custom Stomp Names/Colors: N/A
  • Pedal Edit Mode: Hands-Free
  • Number of Controllers: 102 (8 + 94 via MIDI CC)
  • Command Center: Yes
  • Remote Control of External Amp: N/A
  • MacOS/Windows Editor/Librarian/IR Loader Software: HX Edit
  • Dedicated Dry USB Out Channels (for Reamping): 4
