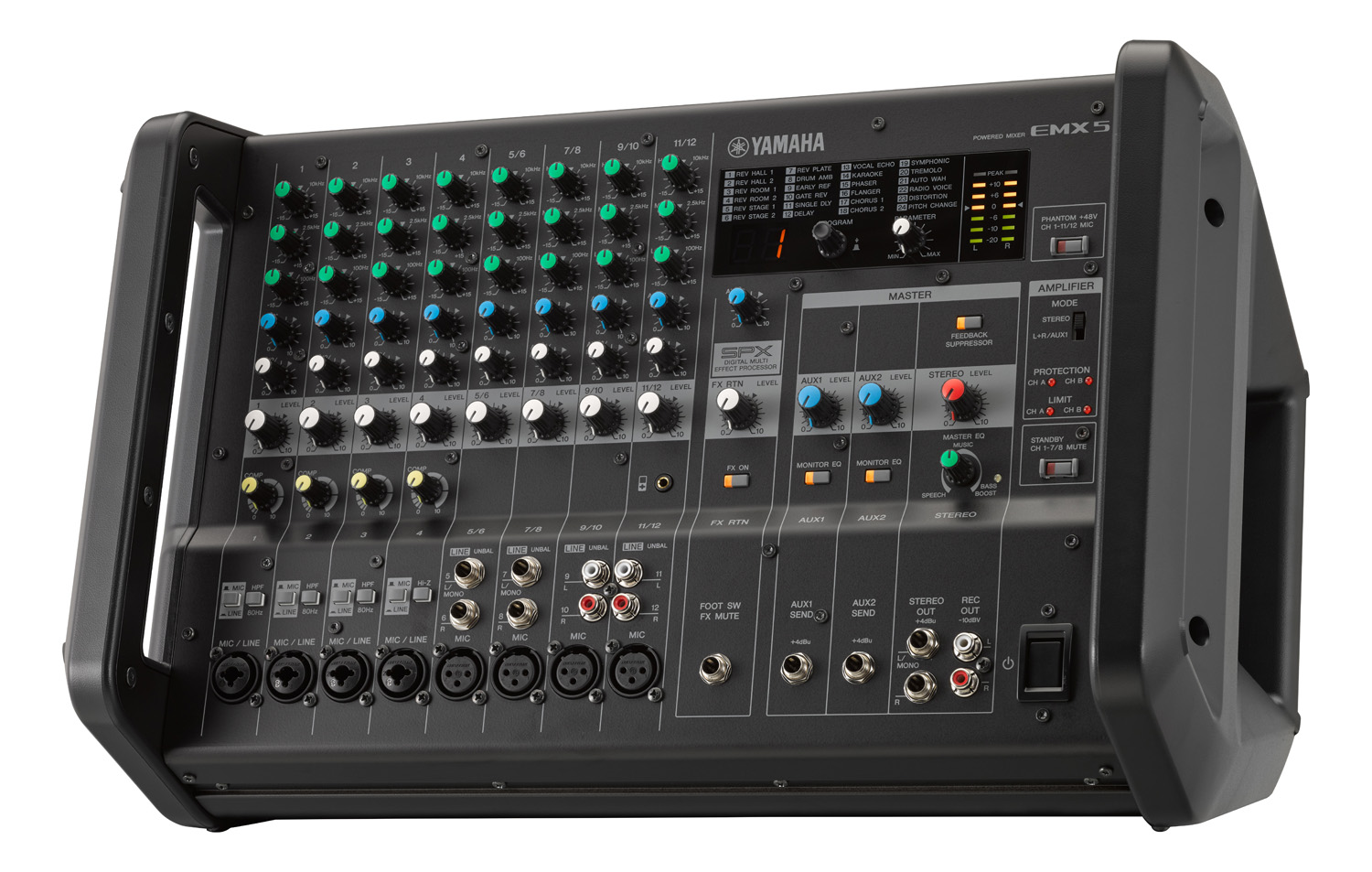

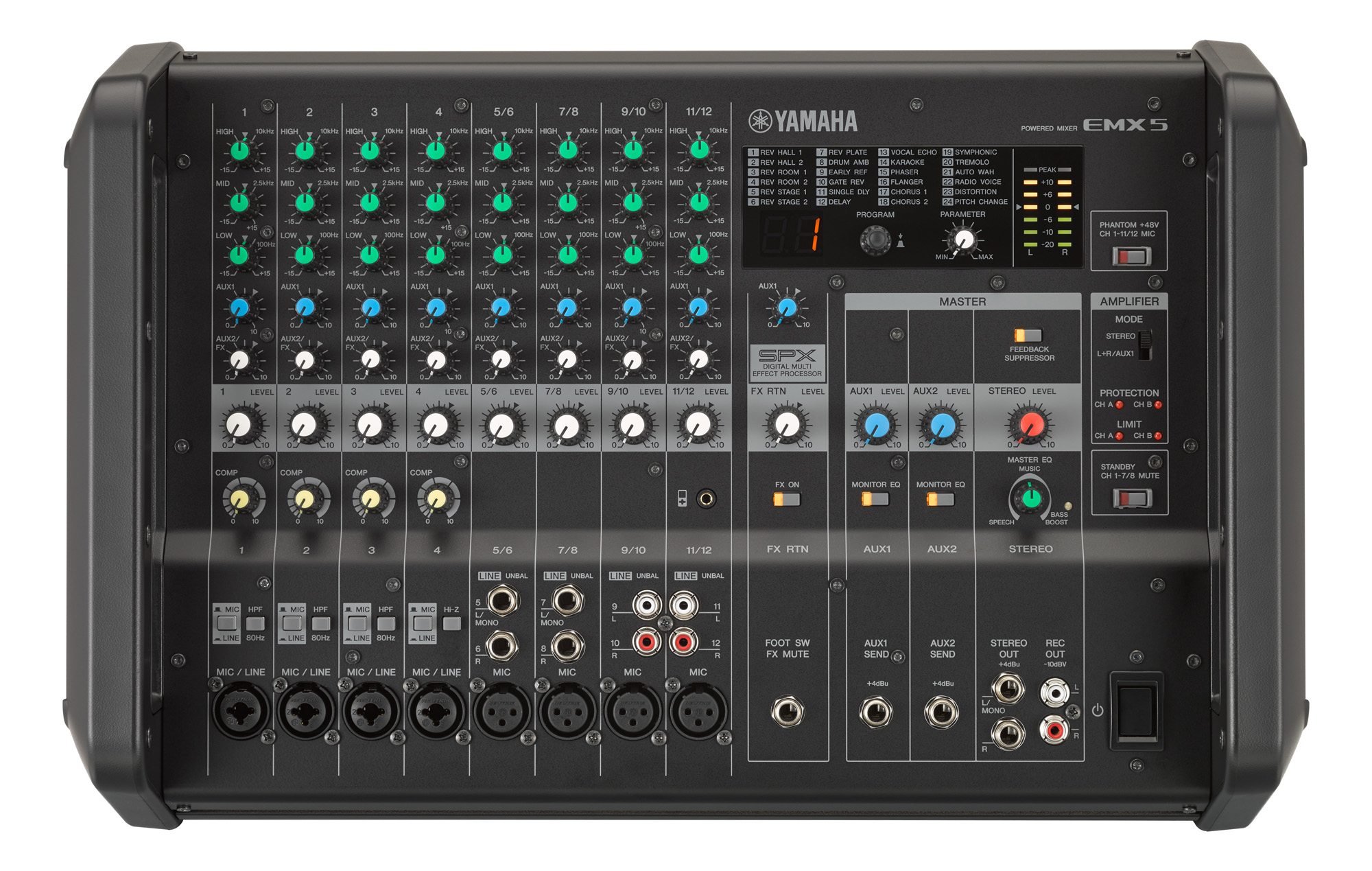

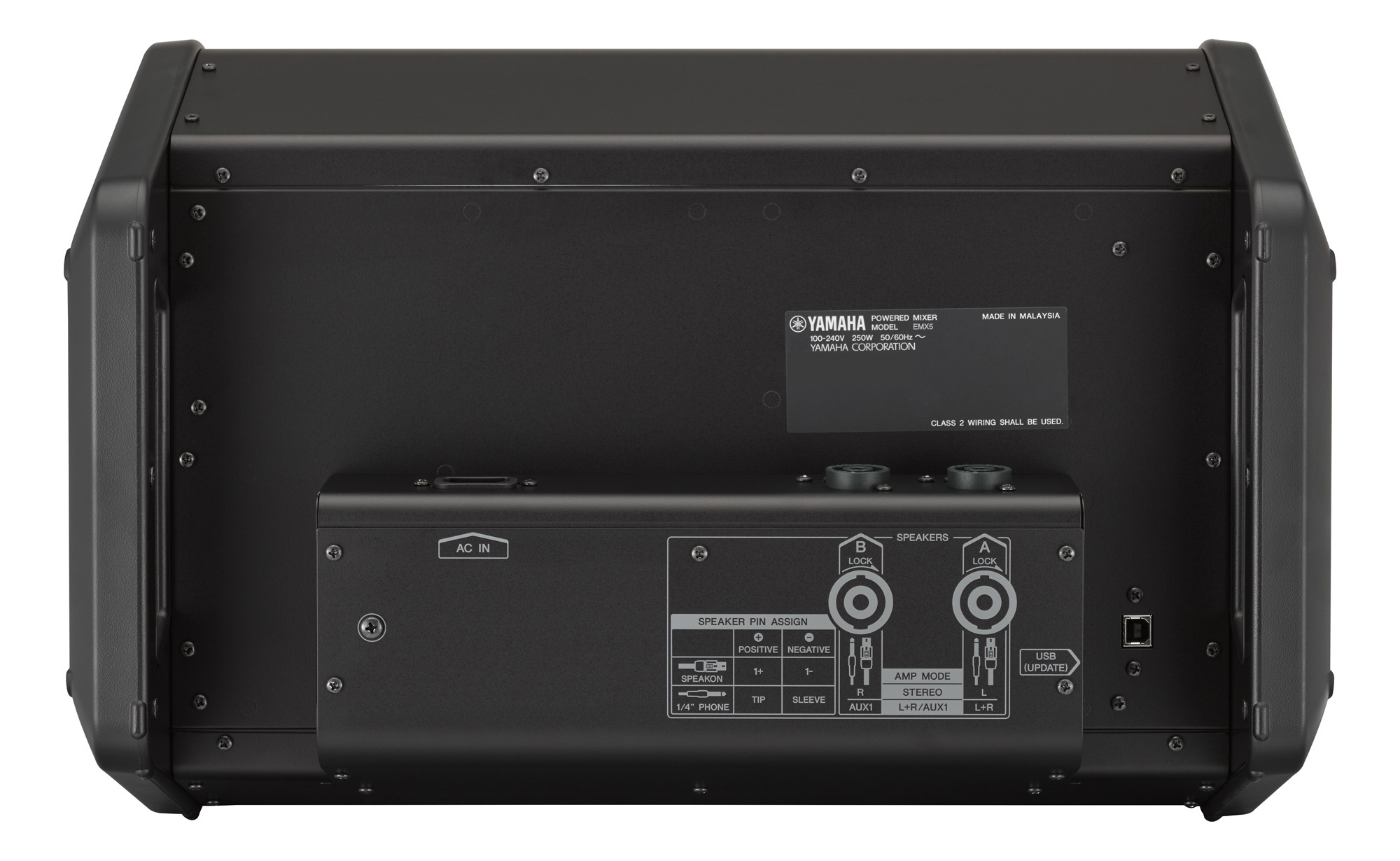

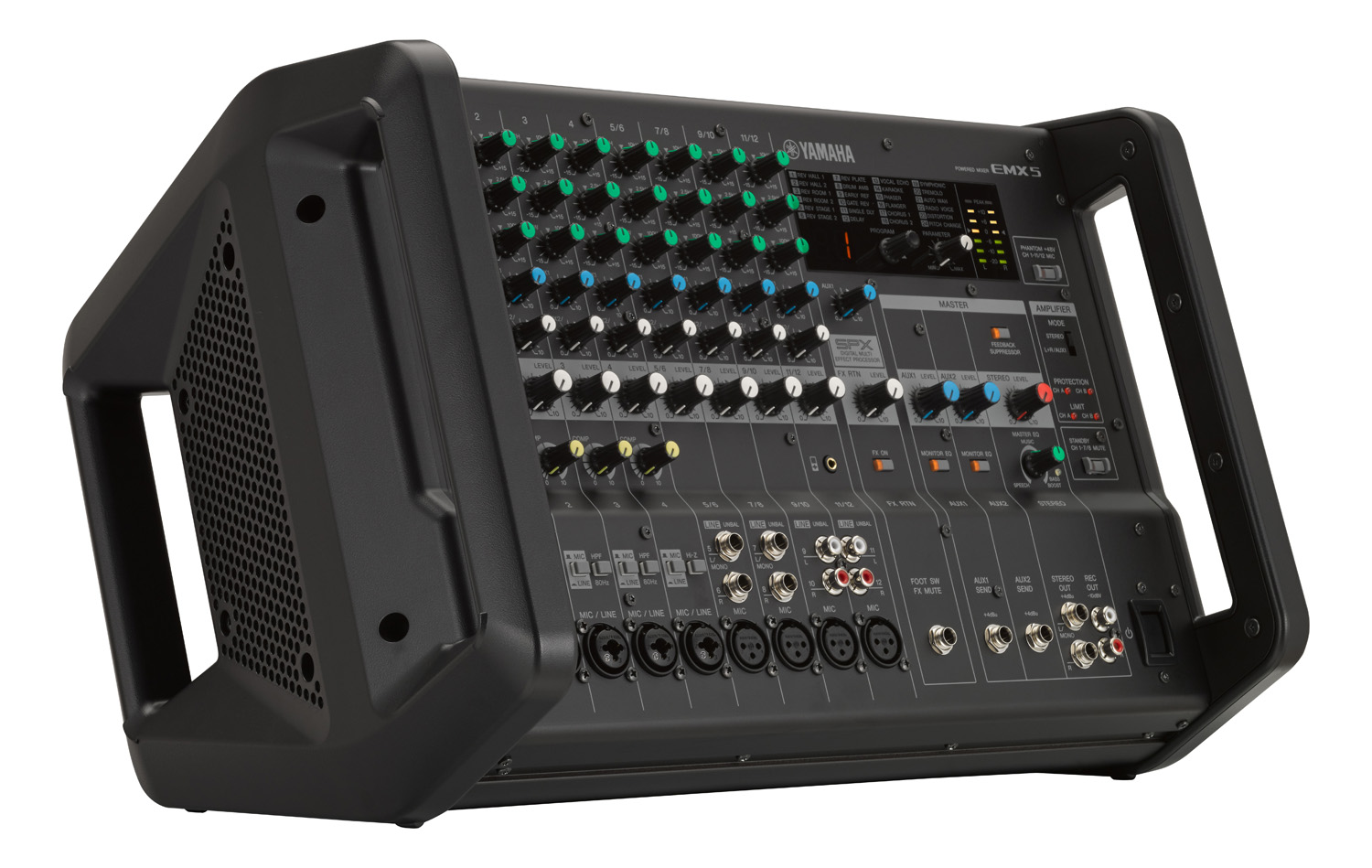

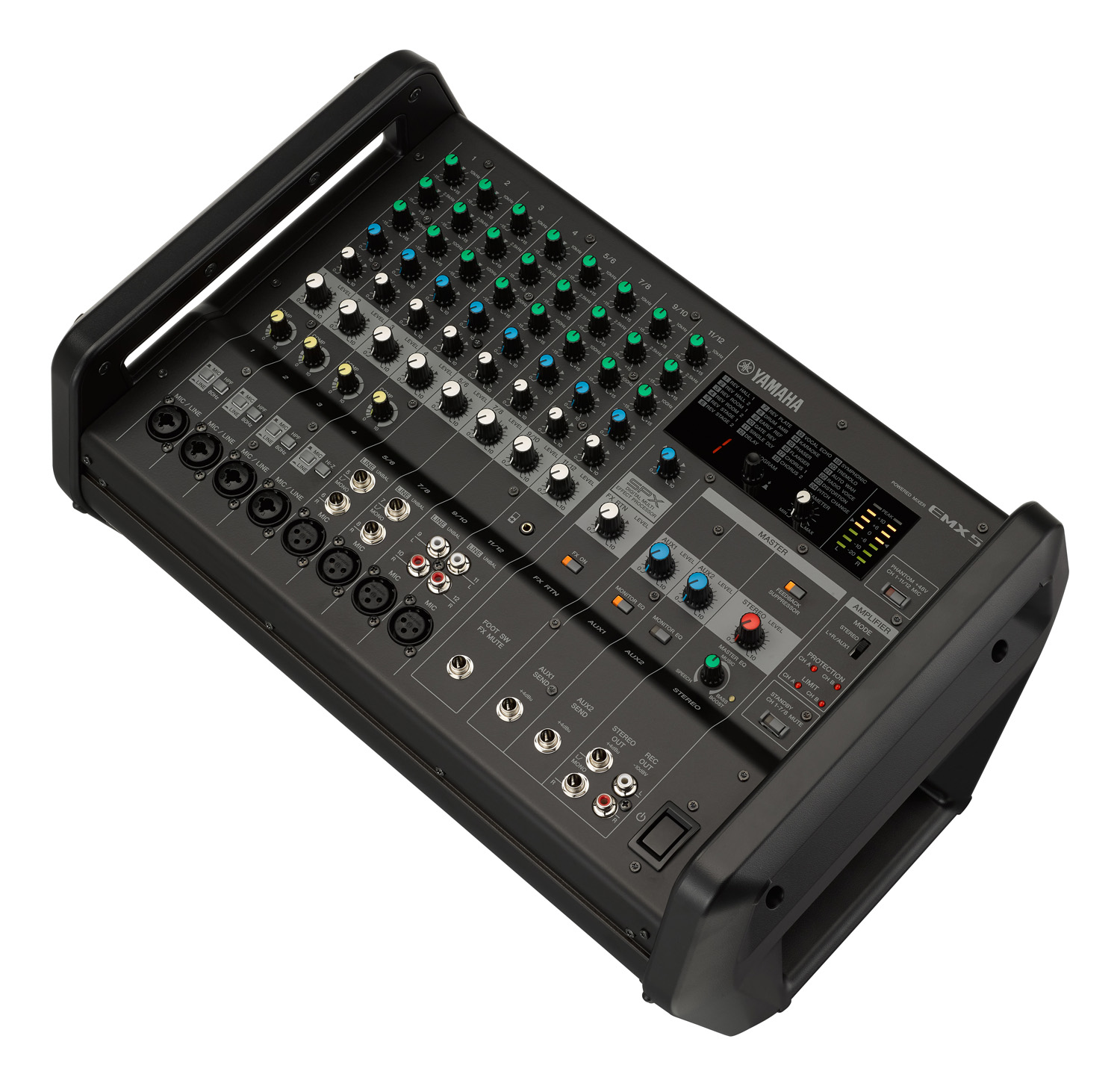

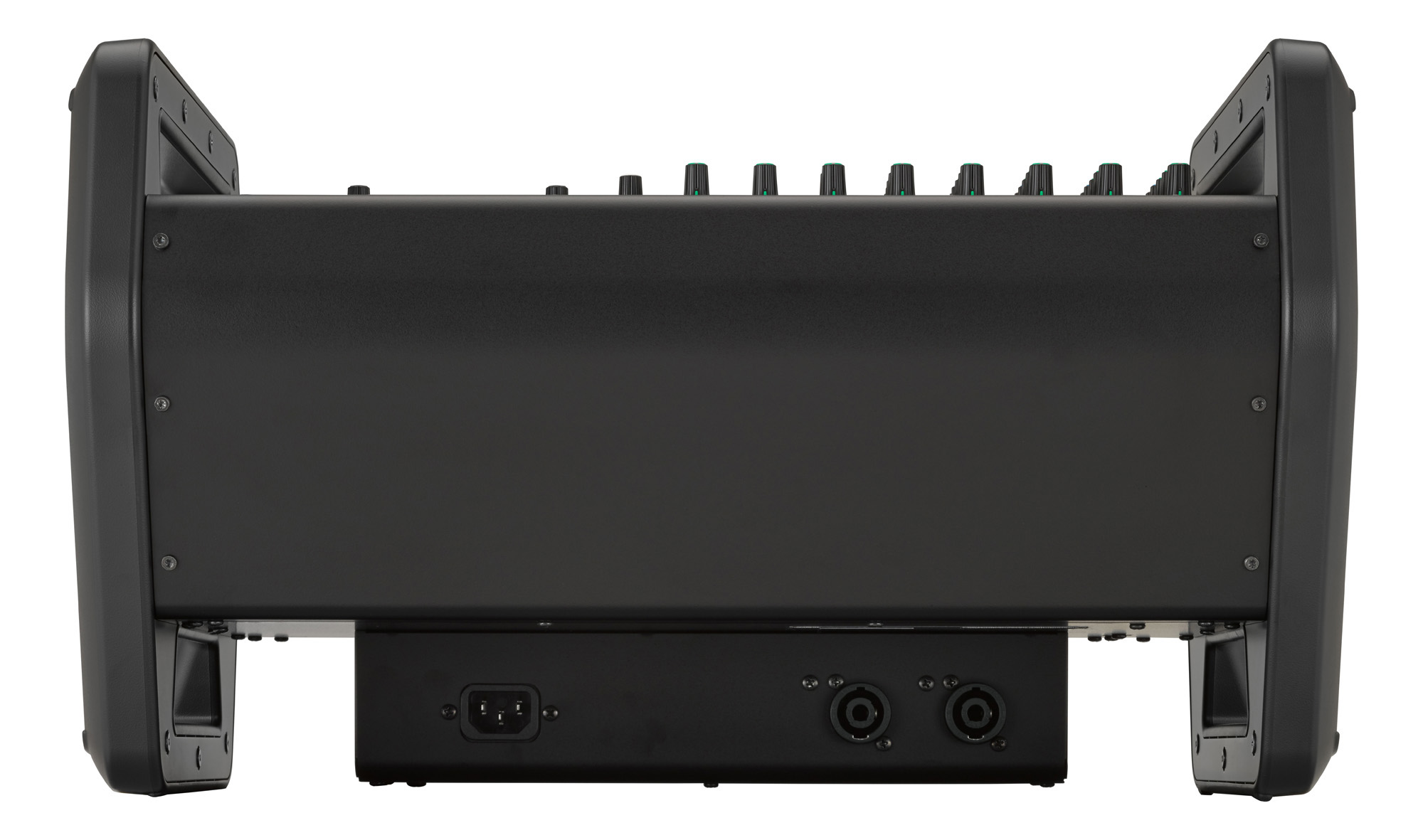

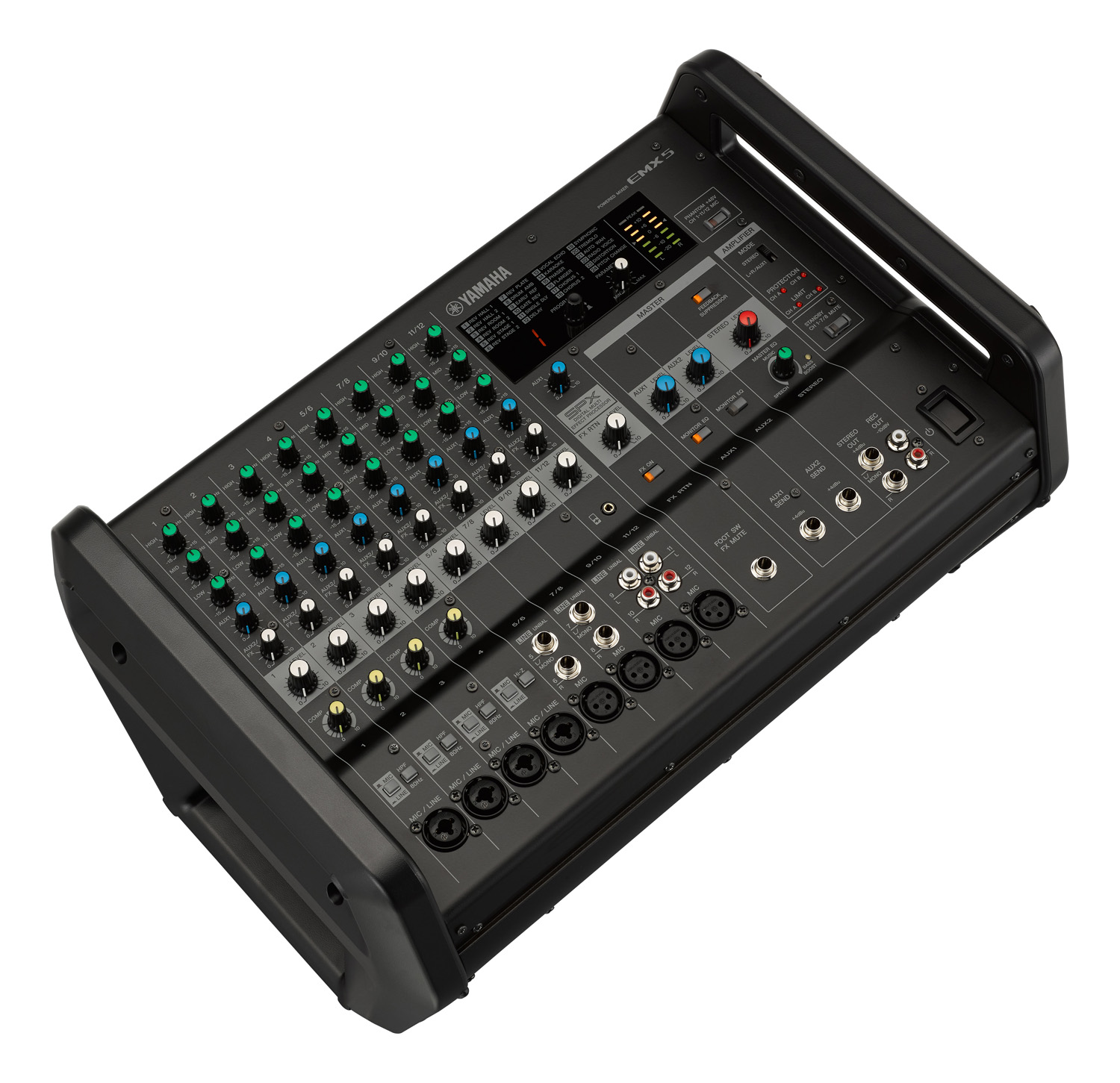

Yamaha B Grade Refurbished EMX5 Powered PA Head Mixer Amp

630w Per Channel at 4 ohms

Now £507.00
was £676.00
incl. VAT
B Grade Refurbished EMX5 Powered PA Head Mixer Amp
B Grade Refurbished EMX5 Powered PA Head Mixer Amp
B Grade Refurbished EMX5 Powered PA Head Mixer Amp
B Grade Refurbished EMX5 Powered PA Head Mixer Amp
B Grade Refurbished EMX5 Powered PA Head Mixer Amp
B Grade Refurbished EMX5 Powered PA Head Mixer Amp
B Grade Refurbished EMX5 Powered PA Head Mixer Amp
B Grade Refurbished EMX5 Powered PA Head Mixer Amp

Why we love it…

When you're gigging (and don't have your own sound engineering crew), you want to be able to set up the PA and sound as quickly as possible - and then not worry about it. The EMX5 Powered PA Head is designed for easy setup - easy access to every connection and control, easy-to-use compression and instant access high-quality built-in digital effects. And, because it's a Yamaha, build quality, sound quality and power output are world-class.

Overview

B Grade Refurbished EMX5 Powered PA Head Mixer Amp

Please note - This product may have been opened, returned by a customer, or refurbished. It could show minor cosmetic wear such as light marks or scratches, or be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.

Featuring 12 channels (8 mono channels or 4 mono + 4 stereo channels), built-in high quality effects and a massive 630 watts per channel at 4Ω, the EMX5 is versatile and powerful enough to handle most small and medium gigs.

  • 2x 630W [4Ω], 2x 460W [8Ω] (1kHz THD+N less than 10% CEA2006)
  • 2x 500W [4Ω], 2x 370W [8Ω] (1kHz THD+N less than 1% CEA2006)
  • Powerful High Efficiency Class-D Amplifier
  • 12 Line Inputs (8 mono + 4 stereo)
  • High-Z input (channel 4) to connect guitars or basses directly
  • 1-Knob Master EQ
  • Onboard Feedback Suppressor
  • Comprehensive, professional 24 different effects
  • Metal chassis for extended operation and robustness
  • Large handles for extreme portability and protection
  • Universal power supply eliminates concern on power fluctuations
  • Optional rack-mount kit available

Specs

Outline

I/OInputsTOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
Phantom power+48 V
OutputsSPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
Control and othersFOOT SWITCH : Effect Mute on/off
BusStereo: 1, AUX: 2 (Including FX)
Input Channel FunctionPAD30 dB (CH1-4)
Hi-ZSupported (CH4)
HPF80 Hz, -12 dB/oct. (CH1–3)
COMP1-knob COMP (CH1–4)
EQ HIGH10 kHz +15 dB / -15 dB (Shelving)
EQ MID2.5 kHz +15 dB / -15 dB (Peaking)
EQ LOW100 Hz +15 dB / -15 dB (Shelving)
On-board processorsDSPSPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ
On-board amplifiersMaximum output power @4ohms1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W
Maximum output power @8ohms1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W
Level Meter2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)

General specifications

Frequency responseInput to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz
Total harmonic distortionInput to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)
Hum & noise levelEquivalent input noise-117 dBu (Noise is measured with A-weighting filter)
Residual output noiseInput to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)
Crosstalk-85 dB (1 kHz, Measured with 1 kHz band pass filter)
Protection circuitLoad protectionDC-fault
Amplifier protectionOver heat protection, Over current protection, Integral power protection
Power supply protectionOver heat protection, Over current protection
Power requirementsAC 100-240V, 50Hz/60Hz
Power consumption42 W (Idle) / 210 W (1/8 Power)
DimensionsW465 mm (18 5/16")
H308 mm (12 1/8")
D325 mm (12 13/16")
Net weight9.5 kg (20.9 lbs)
AccessoriesOwner’s Manual, Technical Specifications, AC power cord (2.5 m)
OptionsFoot switch: FC5, Rack-mount brackets: RK-EMX7
OthersOperating Temperature : 0 to +40℃

(0 dBu = 0.775 Vrms, Output impedance of signal generator (Rs) = 150 Ω All level controls are at their maximum position if not specified.)

Input Characteristics

Input JackMIC/LINEHi-ZActual Load ImpedanceFor Use with NominalInput LevelConnector
Sensitivity *1Nominal Level (▼ Position) *2Max. Before Clip
CH 1–4XLRMIC-3 kΩ50–600 Ω Mics-60 dBu (0.775 mV)-43 dBu (5.48 mV)-15 dBu (138 mV)Combo jack *3 (Balanced)
LINE--30 dBu (24.5 mV)-13 dBu (173 mV)+15 dBu (4.36 V)
PhoneMIC-8 kΩ600 Ω Lines-50 dBu (2.45 mV)-33 dBu (17.3 mV)-5 dBu (436 mV)
LINE--20 dBu (77.5 mV)-3 dBu (548 mV)+25 dBu (13.8 V)
CH 4 (Hi-Z)PhoneMICON1 MΩ10 kΩ Lines-50 dBu (2.45 mV)-33 dBu (17.3 mV)-5 dBu (436 mV)Phone jack *4 (Unbalanced)
LINE-20 dBu (77.5 mV)-3 dBu (548 mV)+20 dBu (7.75 V)
CH 5/6, 7/8XLR--3 kΩ50–600 Ω Mics-60 dBu (0.775 mV)-43 dBu (5.48 mV)-15 dBu (138 mV)XLR-3-31 *5 (Balanced)
Phone10 kΩ600 Ω Lines-20 dBu (77.5 mV)-3 dBu (548 mV)+25 dBu (13.8 V)Phone jack *4 (Unbalanced)
CH 9/10, 11/12XLR--3 kΩ50–600 Ω Mics-60 dBu (0.775 mV)-43 dBu (5.48 mV)-15 dBu (138 mV)XLR-3-31 *5 (Balanced)
Pin10 kΩ600 Ω Lines-8 dBu (316 mV)+10 dBu (2.45 V)+25 dBu (13.8 V)RCA pin (Unbalanced)
CH 11/12Mini jack--10 kΩ600 Ω Lines-8 dBu (316 mV)+10 dBu (2.45 V)+25 dBu (13.8 V)Stereo mini jack *6 (Unbalanced)

(0 dBu = 0.775 Vrms)
*1 Sensitivity is the lowest level that will produce an output of +4 dBu (1.228 V) or the nominal output level when the unit is set to maximum gain. (All level controls are at their maximum position.)
*2 Level controls setting : Channel level controls are at their t position. Master level controls are at their maximum position.
*3 1&Sleeve = GND, 2&Tip = HOT, 3&Ring = COLD
*4 Tip = Signal, Sleeve = GND
*5 1 = GND, 2 = HOT, 3 = COLD
*6 Tip = LEFT, Ring = RIGHT, Sleeve = GND

Output Characteristics

Output JackActual Source ImpedanceFor Use with NominalOutput levelConnector
NominalMax. Before Clip
STEREO OUT L, R600 Ω10 kΩ Lines+4 dBu (1.228 V)+20 dBu (7.75 V)Phone jack *1 (Impedance balanced)
AUX SEND 1, 2600 Ω10 kΩ Lines+4 dBu (1.228 V)+20 dBu (7.75 V)Phone jack *1 (Impedance balanced)
REC OUT L, R600 Ω10 kΩ Lines-10 dBV (0.308 V)+18 dBV (7.75 V)RCA pin (Unbalanced)

(0 dBu = 0.775 Vrms 0 dBV = 1.00 Vrms)
*1 Tip = HOT, Ring = COLD, Sleeve = GND

Speaker Output Characteristics

Output JackActual Source ImpedanceFor Use with NominalOutput levelConnector
1 kHz THD+N < 1% (CEA2006)1 kHz THD+N < 10% (CEA2006)
SPEAKERS A, B< 0.1 Ω4 Ω Speakers600 W710 WspeakON NL4 *1 Phone jack *2
8 Ω Speakers400 W500 W

(0 dBu = 0.775 Vrms)
*1 1+ = Positive, 1- = Negative
*2 Tip = Positive, Sleeve = Negative

Product IDCEMX5UK-UKLC
