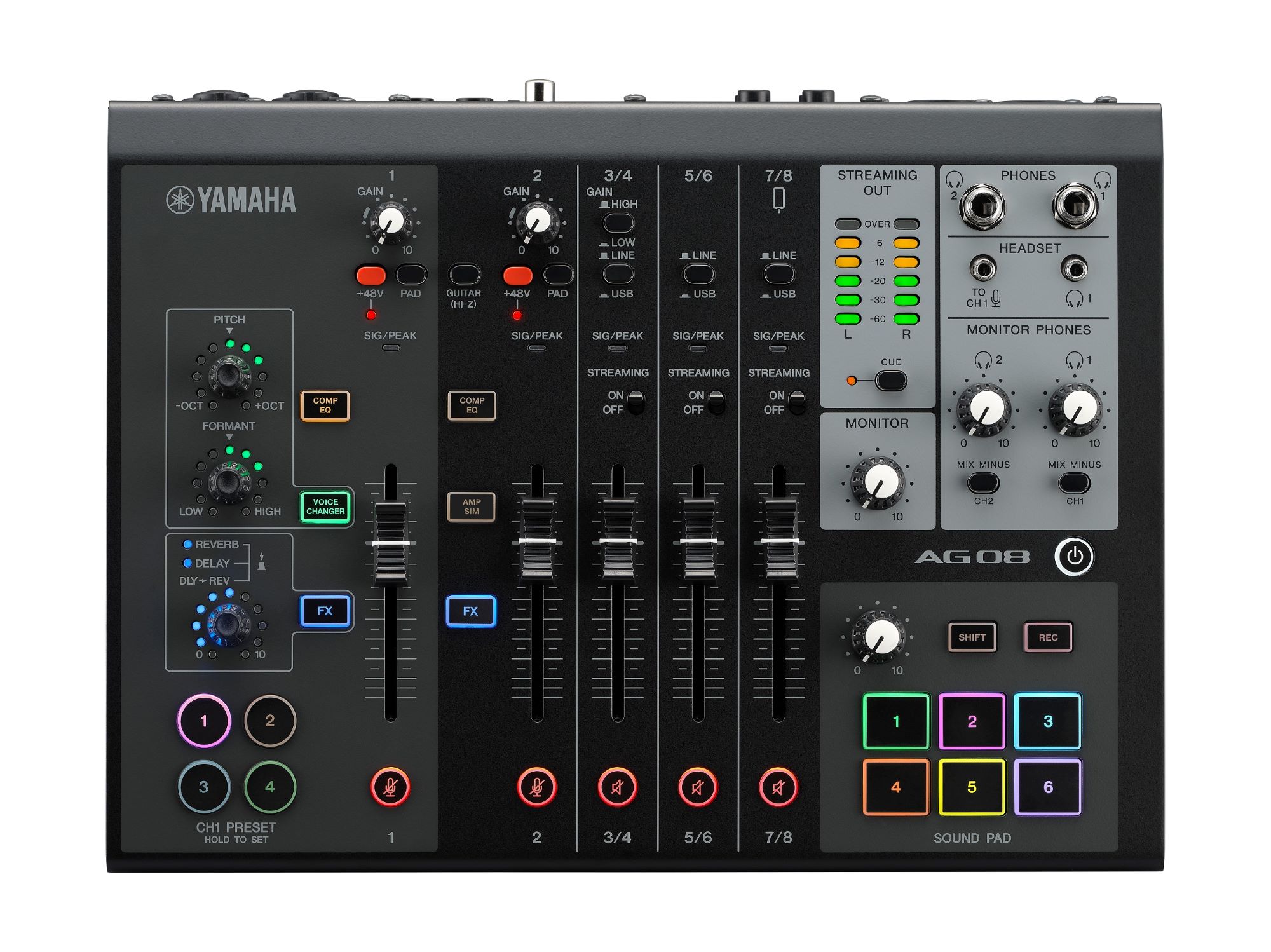

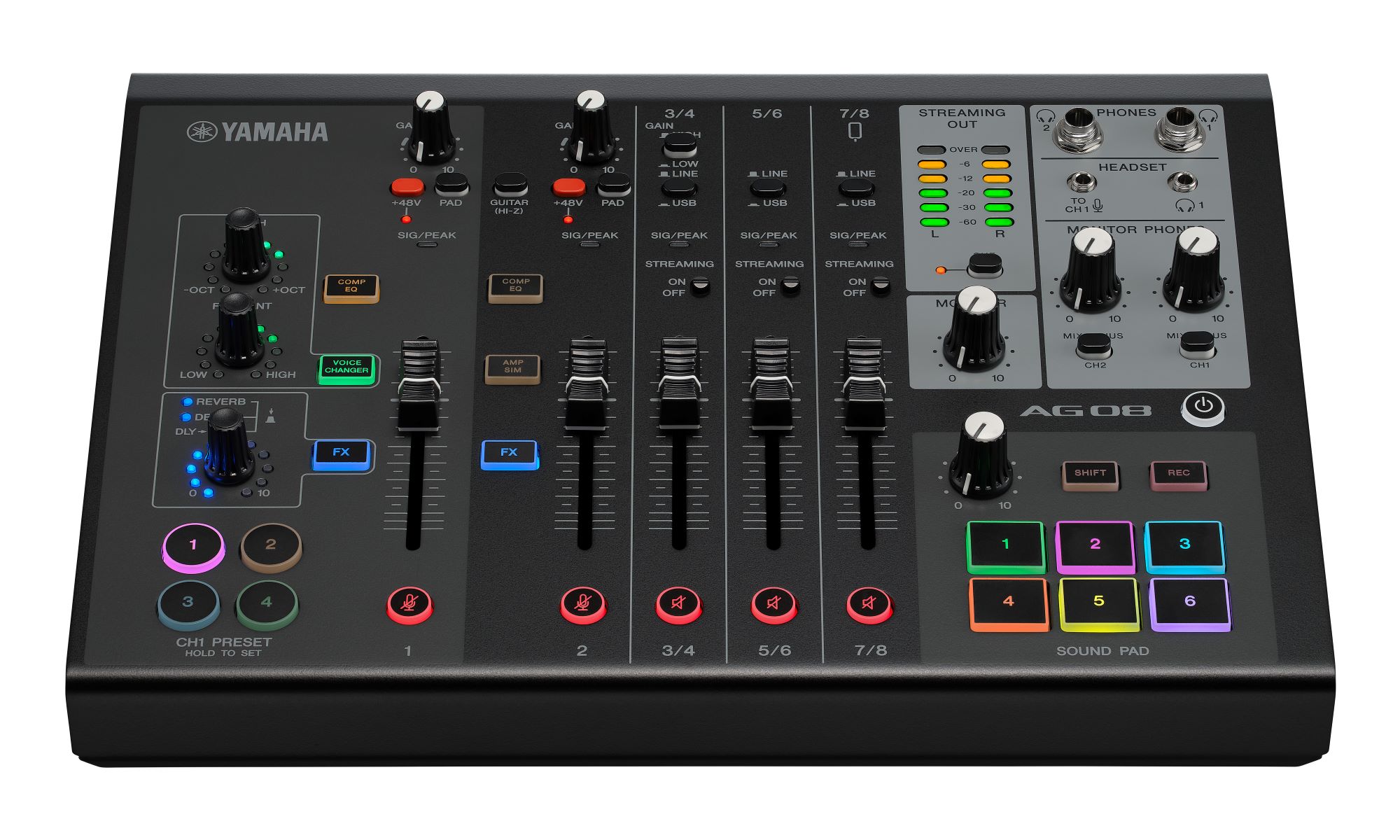

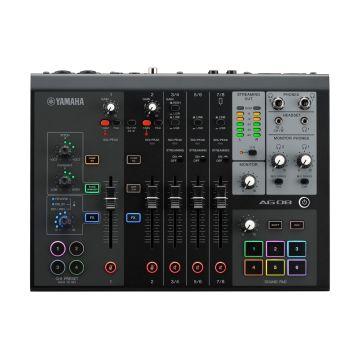

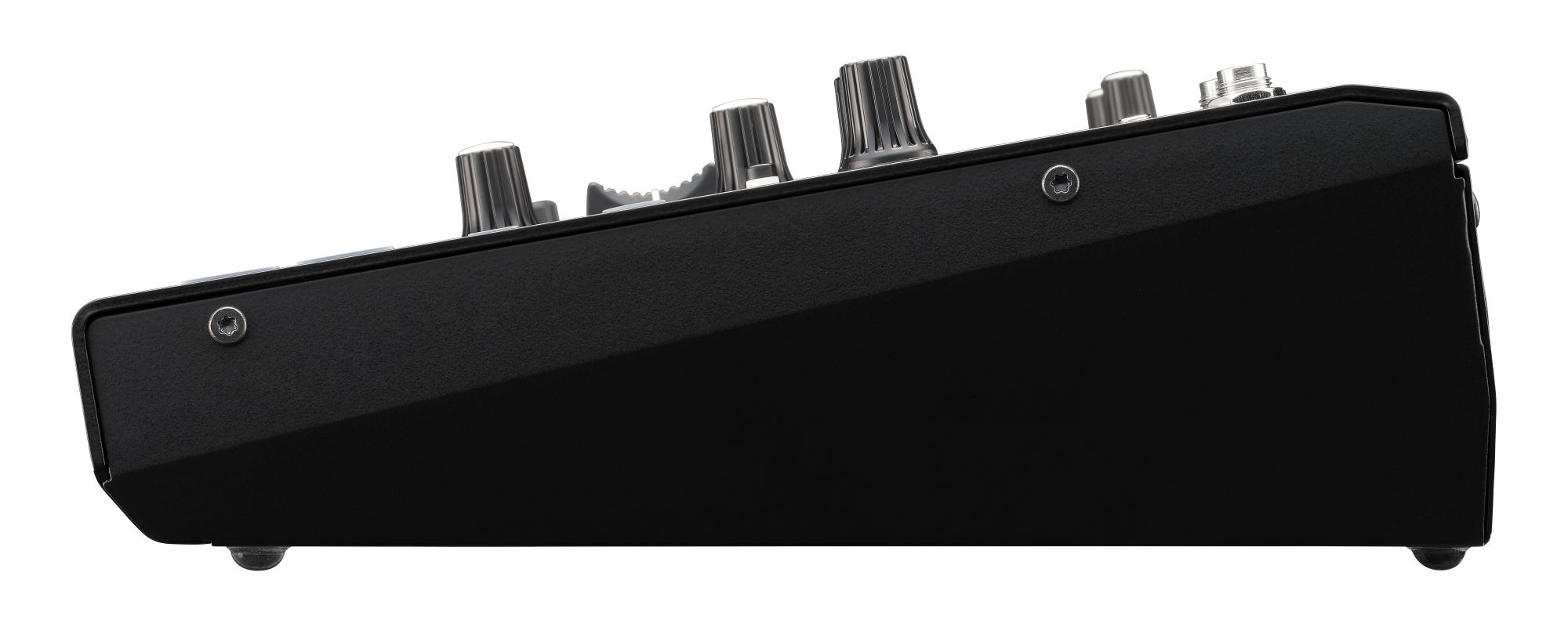

Yamaha A Grade Refurbished AG08 Live Streaming Mixer

Name: A Grade Refurbished AG08 Live Streaming Mixer In Black
Brand: Yamaha
SKU: CAG08BLUK-UKLB
Price: 309.00 GBP
Availability: OutOfStock

In Black

Overview

Yamaha AG08 Live Streaming Mixer

An 8-channel live streaming mixer featuring two phantom power inputs for condenser mics, an integrated USB audio interface, voice changer and sampler.

Two mic/line inputs and two headphone outputs can be used simultaneously
+48 V phantom power on CH1 and 2 for condenser mics or Dl boxes
Four FX preset buttons for CH1, Hi-Z input for guitars on CH2
Three stereo inputs with assignable faders, switchable input source for LINE/USB
4-pole mini input/output (TRRS) on CH7/8

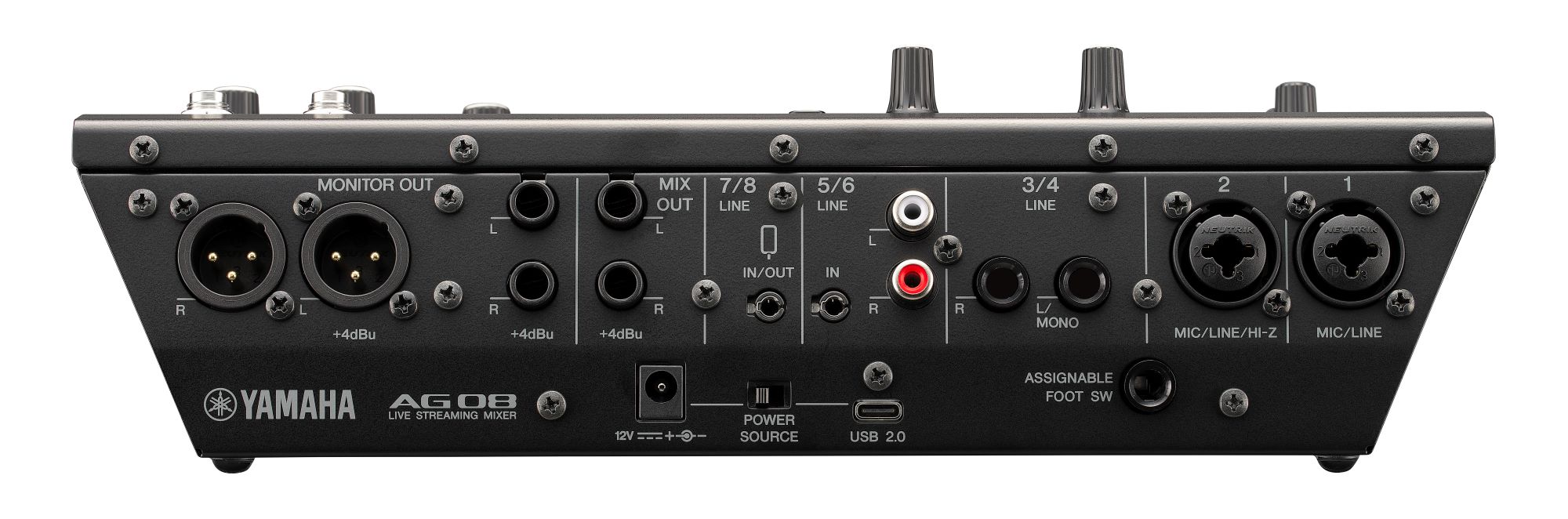

MONITOR outputs (XLR + TRS) and MIX outputs (TRS)
Six sound pads trigger audio samples in real time to add color to live streams
Internal circuitry delivers highest sound-quality in the AG series
24-bit, 48 kHz Multi-channel audio recording and playback (Coexistence of ASIO and WDM)
Flexible inputs and outputs ideal for live streaming
DSP effects (Voice Changer, Amp Simulator, Comp, EQ, Reverb, Delay, Ducker, Maximizer)
AG08 Controller (Windows / Mac / iOS) for precise parameter control and detailed audio management
60 mm faders and Mute buttons for each input
Foot switch functionality for more versatile system control
Windows / Mac support via USB-C connection
iOS connectivity via Apple Camera Adapter (requires external USB power supply)
Android supported by 4-pole mini input/output (TRRS)
USB-C power input (5 V DC, 1.5 A)
Cubase Al, WaveLab Cast, Cubasis LE are available

Please note - This product may have been opened, returned by a customer, or refurbished. It could show minor cosmetic wear such as light marks or scratches, or be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.

Specs

Input Channels

Mono[MIC/LINE] : 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8”) stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
Stereo[LINE] : 3 - CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS)
AUX : 1 - Stereo mini
Smartphone : 1 - 4-pole mini input/output (TRRS)
USB : 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, FROM DAW)

Output Channels

PHONES : 2 - CH1: 6.3 mm (1/4") Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONES
Smartphone : 1 - 4-pole mini input/output (TRRS)
MONITOR OUT : 2 - LR Stereo: XLR, 1/4 TRS Phone
STEREO OUT : 1 - MIX: LR stereo TRS Phone
USB : 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out *In Windows environment, ASIO channel and USB 2.0 exist independently. Please check the block diagram for details.

Bus : 4 Stereo

Functions : MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2)
On-board processors - DSP : Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer *Detail is operated on AG Controller
USB - USB Audio : 8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input : 1 - Type-C, 5 V DC, 1.5 A

General specifications

Power requirements : DC 12 V, 1.5 A / USB-C 5 V, 1.5 A
Power consumption : Max. 7.5 W
Dimensions : W 290 mm (11.5"), H 88 mm (3.5"), D 222 mm (8.8")
Net weight : 2.2 kg (4.9 lbs)
Included Accessories : AC adapter PA-150B, USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others : Operating Temperature: 0 to + 40 ?

Product ID	CAG08BLUK-UKLB
