Overview
4 x 6 USB 2.0 audio interface with 2x D-PREs and 3x3 monitoring matrix.
Please note - This product may have been opened, returned by a customer, or refurbished. It could show minor cosmetic wear such as light marks or scratches, or be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.
Features
4 x 6 USB 2.0 audio interface with 2x D-PREs and 3x3 monitoring matrix

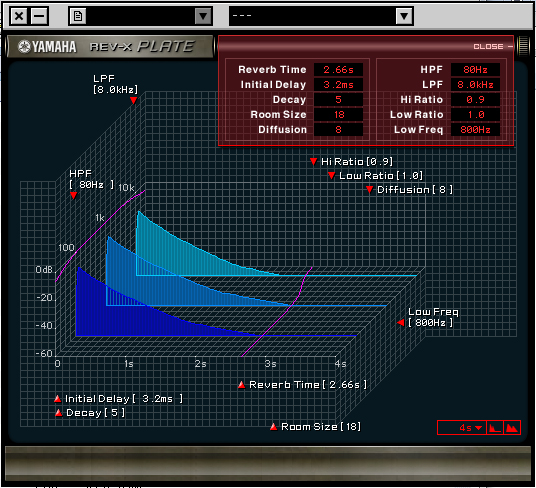

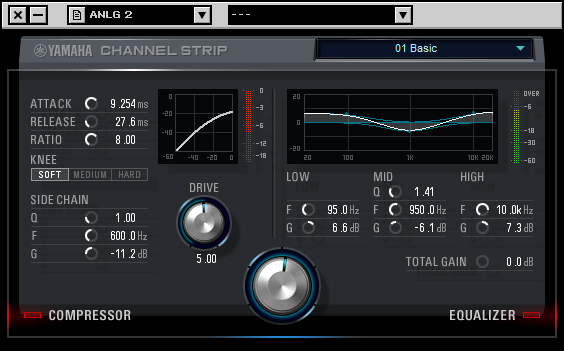

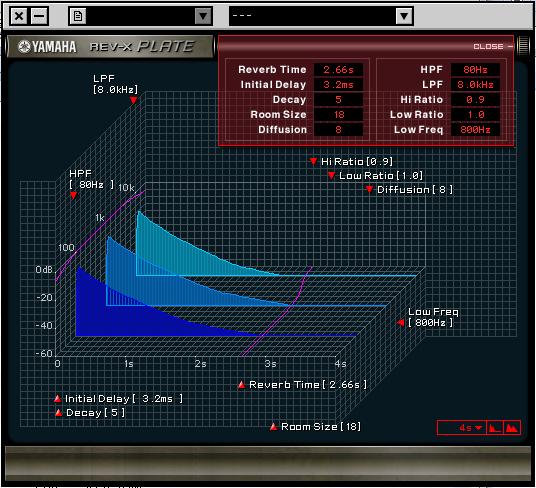

Boasting high-resolution audio through its analog and digital I/O alongside the widely acclaimed D-Pre mic preamps makes the UR28M desktop interface the best choice for individual musicians and producers of small-scale projects. The 3x3 monitor matrix for switching between setups, the DSP-powered monitoring and native VST 3 plug-ins in the UR28M provide an eminently flexible recording experience.

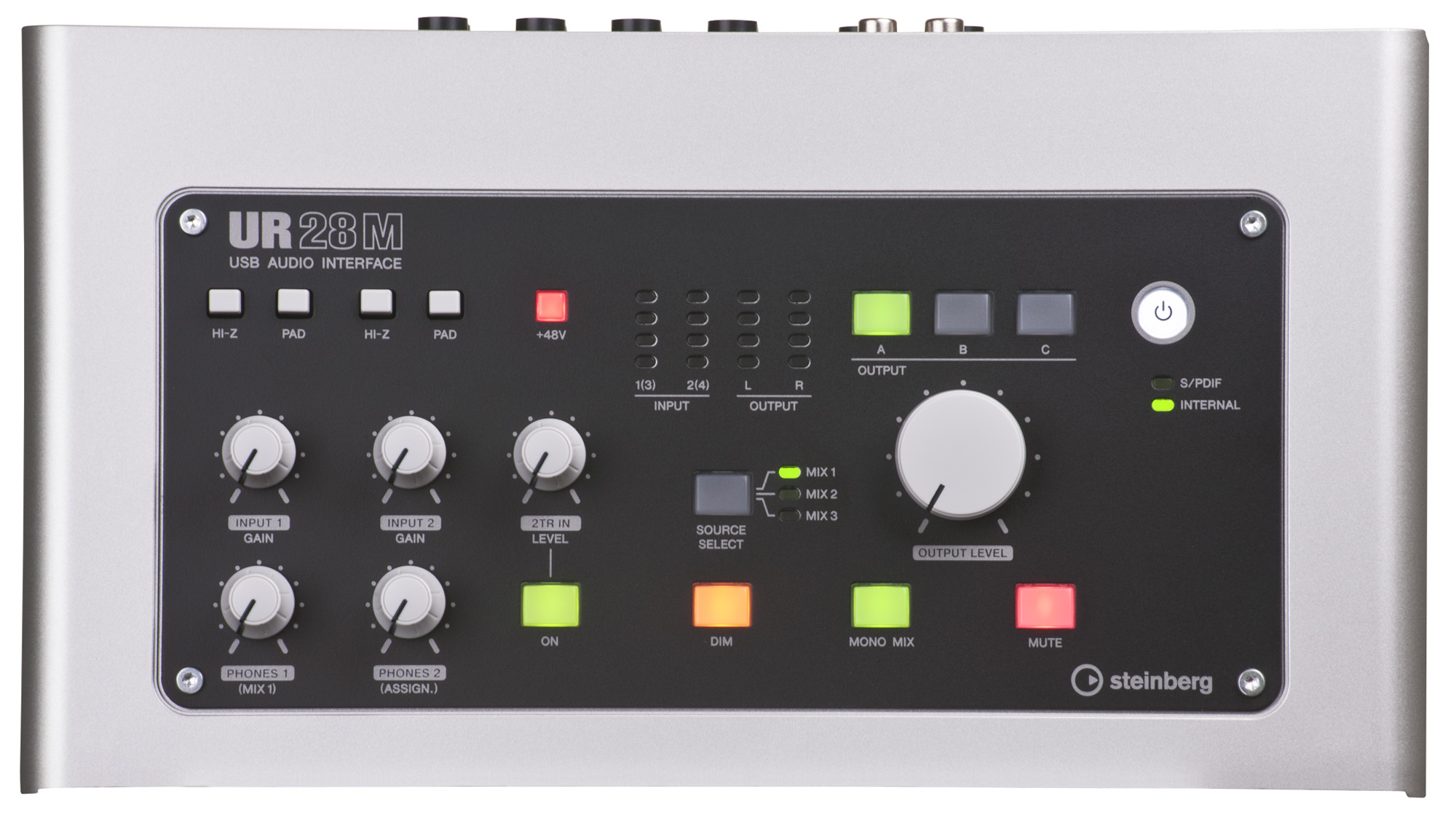

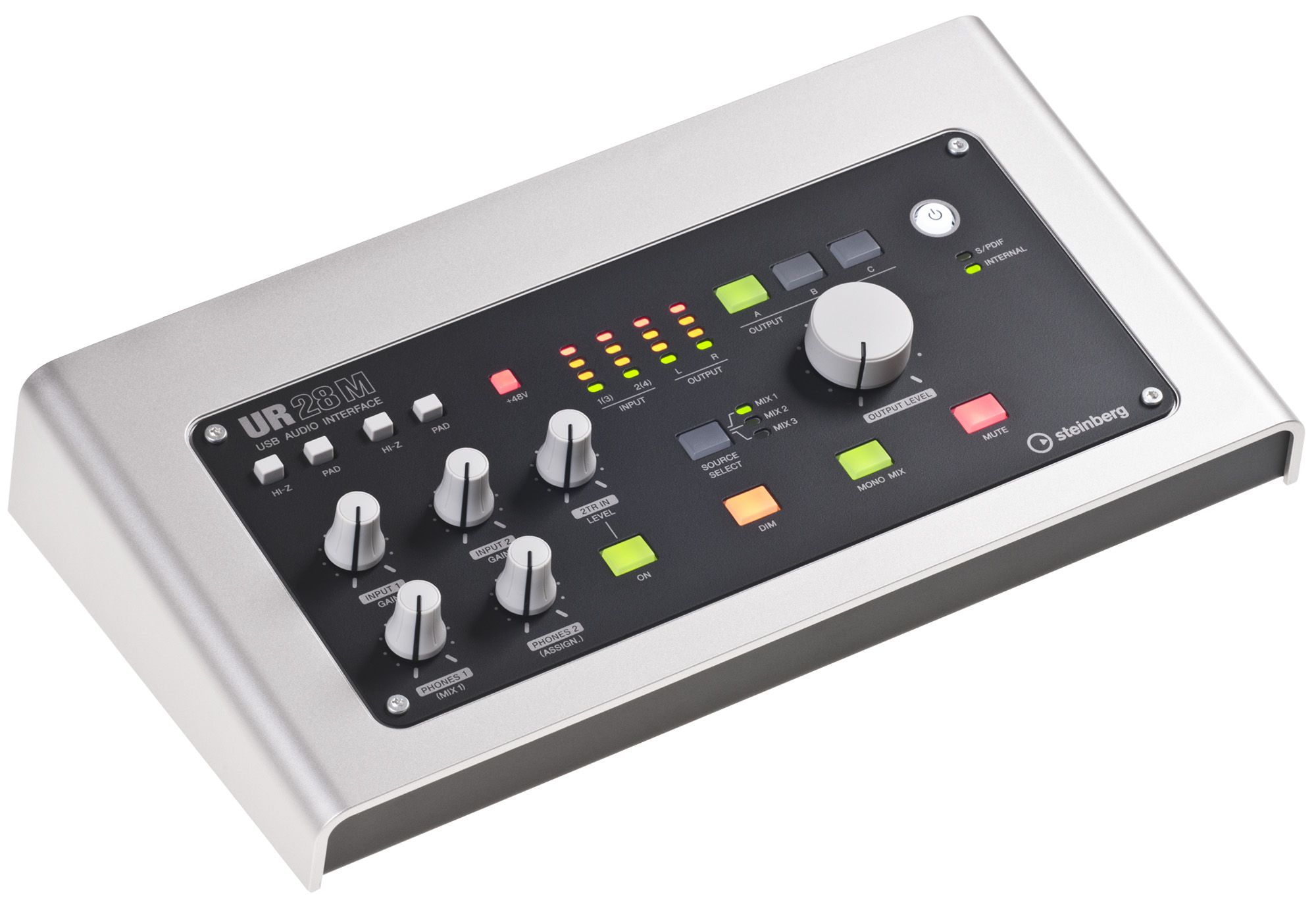

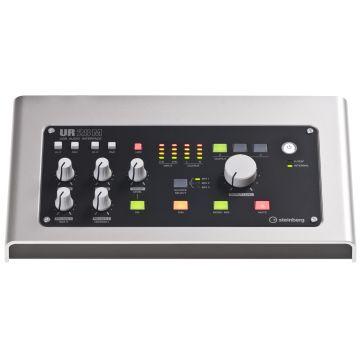

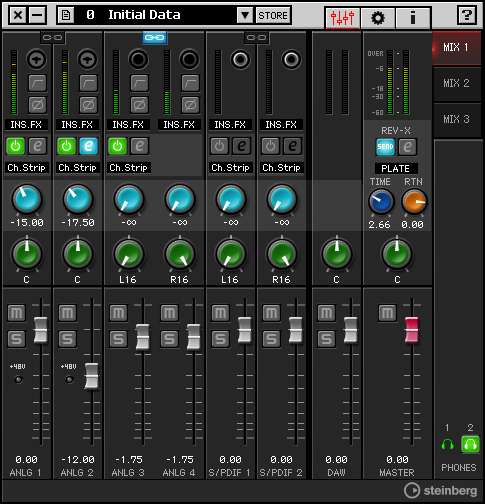

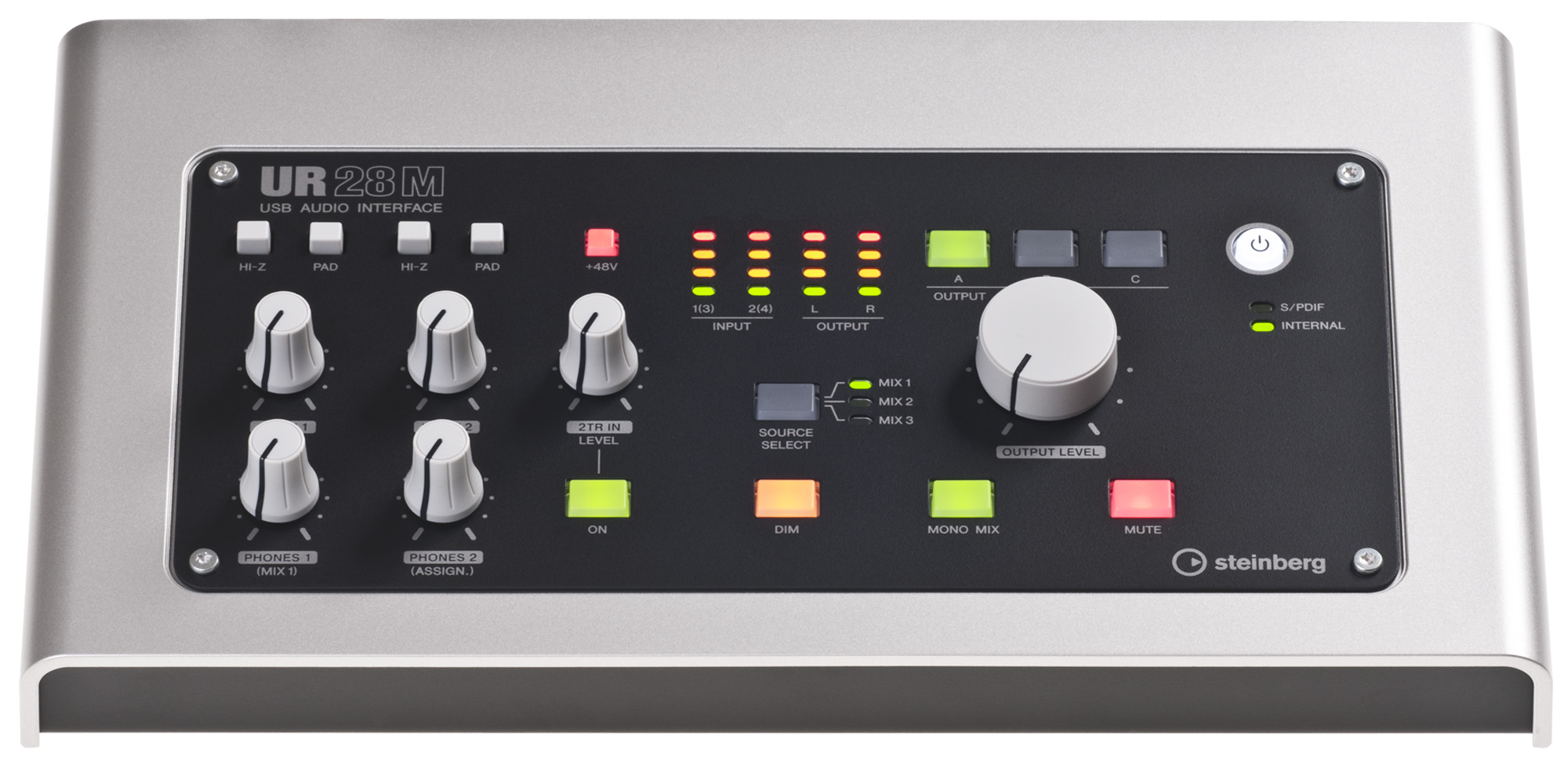

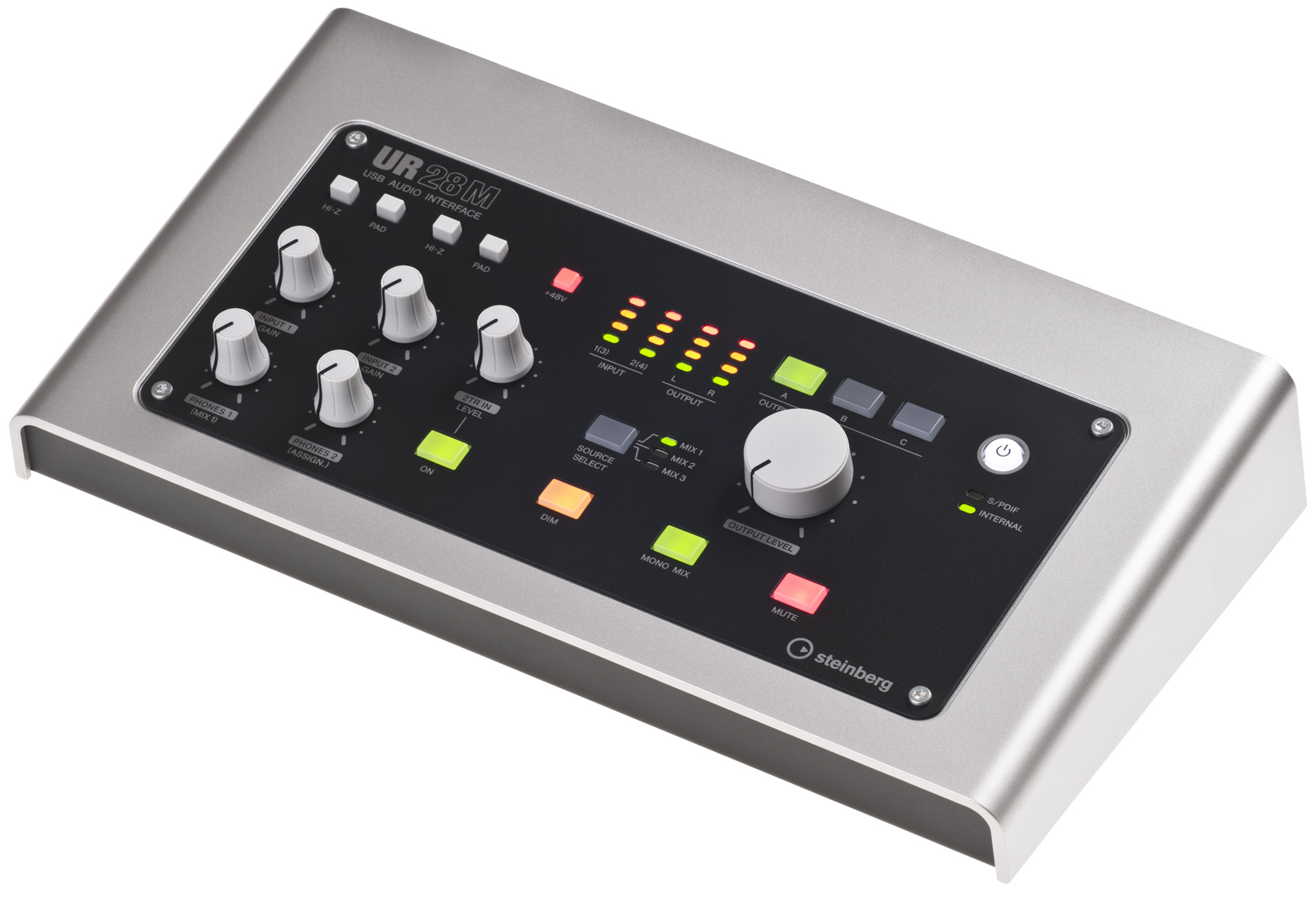

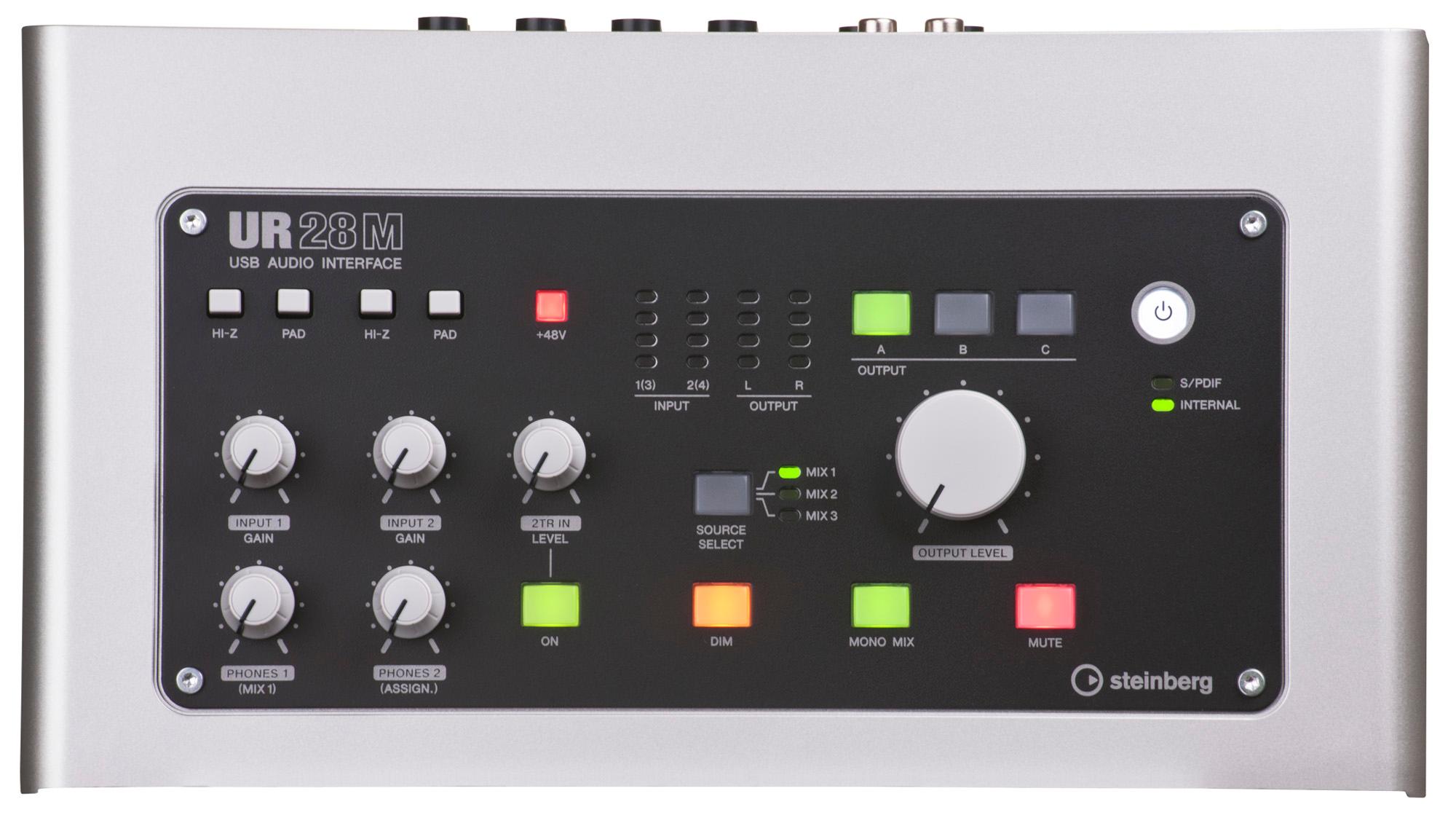

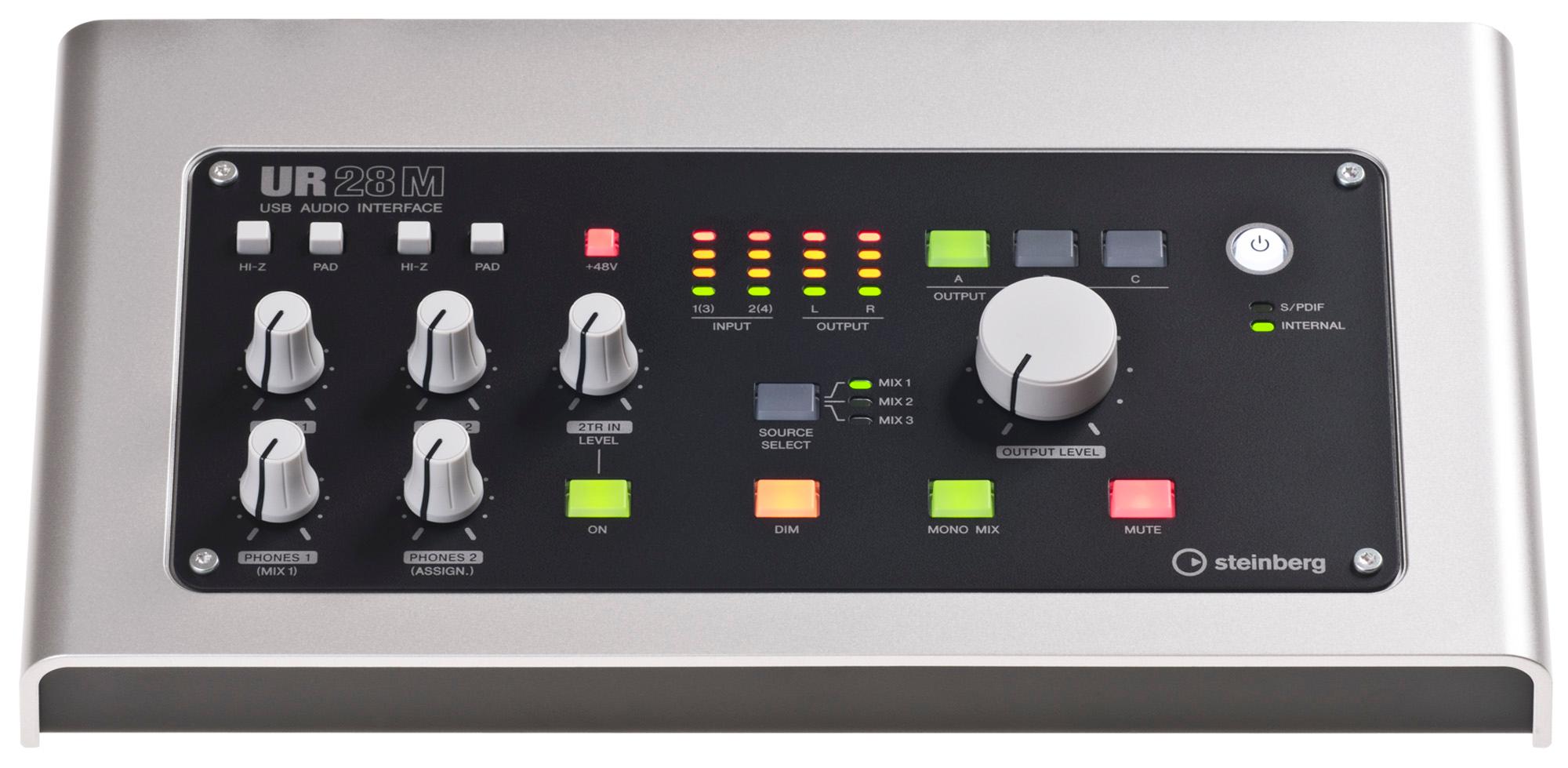

Designed for easy access to controls and connectors, the UR28M’s console comes with a single prominent output volume knob for individually controlling the levels of one of three stereo output pairs or the levels of six outputs simultaneously. You can also select between three monitoring mixes set up in the dspMixFx mixer or Cubase which is routed to the selected outputs. Several smaller rotary knobs to control signal levels of inputs 1 and 2 and the levels of the two headphone outputs, while further dedicated switches for inputs 1 and 2 allow you to employ 48 volt phantom power, 26 dB signal attenuation and connecting high-impedance instruments. Other controls include the Dim button for attenuating all line output signals by 20 dB, the Mono button and the Mute button for muting the selected output signal.

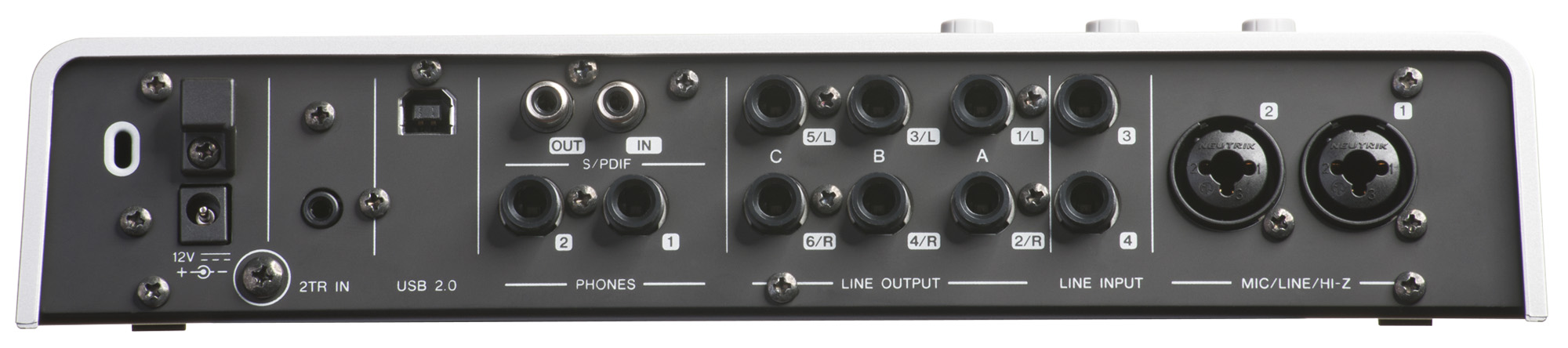

The rear panel provides two TRS line inputs and two Neutrik combo TRS/XLR mic/line inputs alongside six analog balanced TRS outputs plus a coaxial S/PDIF input and output connector. Also included is a 1/8 inch stereo input jack for connecting to a portable audio player or other devices as a reference source
Best setups for your gear
The UR28M represents a top-notch recording system with plenty of inputs and outputs to connect to microphones, instruments, studio monitors and headphones. There’s a USB connector to hook up to either your Mac or PC that lets you record and mix your productions with the included Cubase AI workstation or other audio software.
And with the free update to version 2, the UR28M also works with the iPad (2 or later) through Apple’s iPad Camera Connection Kit allowing you to record up to four input channels in an iOS audio application, such as Steinberg’s Cubasis.
Specs
UR28M
Mac OS X | Windows |
Firmware Ver. 2.0: Mac OS X 10.7 / 10.8
Firmware Ver. 1.0 - 1.1: Mac OS X version 10.5.8 / 10.6 / 10.7 / 10.8 | Firmware Ver. 2.0: Windows 7 SP1 / Windows 8
Firmware Ver. 1.0 - 1.1: Windows XP/Vista/Windows 7/Windows 8 |
| Intel dual core CPU | Intel or AMD dual core CPU |
2 GB RAM |
4 GB of free HD space |
Display resolution of 1280x800 recommended |
DVD-ROM dual-layer drive |
USB 2.0/3.0* port * Tested with the USB 3.0 host controller on the Intel chipset. Please read the knowledge base article. |
Internet connection required for installation, activation, account setup and personal / product registration. To complete the Cubase AI installation, a download of approximately 500 MB is required. |
291 x 59 x 164 mm, 1.4 kg (excluding power adapter) |
