Overview

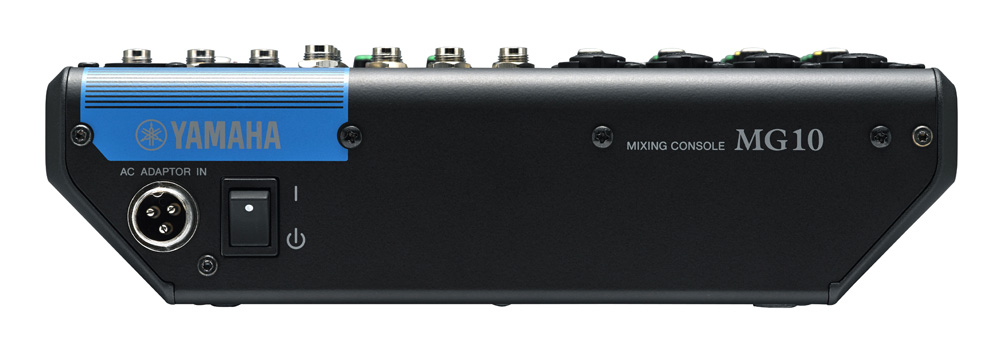

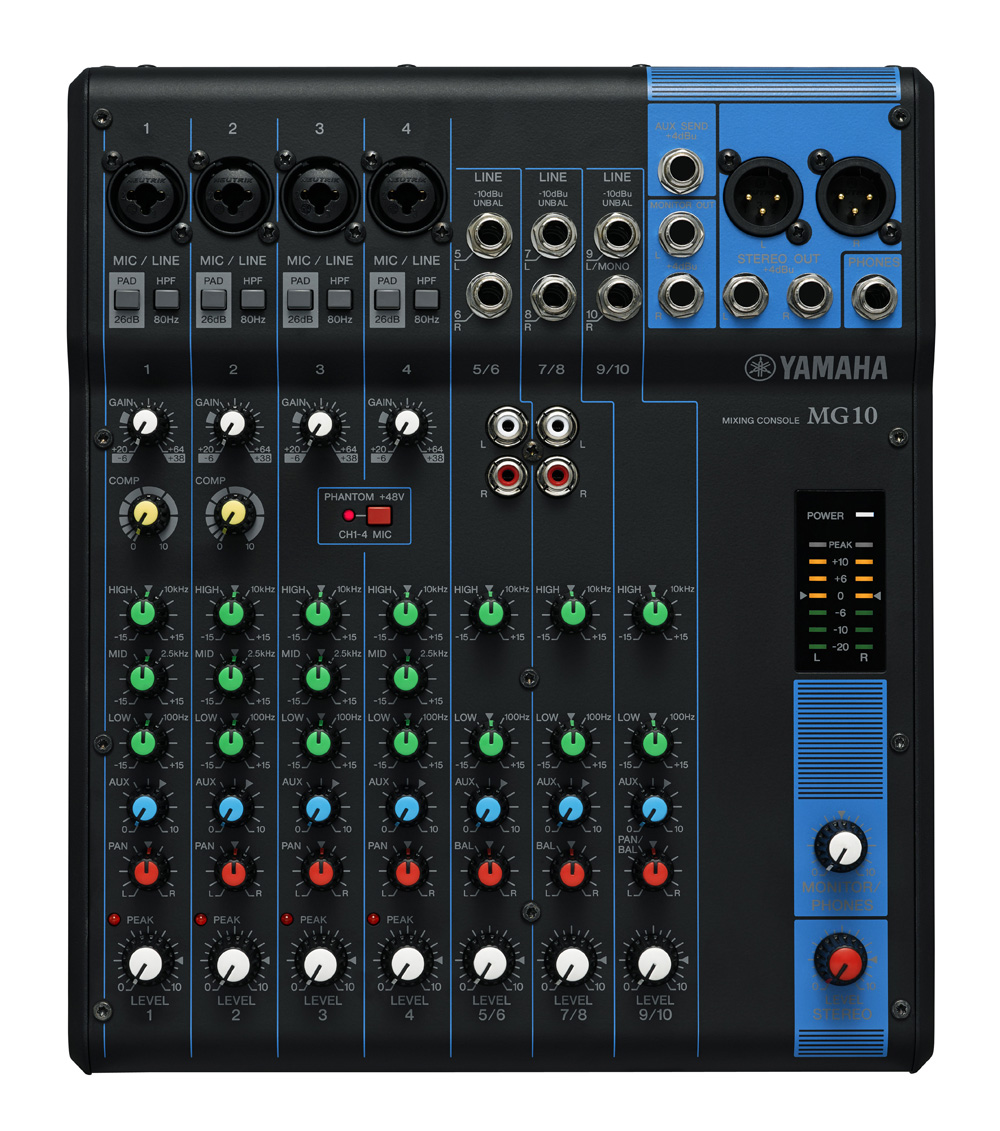

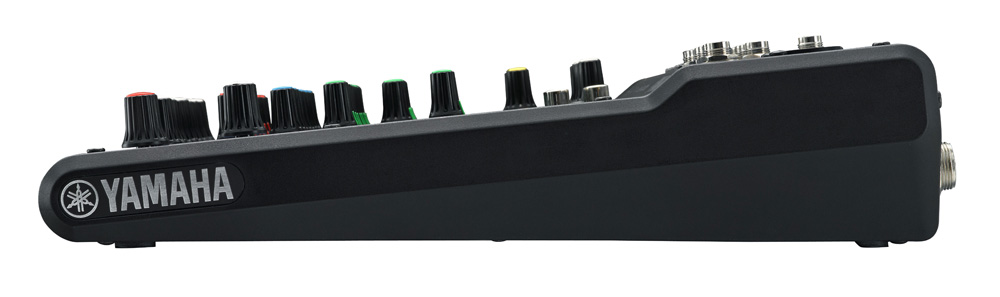

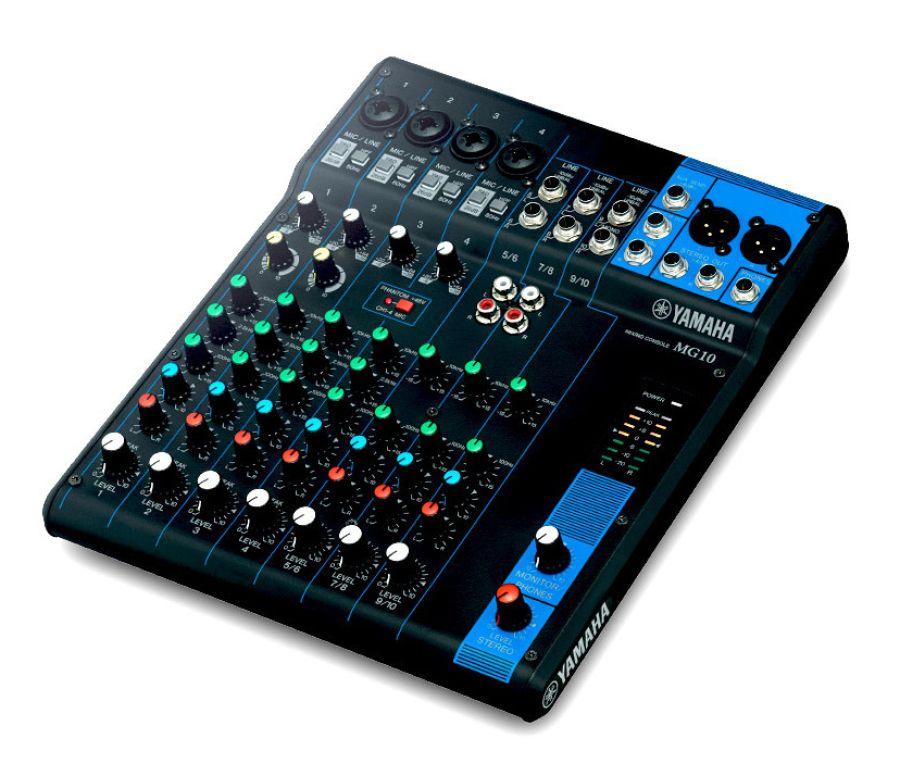

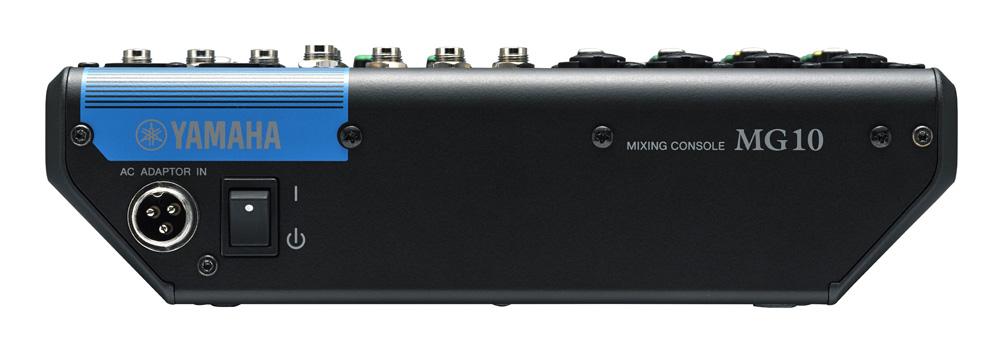

B Grade Refurbished MG10 Mixer (3rd Generation)
Please note - This product may have been opened, returned by a customer, or refurbished. It could show minor cosmetic wear such as light marks or scratches, or be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.
Completely redesigned for the 3rd Generation of MG mixers, the compact MG10 features 4 class leading Class A D-PRE microphone preamps.
Features
The MG10 has the following features:
- 10-Channel Mixing Console
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Metal chassis
- Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
- Net Weight: 1.9 kg (4.19 lbs.)
Specs
Outline
- I/O Phantom power +48 V
- Input Channels
Mono[MIC/LINE] 4
Stereo[LINE] 3 - Output Channels
STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 1 - Bus Stereo: 1, AUX[FX]: 1
- Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
| Product ID | CMG10UKYEM-UKLC |
|---|
