Overview

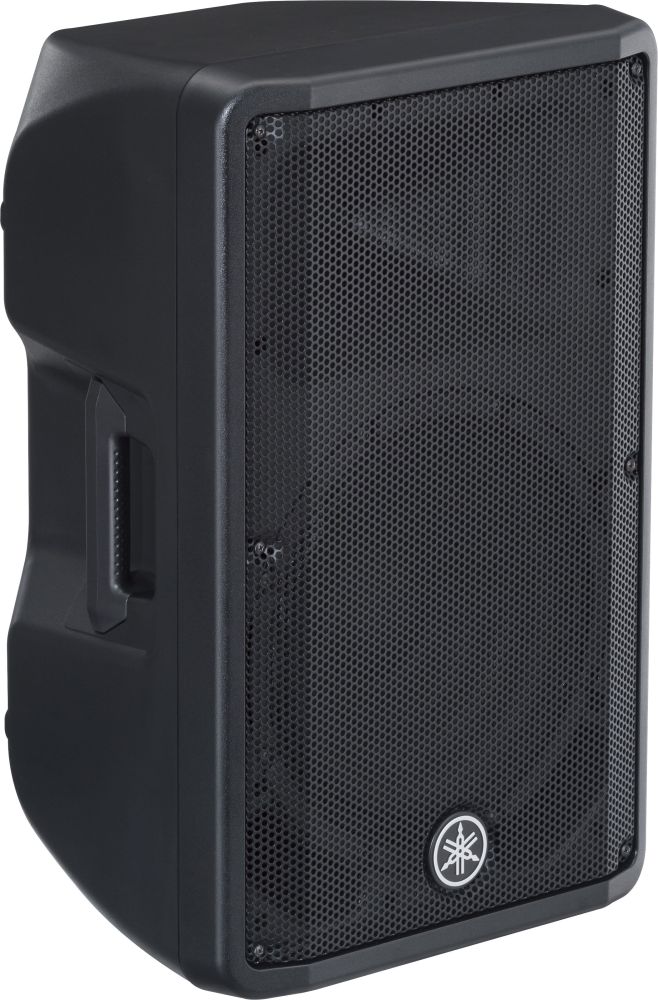

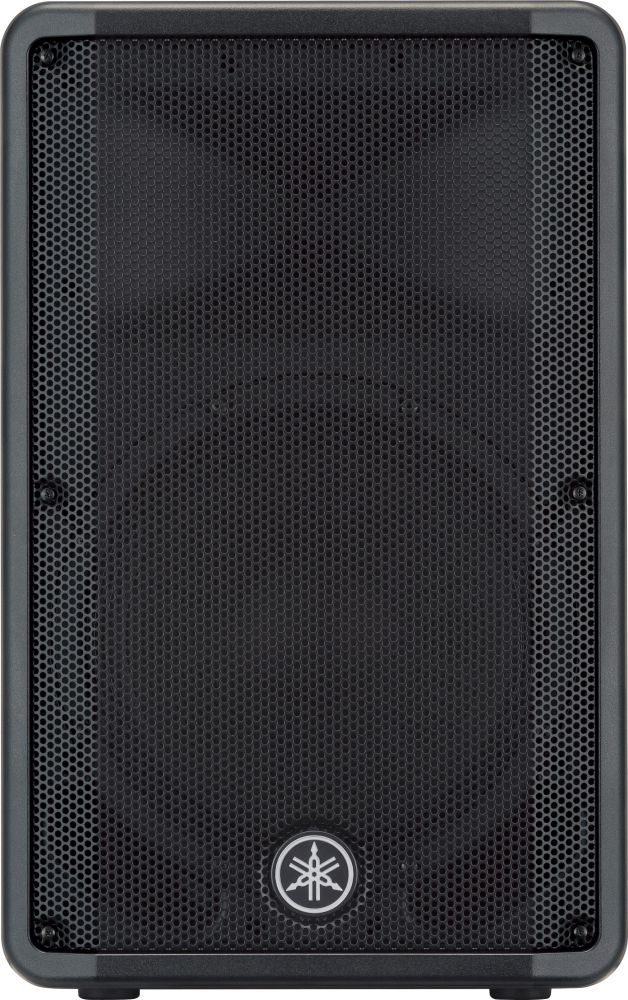

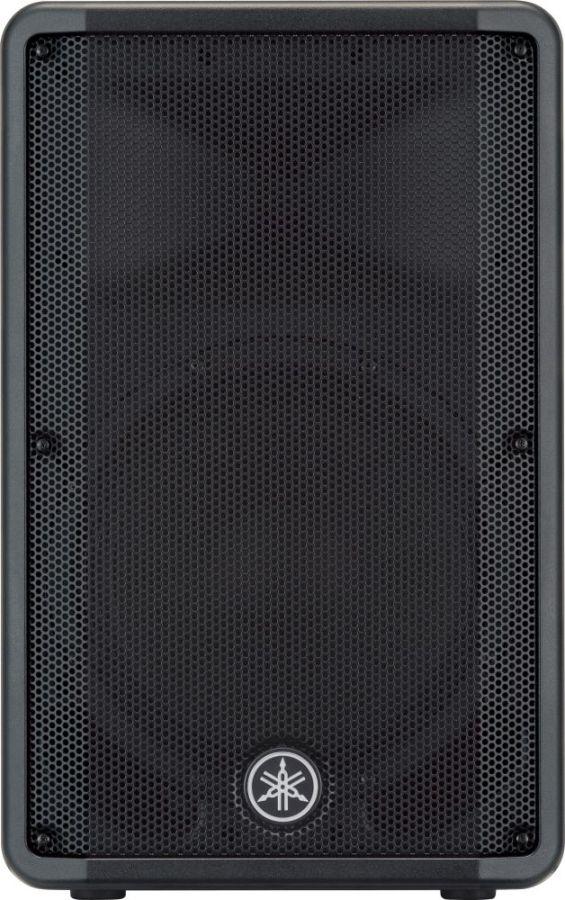

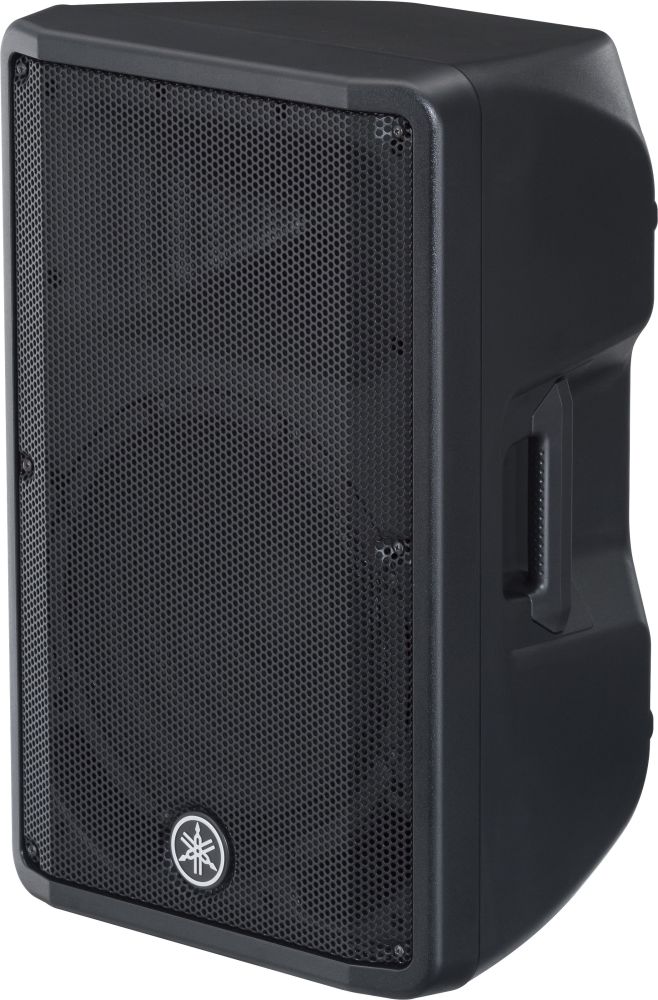

C Grade Refurbished DBR12 Active PA Speaker
Please note - This product may have been opened, returned by a customer, or refurbished. It could show minor cosmetic wear such as light marks or scratches, or be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.
The DBR12 Active PA speaker features the same Yamaha state-of-the-art DSP technology inherited from its predecessors, ensuring superior performance and versatility, and safe, consistent operation. The DBR12 can project deep bass, clear midrange and accurate high frequencies to the outer-most edges of a very wide coverage area and can boast 1000W of power. The design incorporates an optimised 50° wedge angle for floor monitoring use and is also, for its size, the most portable powered speaker currently offered by Yamaha.
Features
The DBR has the following features:
- Custom designed transducers and wide-dispersion constant directivity horn
- DSP Features of DSR-Series
- FIR-X tuning simultaneously optimises frequency and phase response
- Multiband dynamic processor for consistent clarity at any output Level
- Extensive DSP protection functions for maximum output level
- 2-channel mixer with XLR, TRS Phone and RCA inputs

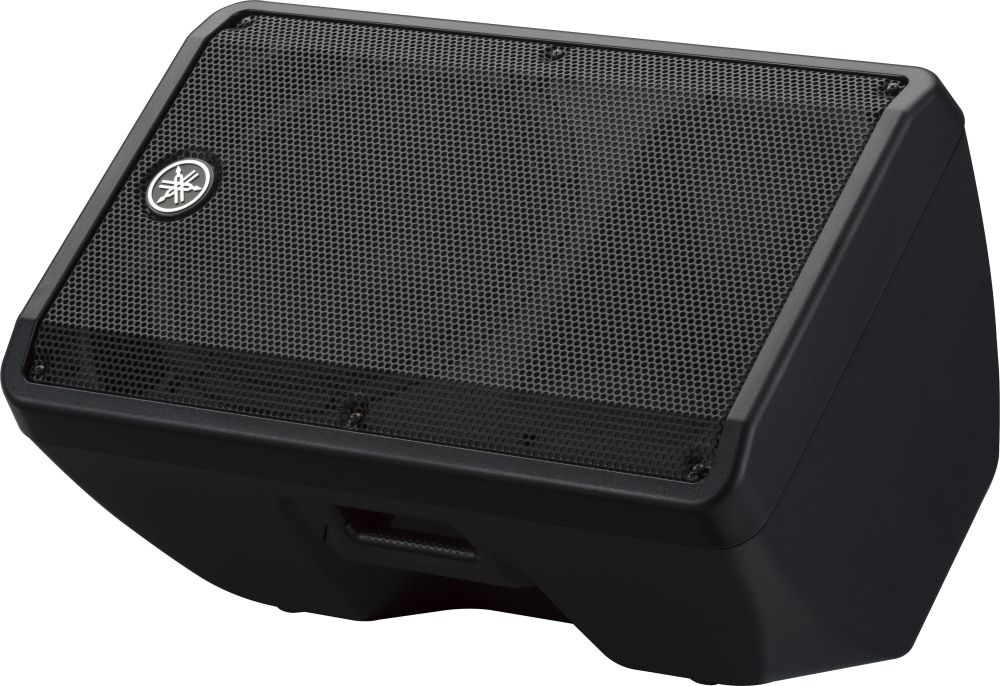

- 50°degree wedge angle & symmetrical mirror-mode floor monitoring
- 3x M8 Rigging Points for standard eye-bolts (Brackets available as an option)
- Speaker covers available as an option
Specs
| DBR12 |
Speaker type | 2-way, Bi-amp powered speaker, Bass-reflex type |
Frequency range (-10dB) | 52Hz – 20kHz |
Nominal coverage | Horizontal | 90° |
Vertical | 60° |
Components | Low Frequencies | Diameter:12" cone, Voice Coil:2", Magnet:Ferrite |
High Frequencies | Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite |
Crossover | 2.1kHz: FIR-X tuning™ (linear phase FIR filter) |
Output power | Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) |
Maximum output level (1m; on axis) | 131dB SPL |

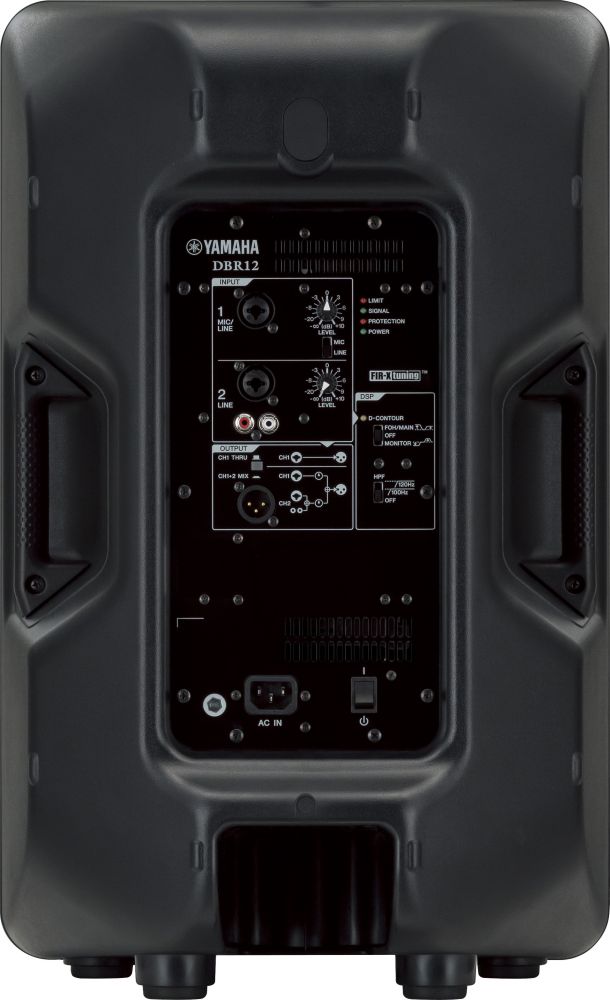

I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
Heat dissipation | Fan cooling, 4 speeds |
Power requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz |
Power consumption | 74W(1/8 Power Consumption), 18W(Idle) |
Cabinet material | Plastic |

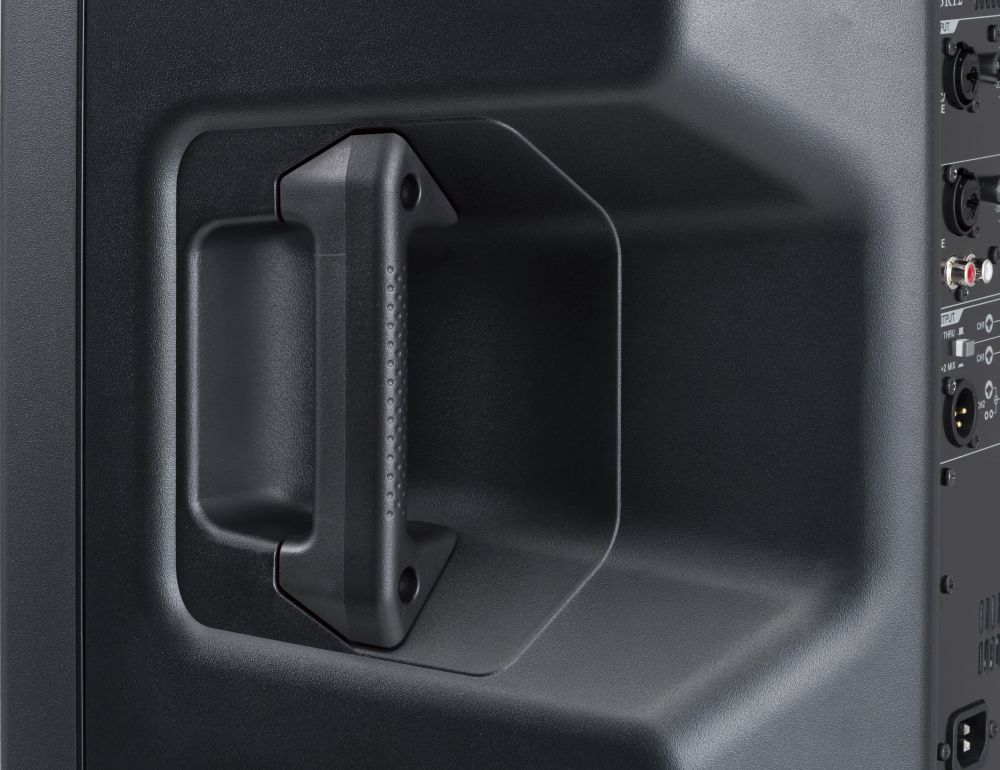

Handle | Side x 2 |
Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) |
Pole socket | 35mm (Bottom x 1) |
Dimensions | Width | 376mm (14.8") |
Height | 601mm (23.7") |
Depth | 348mm (13.7") |
Net weight | 15.8 kg (34.8 lbs) |
Optional Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) |
