Yamaha C Grade Refurbished STAGEPAS 200 BTR Portable PA System

Rechargeable Lithum ion battery included

Now £396.00
was £609.00
incl. VAT
C Grade Refurbished STAGEPAS 200 BTR Portable PA System
C Grade Refurbished STAGEPAS 200 BTR Portable PA System C Grade Refurbished STAGEPAS 200 BTR Portable PA System C Grade Refurbished STAGEPAS 200 BTR Portable PA System C Grade Refurbished STAGEPAS 200 BTR Portable PA System C Grade Refurbished STAGEPAS 200 BTR Portable PA System C Grade Refurbished STAGEPAS 200 BTR Portable PA System C Grade Refurbished STAGEPAS 200 BTR Portable PA System C Grade Refurbished STAGEPAS 200 BTR Portable PA System

Overview

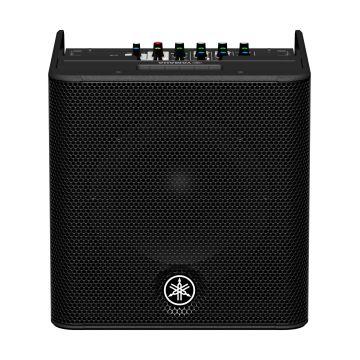

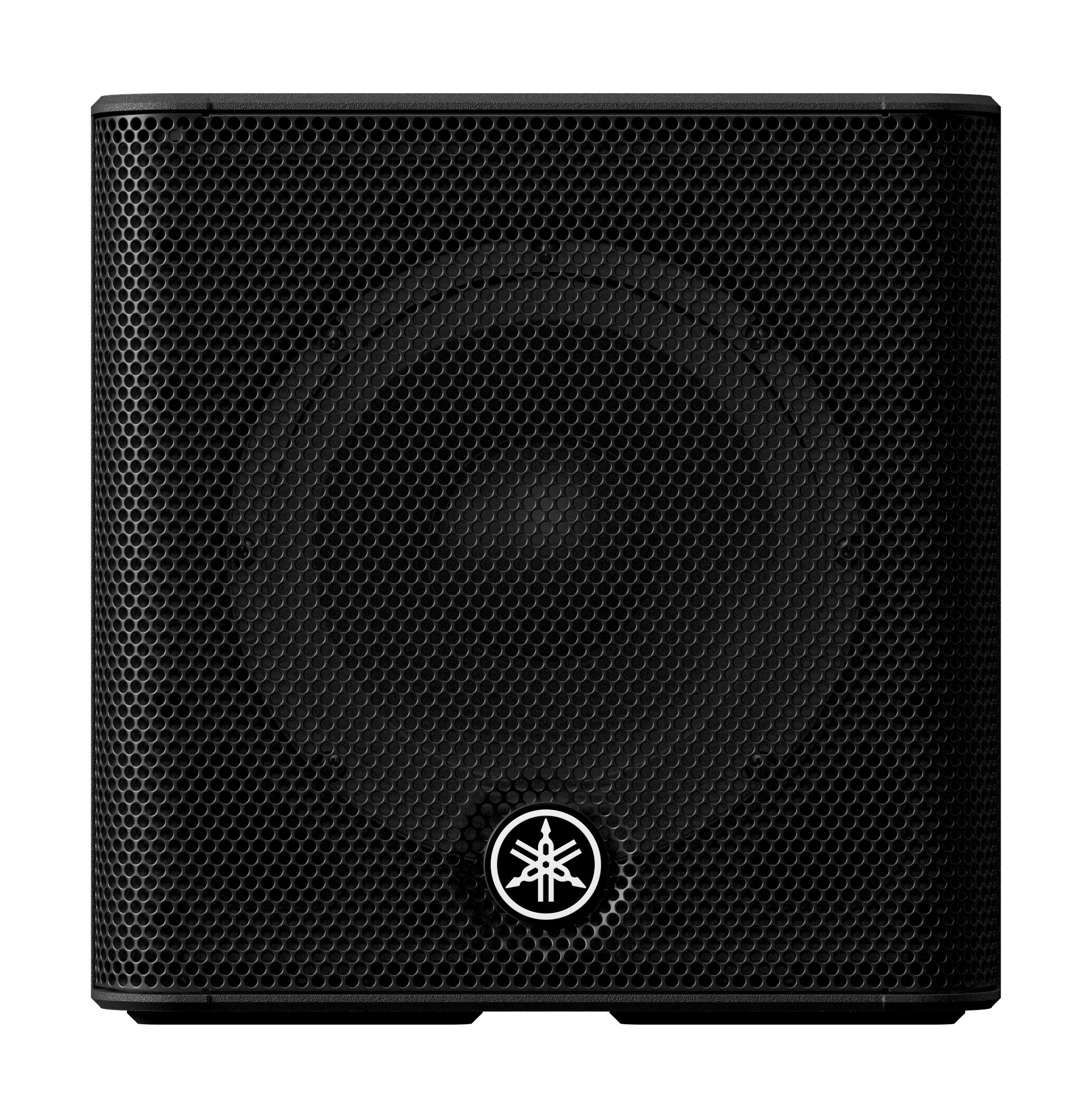

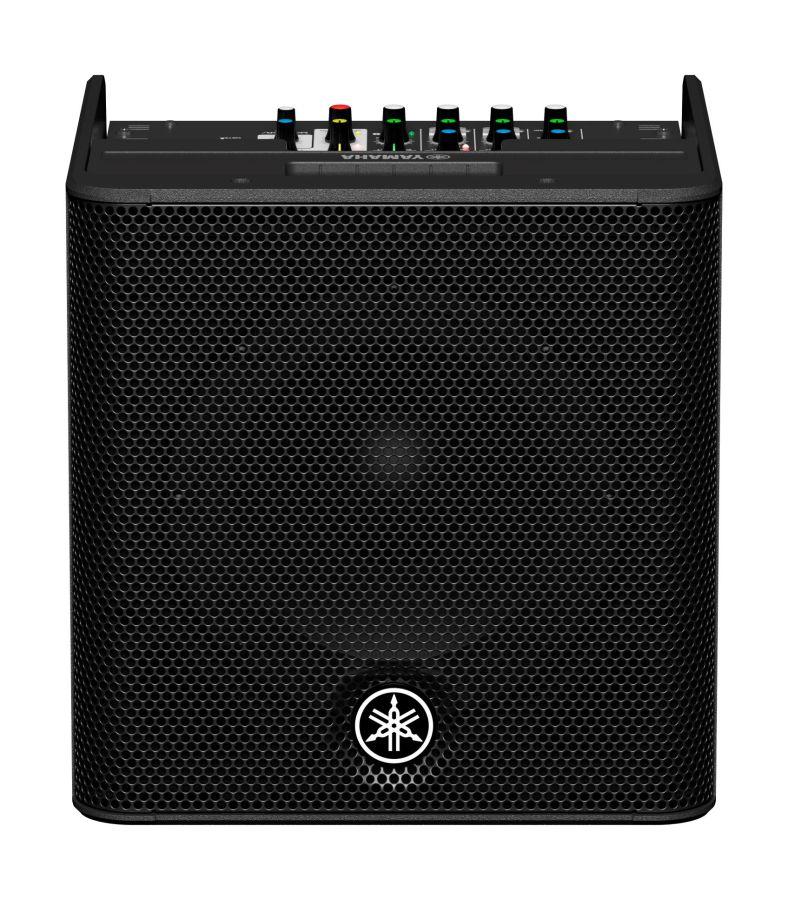

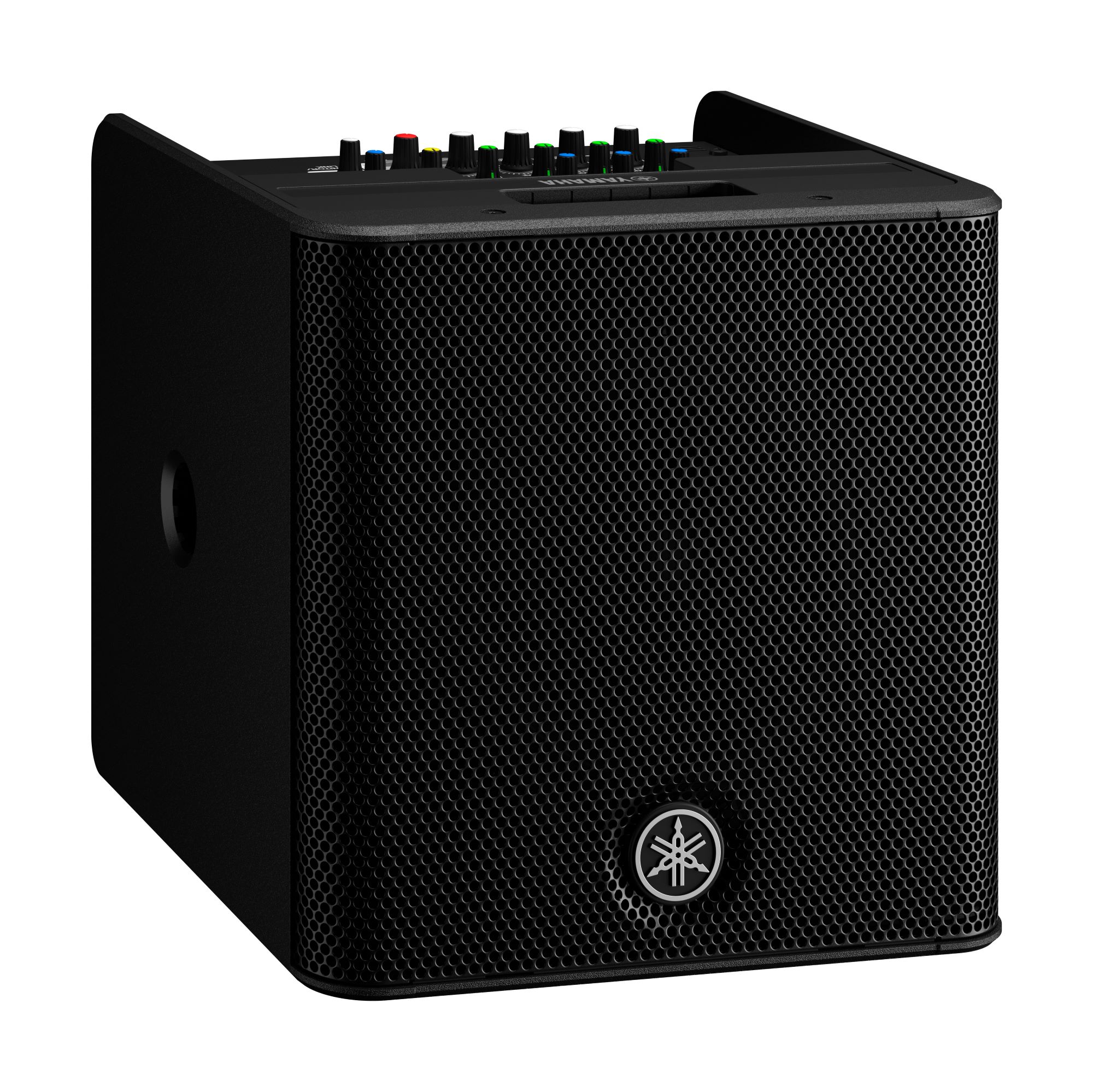

STAGEPAS 200BTR Portable PA System

A portable PA system equipped with a 180 W power amp, coaxial compression driver with 1.4” voice coil HF and 8” cone LF, a 5-channel digital mixer, and sold together with a high-capacity lithium-ion battery.

  • 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
  • 1.4” HF + 8” LF high-quality coaxial compression driver

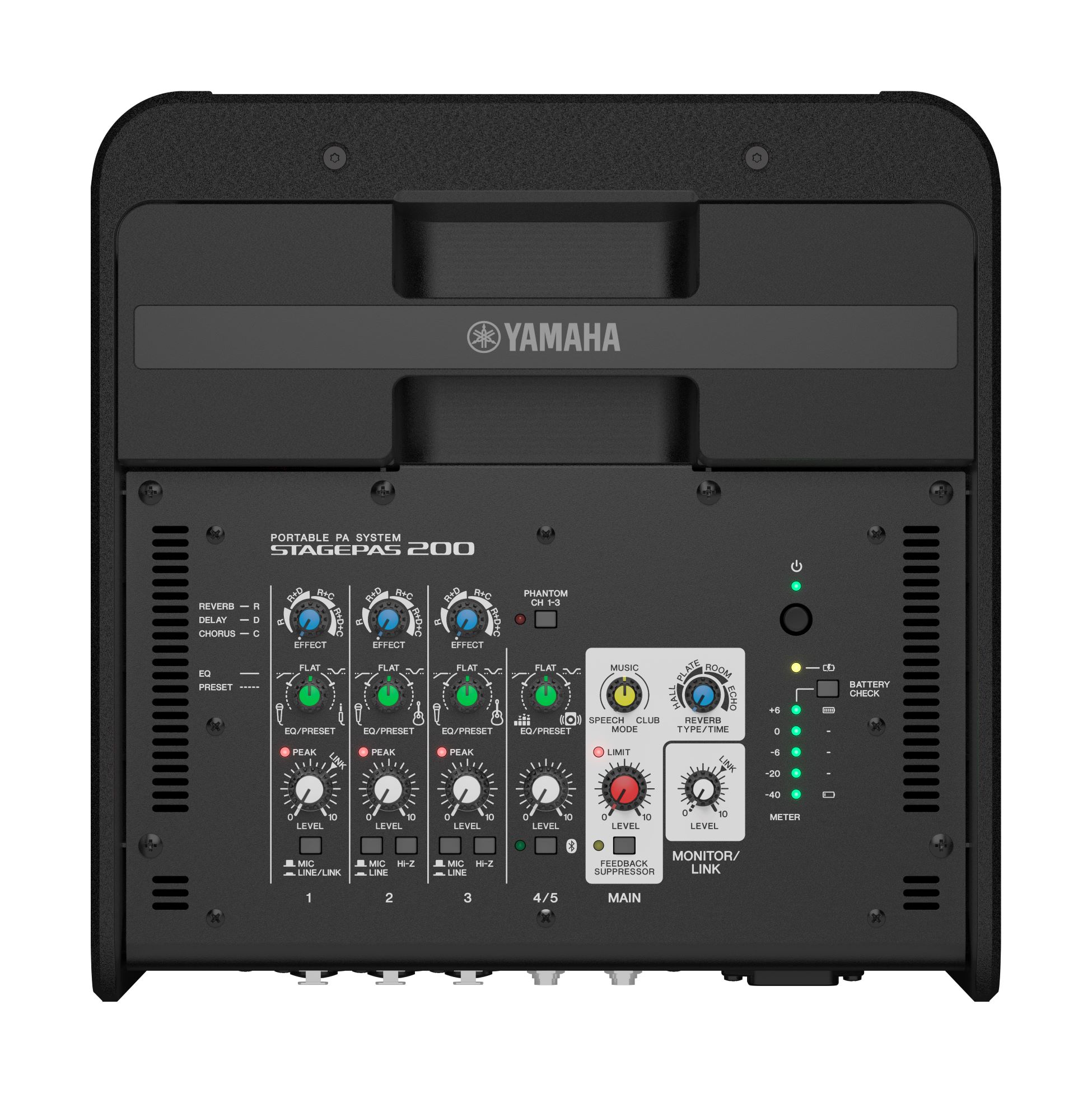

  • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
  • Main output multi-band compressor “MODE”
  • 1-knob EQ/preset for each channel
  • High-grade SPX digital reverb (4 program, parameter control), delay, chorus
  • Hi-Z input
  • Equipped with link-out/monitor out
  • Supplied rubber stand allows inclining at 30 or 60 degrees
  • Compatible with audio streaming via Bluetooth
  • Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
  • Optional BTR-STP200 battery included
  • Optional CASE-STP200 carry case for convenient carrying



Please note - This product may be ex-display, returned by a customer, or refurbished. It has visible cosmetic wear such as marks or scratches and may be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.

Specs

  • Type : 2-way Bi-amp Powered Speaker with mixer
  • Mixing capability - Mixing channels : 5 (Mono x3 + Stereo x1)
  • Mixing capability - Input channel functions : Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
  • Mixing capability - Output channel functions : MODE (SPEECH/MUSIC/CLUB)

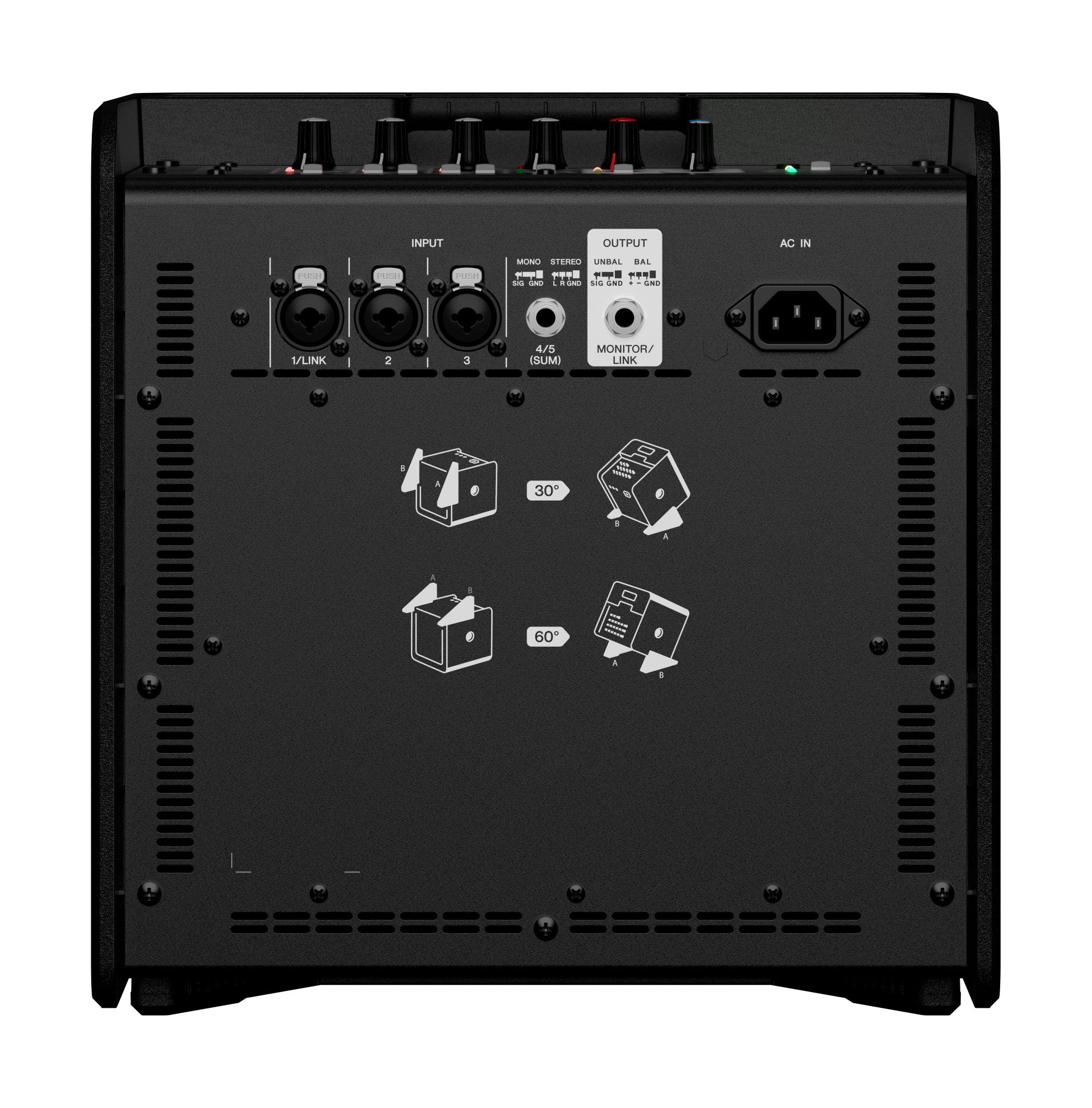

  • I/O - Inputs : Mono x3 (mic/line) + Stereo/Mono x1 (line)
  • I/O - Outputs : Monitor/Link out x1
  • I/O - Bluetooth : Ver.5.0, A2DP (SBC, AAC), Class 1
  • I/O - Control and others : STAGEPAS Controller (iOS/Android app)
  • On-board processors - DSP : SPX digital reverb (4 program, parameter control), delay, chorus
  • General specifications
  • Speaker type :  Coaxial speaker with compression driver
  • Frequency range (-10dB) : 60 Hz – 20 kHz
  • Coverage area : H90゚ x V90゚
  • Crossover : 2.0 kHz
  • Maximum output level (1m; on axis) : 125 dB SPL
  • Components - LF : 8" Cone, 2.0" voice coil
  • Components - HF :  1" throat compression driver, 1.4" voice coil
  • Amplifier class : Class-D
  • Power rating - Dynamic : 180 W (LF: 150 W, HF: 30 W)
  • Cooling : Natural convection (no fan)
  • Power consumption : 10 W (Idle), 20 W (1/8 power)
  • Power requirements : 100-240 V 50/60 Hz, or 29.6 Vdc *2

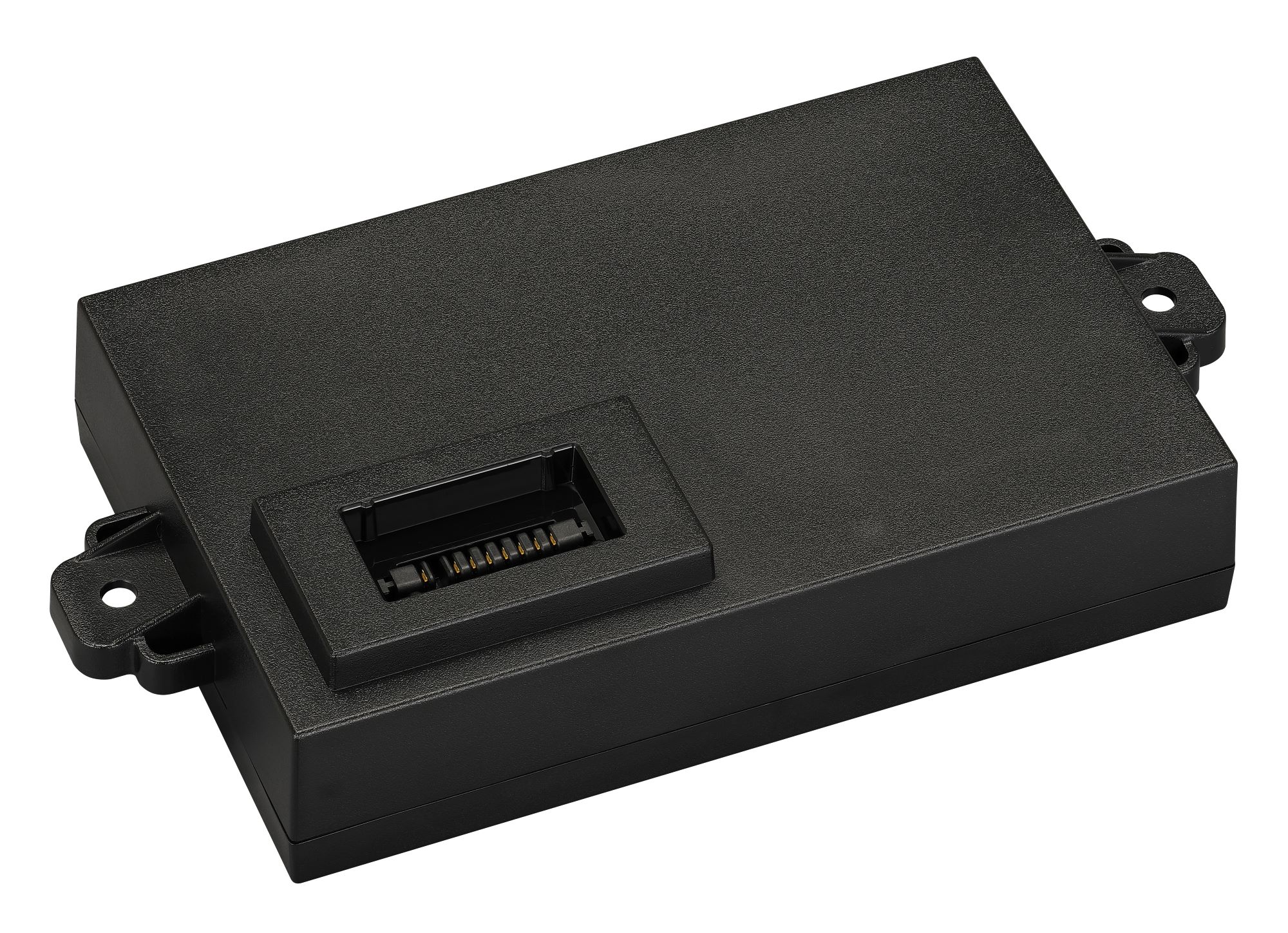

  • BatteryType : Rechargeable Lithium ion battery pack
  • Battery Capacity : 79.92 Wh (2700 mAh, 29.6 V)
  • Battery Operating Time : Maximum 10 hours, 1-16 power continuous 8 hours
  • Battery Charging Time : Approx. 4 hours
  • Cabinet material : Plastic (ABS)
  • Handle : Top x1

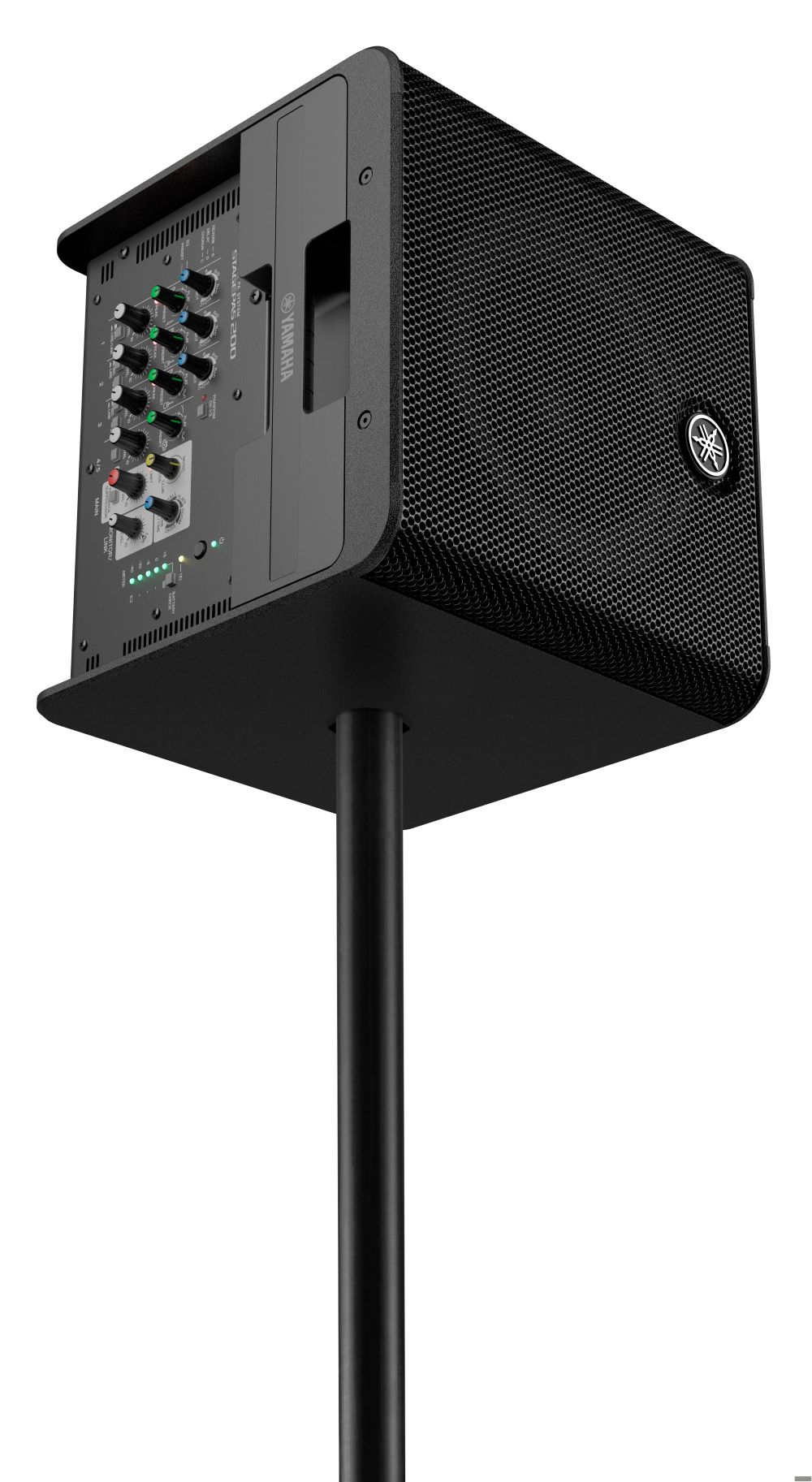

  • Pole socket :  Φ35 mm x1 (Side)
  • Floor Monitor Angle : 30° or 60°
  • Dimensions (W x H x D) : 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
  • Weight : 12.5 kg (27.6 lbs) (Including battery)
  • Accessories : Power cord x 1, Battery x 1
  • Options : Battery: BTR-STP200, Carry case: CASE-STP200
Product IDCSTGPAS200BTRUK-UKLD
