Yamaha CZR10 Passive PA Speaker

700W Power Handling, with 10" Woofer & 2" Tweeter

£730.00
incl. VAT
Ask us about our Price Promise - click here

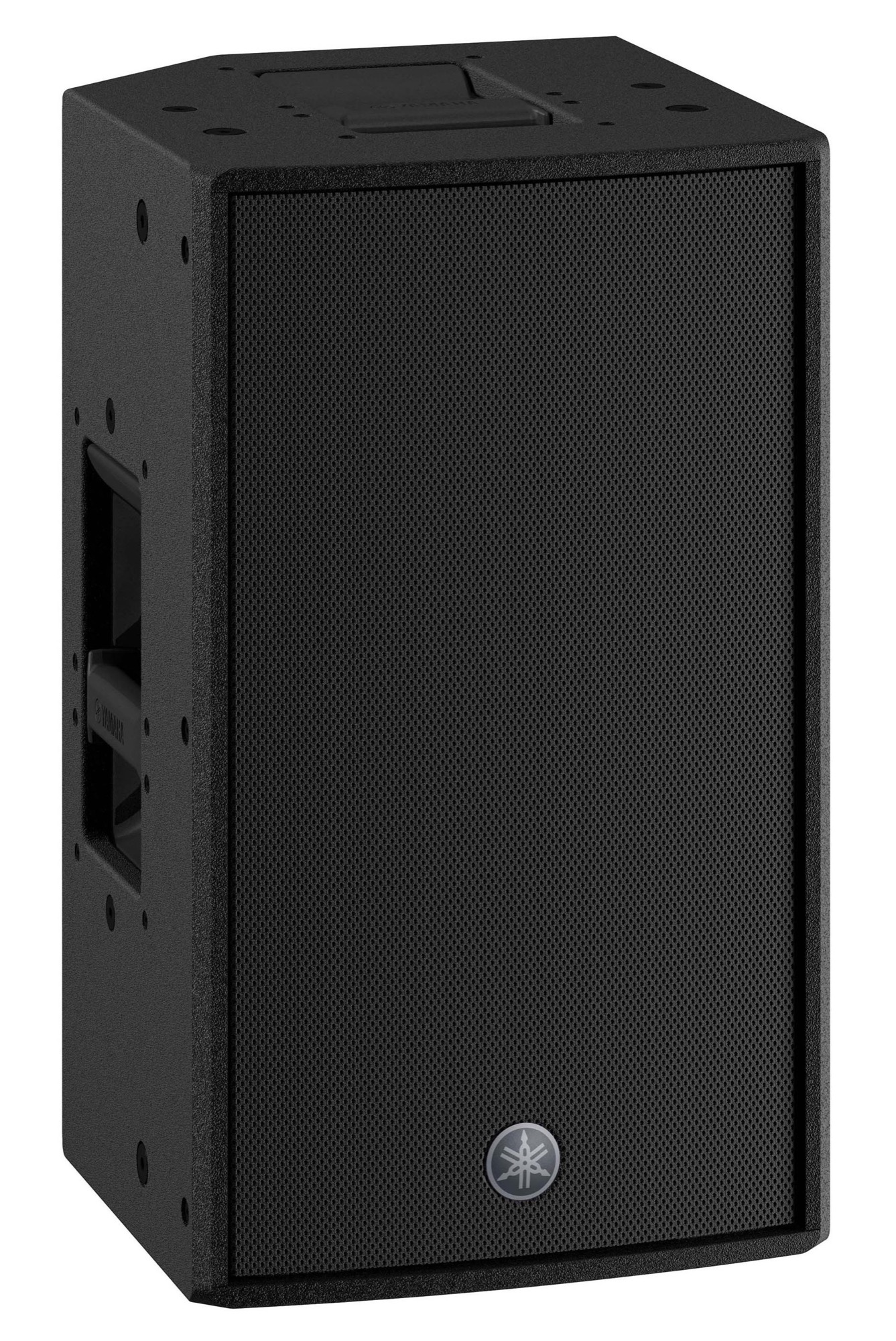

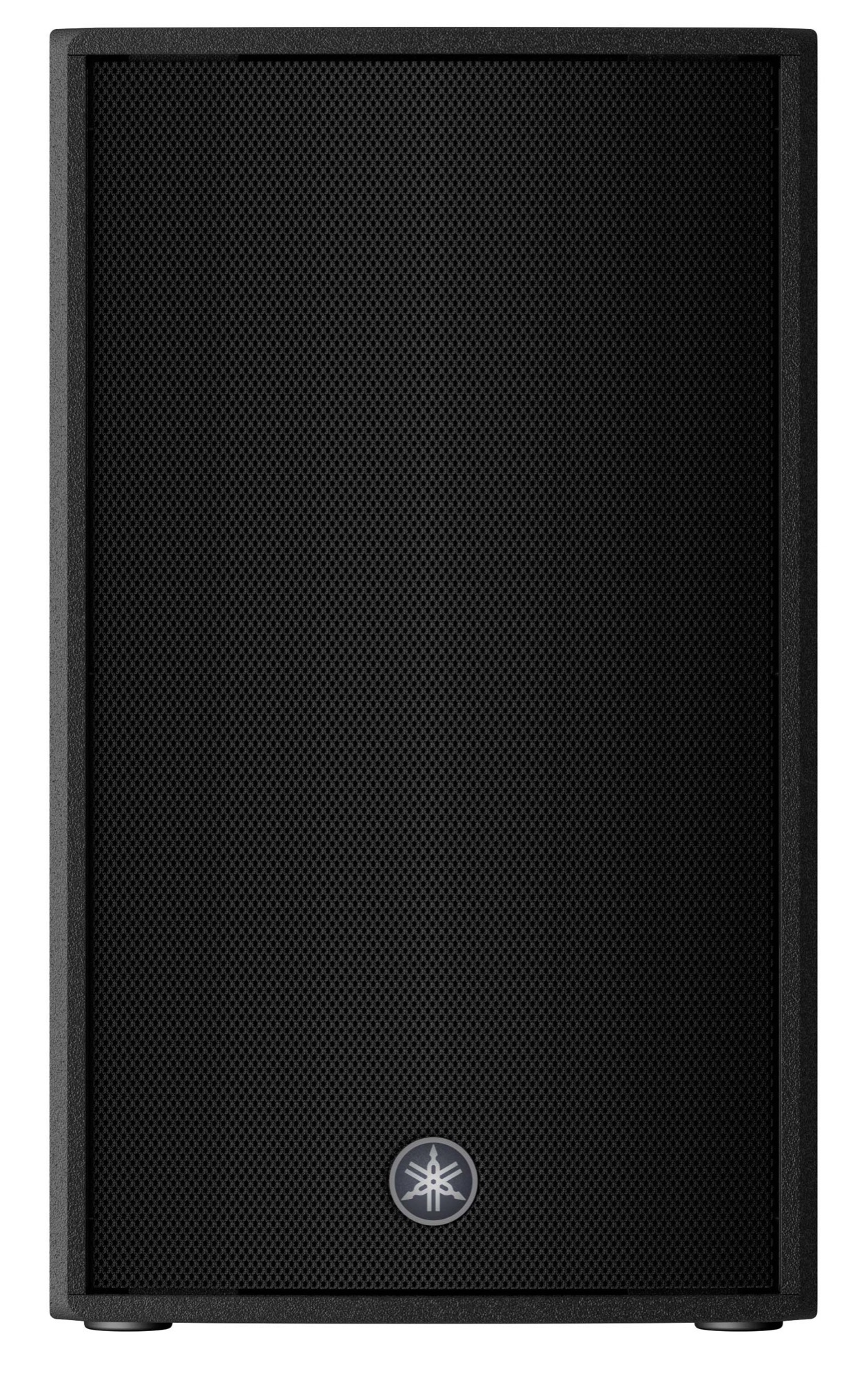

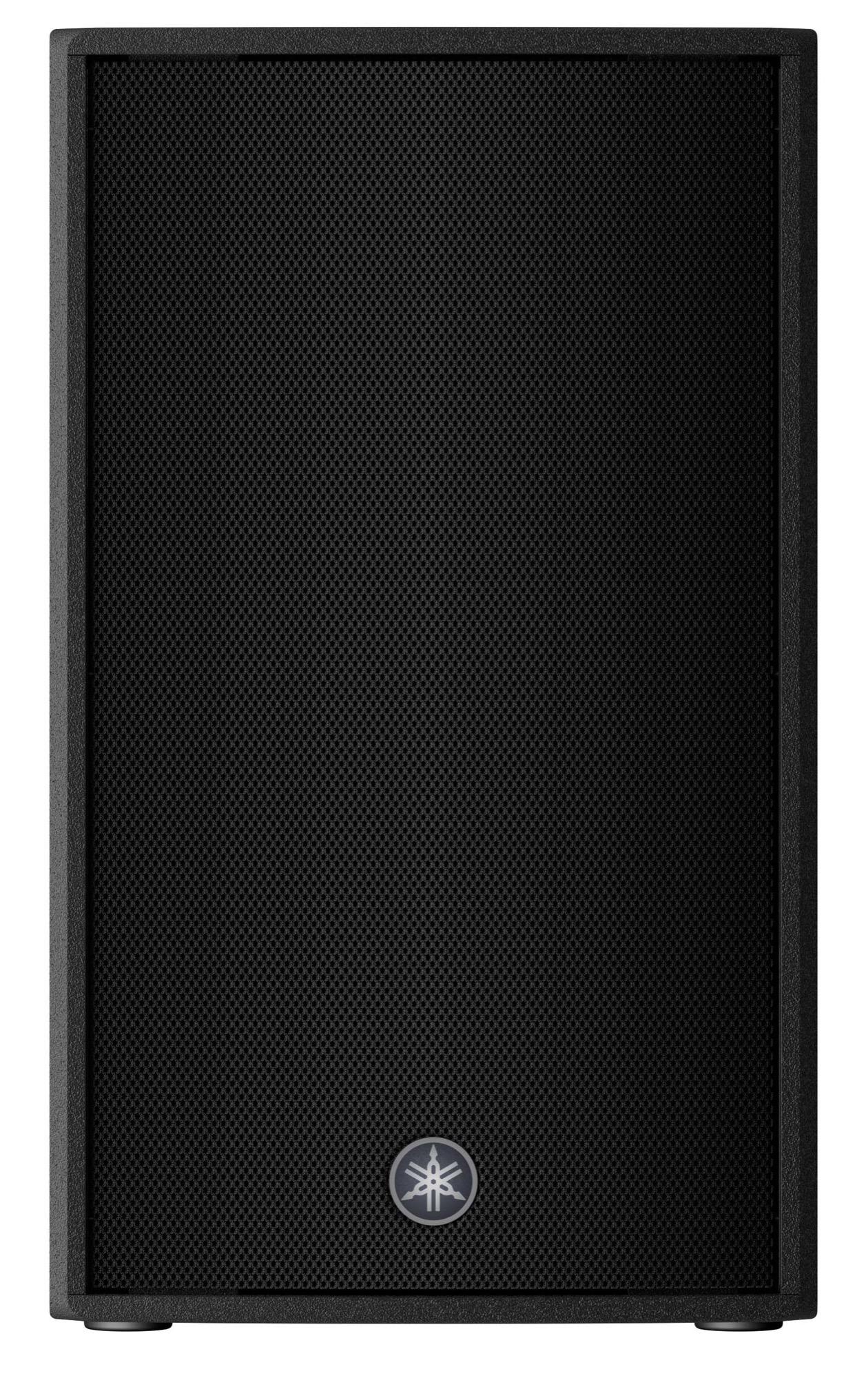

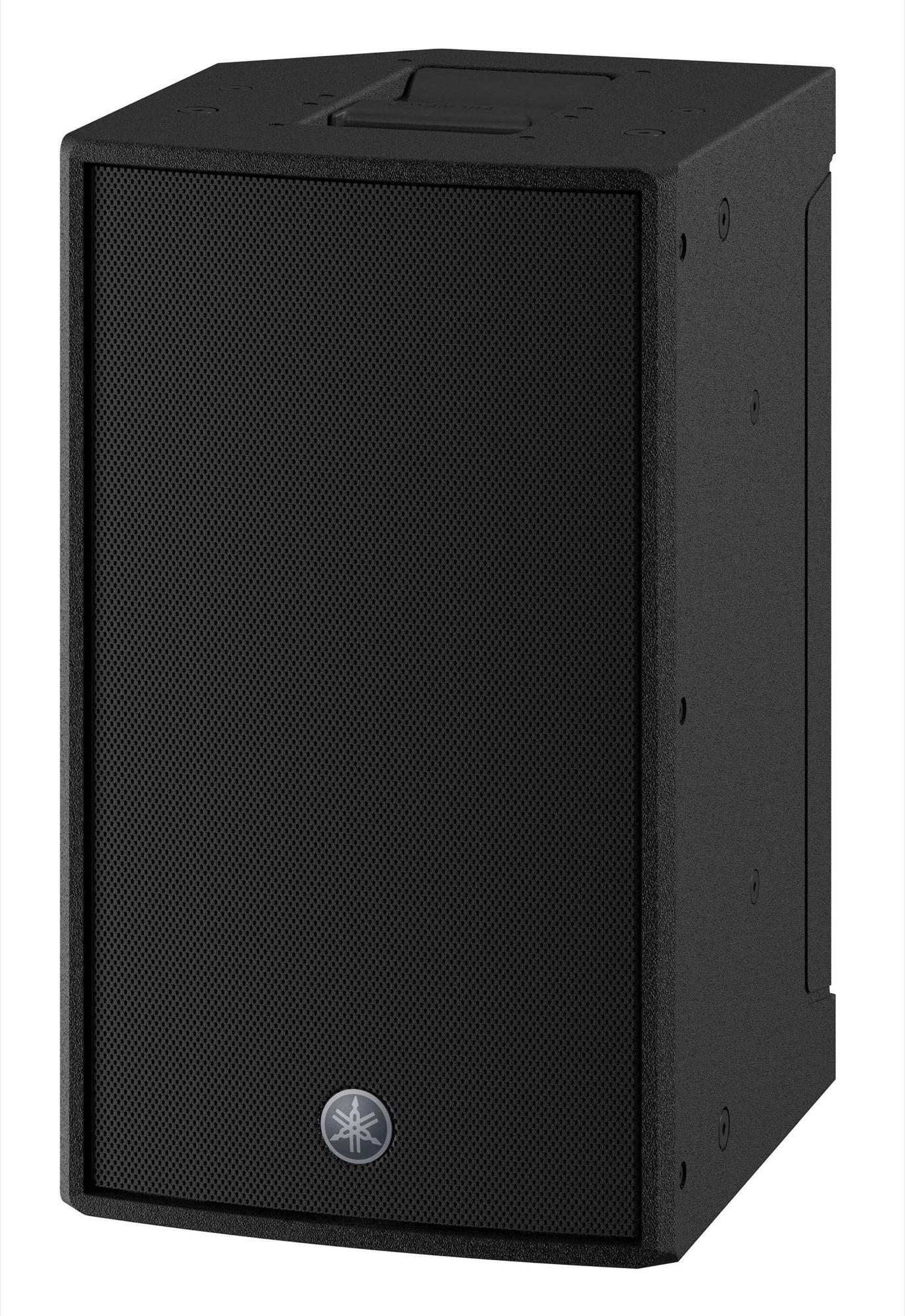

CZR10 Passive PA Speaker
CZR10 Passive PA Speaker CZR10 Passive PA Speaker CZR10 Passive PA Speaker CZR10 Passive PA Speaker CZR10 Passive PA Speaker

Overview

The CZR10 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR10 ideal for range of live performance and installed sound environments - from live bands at outdoor festivals to DJ’s in clubs - these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.

  • 2-way loudspeaker with a 2” HF and a 10" LF
  • Features Yamaha's own Wide Dispersion CD Waveguide Horn
  • High power 700W(PGM) power handling and Bi-amp capable
  • Floor monitoring setting
  • Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
  • Dual-angle pole socket
  • Optional speaker cover (SPCVR-DZR10)
  • Rotatable horn and variety of U-bracket options (UB-DZR10H/V) for rigging allow for very flexible setup and speaker placement

Finance

Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.

Click here for more information

Finance agreements are available to UK residents aged 18 or over, subject to status.

Deposit £0.00 (0%)

Duration - please choose one


Representative Example

Purchase Price:£2,026.00 Deposit:£239.00
Amount of Credit:£1,787.00 24 Monthly Payments:£89.44
Total Repayable:£2,385.56 Agreement Duration:24 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£2,289.00 Deposit:£260.00
Amount of Credit:£2,029.00 36 Monthly Payments:£73.64
Total Repayable:£2,911.04 Agreement Duration:36 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£1,125.00 Deposit:£300.00
Amount of Credit:£825.00 6 Monthly Payments:£137.50
Total Repayable:£1,125.00 Agreement Duration:6 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£3,545.00 Deposit:£240.00
Amount of Credit:£3,305.00 9 Monthly Payments:£367.22
Total Repayable:£3,545.00 Agreement Duration:9 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£1,260.00 Deposit:£200.00
Amount of Credit:£1,060.00 12 Monthly Payments:£92.93
Total Repayable:£1,315.16 Agreement Duration:12 Months
Rate of Interest (Fixed):9.89% pa 9.89% APR Representative
Purchase Price:£1,499.00 Deposit:£199.00
Amount of Credit:£1,300.00 18 Monthly Payments:£83.12
Total Repayable:£1695.16 Agreement Duration:18 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative



Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.

V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: One Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.

Features

The CZR Series is a range of passive loudspeakers offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. The CZR is ideal for a range of live performance and installed sound environments - from live bands at outdoor festivals to DJ’s in clubs - these loudspeakers deliver crystal clear, high-quality sound with impressive bass performance. For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system’s low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that’s sure to impress.

Focused sound for flexible installation

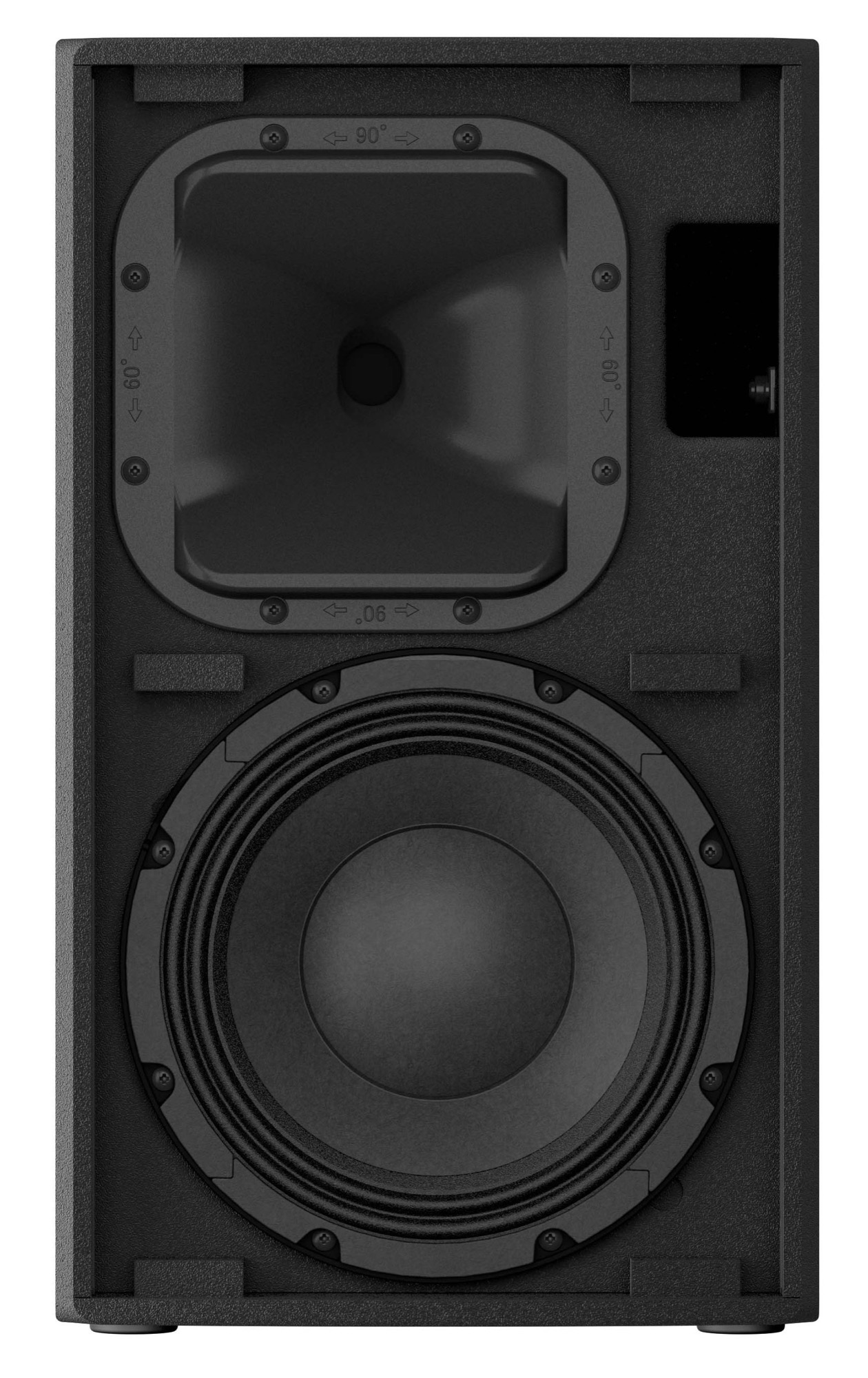

The CZR Series features 15˝, 12˝ and 10˝ models with transducers with die-cast aluminum frames with a 3˝ voice coil for very high power input, and a lightweight yet powerful neodymium magnet that helps to add punch and power to your bass. The HF unit achieves vivid, soaring highs from its titanium diaphragm with a 2˝ voice coil and neodymium magnet. Like the DZR, the CZR models also feature the rotatable constant directivity horn design (90°x 50° for the CZR15, and 90°x 60° for the CZR12 and CZR10) for increased flexibility in mounting vertically or horizontally.

Best in Class SPL performance

The CZR15 and CZR12 can both produce 129dB SPL with a power rating of 800W for the CZR15 and CZR12, and 700W for the CZR10 in passive mode. Every CZR model is also equipped with Biamp mode to maximize performance.

The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system’s low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable of a simpler connection with single 4-pole speakON cable.

Intelligent processing to maximize system performance

When used in combination with our PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. Additionally, like the DXS XLF models, CXS XLF subwoofers are capable of use in cardioid mode provided the processor has the dedicated DSP settings.

Premium materials. Road-tested toughness

The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road, as well as two different sockets for pole-mounting at either -7° down tilt or level. The CXS XLF are equipped with both a 35mm pole socket and an M20 threaded socket to support a full range cabinet.

Flexible Deployment Options

CZR Series loudspeakers come equipped with plenty of rigging points for any installation environment, allowing for rigged application with standard eyebolts*. Specialized U brackets are also available for convenient flying/hanging installation. *Eyebolts not included.

Specs

Speaker type

2-way Speaker, Bass-reflex

Frequency range (-10dB)

Passive: 43 Hz - 20 kHz, Normal (*1): 46 Hz - 20 kHz, FOH (*1): 43 Hz - 20 kHz

Coverage area

H90 x V60Rotatable Constant Directivity Horn

Floor Monitor Angle

50°

Components

LF

10" Cone, 3" Voice Coil, Neodymium magnet

HF

2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet

Crossover

2.5 kHz

Power rating

NOISE

Passive (EIA 426-A) 350 W, Bi-amp LF (EIA 426-A): 350W, HF (AES): 50W

PGM

Passive (EIA 426-A) 700 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W

PEAK

Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W

Nominal impedance

Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω

SPL

Sensitivity (1W; 1m on axis)

Passive: 95dB SPL, Bi-amp: LF: 95dB SPL, HF: 108dB SPL

Peak (Calculated)

Passive: 127 dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL

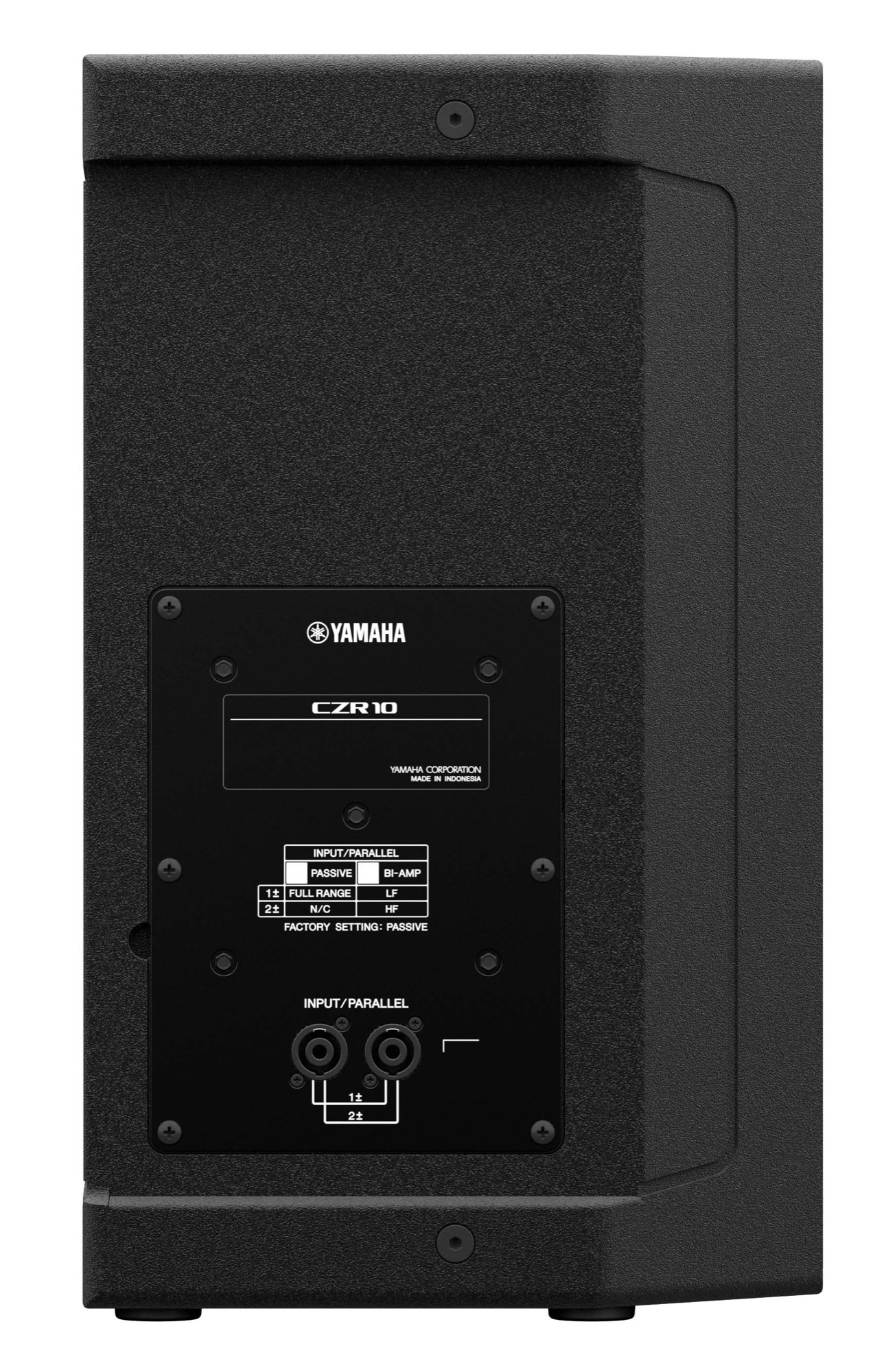

I/O connectors

SpeakON NL4MP x 2 (Parallel)

Handle

Aluminium die-cast, Top x1, Side x1

Pole socket

Φ35 mm x2 (0° or -7°)

Rigging

M10 x 8, M8 x 2

Dimensions

W

315 mm (12.4")

H

537 mm (21.1") (with rubber feet)

D

345 mm (13.6")

Net weight

14.0 kg (30.9 lbs)

Options

Bracket: UB-DZR10H/V, Cover: SPCVR-DZR10

Others

Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black

Product IDCCZR10
