Overview
Yamaha EAD20 A Next Generation Solution for Practice, Recording & Hybrid Drumming
The EAD20 offers premium sound quality, practical USB‑based connectivity, and a streamlined, cost‑effective workflow tailored to everyday musical creation. Equipped with 8‑in/10‑out USB audio, the EAD20 enables multichannel recording directly into a DAW, giving musicians the ability to mix microphone audio, trigger voices, and effects independently.
- Equipped with 8in/10out USB audio
- Multi-channel recording directly into a DAW
- Essential performance features for practice, recording, and hybrid drum setups in a compact design
- High quality results - minimal set-up
Features
Yamaha Drums announces the launch of the EAD20, the core model in the EAD lineup, built on the same next generation sound platform as the flagship EAD50. Designed for intermediate to advanced drummers, the EAD20 focuses on essential performance features for practice, recording, and hybrid drum setups in a compact design.
With its updated sound engine and newly enhanced sensor unit, the EAD20 delivers a natural, balanced, and clearly defined drum sound. The system captures the full character of an acoustic kit while allowing drummers to achieve high-quality results with minimal setup.
Equipped with 8in/10out USB audio, the EAD20 enables multichannel recording directly into a DAW, allowing musicians to mix microphone audio, trigger voices, and manage effects independently. This makes the EAD20 an ideal tool for drummers wanting professional-level recording flexibility at home or in project studios.
Unlike the EAD50, the EAD20 is not designed for extensive live stage expansion or advanced routing. Instead, it offers premium sound quality, practical USB-based connectivity, and a streamlined, cost-effective workflow tailored to everyday musical creation.
Specs

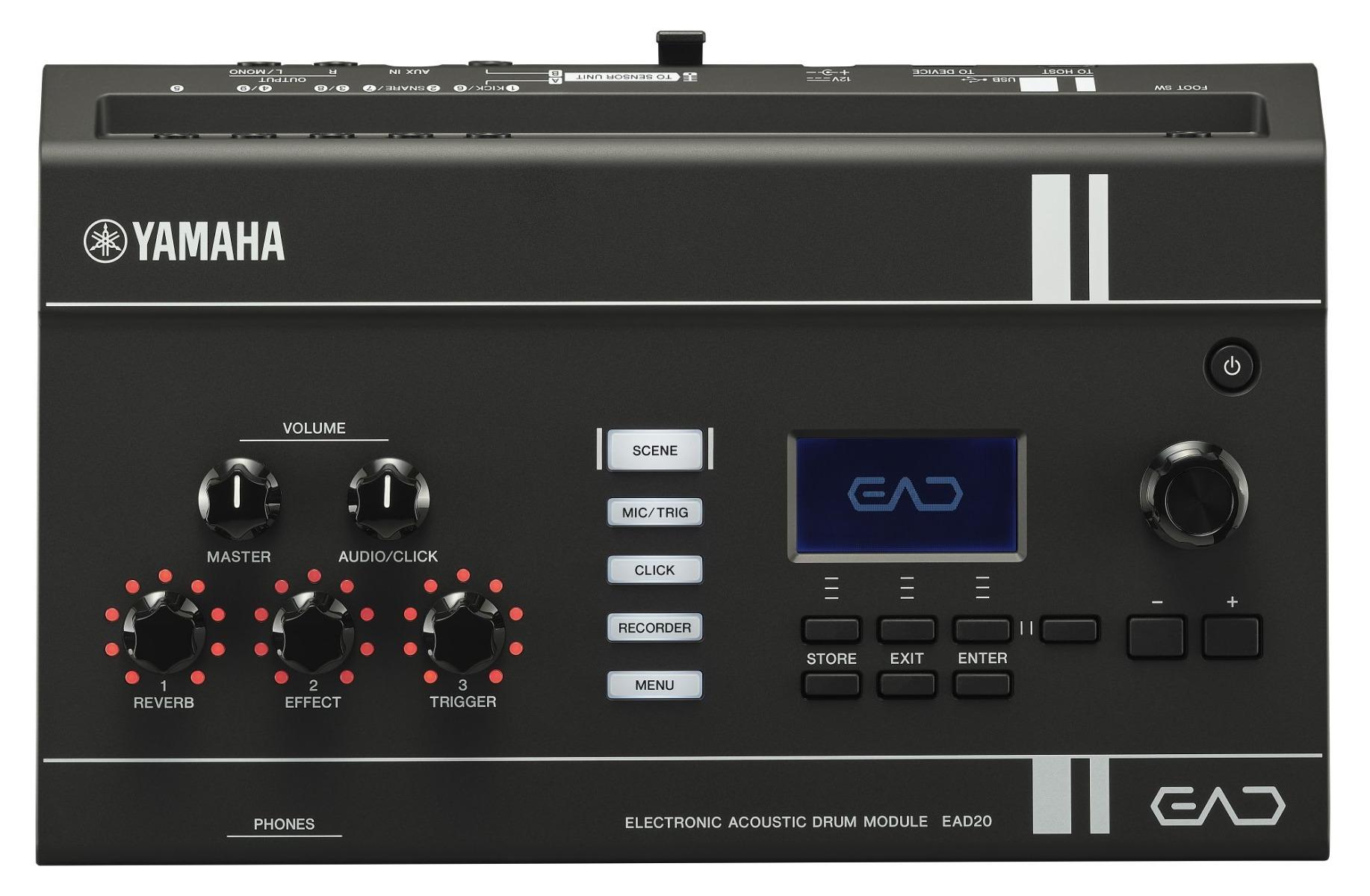

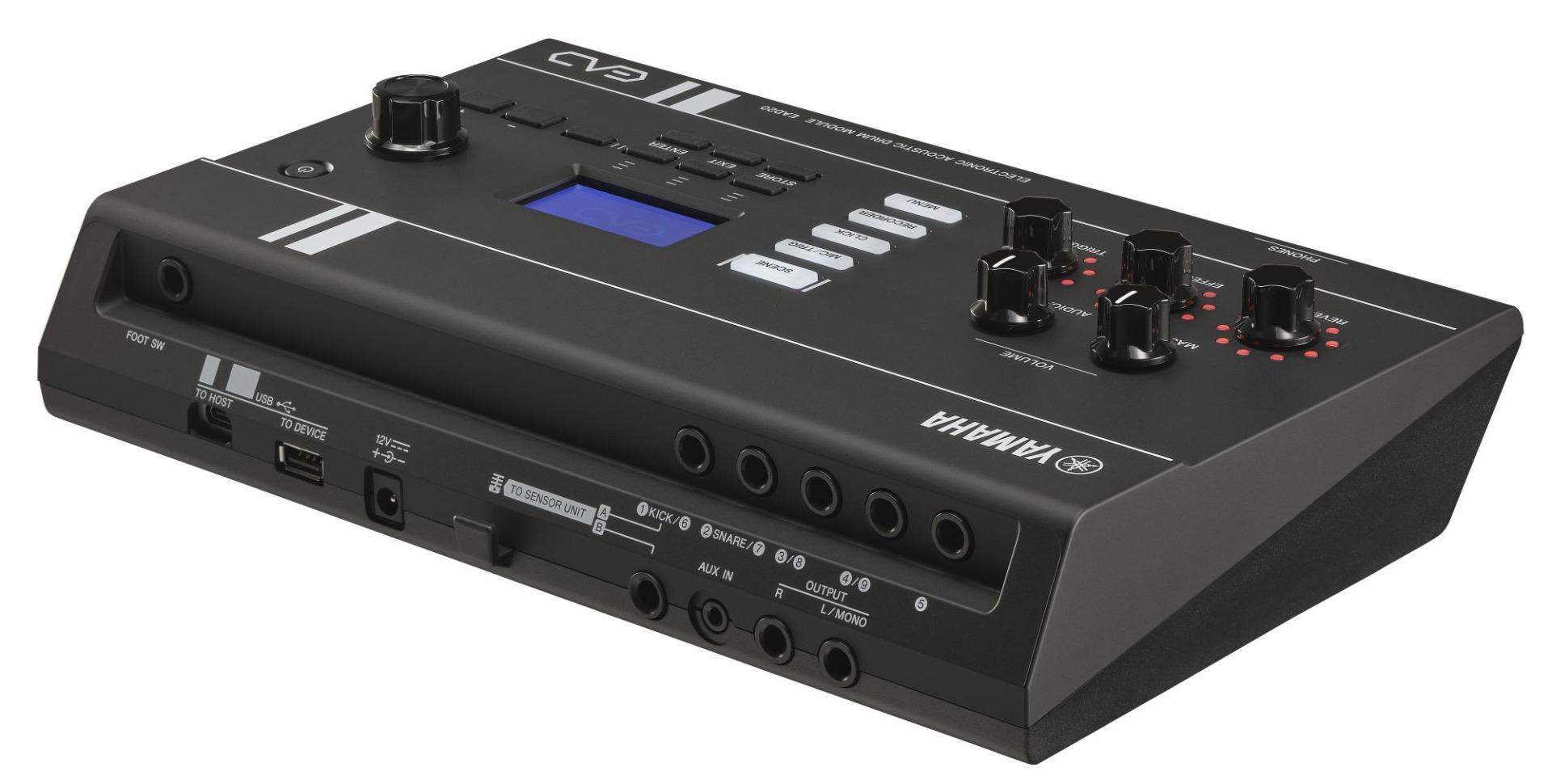

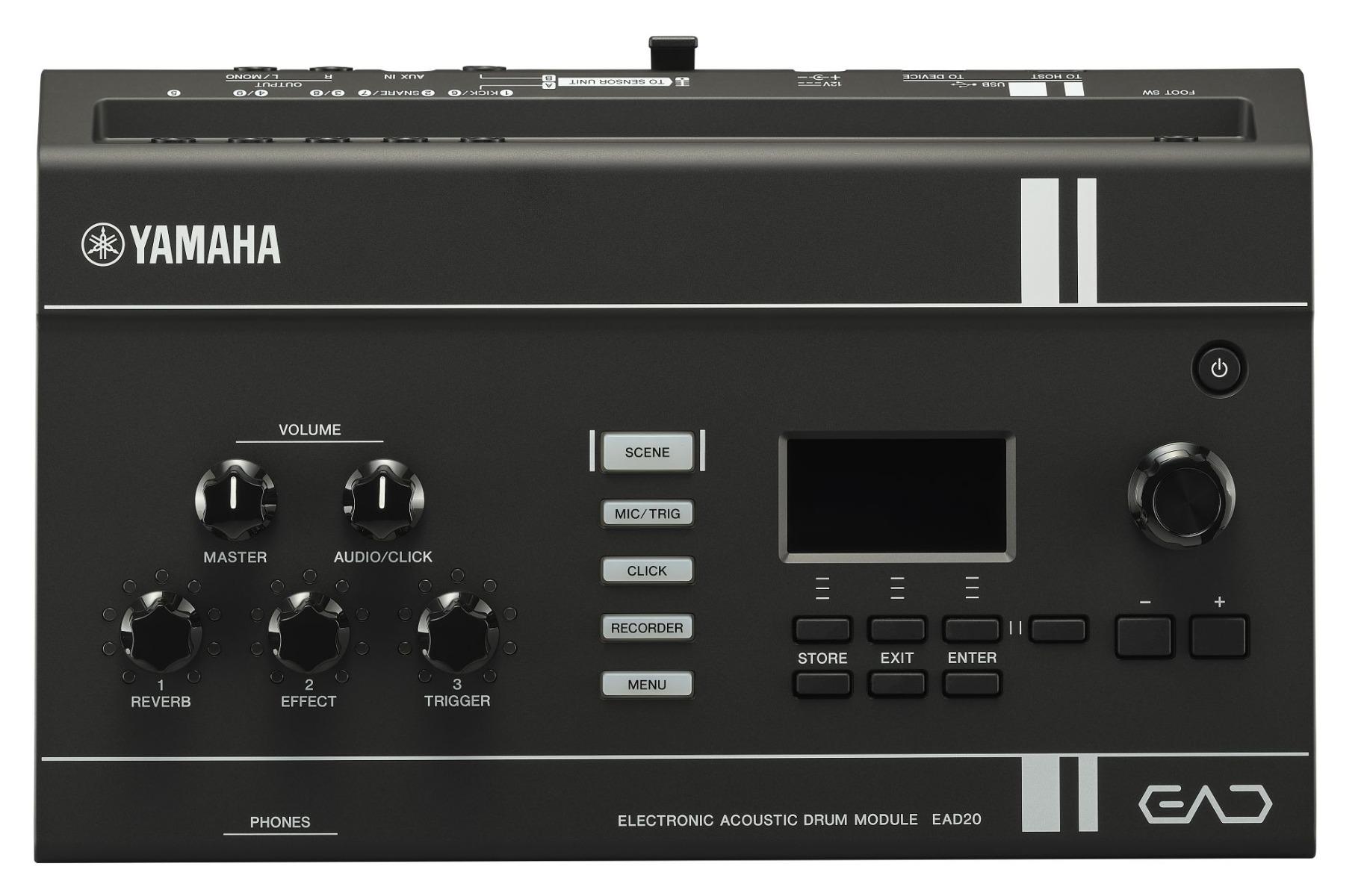

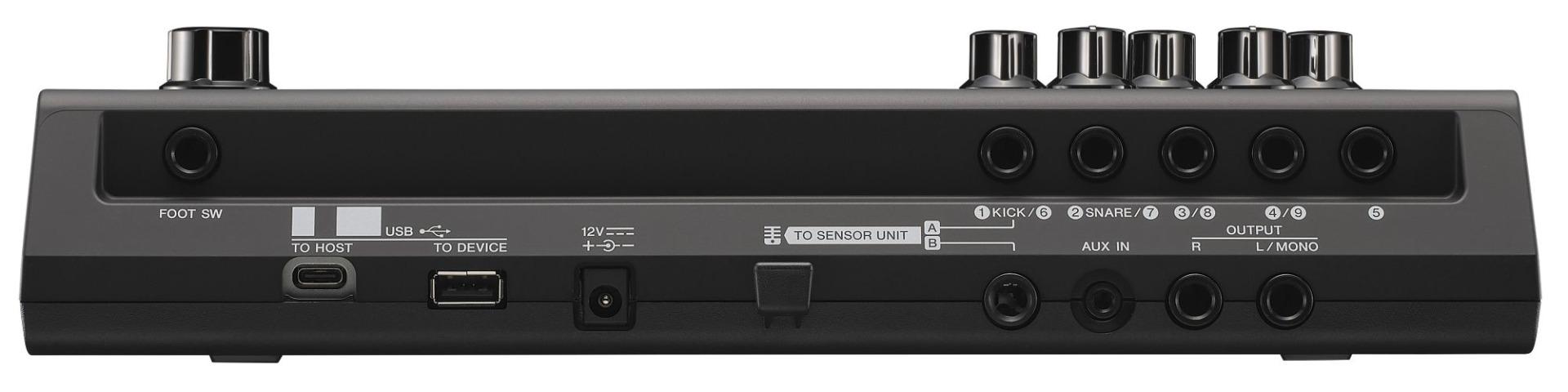

Product measurements: Main Unit
- Product Height ~ 70mm
- Product Width ~ 300mm
- Product Depth ~ 190mm
- Product Weight ~ 1.4kg

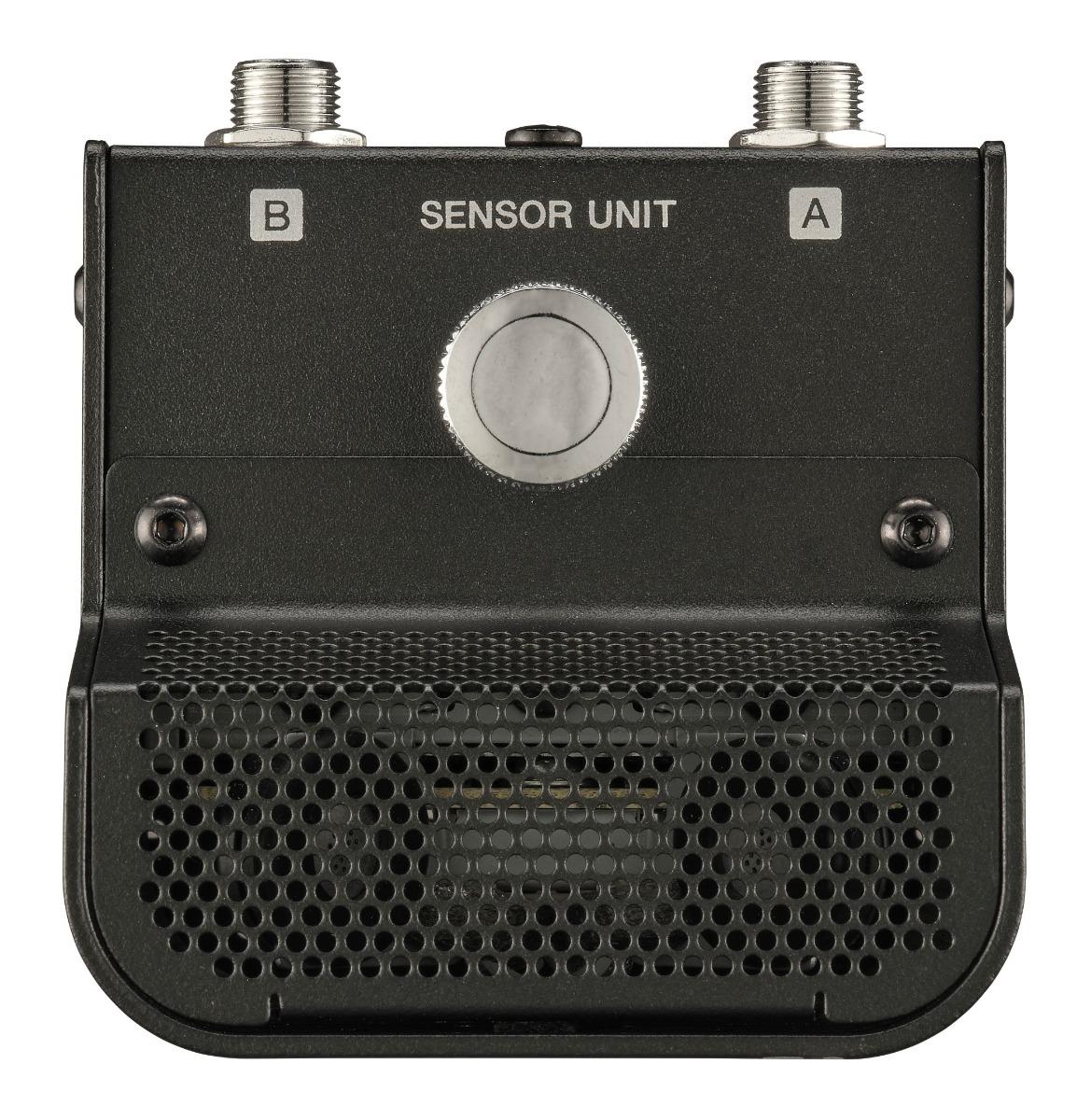

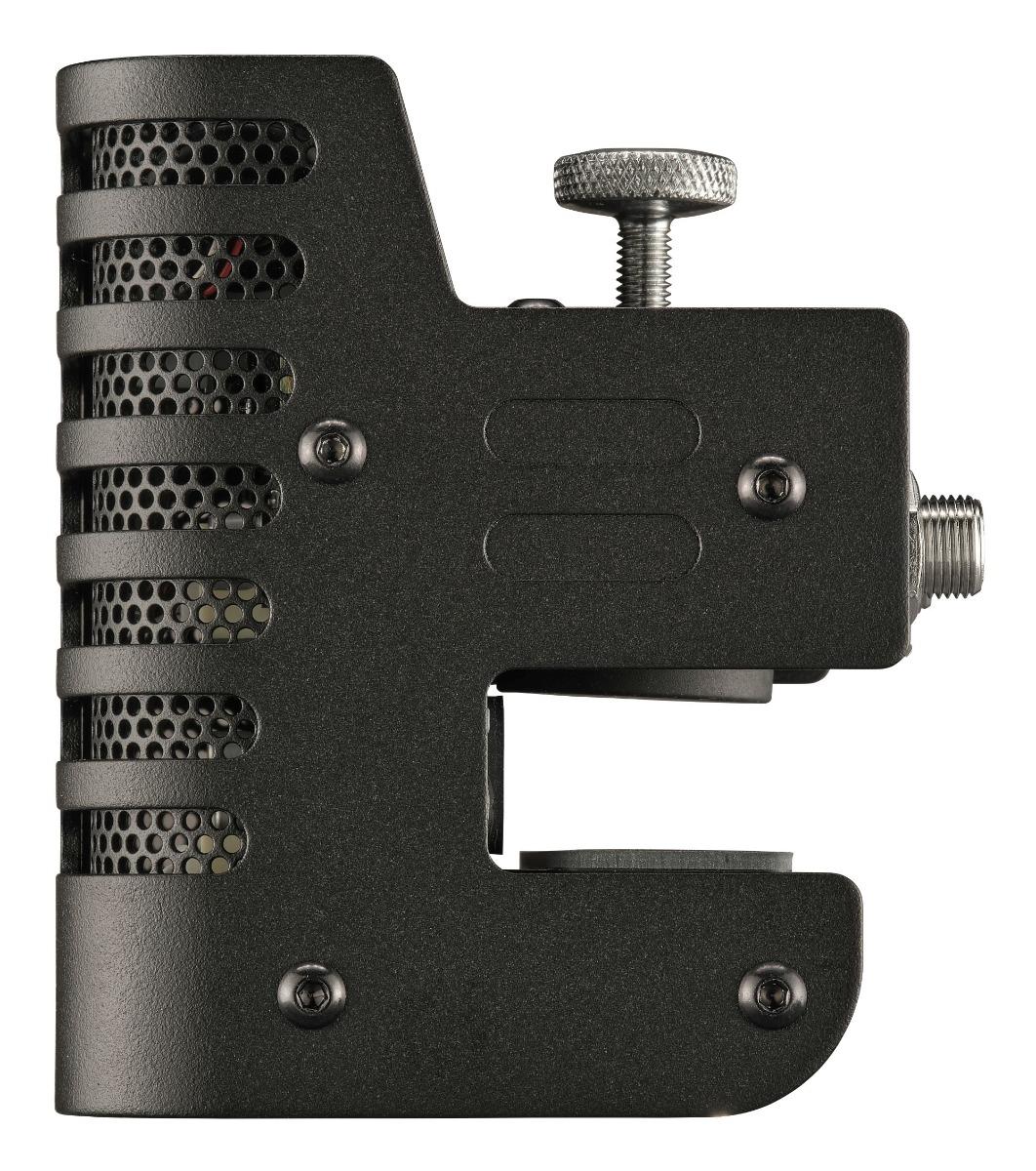

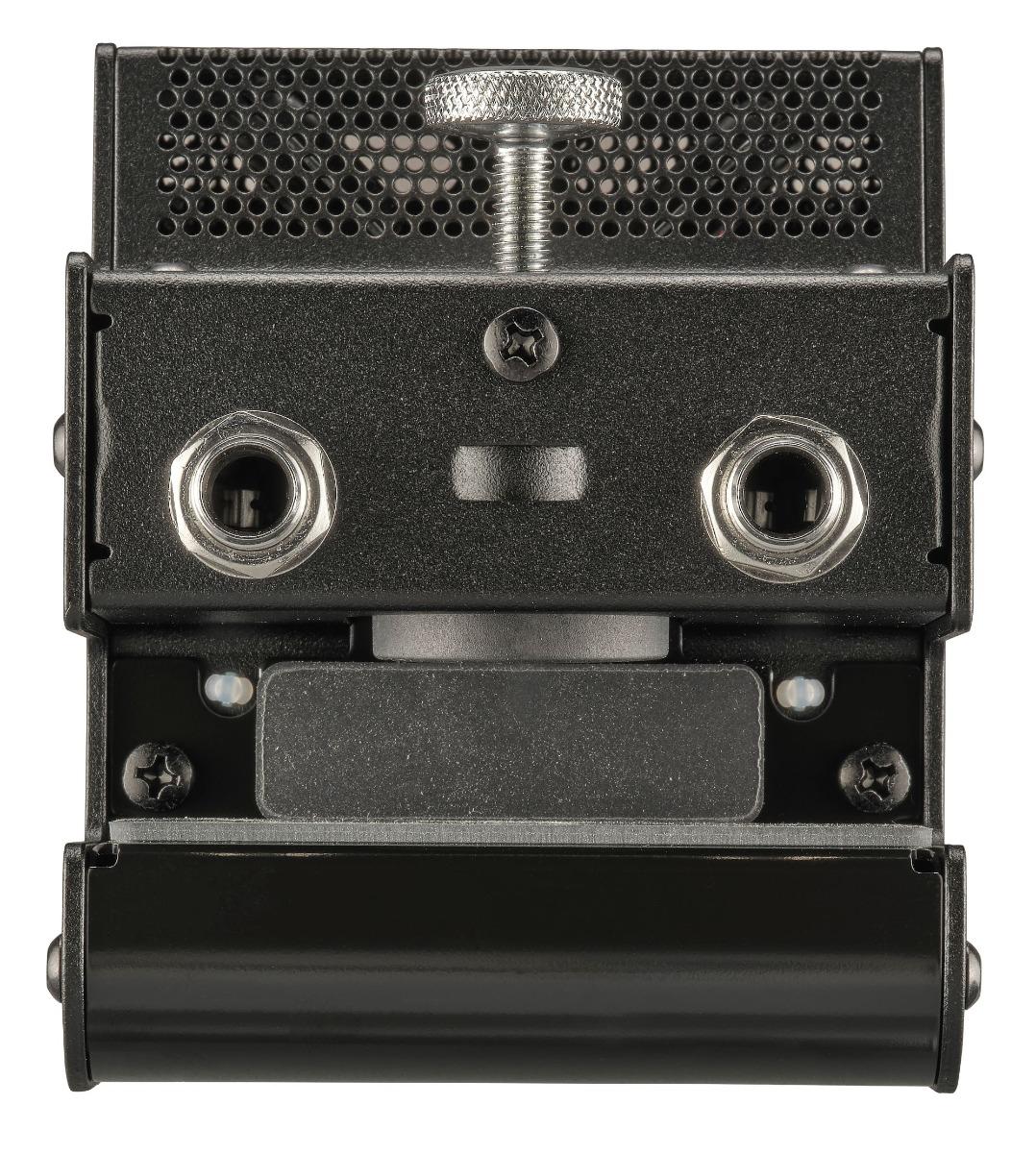

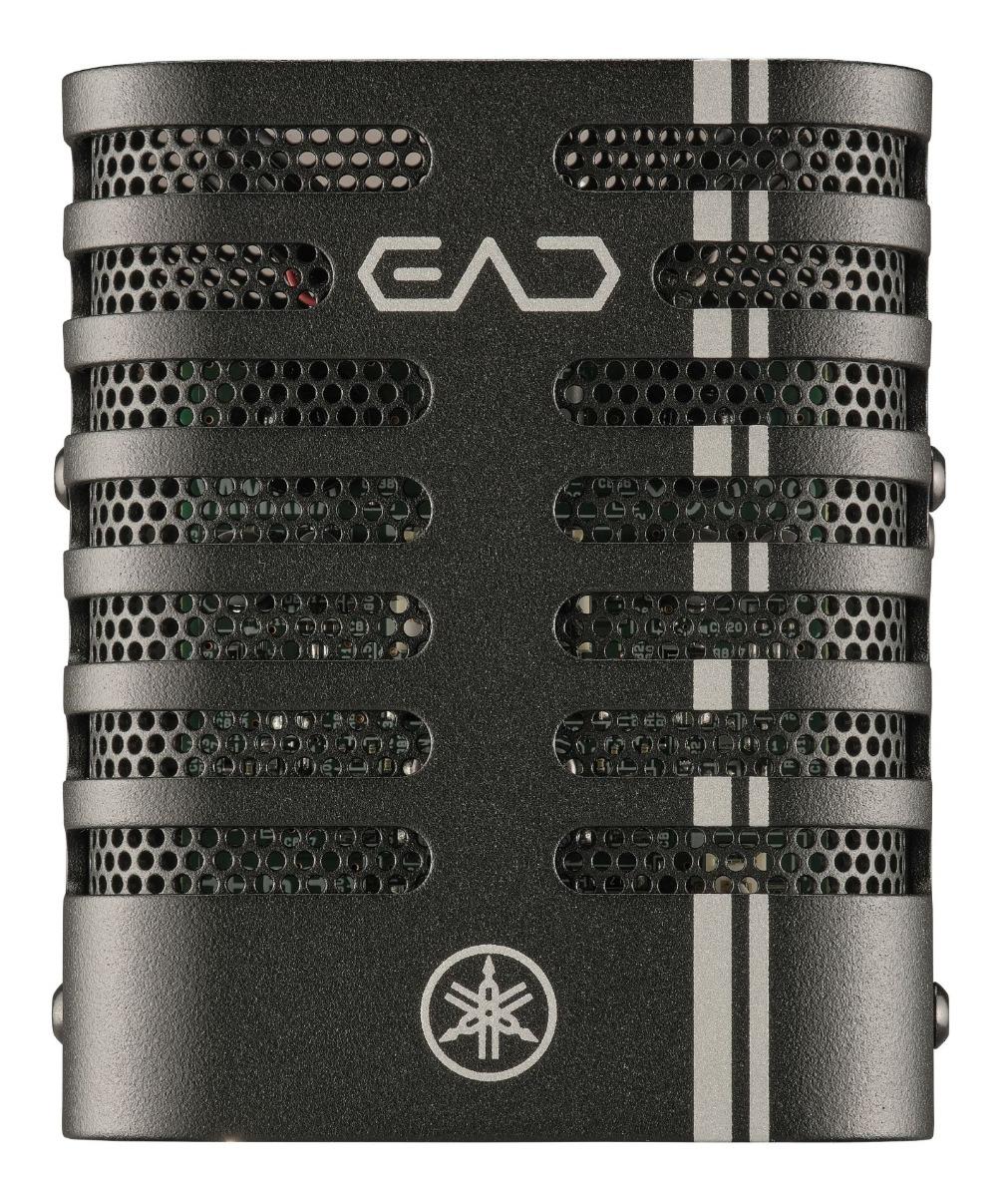

Product measurements: Sensor Unit
- Product Height ~ 88mm
- Product Width ~ 75mm
- Product Depth ~ 78mm
- Product Weight ~ 0,45kg
Box measurements:
- Product Height ~ 143mm
- Product Width ~ 511mm
- Product Depth ~ 311mm
- Product Weight ~ 3.70kg
Power Supply ~ (included) PA150
