Overview

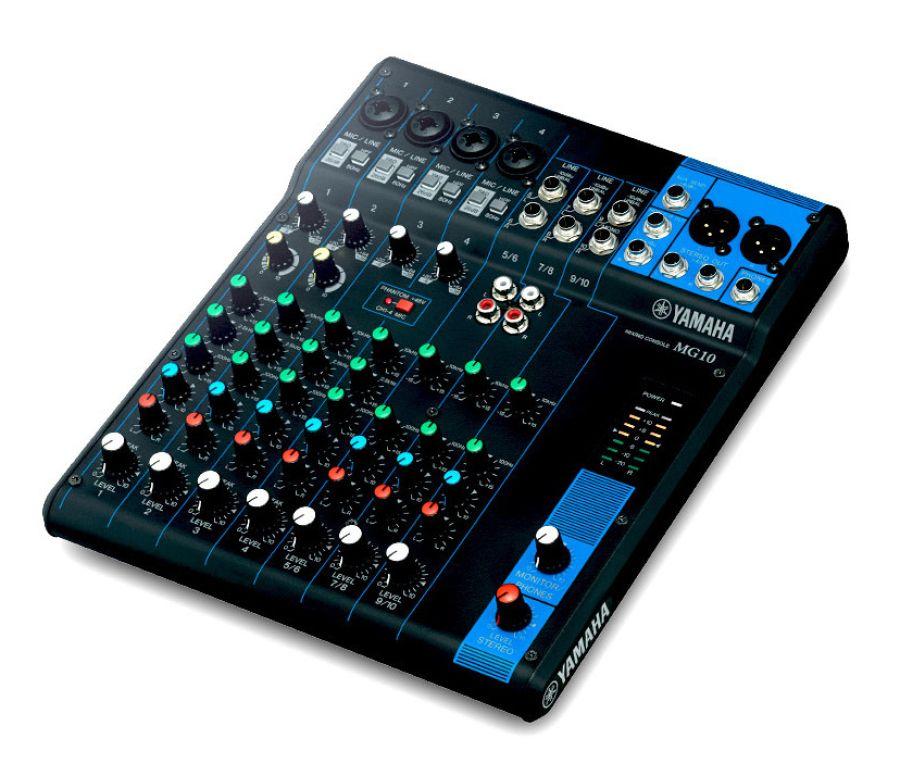

Completely redesigned for the 3rd Generation of MG mixers, the compact MG10 features 4 class leading Class A D-PRE microphone preamps.
Features
The MG10 has the following features:
- 10-Channel Mixing Console
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Metal chassis
- Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
- Net Weight: 1.9 kg (4.19 lbs.)
Specs
Outline
- I/O Phantom power +48 V
- Input Channels
Mono[MIC/LINE] 4
Stereo[LINE] 3 - Output Channels
STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 1 - Bus Stereo: 1, AUX[FX]: 1
- Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Product ID | CMG10UKYEM |
Limited Shipping |
Please note that we deliver within the United Kingdom only
|
Questions & Answers
Question: Does this mixer have USB?
Answer
Thanks for the question. We make two versions of the MG10. This version doesn't have a USB connection. For the version with built-in USB connection (for macOS, iOS and Windows) as well as high quality built-in effects, look at the MG10XU model:
