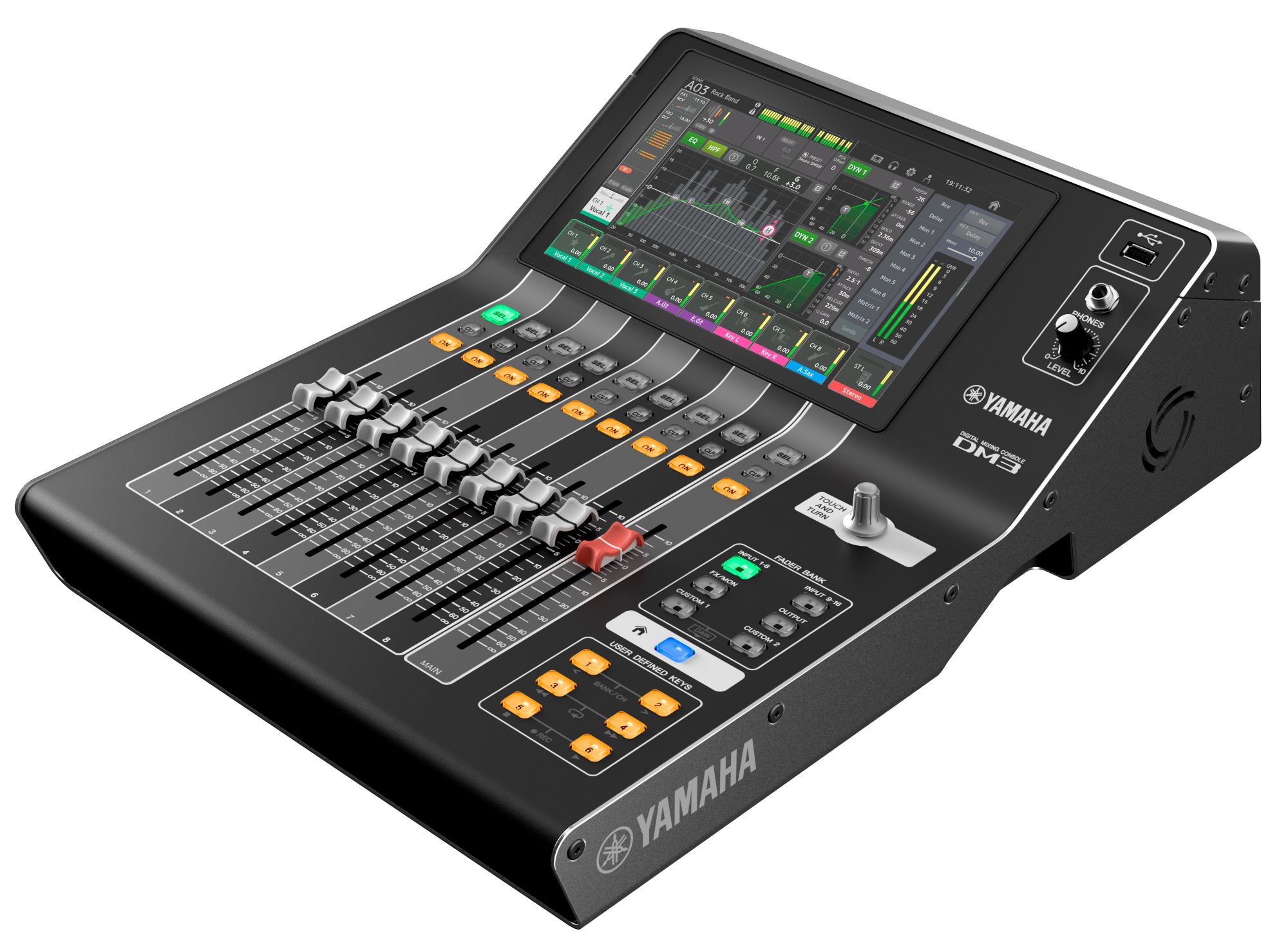

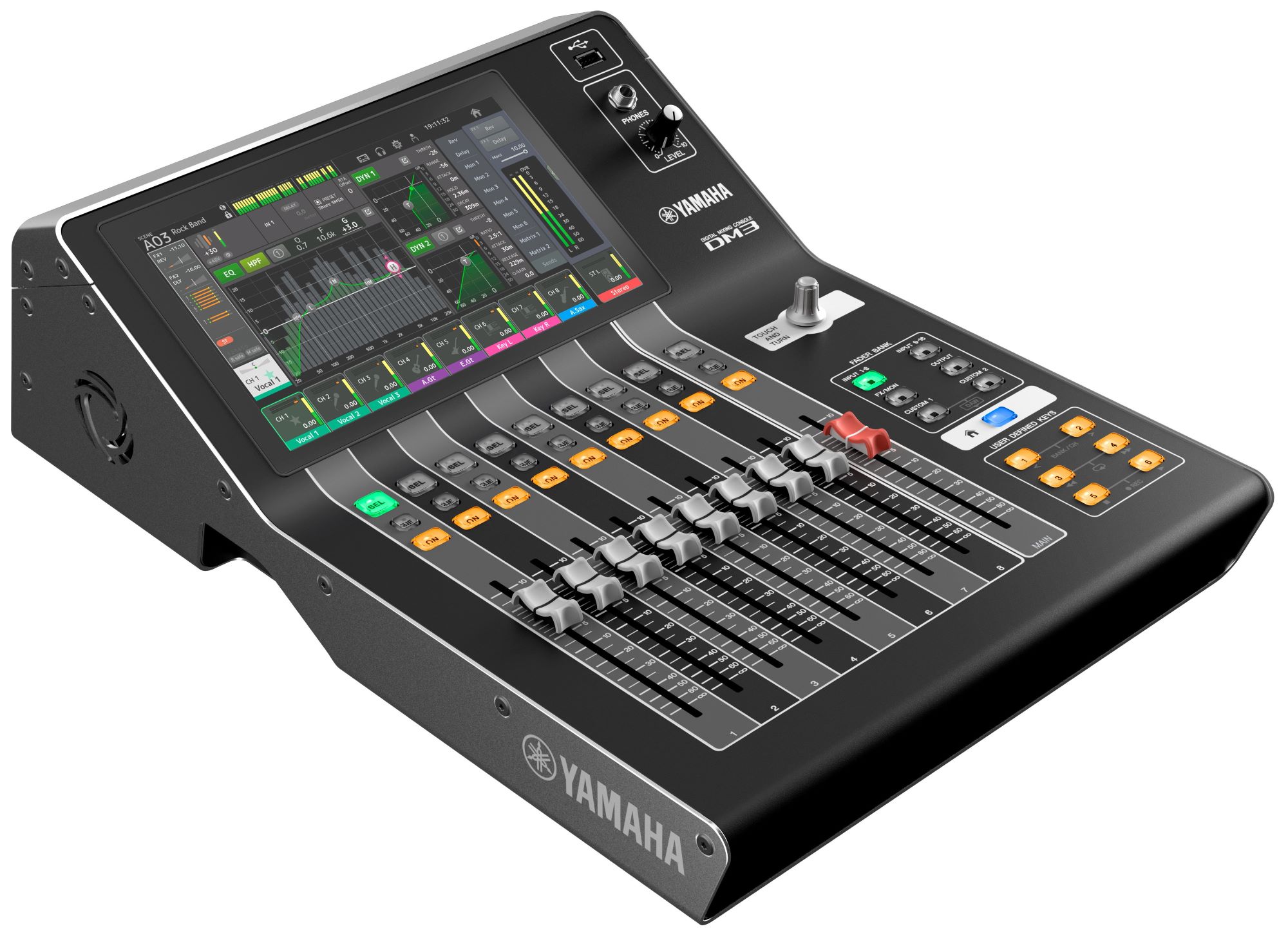

Yamaha DM3 (with DANTE) Digital Mixer
RAISING THE BAR FOR COMPACT DIGITAL MIXERS.
DM3 Series allow engineers to capture the on-stage sound accurately, without coloration, and then add creative touch as required. It exemplifies a “less is more” design philosophy, utilizing a 9” touchscreen and a single Touch & Turn knob for managing most of the console’s operations. DM3 mixing consoles give you the power and flexibility to DO MORE than ever imagined with a digital console this compact.
- INPUT MIX: 16 MONO + 1 ST + 2FX
- BUS: 6 MIX + 2 FX + 2 MATRIX
- 9 MOTOR FADERS, 1 TOUCH & TURN
- ANALOG IN: 16 MIC/LINE
- ANALOG OUT: 8 (XLR)
- 18 X 18 AUDIO INTERFACE VIA USB
- 2 FX & GEQ ON MIX/STEREO BUS
- DAW REMOTE (HUI)
- CUBASE AI & VST RACK ELEMENTS
Please note - This product may have been opened, returned by a customer, or refurbished. It could show minor cosmetic wear such as light marks or scratches, or be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.
Specs
Mixing Capacity
- Input channels : 16 Mono, 1 Stereo, 2 FX Return
- Buses : 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Input to Matrix supported)

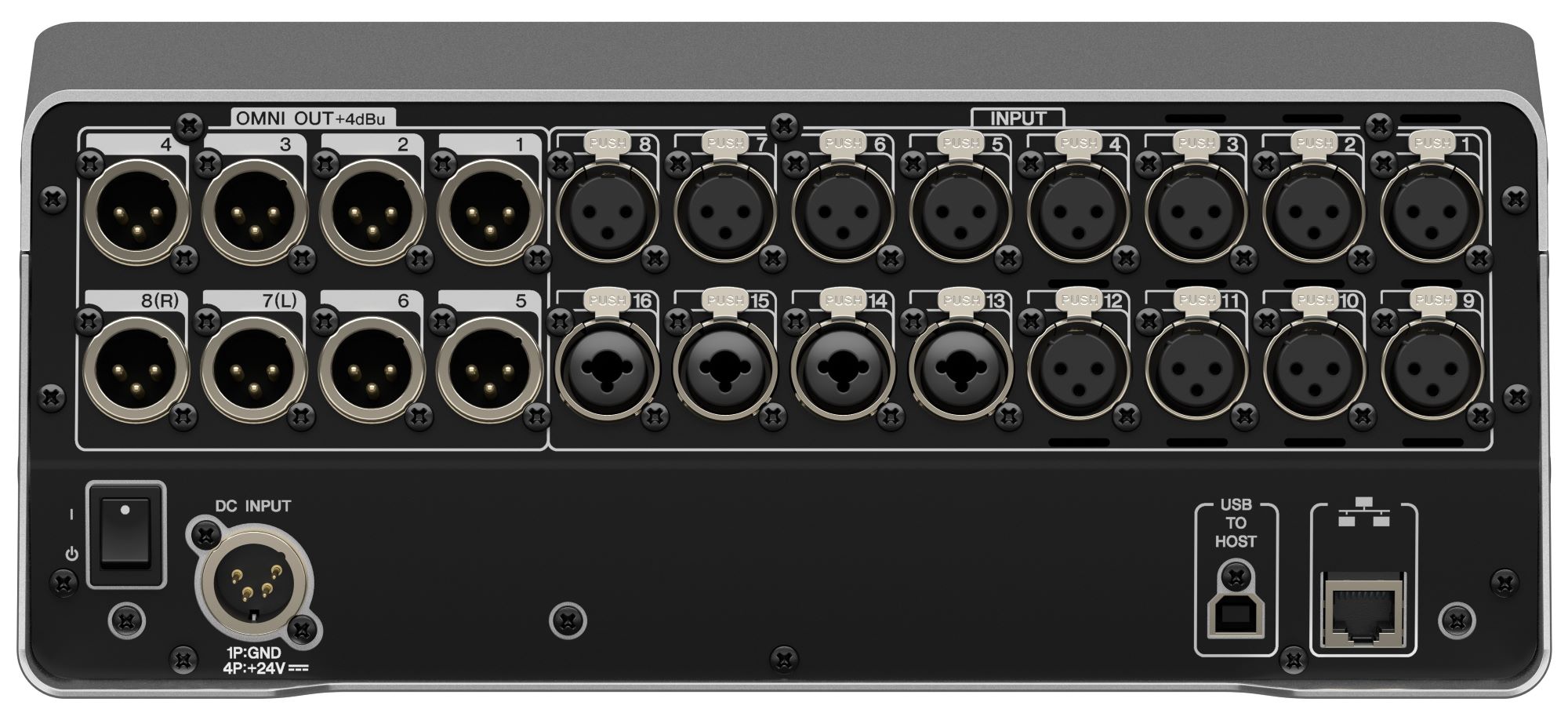

Local Connectors
- Analog In : 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
- Analog Out :8 (XLR)
- Dante I/O (DM3 only) : 2 (etherCON : Primary/Secondary, 16 In/Out)
- Ethernet : 1 (RJ-45)
- USB to Host : 1 (USB Type-B)
- USB to Device : 1 (USB Type-A)
- Phones : 1 (TRS Phones)
- DC IN : 1 (XLR 4pin)

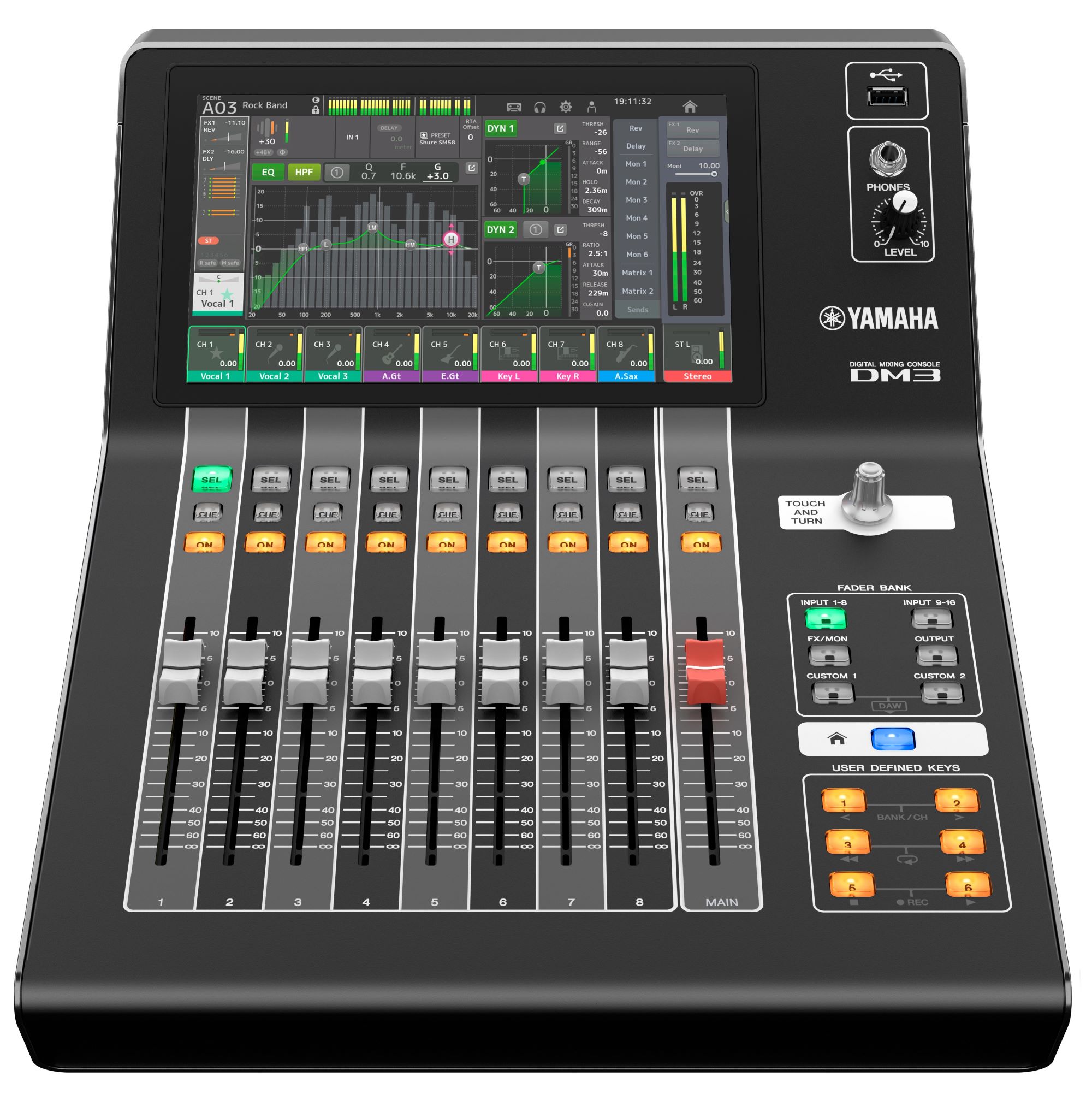

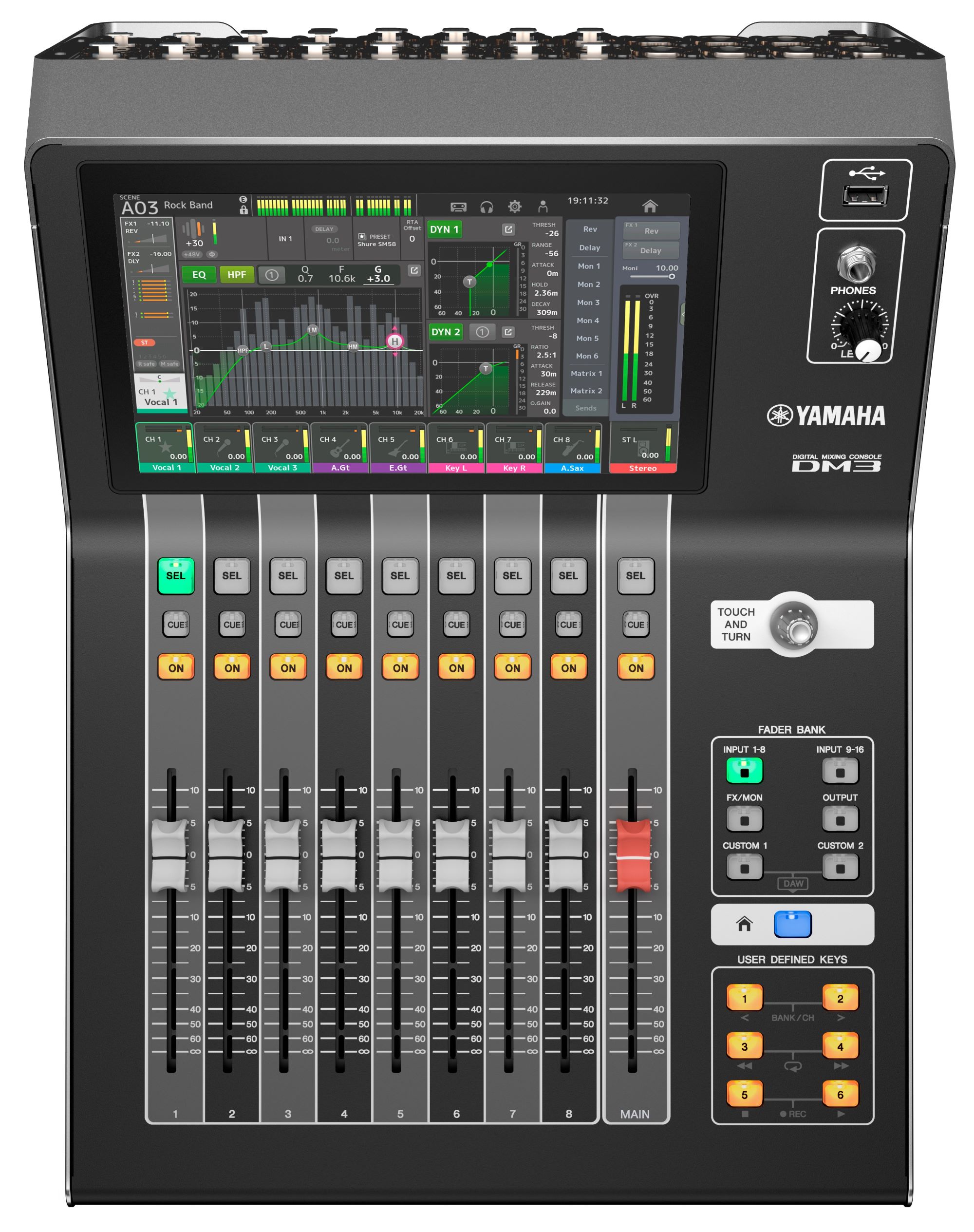

User Interface

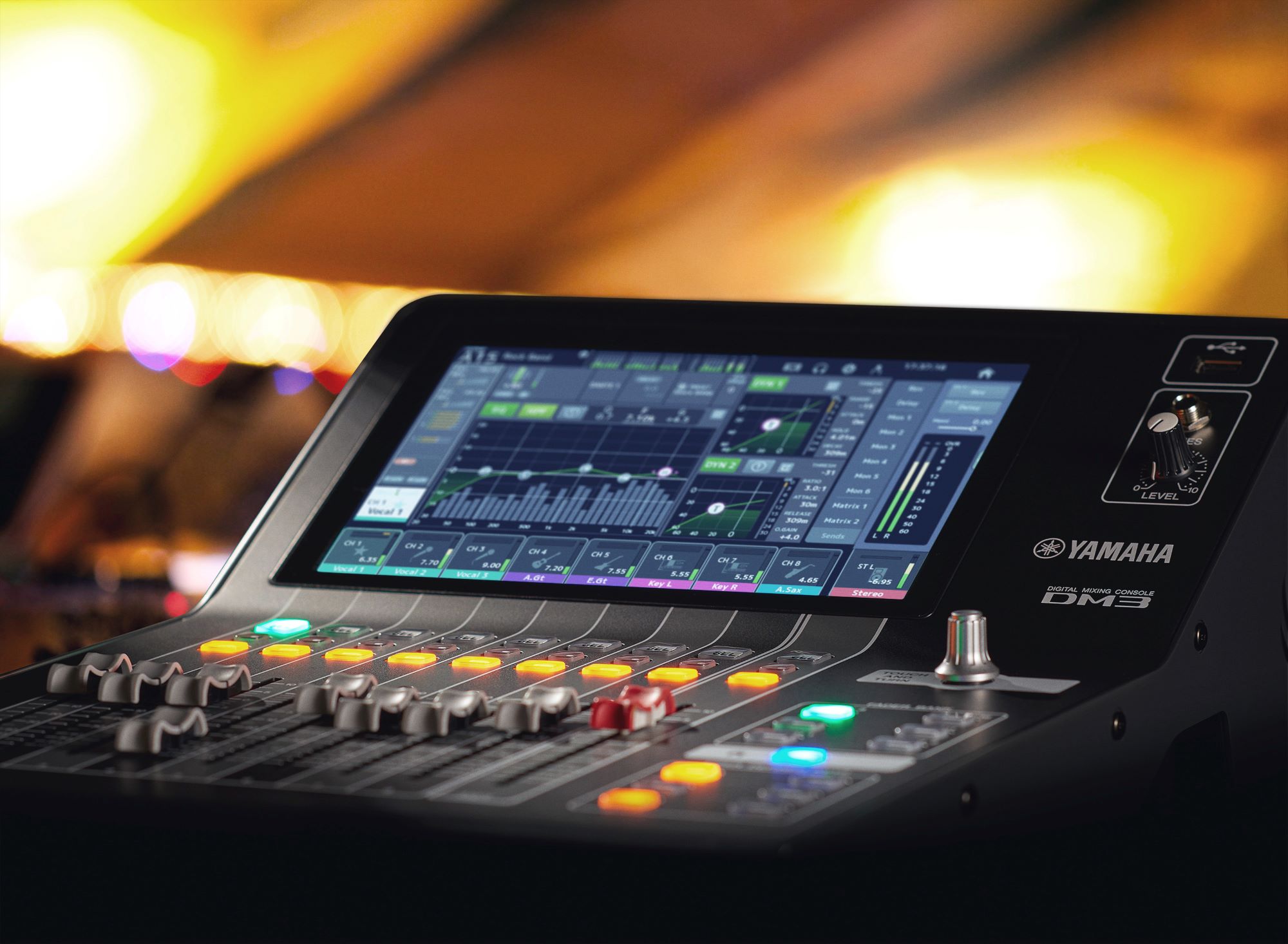

- 9-inch multi-touch screen
- 9 x 100mm Motorized fader (8 channels + 1 master)
- 1 x Rotary Encoder (Touch and Turn)
Recording & Playback
- PC (via USB to Host) (USB 2.0) : Recording 18 track
- PC (via USB to Host) (USB 2.0) : Playback : 18 track
- USB storage device : Recording 2 track
- USB storage device : Playback 2 track
- Sampling rate : 96 kHz/48 kHz
- Power Requirements : DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
- Power Consumption : 43 W
- Dimensions (W x H x D) : 320 mm × 455 mm × 140 mm
- Weight : 6.5 kg
- Temperature Range : Operating Temperature Range: 0 to 40°C
- Temperature Range : Storage Temperature Range: -20 to 60°C
- Accessories : Owner’s Manual, Power Adapter (PA-L500, including power cord), CUBASE AI Download Information,
- Options : Rack mount kit RK-DM3, I/O RACK Tio1608-D
*1 Total Harmonic Distortion is measured with a –18 dB/octave filter@80 kHz.
*2 Hum & Noise are measured with an A-Weight filter.
*3 Crosstalk is measured with a –30 dB/octave filter@22 kHz.
