Overview

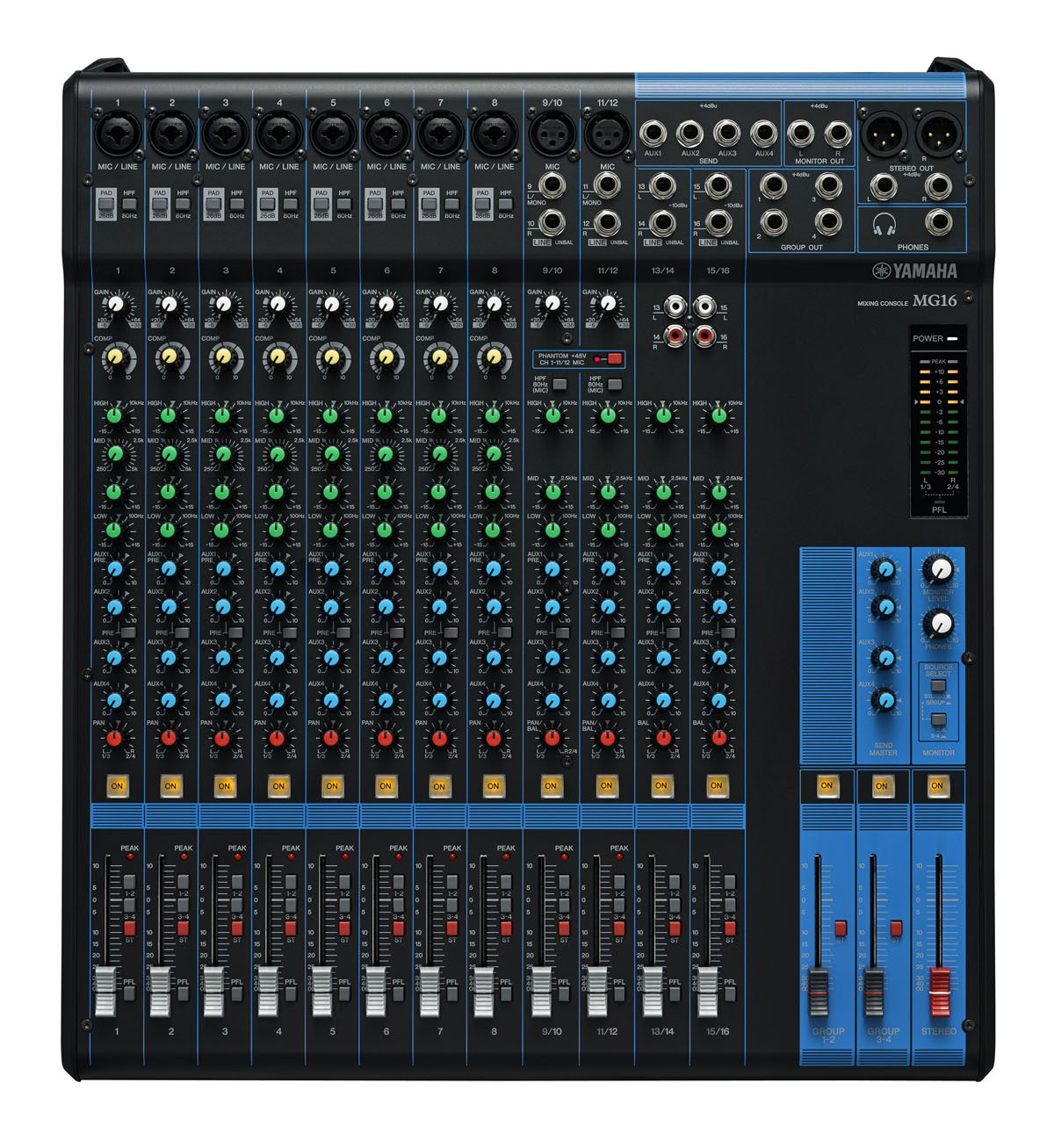

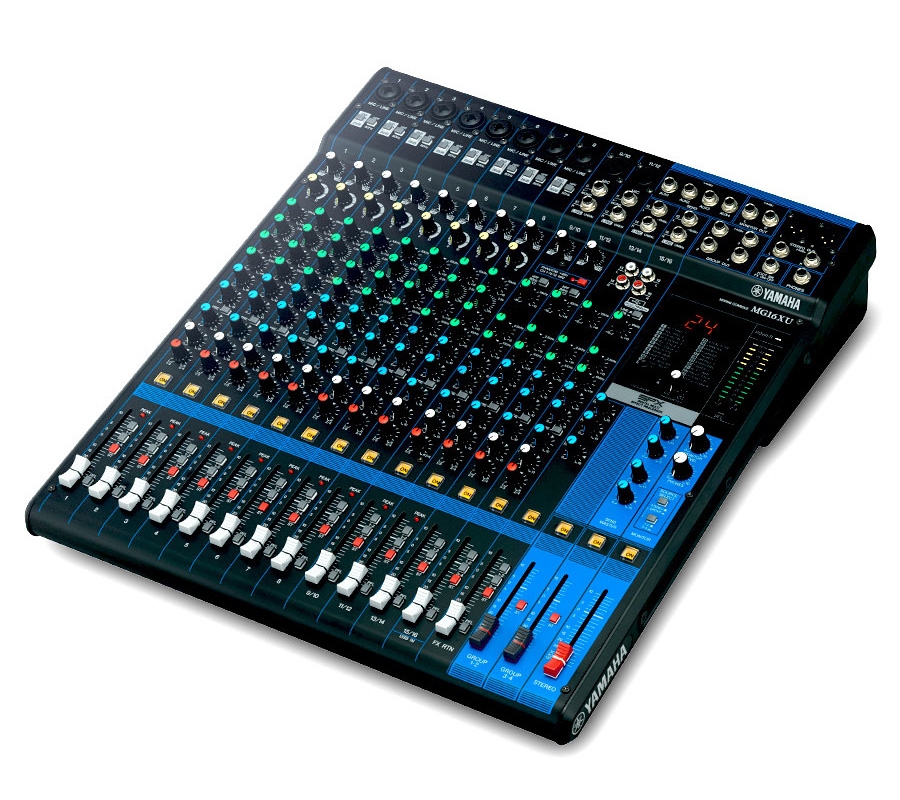

16-Channel Mixing Console: Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo) / 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)
Please note - This product may have been opened, returned by a customer, or refurbished. It could show minor cosmetic wear such as light marks or scratches, or be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.
Features
The MG16 has the following features:
- 16-Channel Mixing Console
- Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
- 4 GROUP Buses + 1 Stereo Bus
- 4 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Rack Mount Kit Included
- Metal chassis
- 444 mm x 130 mm x 500 mm (17.5" x 5.1" x 19.7")
- 6.6 kg (14.6 lbs.)
Specs
Outline
- I/O Phantom power +48 V
- Input Channels
Mono[MIC/LINE] 8
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2 - Output Channels
STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 4
GROUP OUT 4 - Bus Stereo: 1, GROUP: 4, AUX: 4
- Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
General specifications
- Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
- Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min) - Crosstalk -78 dB

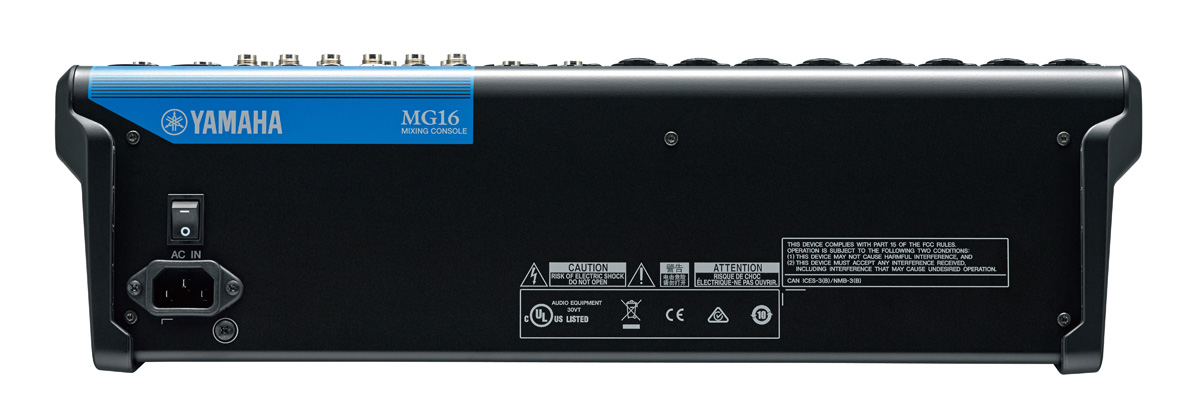

- Power requirements AC 100 – 240 V, 50 / 60 Hz
- Power consumption 30 W

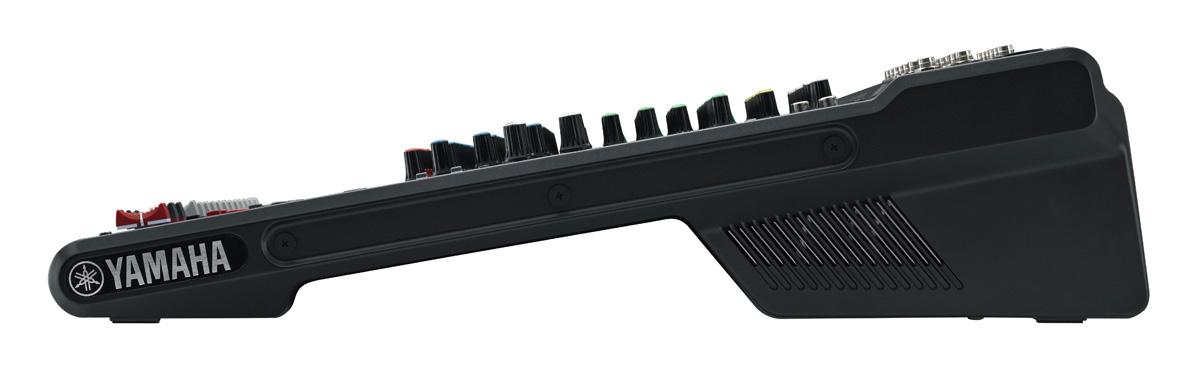

- Dimensions W 444 mm (17.5")
- H 130 mm (5.1")
- D 500 mm (19.7")
- Net weight 6.6 kg (14.6 lbs.)
- Accessories
Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Rack-mount kit - Others Operating Temperature: 0 to +40˚C
| Product ID | CMG16UKYEM-UKLC |
|---|
