Overview
4 x 6 USB 2.0 audio interface with 2x D-PREs and 3x3 monitoring matrix.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
4 x 6 USB 2.0 audio interface with 2x D-PREs and 3x3 monitoring matrix
Boasting high-resolution audio through its analog and digital I/O alongside the widely acclaimed D-Pre mic preamps makes the UR28M desktop interface the best choice for individual musicians and producers of small-scale projects. The 3x3 monitor matrix for switching between setups, the DSP-powered monitoring and native VST 3 plug-ins in the UR28M provide an eminently flexible recording experience.

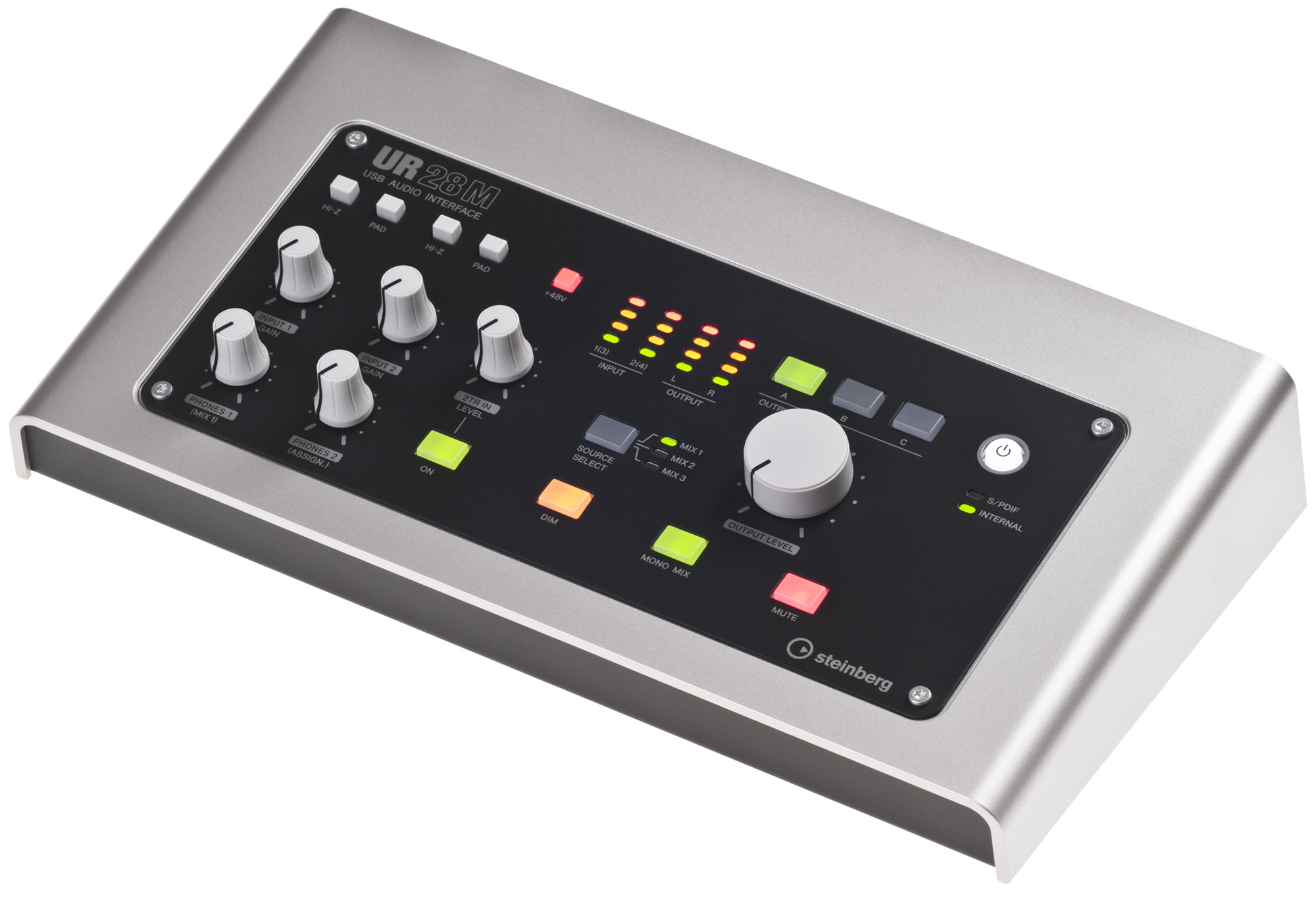

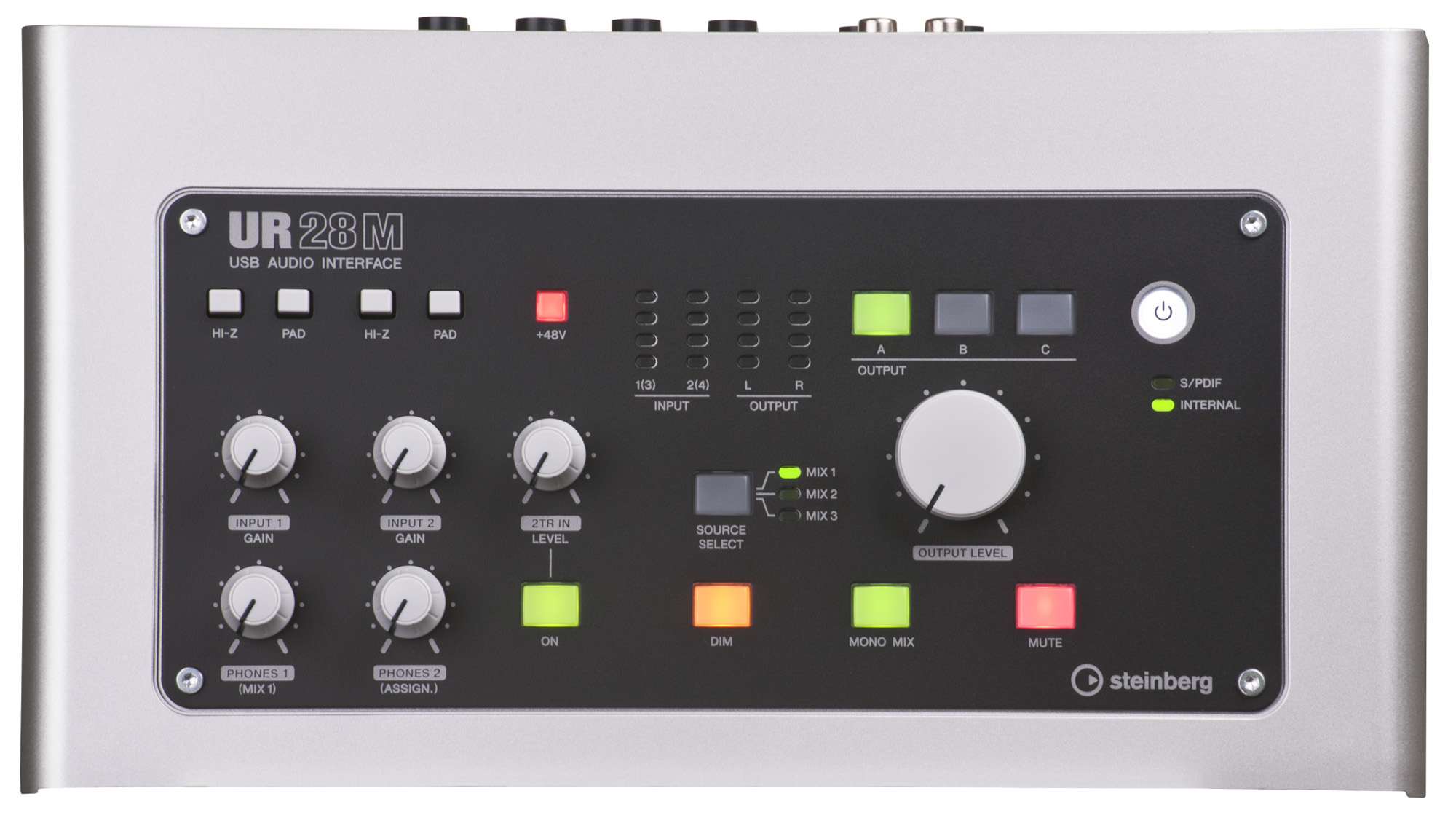

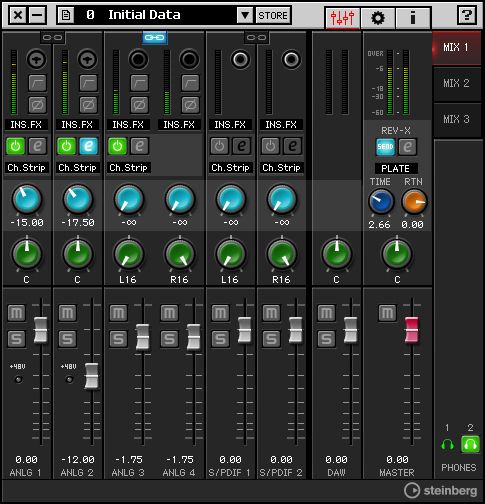

Designed for easy access to controls and connectors, the UR28M’s console comes with a single prominent output volume knob for individually controlling the levels of one of three stereo output pairs or the levels of six outputs simultaneously. You can also select between three monitoring mixes set up in the dspMixFx mixer or Cubase which is routed to the selected outputs. Several smaller rotary knobs to control signal levels of inputs 1 and 2 and the levels of the two headphone outputs, while further dedicated switches for inputs 1 and 2 allow you to employ 48 volt phantom power, 26 dB signal attenuation and connecting high-impedance instruments. Other controls include the Dim button for attenuating all line output signals by 20 dB, the Mono button and the Mute button for muting the selected output signal.
The rear panel provides two TRS line inputs and two Neutrik combo TRS/XLR mic/line inputs alongside six analog balanced TRS outputs plus a coaxial S/PDIF input and output connector. Also included is a 1/8 inch stereo input jack for connecting to a portable audio player or other devices as a reference source
Best setups for your gear
The UR28M represents a top-notch recording system with plenty of inputs and outputs to connect to microphones, instruments, studio monitors and headphones. There’s a USB connector to hook up to either your Mac or PC that lets you record and mix your productions with the included Cubase AI workstation or other audio software.
And with the free update to version 2, the UR28M also works with the iPad (2 or later) through Apple’s iPad Camera Connection Kit allowing you to record up to four input channels in an iOS audio application, such as Steinberg’s Cubasis.
Specs
UR28M Mac OS X
Windows
Firmware Ver. 2.0: Mac OS X 10.7 / 10.8 Firmware Ver. 2.0: Windows 7 SP1 / Windows 8 Intel dual core CPU Intel or AMD dual core CPU 2 GB RAM
4 GB of free HD space
Display resolution of 1280x800 recommended
DVD-ROM dual-layer drive
USB 2.0/3.0* port
* Tested with the USB 3.0 host controller on the Intel chipset. Please read the
knowledge base article. Internet connection required for installation, activation, account setup and personal / product registration. To complete the Cubase AI installation, a download of approximately 500 MB is required.
291 x 59 x 164 mm, 1.4 kg (excluding power adapter)
