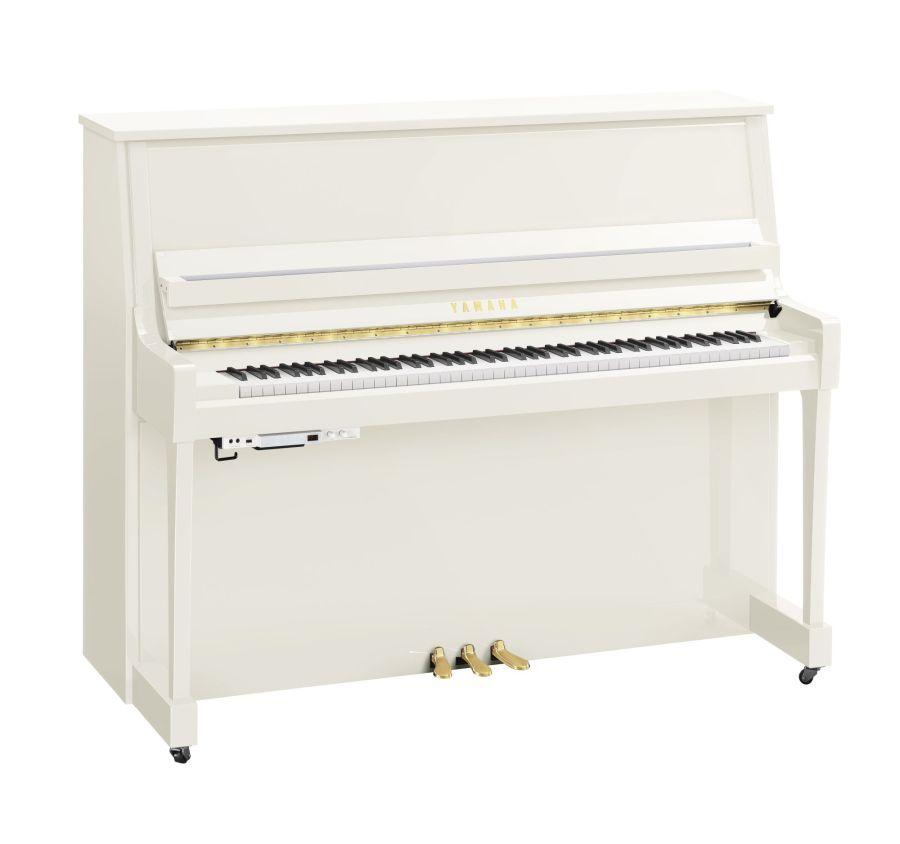

Yamaha B30 TransAcoustic Upright Piano in Polished White Finish

Finance

Features

The Wide Music Stand
Wide music stand firmly holds large sheet music open in modal window. Extending the full length of the fallboard, the wide music stand makes it easy to place multiple scores – or even long, unfolding sheets – without the need to turn pages. The top surface is deep and finished with non-slip fine artificial leather, providing stability even for thick music scores, so you can focus entirely on your performance.

The Hammer
The hammers, which strike the strings to produce sound, play a crucial role in shaping the piano’s timbre. To achieve a clear, pure tone, the B Series employs a special method in processing the raw felt used in the hammers – a technique derived from our flagship CFX Concert Grand Piano. This process takes full advantage of the inherent superior elasticity of the felt, resulting in a sound that is remarkably clear, richly resonant, and sustained. Every melody and phrase, across all registers, emerges with vivid presence and expression.

The Soundboard
The soundboard is the resonant heart of the piano, and it has been redesigned to achieve a remarkably clear and spacious sound, despite its compact size. This results in a rich bass that supports both the melody and harmonies, creating a beautifully balanced sound where each register can shine. The soundboard features a curved structure known as the “crown,” and even slight changes to its shape can have a significant effect on the resonance of the sound. All B Series models feature five back posts to prevent the crown from changing shape under the strong tension of the strings, ensuring the soundboard maintains the ideal condition for luxurious resonance.

The Action Parts
The complex action mechanism of an upright piano, which transmits key movement to the hammers, is made up of over 60 precision parts for each individual key. To ensure smooth operation – a crucial factor in the instrument’s expressive touch and ability to produce the desired sound – Yamaha manufactures all action components in-house. Each part is precision-processed with extraordinary accuracy to an exacting tolerance of 0.05 millimeters and carefully assembled by our skilled craftsmen, to ensure long-term ease of playing. Even if maintenance is required, part replacement is simple, giving you peace of mind and many years of enjoyment with your piano.

The Frame
A piano’s frame must be able to withstand a total string tension of more than twenty tons. Beyond supporting this immense tension, the frame also has a profound impact on the instrument’s sound. Yamaha manufactures its frames at a dedicated piano frame factory using a "vacuum process" – becoming the first company to employ this technique in crafting some of the finest piano frames. Over this time, we have accumulated extensive knowledge on how factors such as casting temperature, material composition, and even the frame’s coating influence a piano’s acoustic characteristics. This expertise means that Yamaha is able to consistently ensure the reliable quality of every piano we make.

The Soft-Close Fallboard
Soft-close mechanism allows gentle closing of the fallboard open in modal window

Specs

• Cabinet Finish ~ Polished White
• Width ~ 153 cm (5960 1/4")
• Height ~ 121 cm (47 3/4")
• Depth ~ 62 cm (24 1/2")
• Weight ~ 236 kg (520 1/4 lb)
• Number of Keys ~ 88
• Keyboard - Key Surfaces ~ White : Acrylic Resin, Key Surfaces - Black : Phenolic Resin
• Pedal Type ~ Damper/Silencing pedal/Soft
• Hammer Type ~ B Series Special
• Frame ~ V-pro
• Back Post ~ 5
• Key cover - Soft-Close Fallboard ~ Yes
• Castors ~ Single Castor

Sensor System

• Key Sensors - Non-contact continuous detection electromagnetic inductive sensor
• Damper Pedal - Continuous detection sensor
• Soft/Short Pedal - On/Off detection

Silencing System

• Mechanism ~ Hammer shank stopper operated by centre pedal

Voices

• Tone Generation - Piano sound ~ Yamaha CFX, Bösendorfer Imperial
• Tone Generation - Binaural Sampling ~ Yes (CFX, Bösendorfer Imperial)
• Tone Generation - VRM ~ Yes
• Tone Generation - Grand Expression Modelling ~ Yes
• Tone Generation - Key-off Samples ~ Yes
• Tone Generation - Smooth Release ~ Yes
• Polyphony (max.) ~ 256
• Preset - Number of Voices ~ 12

Effects

• Reverb ~- Yes
• Brilliance ~ Yes
• Stereophonic Optimizer ~ Yes (Piano Voices other than CFX Grand and Bosendorfer)

Songs (MIDI)

• Number of Preset Songs ~ 12 Voice Demo Songs, 50 Classics
• Recording - Number of songs ~ 10
• Recording - Number of Tracks ~ 2
• Data Capacity ~ Approx. 500 KB

Format

• Playback ~ SMF (Format 0, Format 1)
• Recording ~ SMF (Format 0)

Recording/Playback (Audio)

• Recording Time (max.) ~ 80 Minutes/Song
• Format - Playback ~ WAV (44.1 kHz, 16 bit, stereo)
• Format - Recording ~ WAV (44.1 kHz, 16 bit stereo)

Functions

• Rhythm Patterns ~ 20
• Metronome ~ Yes
• Tempo Range ~ 5 - 500
• Transpose ~ - 12 - 0 - +12
• Tuning ~ 414.8 - 444.0 - 466.8Hz (approx 0.2 Hz increments)

Control Interface

• Display : 7-Seg
• Bluetooth : Yes (Audio/MIDI) *May not have this functionality depending on your area. Check with your Yamaha dealer

Storage and Connectivity

• Storage - Internal Memory ~ approx. 1.3 MB
• Storage - External Drives ~ USB flash Drive

Connectivity

• Headphones ~ Stereo mini jack (x2)
• AUX IN ~ Stereo mini jack
• USB TO DEVICE ~ Yes
• USB TO HOST ~ Yes

Power Supply

• AC Adaptor ~ PA-300C (or an equivalent recommended by Yamaha)
• Power Consumption ~ 8 W (When using PA-300C AC adaptor)
• Auto Power Off ~ Yes

Accessories
Included Accessories ~ AC adaptor*, Power cord*, Headphone hanger, Attachment screws for headphone hanger. Owner's Manual. * May not be included depending in your area.

Separately Sold Accessories ~ USB wireless LAN adaptor (UD - WL01)

Soundboard Drive System

• Mechanism ~ TransAcoustic™ technology
