Overview

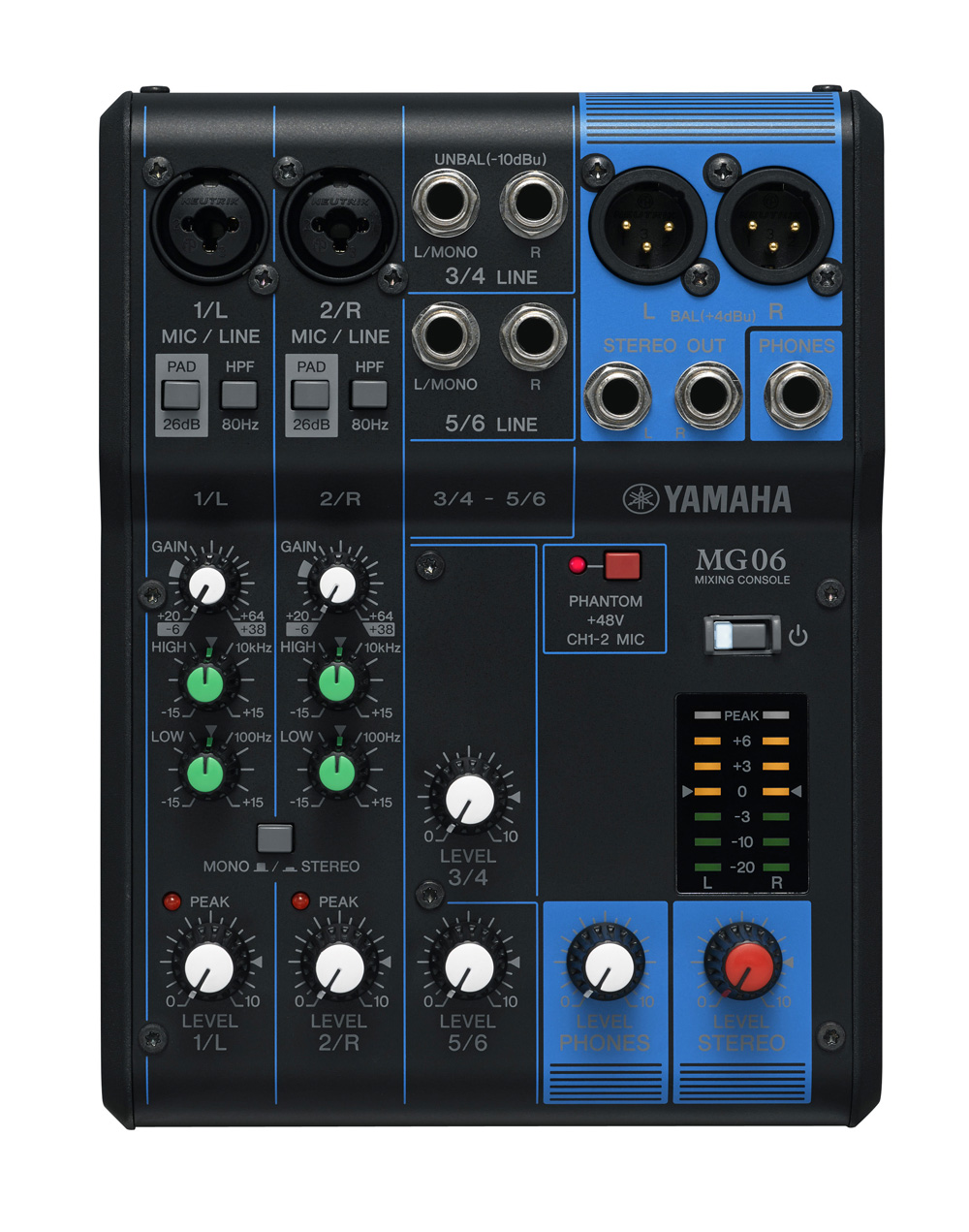

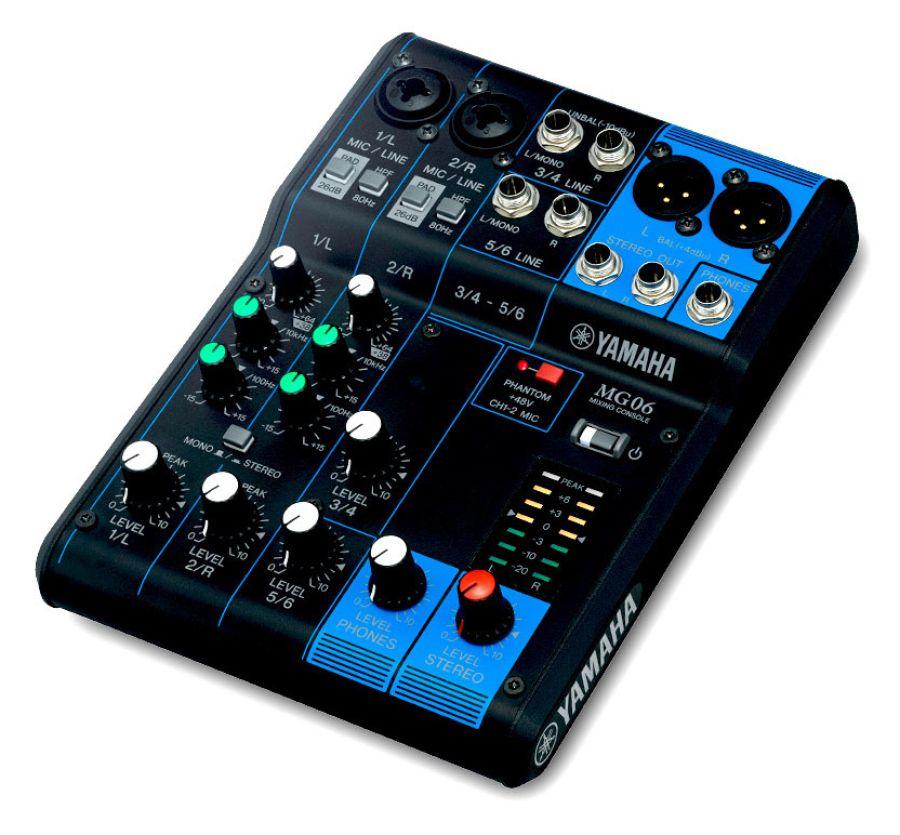

Completely redesigned for the 3rd Generation of MG mixers, the compact MG06 features 2 class leading Class A D-PRE microphone preamps.
Please note - This product may be ex-display, returned by a customer, or refurbished. It has visible cosmetic wear such as marks or scratches and may be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.
Features
The MG06 has the following features:
- 6-Channel Mixing Console
- Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
- 1 Stereo Bus
- “D-PRE” mic preamps with an inverted Darlington circuit
- XLR balanced outputs
- PAD switch on mono inputs
- +48V phantom power
- Metal chassis
- Dimensions(W×H×D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
- Net Weight: 0.9 kg (1.98 lbs.)
Specs
Outline
- I/O Phantom power +48 V
- Input Channels
Mono[MIC/LINE] 2
Stereo[LINE] 2 - Output Channels
STEREO OUT 2
PHONES 1 - Bus Stereo: 1
- Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
EQ HIGH (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
General specifications
- Total harmonic distortion 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
- Frequency response +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min) - Crosstalk -88 dB

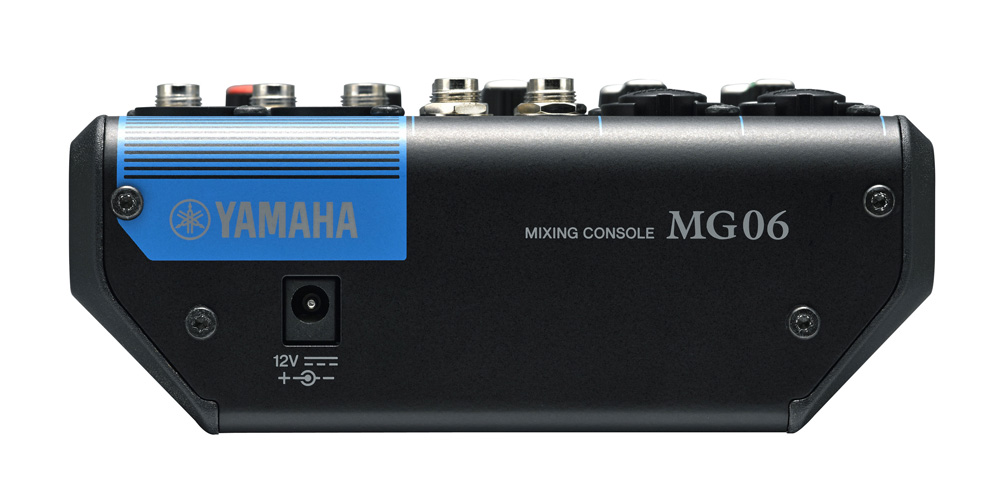

- Power requirements PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
- Power consumption 12 W
- Dimensions
W 149 mm (5.9")
H 62 mm (2.4")
D 202 mm (7.9") - Net weight 0.9 kg (1.98 lbs.)
- Accessories
Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications,
Optional Accessory: Mic Stand Adaptor BMS-10A - Others Operating Temperature: 0 to +40˚C
| Product ID | CMG06UKYEM-UKLD |
|---|
