Overview

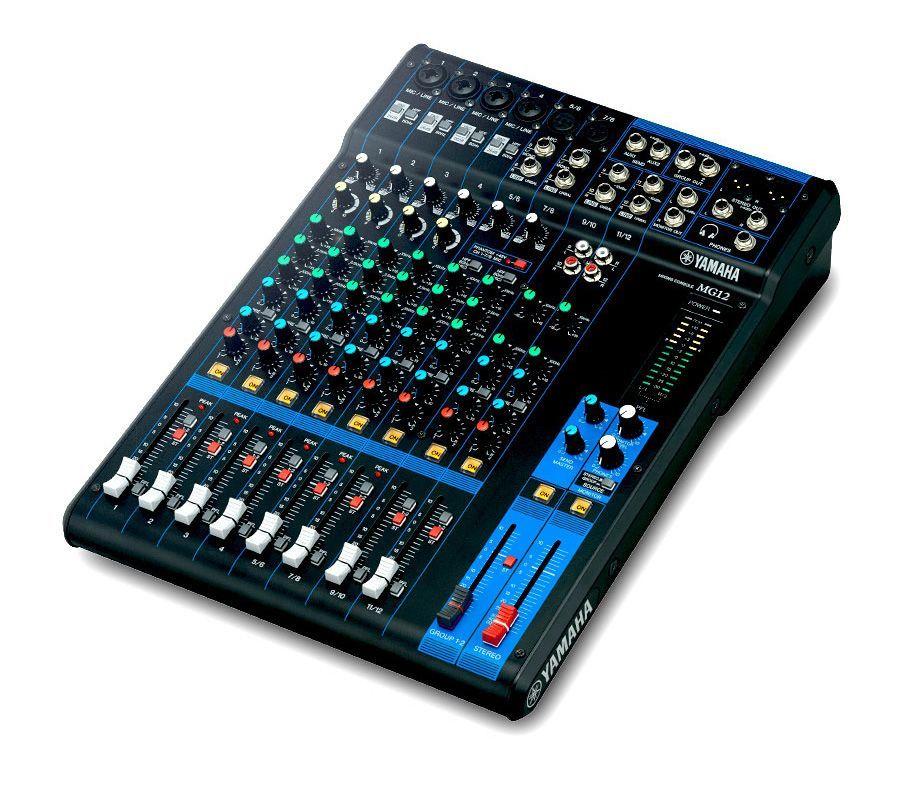

Completely redesigned for the 3rd Generation of MG mixers, the compact MG12 features 6 class leading Class A D-PRE microphone preamps.
Please note - This product may have been opened, returned by a customer, or refurbished. It could show minor cosmetic wear such as light marks or scratches, or be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.
Features
The MG12 has the following features:
- 12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus
- 2 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Optional Rack Mount Kit RK-MG12 Available
- Metal chassis
- 308 mm x 118 mm x 422 mm (12.1" x4.6" x16.6")
- Net Weight: 4.0 kg (8.8 lbs.)
Specs
Outline
- I/O Phantom power +48 V
- Input Channels
Mono[MIC/LINE] 4
Mono/Stereo[MIC/LINE] 2 - Stereo[LINE] 2
- Output Channels
STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 2
GROUP OUT 2 - Bus Stereo: 1, GROUP: 2, AUX: 2
- Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
General specifications
- Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
- Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min) - Crosstalk -78 dB
- Power requirements AC 100 – 240 V, 50 / 60 Hz
- Power consumption 22 W
- Dimensions
W 308 mm (12.1")
H 118 mm (4.6")
D 422 mm (16.6") - Net weight 4.0 kg (8.8 lbs.)
- Accessories
Included Accessory: Owner’s Manual, Technical Specifications, AC power cord.
Optional Accessory: Rack-mount kit RK-MG12 - Others Operating Temperature: 0 to +40˚C
| Product ID | CMG12UKYEM-UKLB |
|---|
