Overview
Featuring the app-friendly DTX502 Module (the power behind our hugely popular DTX502 Series electronic drum kits), three highly responsive and playable DTX Pads (including the brilliant 3-zone XP100SD pad) plus 2 drum triggers and clamps, the DTX Hybrid Extension Pack has everything you need to create an amazing hybrid drum kit.
Kit contains:
- 1 x Yamaha DTX502 Drum Trigger Module
- 1 x Yamaha XP100SD 3-zone Snare Pad including cable
- 2 x Yamaha XP70 mono pads including cable
- 2 x Yamaha DT20 Drum-Triggers*
- 2 x CL940B Ballclamps
- 3 x CSAT-924A Multiclamps
*2 1/4" jack cables are additionally required in sufficient length (TS/TS or TRS/TRS) - these aren't included
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: One Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
A New Level of Sound Quality
The DTX502 Module features a massive 691 voices that include samples from our world-class acoustic drum kits plus an incredible collection of new drum and cymbal sounds we've licensed from VST developers and optimised for DTX. Combined with voices taken from our flagship DTX models, the DTX502 module has an huge internal library that delivers authentic drums with true variety. There are 50 preset drum kits that cover traditional styles including Rock, Jazz and Pop as well as modern Dubstep, Electronica, Hip-hop, Metal and Punk genres.
Import Custom Sounds for More Creativity
With the DTX502 Module, you can load in your own samples - which you can then assign to the DTX pads or triggers - letting you create a truly unique kit.
Requires the free MusicSoft Downloader application, a maximum of 20 different samples with a combined maximum duration of 12 seconds. (sampling rate 44.1kHz, 16-bit, mono). The internal memory of the DTX502 is also used by any MIDI files you load in which will reduce the memory available for sample storage.
Advanced Technology Under The Hood
Using proprietary laser technology to analyse drum strokes, we've precisely tuned the trigger settings on the DTX502 Series resulting in an authentic, natural feel with laser accuracy. It also includes advanced features from our higher-end models such as cymbal muting, natural cymbal swells and smoother snare drumrolls, allowing the kit to respond to every nuance of your playing.
Updated Practice Functions With Scoring
The DTX502 includes a brilliant drum training system to challenge you no matter your current skill level - every time you practice. Using these will help you improve the key skills in drumming - from rhythmic timing to pad accuracy and endurance. The system will even give you a score making it easy to track your progress as you improve.
New Design Offers Versatile Trigger and Upgrade Options
We've included two drum triggers to attach to your acoustic drums and 3 DTX Pads in the Hybrid Extension Pack. But the DTX502 Module allows you to connect additional DTX pads, cymbals and hi-hats - letting your hybrid kit evolve as your performances do.
TCS DTX Pads

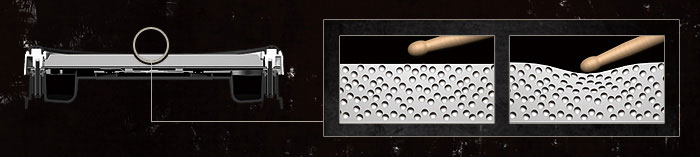

We've been making some of the world's most sought-after acoustic kits for more than 40 years. In that time, we've built up a deep and highly detailed knowledge of how to make the most responsive, best sounding drums. When it came to designing a DTX pad which would feel like the real thing, we used our knowledge to create and optimise our Textured Cellular Silicone material (TCS).
By controlling the sizes and concentrations of tiny bubbles within the TCS, we've created a selection of different pads that respond like real snares and toms. To refine them, we employed some of the world's top drummers to test real-world performance - so that DTX Pads play just like acoustic drums.
With the 3-Zone XP100SD Snare, we've divided the pad into three zones and built in support for playing open and closed rimshots. If wanted, you can assign completely different sounds to the three zones and we've added a dial which gives you hands-on control of the virtual snare wire tuning and lets you adjust effects.
DT20 Drum Triggers Included
Drum triggers are small sensors which attach to acoustic drum shells and heads (and can also be used with drum practice pads). Fine-tuned to register both the subtle and not-so-subtle vibrations of the drum when you're playing, the trigger and DTX502 module can play back a sound or sample of your choice, at the same time (and every time) you hit or kick the drum.
Specs
DTX502 Module Specs:
Size/Weight (Trigger Module)
Dimensions | Width | 251 mm |
---|
Height | 48 mm |
---|
Depth | 130 mm |
---|
Weight | Weight | 610 g |
---|
Tone generator
Maximum Polyphony | 32 notes |
---|
Voices | Drum and percussion: 691,Melodies: 128 |
---|
Effects | Reverb: 9, Master EQ: 2 bands |
---|
Drum kits | Preset: 50 User: 50 (Total memory capacity of 1MB.) |
---|
Sequencer
Note Capacity | Approx. 104,000 Notes (Total memory capacity of 1MB.) |
---|
Note Resolution | 96 ppq (parts per quarter note) |
---|
Song recording type | Real-time replace |
---|
Song tracks | 1 track |
---|
Songs | Demo: 1, Practice: 37, Pad: 22, User: 40 |
---|
Sequence formats | Proprietary, SMF format 0/1 |
---|
Click
Tempo | 30 to 300 BPM, Tap Tempo supported. |
---|
Beat | 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16 |
---|
Timing | Accent, Quarter note, Eighth note, Sixteenth note, Triplet |
---|
Training Functions | Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate, Part Mute, Fast Blast |
---|
Other
Connectors | OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch), Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger), HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), USB TO HOST |
---|
Accessories | Power adaptor (PA-130), Module holder, Module holder fastening screws x2, Owner's Manual |
---|
Audio Import
Samples | 20 waves (maximum) |
---|
Sample Data Bits | 16 bits |
---|
Sampling Time * Mono/Stereo | 44.1kHz: 12 sec (mono) |
---|
Sample formats | WAV, AIFF |
---|
XP100SD Snare Pad Specs:
Size/Weight
Dimensions | Width | dia. 290 mm (10") |
---|
Height | 85 mm |
---|
Weight | Weight | 2.4 kg |
---|
PAD
Zone | 3 (Head/Open Rim/Closed Rim) |
---|
PAD surface | TCS (Textured Cellular Silicone) Head |
---|
Available for | Tom Pad |
---|
Tom mount hole | Yes |
---|
Pad Controller | Yes |
---|
Connections | Standard stereo phone output jack x 1 |
---|
Package Contents | XP100SD main unit x 1, Clamp bolt x 1, Stereo phone cable x 1 |
---|
XP70 Tom Pad Specs:
PAD
Zone | 1 |
---|
PAD surface | TCS (Textured Cellular Silicone) Head |
---|
Package Contents | XP70 main unit x 1, Clamp bolt x 1, Stereo phone cable x 1 |
---|
Available for | Snare and Tom Pad |
---|
Tom mount hole | Yes |
---|
Pad Controller | No |
---|
Connections | Standard stereo phone output jack x1 |
---|
Size/Weight
Dimensions | Width | dia. 214 mm (7") |
---|
Depth | 68 mm |
---|
Weight | Weight | 1.2 kg |
---|
