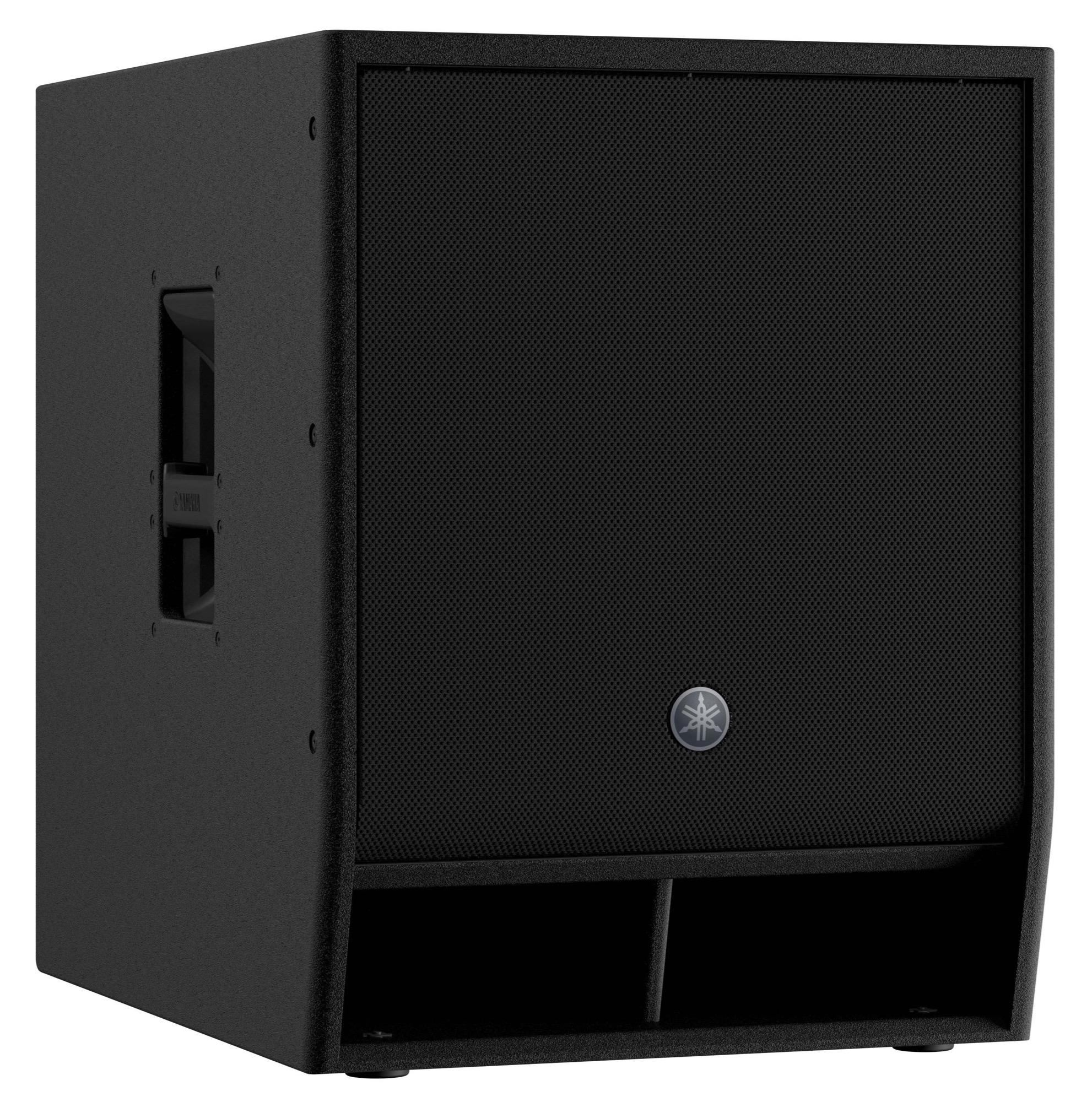

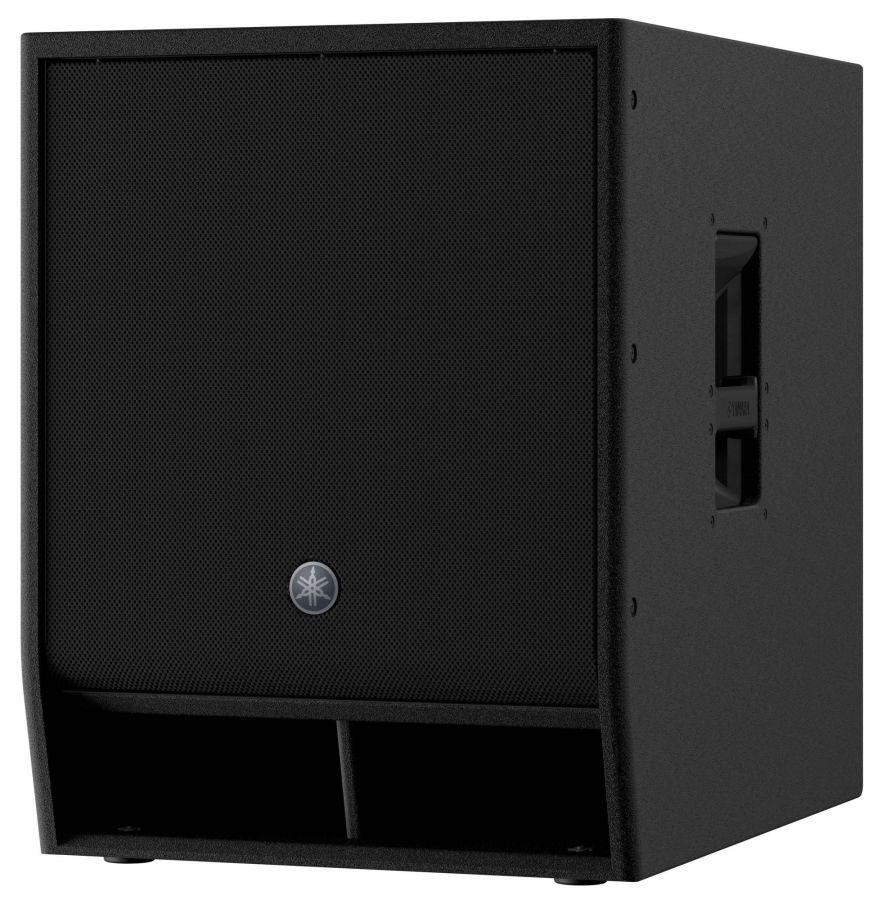

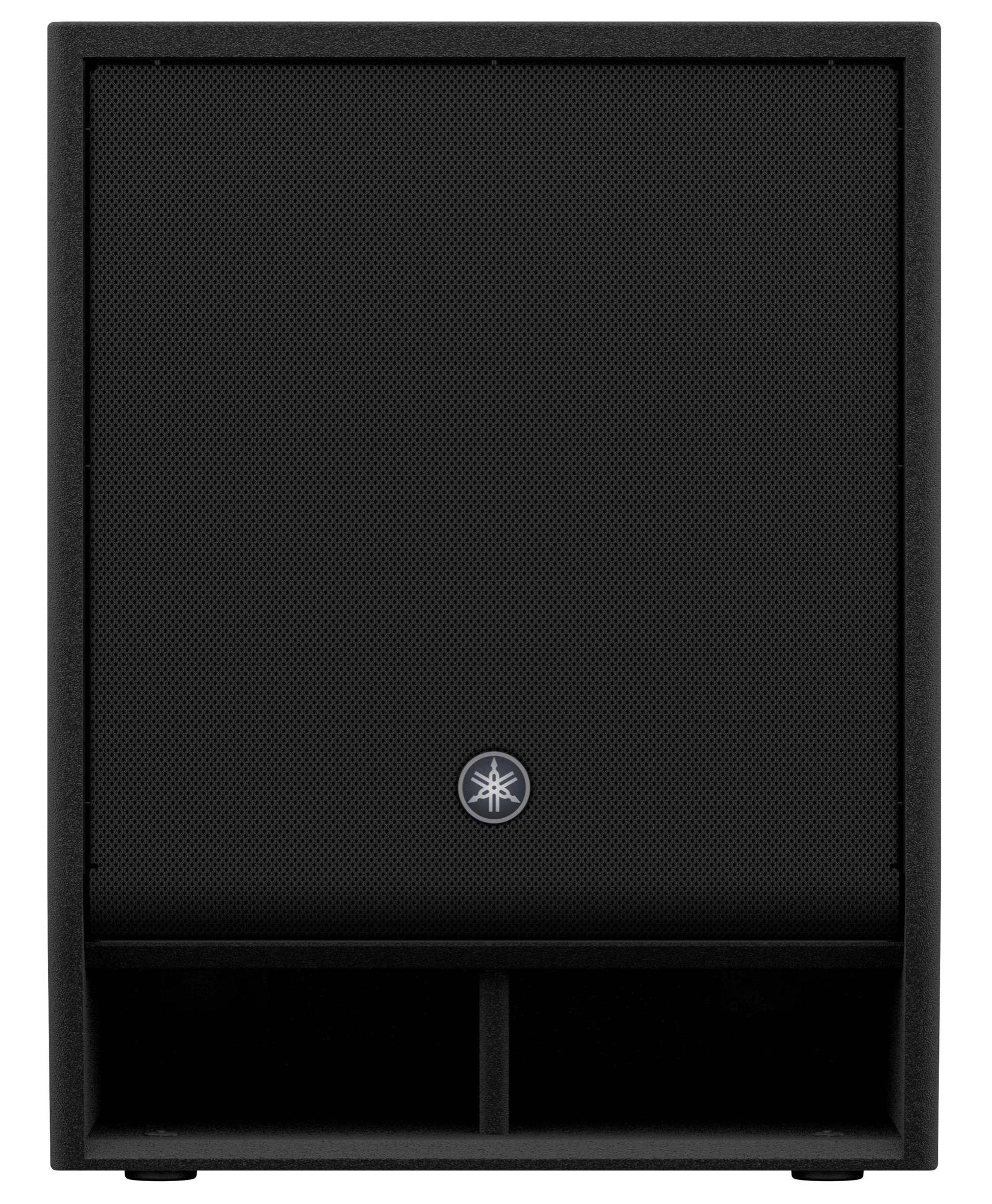

Perfectly suited for use with DZR full-range speakers, the DXS15XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.
Powered 15” subwoofer with 4” Voice Coil Maximum 136dB SPL and 33Hz-150Hz frequency range is ideal for today’s sound engineering demands High power 1600W Class-D amplifier module 96kHz DSP and FIR filter for true high-definition sound with super low latency Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display Equipped with D-XSUB processing and cardioid mode capability Lightweight yet very durable plywood cabinet with premium grade Polyurea coating Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Duration - please choose one
Purchase Price: £2,026.00 Deposit: £239.00 Amount of Credit: £1,787.00 24 Monthly Payments: £89.44 Total Repayable: £2,385.56 Agreement Duration: 24 Months Rate of Interest (Fixed): 19.89% pa 19.89% APR Representative
Purchase Price: £2,289.00 Deposit: £260.00 Amount of Credit: £2,029.00 36 Monthly Payments: £73.64 Total Repayable: £2,911.04 Agreement Duration: 36 Months Rate of Interest (Fixed): 19.89% pa 19.89% APR Representative
Purchase Price: £1,125.00 Deposit: £300.00 Amount of Credit: £825.00 6 Monthly Payments: £137.50 Total Repayable: £1,125.00 Agreement Duration: 6 Months Rate of Interest (Fixed): 0% pa 0% APR Representative
Purchase Price: £3,545.00 Deposit: £240.00 Amount of Credit: £3,305.00 9 Monthly Payments: £367.22 Total Repayable: £3,545.00 Agreement Duration: 9 Months Rate of Interest (Fixed): 0% pa 0% APR Representative
Purchase Price: £1,260.00 Deposit: £200.00 Amount of Credit: £1,060.00 12 Monthly Payments: £92.93 Total Repayable: £1,315.16 Agreement Duration: 12 Months Rate of Interest (Fixed): 9.89% pa 9.89% APR Representative
Purchase Price: £1,499.00 Deposit: £199.00 Amount of Credit: £1,300.00 18 Monthly Payments: £83.12 Total Repayable: £1695.16 Agreement Duration: 18 Months Rate of Interest (Fixed): 19.89% pa 19.89% APR Representative
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
How Low Can You Go?
Not for the faint of heart, the newest DXS XLF’s go deeper than any model before, with an extended low frequency of 30Hz - perfect for professional touring musicians, DJ’s, and sound engineers who need that extra-low, thundering bottom end that you just can’t get from other subwoofers in this class. Flexible DSP and a bass-reflex cabinet design with a wide, flared port ensure your lower frequencies maintain outstanding clarity and musicality even when the volume is cranked.
Powerful DSP for flexible control
Like the full-range DZR models, the DXS XLF subwoofers are also driven by 96kHz high power DSP processors and utilise the dynamic EQ.
Onboard D-XSUB LF processing gives you total management of your lower frequencies with NORMAL mode set for ideally balanced low-frequency response, while BOOST mode provides a tighter and more focused bass with some extra punch.
XTENDED LF mode drops the low-end frequencies down even further for thunderous bottom end that delivers a low frequency extension unheard of from a cabinet of this size. Usually the higher the output, the more difficult it is to manage low frequency energy directivity, and significant stage-side sound pressure levels can seriously sabotage your monitoring, but with DXS XLF setups consisting of two or more subwoofers, selecting the Cardioid Mode effectively decreases the sound pressure on stage while increasing the bottom-end output directed towards the audience, resulting in a much cleaner stage monitoring environment. Without a doubt, your DZR full-range system will reach new performance heights when used with the pronounced, powerful lows of DXS XLF active subwoofers.
Acoustics and utility

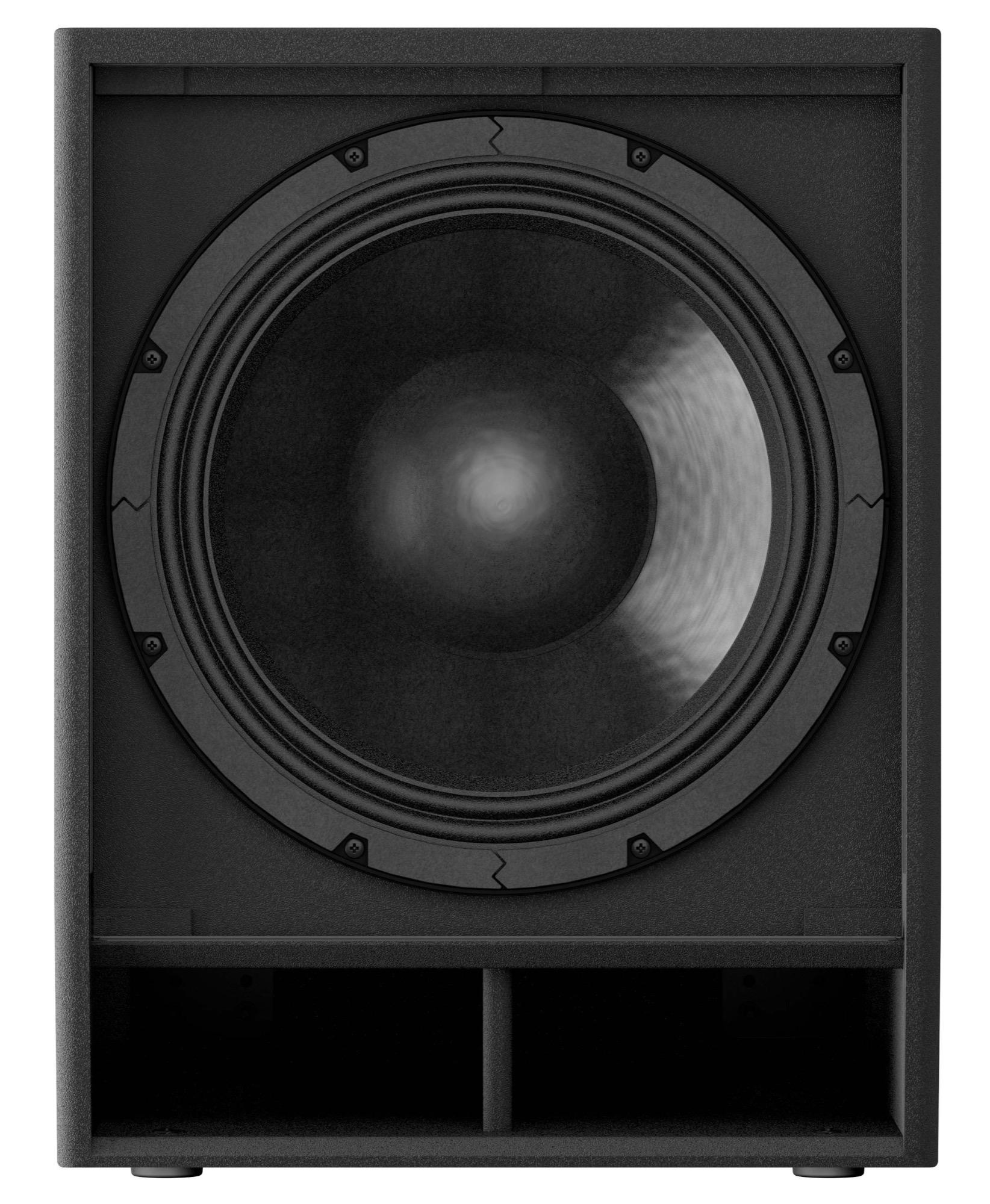

New Yamaha proprietary transducers with a durable die cast aluminum frame and 4” voice coil are crucial to achieving such impressive low frequency response, even at the highest output levels. A dual damper also helps to realize extraordinarily high linearity of the low frequencies by mitigating unwanted vibration during extreme output levels.
Durable, portable, and road-ready
DXS XLF enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come. Additionally, the new, easy-to-grip aluminum handle, optional SPW1 wheel kit, and SPCVR speaker covers provide additional safety, portability, and peace of mind when you’re on the road.

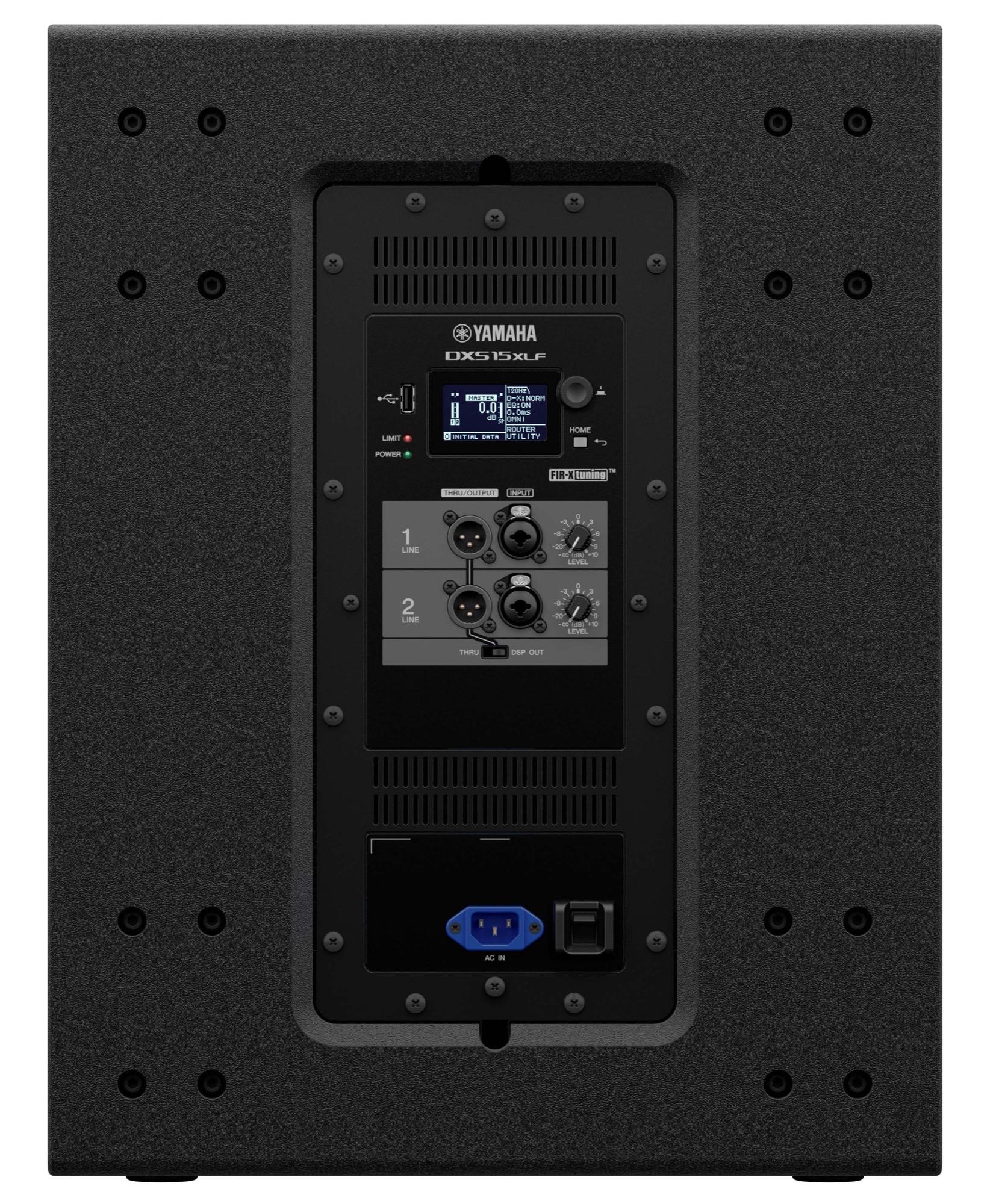

Speaker type Powered Subwoofer, bass-reflex Frequency range (-10dB) 33Hz - 150Hz Coverage area - Components LF 15" Cone, 4" Voice Coil, Ferrite magnet MF - HF - Crossover - Sampling frequency rate Internal 96kHz and FIR Filter A/D D/A Converters 96kHz AD/DA Maximum output level (1m; on axis) 136dB SPL *1 Power rating Dynamic 1600W *2 Continuous 1230W I/O Connectors Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT Others USB2.0 Host 5V 500mA for USB memory DATA storage/load AC IEC AC inlet x1 (V-Lock) Amplifier class Class-D Cooling Fan cooling, Variable speeds Power consumption 40W (Idle), 180W (1/8) Handle Aluminium die-cast, Side x2 Rigging - Dimensions W 450 mm (17.7") H 587 mm (23.1") (with rubber feet) D 600 mm (23.6") Net weight 40.0kg (88.2lbs) Options Cover: SPCVR-DXS15X, Caster: SPW-1 Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black Floor Monitor Angle - Pole socket Φ35 mm (depth 80mm), M20 Threaded (depth 25mm)
Product ID CDXS15XLFUK
