Yamaha DXS18 Active PA Subwoofer Speaker

18" Woofer, 1020W Class D Amplifier

Ask us about our Price Promise - click here
DXS18 Active PA Subwoofer Speaker
DXS18 Active PA Subwoofer Speaker
DXS18 Active PA Subwoofer Speaker
DXS18 Active PA Subwoofer Speaker
DXS18 Active PA Subwoofer Speaker

Why we love it…

With its best-in-class SPL and extremely low frequency handling, the new DXS18 is an essential component for any serious active PA system.

Overview

Our DXS18 Active Subwoofer achieves a best-in-class SPL of up to 136dB and delivers the lowest frequency (32Hz) in the DXS line up. Equipped with a band-pass type enclosure and high-power-handling 4-inch voice coil magnet that drives the 18-inch woofer, the Class-D amplifier delivers 1020W of power with exceptional clarity and accuracy.

Specs

  • Speaker type: 18" Powered subwoofer, (Band-pass type)
  • Frequency range: (at -10dB) 32Hz – 120Hz
  • Components: LF 18" cone, Voice Coil: 4"
  • Output power: Dynamic - 1020W / Continuous - 800W
  • Maximum output level (1m; on axis): 136dB SPL

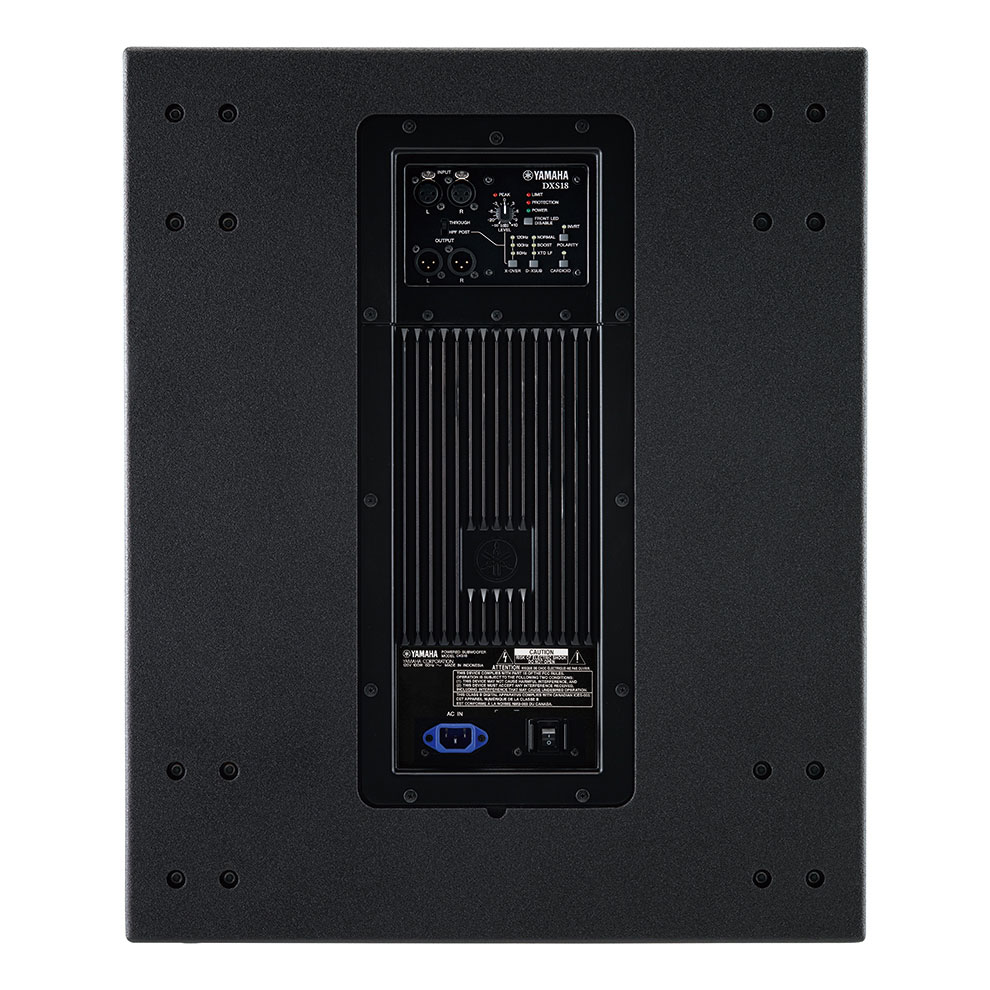

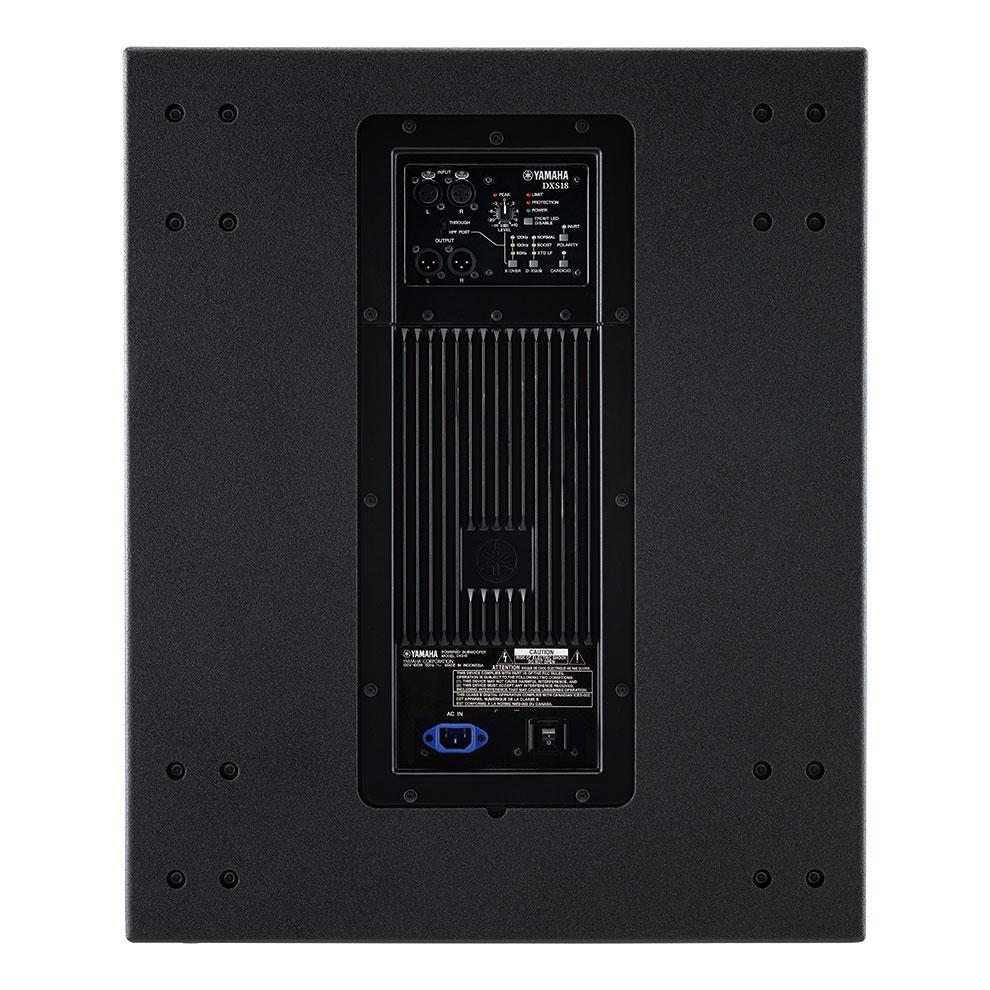

  • I/O connectors: INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
  • Processors: D-XSUB: BOOST, XTD LF, NORMAL
  • Cooling: Natural convection
  • Power requirements: 100V – 240V, 50Hz/60Hz
  • Power consumption: 100W
  • Pole socket: 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
  • Width: 563mm (22.2")
  • Height: 683mm (26.8")
  • Depth: 721mm (28.4")
  • Weight: 49.7kg (110lbs)
  • Enclosure material: Plywood (LINE-X®, Black)

Product IDCDXS18UK
