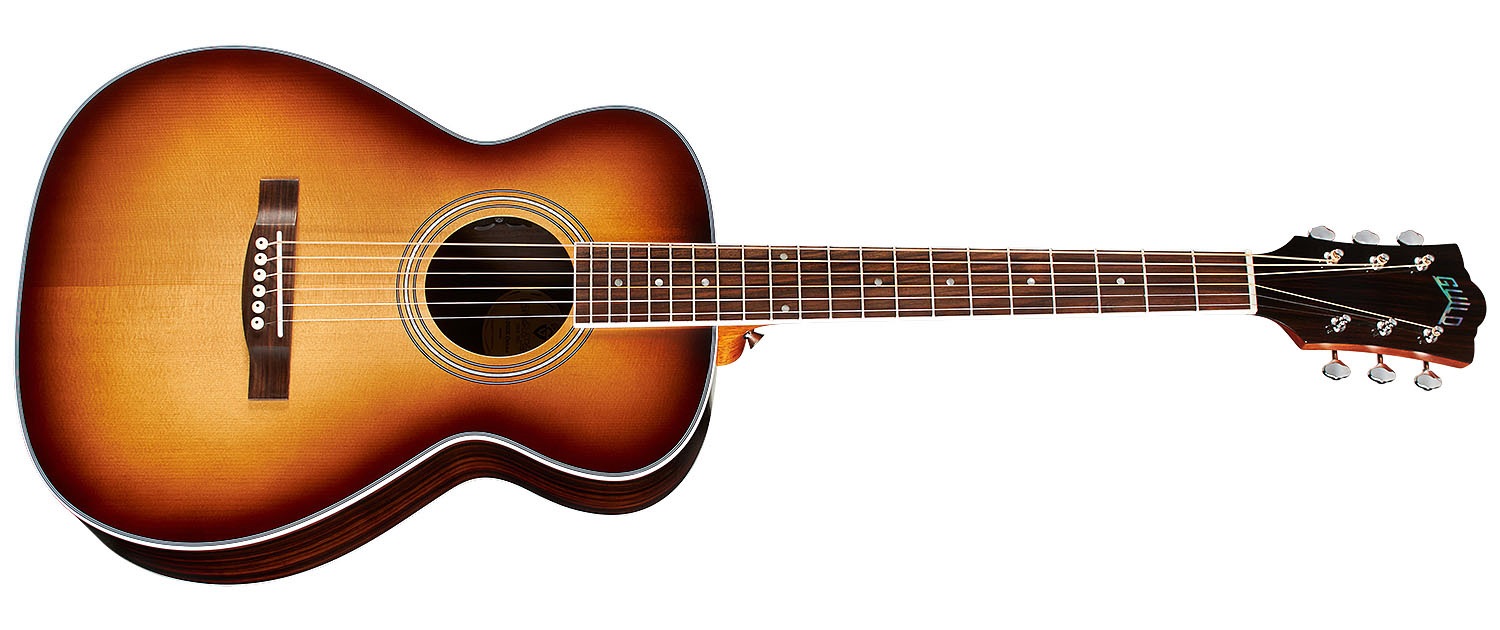

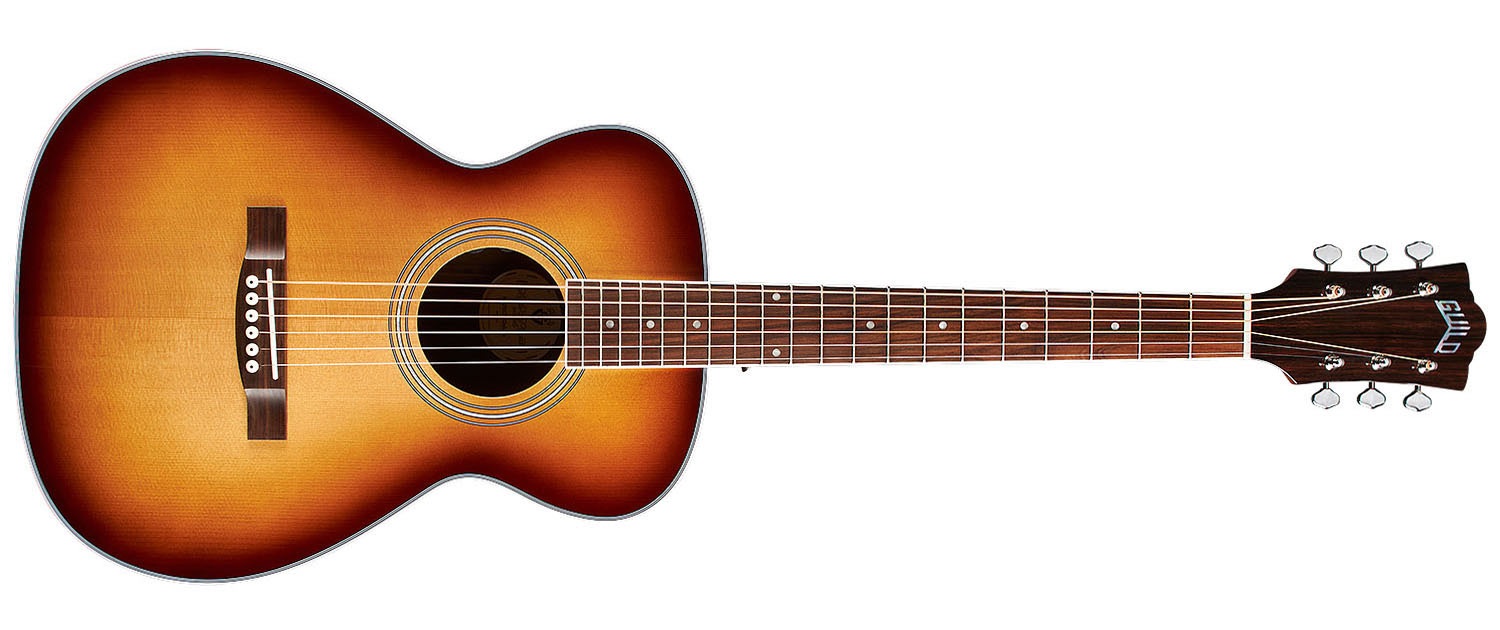

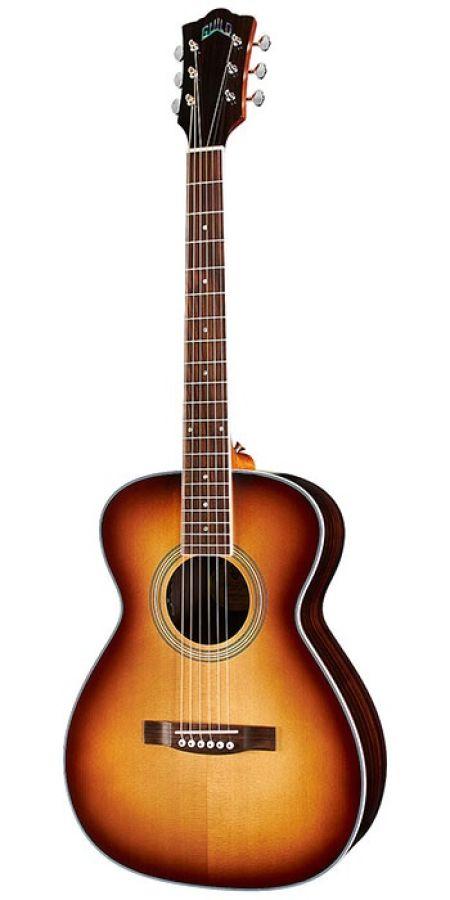

Guild M-260E Deluxe Concert Acoustic Guitar in Edge Burst finish

Finance

Features

Overview and Body Design

The M-260E Deluxe offers upgraded appointments and features to the M concert-sized acoustic guitars in the Guild 200 Series. Inspired by the flagship USA-made* M-20, the M-260E offers the same reduced body dimensions and shorter scale length that have made Guild M models the choice of many players throughout the brand’s 70-year history—from folk singer-songwriter Nick Drake to indie-pop hitmaker Beabadoobee.

Archback
Guild was the first guitar manufacturer to introduce back arching on flat-top acoustic instruments—and this defining build technique sets Guild guitars apart. An archback creates:

• Tone Projection – The deeper and contoured body chamber increases projection.
• Weight Reduction – Having no back bracing reduces weight and improves resonance.
• Strength – Arching creates structure and strength, adding durability.

M Concert Body Shape
First introduced in 1957 for the M-20, Guild’s M Concert body shape has stood the test of time. This acoustic shape is comfortable for smaller players and makes the M-260E Deluxe a great songwriting companion.

Exotic Woods
A solid Sitka spruce top is paired with striped ebony back and sides, which gives the guitar an exotic look. The intricate grain patterns are reminiscent of rosewood but slightly darker with complementary brown striping.

200 Deluxe Trim Level
The Deluxe trim package includes a bound fingerboard, gloss body and satin neck finishes, additional body inlay, mother-of-pearl headstock and rosette inlay, and Guild Vintage 18 open-gear tuning machines with an 18:1 gear ratio.

Additional Premium Materials
The nut and saddle are crafted from real bone. The fingerboard is rosewood.

Fishman GT-1 Pickup System
An integrated Fishman-designed GT-1 pickup system with Volume and Tone controls faithfully reproduces the guitar’s acoustic sound when it is amplified. The controls are conveniently mounted inside the soundhole for easy access, and no drilling is required for this pickup system, preserving the instrument’s beauty and tonal integrity.

Specs

Body:

• Body Top ~ Solid Sitka Spruce
• Body Shape ~ M - Concert
• Top Bracing Pattern ~ Scalloped X
• Soundhole Diameter ~ 3 5/8" (91mm)
• Rosette ~ TMother-of-Pearl  / ABS
• Top Purfling Inlay ~ Black / White / Black ABS
• Top Binding ~ N/A
• Body Sides ~ Striped Ebony
• Side Purfling Inlay ~ N / A

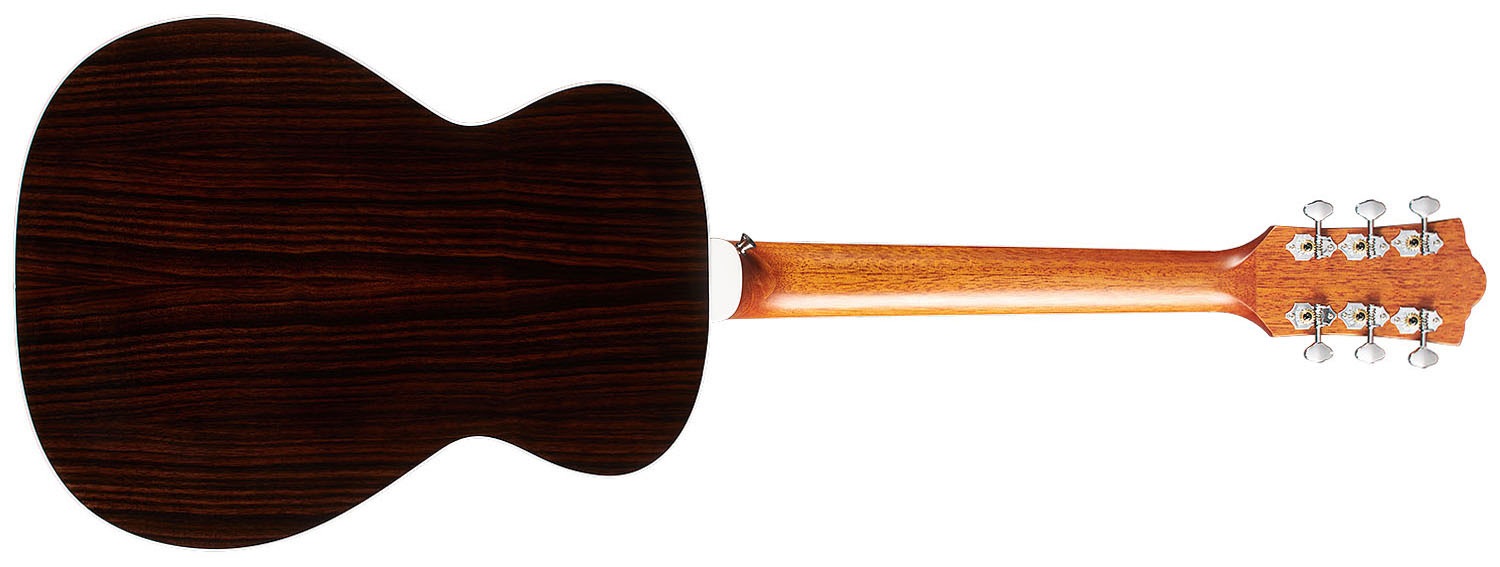

• Body Back ~ Arched Striped Ebony
• Back Purfling Inlay ~ N / A
• Body Binding ~ White ABS

Neck:

• Neck Material ~ Mahogany
• Scale Length ~ 24 3/4" (629mm)
• Neck Shape ~ C Shape
• Nut Width ~ 1 11/16" (43mm)
• Neck Thickness 1st Fret ~ 20mm
• Neck Thickness 9th Fret ~ 24mm
• Truss Rod ~ Dual Action
• Truss Rod Wrench ~ 4mm Allen Key
• Fingerboard Material ~ Rosewood
• Fingerboard Radius ~ 16" (406mm)
• Fingerboard Inlays ~ 5mm Dots - Mother-Of-Pearl
• Fingerboard Inlay Location ~ 3, 5, 7, 9, 12 (x2), 15, 17, 19
• Frets Total ~ 20
• Fingerboard Binding ~ White ABS

Finish:

• Colour ~ Edge Burst
• Finish ~ Polyurethane

Hardware:

• Bridge Material ~ Rosewood
• Bridge String Spacing ~ 2 1/8" (54mm)
• Bridge Pins ~ White with Black Dot
• Saddle Material ~ Compensated Bone
• Hardware Finish / Plating ~ Nickel
• Nut Material ~ Bone
• Tuning Machines ~ Guild Vintage 16 Open Gear
• Endpin ~ Strap Button - Nickel
• Pickguard ~ Tortoiseshell

Electronics:

• Electronics ~ Guild/Fishman GT-1 with Volume and Tone controls
• Controls ~ N/A

Other:

• Upper Bout Width ~ 10 1/4" (260mm)
• Lower Bout Width ~ 13 7/8" (352mm)
• Body Depth Upper Bout ~ 3 3/8" (85mm)
• Body Depth Lower Bout ~ 4 1/8" (105mm)
• Body Length ~ 18 1/8" (460mm)
• Overall Length ~ 39" (991mm)
