Overview
The MSP range is the choice of top recording and production engineers who demand unmatched accuracy and resolution that reveals critical sonic details. An unbeatable choice for production environments handling any combination of digital and analog sources in stereo or surround formats.
Please note that speakers are sold as individual units - please order a quantity of 2 to make a stereo pair.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: One Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
An Ideal Choice for Small Project Studios

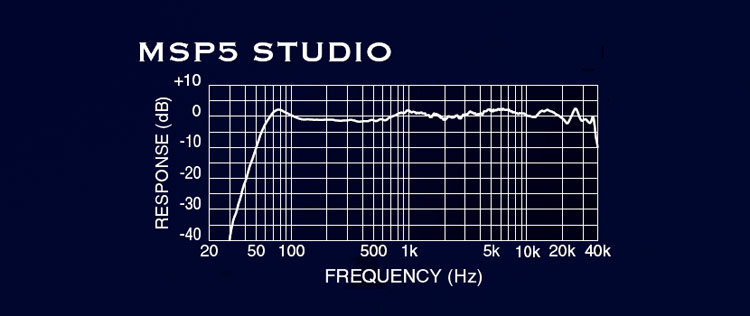

Like the larger MSP7 STUDIO, the MSP5 STUDIO is a two-way bi-amplified bassreflex system that delivers outstanding monitoring precision for digital or analog production in stereo or surround formats. The more compact dimensions of the MSP5 STUDIO make it an ideal choice for smaller project studios and DAW based production systems. The MSP5 STUDIO features a 5 inch cone woofer driven by a 40-watt amplifier and a 1 inch dome tweeter driven by a 27-watt amplifier. Other than woofer size, enclosure size, and amplifier power, the MSP5 STUDIO takes advantage of the same advanced materials and design technology that are behind the extraordinary performance of the MSP7 STUDIO. The woofer and titanium-dome tweeter feature advanced magnetic structures that achieve exceptionally low distortion, and the tweeter works with a unique waveguide horn that achieves broad, uniform high frequency dispersion over 120 degrees for optimum balance regardless of listening position. Advanced driver and enclosure design - including the low-diffraction rounded baffle - also ensure smooth, uniform dispersion across the system's full reproduction range. Flat frequency response out to 40 kHz makes the MSP5 STUDIO great for mastering, where high sample and bit rates are the norm.
Magnetically Shielded Enclosures
Along with their compact size and excellent performance, full magnetic shielding allows the MSP5 STUDIO speakers to be positioned near all types of audio, video, and computer equipment without sound degradation or negative effects on surrounding equipment.

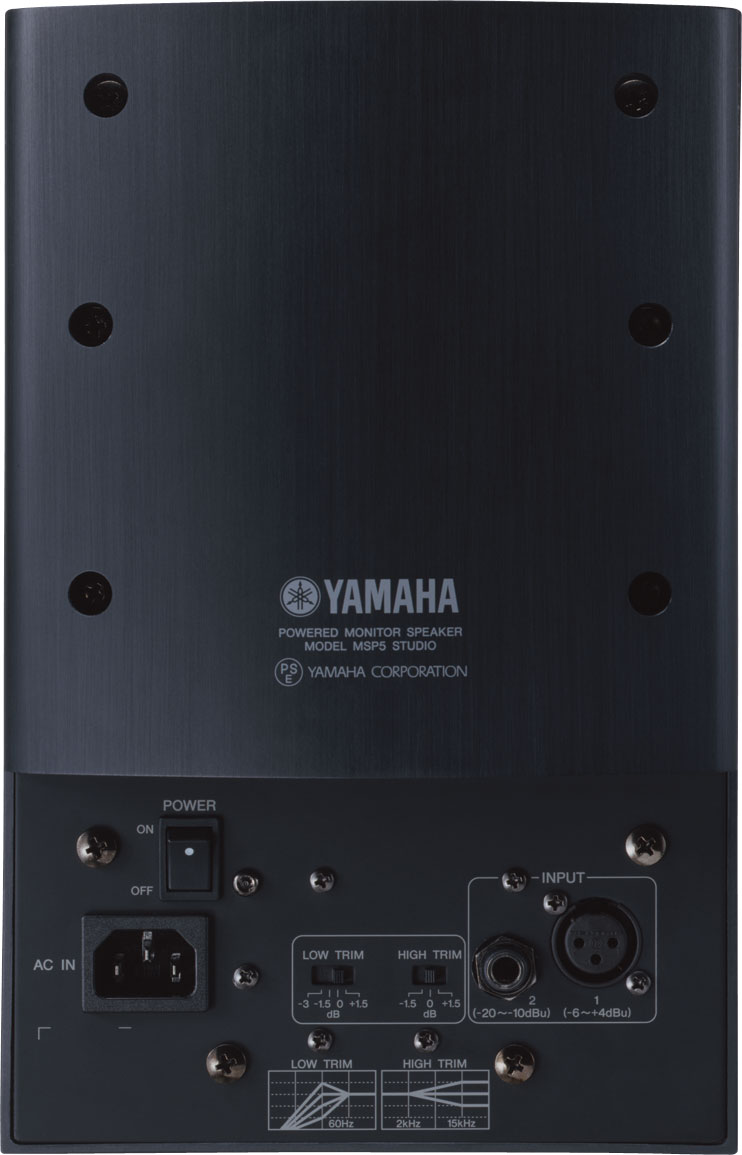

Professional Connectivity

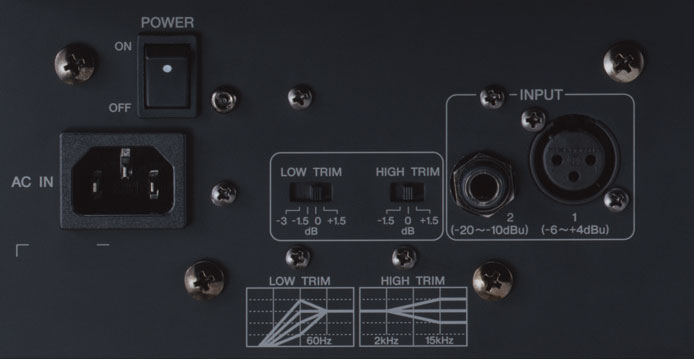

The MSP5 STUDIO has a balanced XLRtype input for direct compatibility with professional equipment. Balanced lines are ideal if the speakers are to be placed at the end of long cable runs which, if unbalanced, might be susceptible to hum and induced noise. The MSP5 STUDIO also offers an unbalanced 1/4" phone jack connector.
Trim Switches for Easy Room Matching
The MSP5 STUDIO is equipped with four position low and three position high trim switches that allow the system's response to be optimized for a wide range of acoustic environments.
Please note that speakers are sold as individual units - please order a quantity of 2 to make a stereo pair.
Specs
| Size/Weight |
| Dimensions | Width | 179mm |
| Height | 279mm |
| Depth | 208mm |
| Weight | Weight | 7.9kg |
| | |
| Product ID | CMSP5STUDIOUK |
|---|
| Limited Shipping |
|
Questions & Answers
Question: Hello A couple of questions:
1) Can the Yamaha MSP5 STUDIO Monitor Speaker be connected to the P116M SH2 Silent Piano?
2) If it can be connected, how do I do this?
Answer
Thank you for your message.
We can confirm that the studio monitor can be connected to this Piano.
- On the Silent System you will have a Left and Right Output. (Jack)
- On the MSP5 Studio Monitors you will have an XLR Input.
With an XLR female to Jack speaker cable, you will be able to connect these up.
We hop this helps.
Kind regards,
Yamaha Music
