Overview
Combining the superb playability of the DTX-PADs, a real hi-hat controller and natural drum sounds, the DTX720K is a brilliant drum kit both for home practice, recording and on-stage performance.

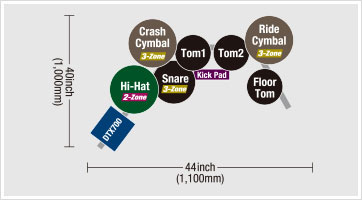

Configuration:
- Module: DTX700
- Snare: XP80
- Tom1, 2: XP70 x 2
- Floor Tom: XP70
- Crash Symbal1, 2: PCY135
- Ride Cymbal: PCY135
- Hi-Hat: RHH135 + HS650A
- Kick: KP100
- Rack: RS502
Features
Configuration
.jpg)
- Module: DTX700
- Snare: XP80
- Tom1, 2: XP70 x 2
- Floor Tom: XP70
- Crash Symbal1, 2: PCY135
- Ride Cymbal: PCY135
- Hi-Hat: RHH135 + HS650A
- Kick: KP100
- Rack: RS502
No Compromise Sound Quality
The DTX720K features a total of 1,396 sounds covering a broad spectrum of instruments including a great selection of Yamaha acoustic drum samples from our Oak Custom series kits, as well as a range of percussion and effect sounds. It also contains a wide variety of sounds from our world-class MOTIF XF synthesizer.
Hi-Hat With Real Playability
This full-fledged hi-hat system consists of a pad that sets onto the supplied hi-hat stand - the same type of stand you'd use in an acoustic drum kit. This hi-hat pad system can play both open and closed sounds as well as a foot splash. It has a dual zone design with of edge and bow sections which add to its realistic feel and playability.
Import Original Voices Via The USB Jack
Using a USB memory stick, it’s easy to add your favorite sounds (in WAV or AIFF format) to the DTX700. Once loaded, you can edit and assign the voices to pads to create your own, truly custom drum kit.
Use for Recording Or Music Production
The DTX720K easily connects to a computer via a USB cable (sold separately) making it a great choice for recording MIDI data into a DAW or for playing a VST sound source.
And, using the main outputs, you can connect the DTX720K to your audio interface to capture its audio - no microphones needed.
We've included Steinberg’s excellent Cubase AI so you can start creating music right away.
Specs
Configuration
| Trigger Module | DTX700 |
|---|
| Rack System | RS502 |
|---|
Size/Weight (Trigger Module)
| Dimensions | Width | 277 mm (10-29/32 inch) |
|---|
| Height | 213 mm (8-25/64 inch) |
|---|
| Depth | 95 mm (2-3/4 inch) |
|---|
| Weight | Weight | 1.5 kg (3.31 lbs) |
|---|
Tone generator
| Maximum Polyphony | 64 notes |
|---|
| Voices | Drum and percussion: 1,268, Melodies: 128 |
|---|
| Effects | Reverb: 6, Chorus: 6, Variation: 42, Kit EQ: 4 band, Master EQ: 3 bands |
|---|
| Drum kits | Preset: 50, User: 10 * all of which may be edited and overwritten |
|---|
Sequencer
| Note Capacity | Approx. 152,000 notes |
|---|
| Note Resolution | 480 ppq (parts per quarter note) |
|---|
| Song recording type | Real-time replace |
|---|
| Song tracks | 1 track |
|---|
| Songs | Demo: 2, Practice: 44, Pad: 17, User: 30 * all of which may be edited and overwritten |
|---|
| Sequence formats | Proprietary, SMF format 0 |
|---|
Click
| Tempo | 30 to 300 BPM, Tap Tempo supported. |
|---|
| Beat | 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16 |
|---|
| Timing | Accents, Quarter note, Eighth note, Sixteenth note, Triplet |
|---|
| Training Functions | Measure break, Groove check, Rhythm gate |
|---|
Other
| Connectors | USB TO DEVICE/TO HOST, OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger Input 1 to 8, 11 (Standard stereo phone, L: Trigger Input, R: Rim Switch), Trigger Input 9 and 10 (Standard stereo phone, L: Trigger Input, R: Trigger Input), HH-KICK (Standard stereo phone) , HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), MIDI IN/OUT |
|---|
| Accessories | Power Adaptor (PA-150, or an equivalent), Module holder, Module holder fastening screws x 4, Owner's Manual, Data List, DVD-ROM (Cubase AI) |
|---|
Audio Import
| Samples | 500 |
|---|
| Sample Data Bits | 16 bits |
|---|
| Sampling Time * Mono/Stereo | 44.1kHz: 23 sec., 22.05kHz: 46 sec., 11.025kHz: 1 min. 32 sec., 5.5125kHz: 3 min. 4 sec. |
|---|
| Sample formats | WAV, AIFF |
|---|
