Overview

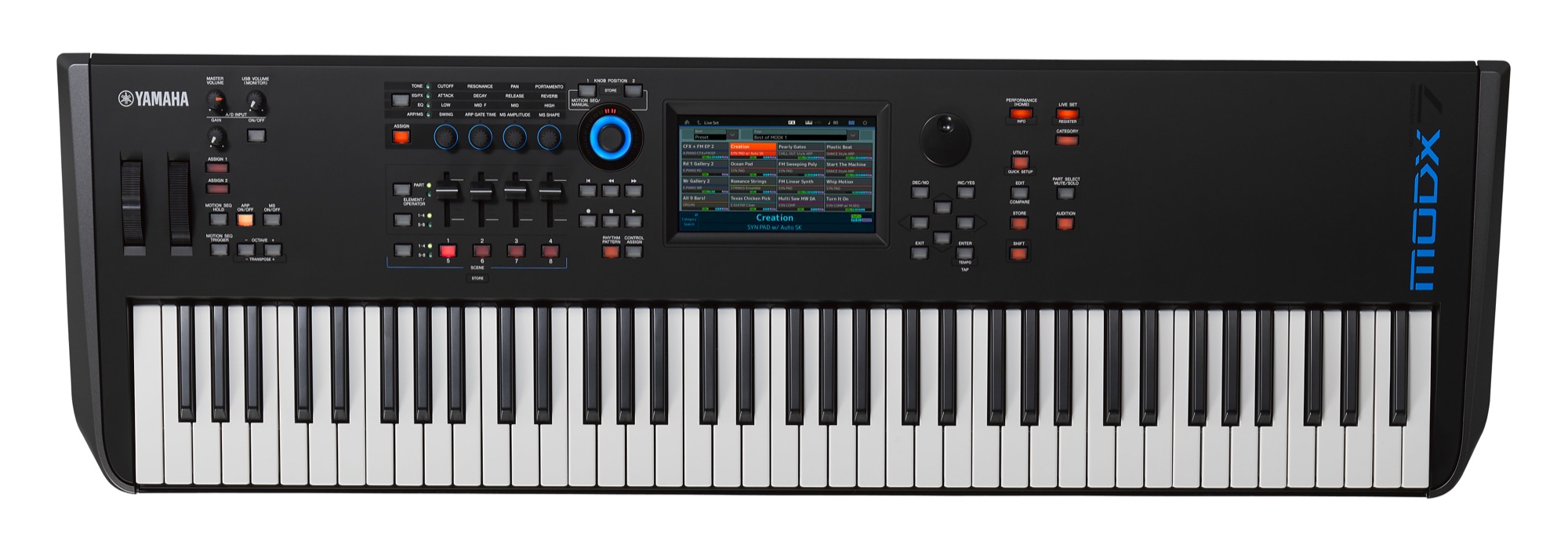

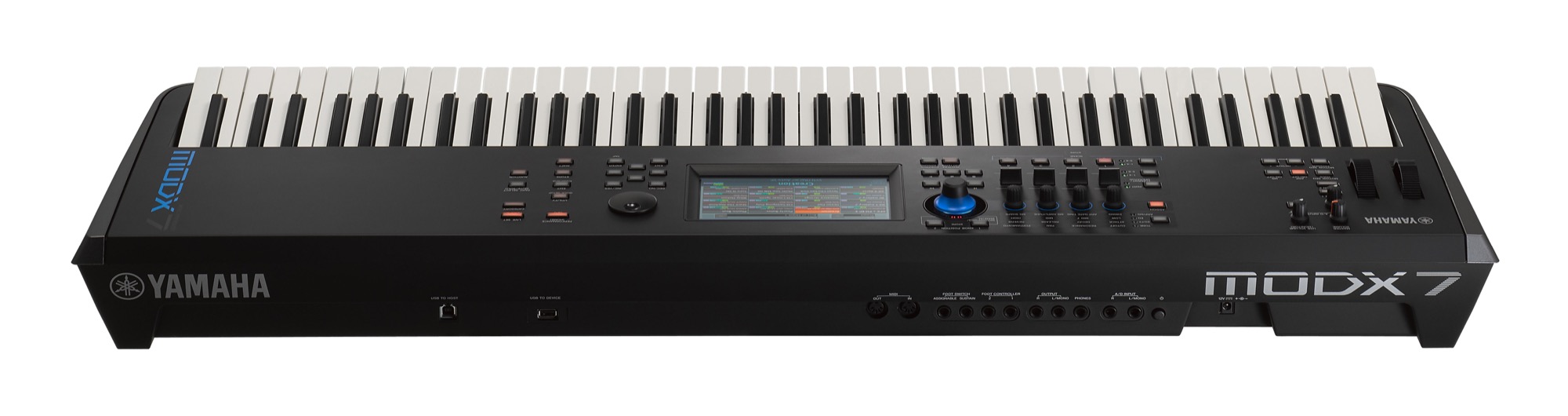

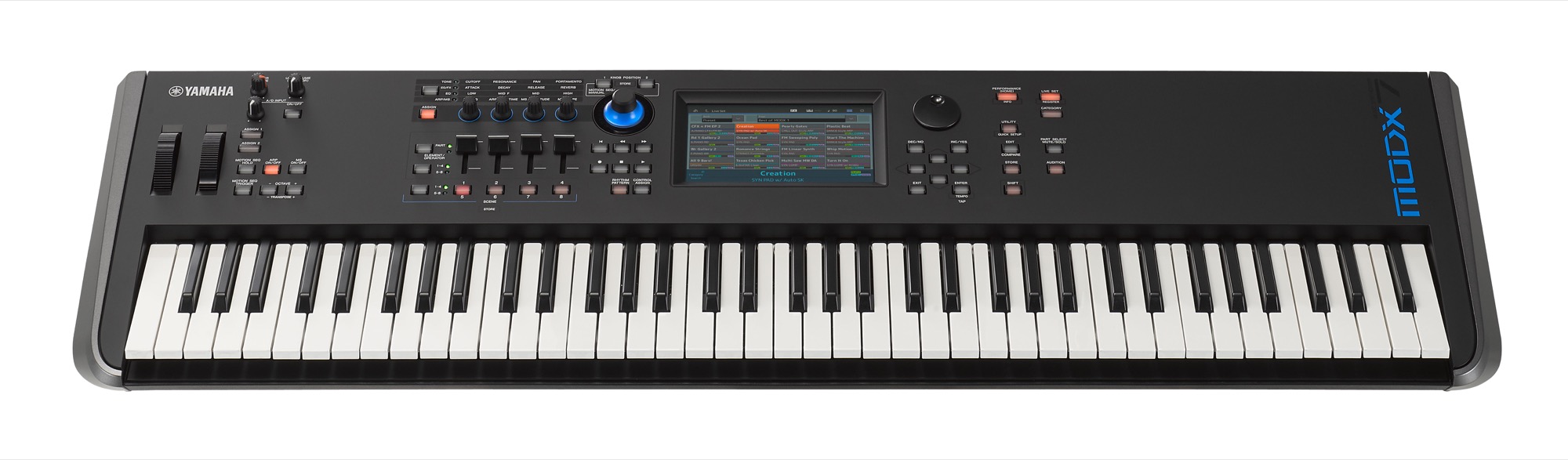

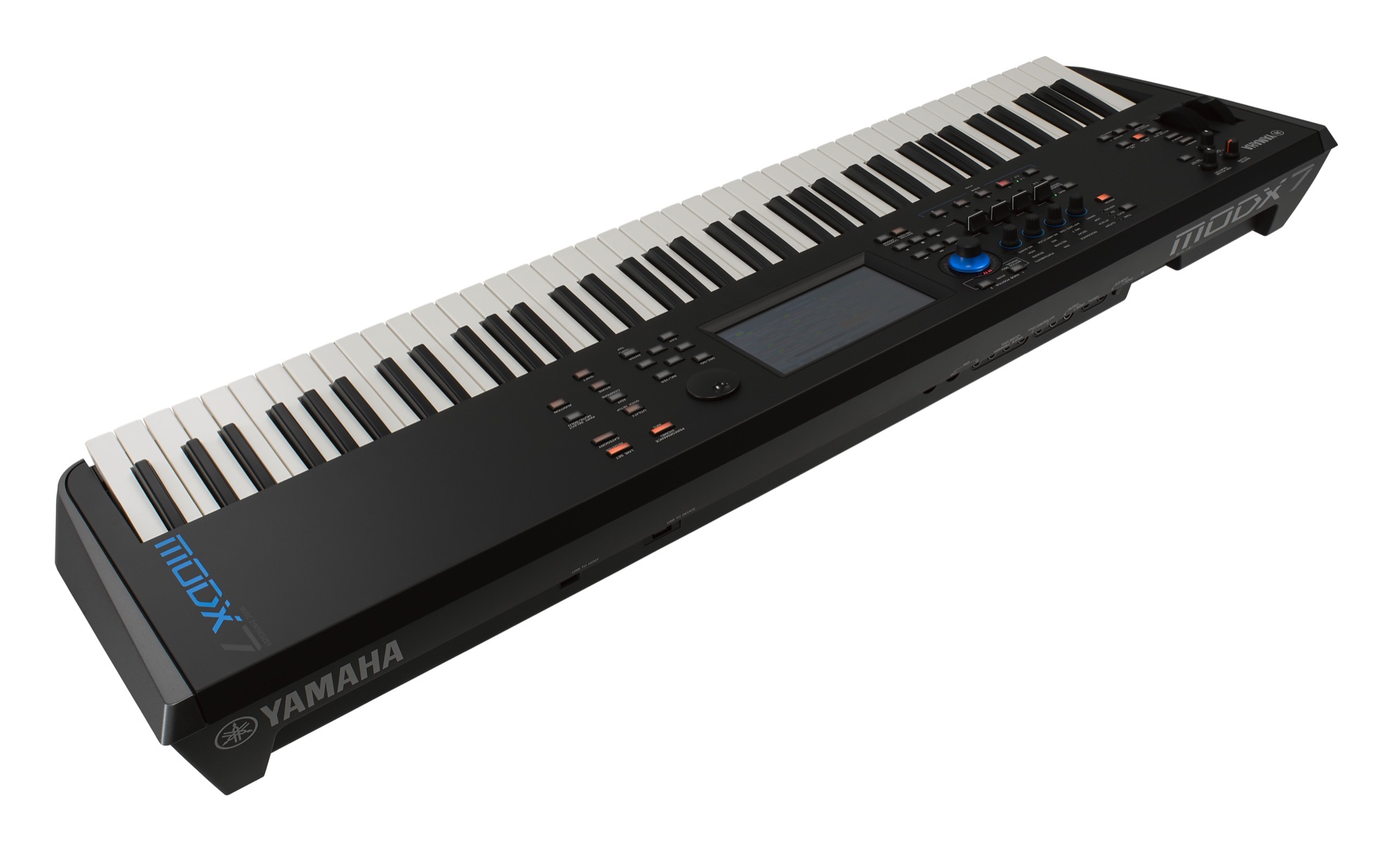

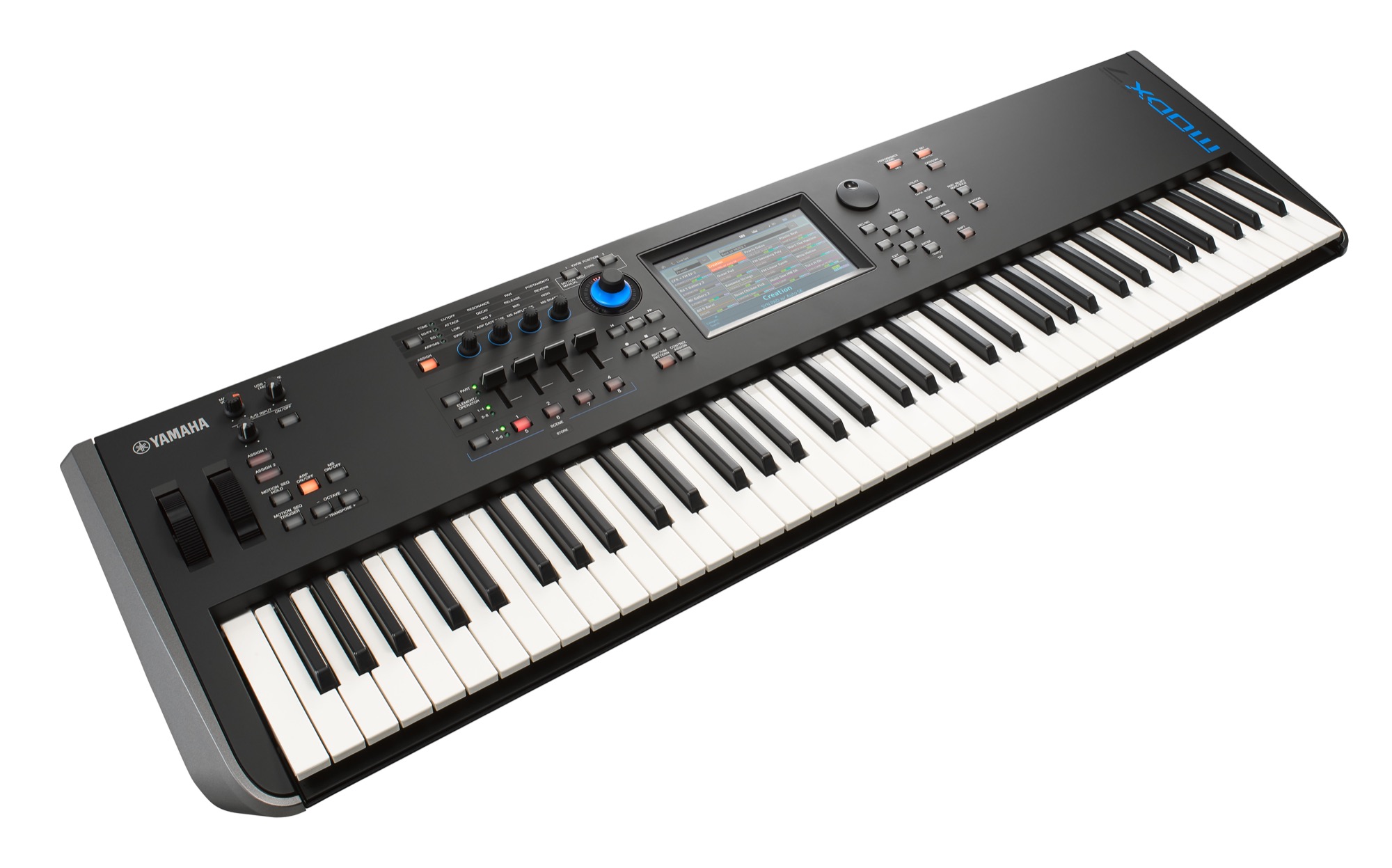

B Grade Refurbished MODX7 Synthesizer
Please note - This product may have been opened, returned by a customer, or refurbished. It could show minor cosmetic wear such as light marks or scratches, or be missing accessories or software. The original packaging or printed manual may not be included. However, it has been fully checked and works like new, offering you the chance to own a dependable product at a reduced price. It includes a 1-year warranty.
Inheriting technology and musicality from our flagship Montage Synthesizer, the MODX packs huge amounts of sonic power and playability into a lightweight chassis that's perfect for the stage or home/project studio.
Featuring the world-class FM-X, AWM2 and Motion Control Synthesis engines, the MODX includes a high quality touchscreen making it quick and easy to create and find sounds.
Features
Empower your creativity, take control and stand out from the crowd with MODX: a compact, lightweight synthesizer designed for inspired music-making.
MODX features the same technology as Montage: our class-leading AWM2 (Advanced Wave Memory 2) sample + synthesis engine and pure FM-X (Frequency Modulation) synthesis engine modernised for amazing playability and complex sound design.
Specs
Width | 1,144mm (45-1/16") |
Height | 134mm (5-1/4") |
Depth | 331mm (13-1/16") |
Weight | 7.4 kg (16 lbs 5 oz) |
Number of Keys | 76 |
Keyboard Action | Semi-weighted Keyboard |
Touch Sensitive | Yes |
Synthesis Technology | Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms |
Maximum Polyphony | AWM2: 128 (max.; stereo/mono waveforms) FM-X: 64 (max.) |
Multi Timbral Capacity | 16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part |
Wave | Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.00 GB |
Performance Settings | Approx. 2,000 |
Filters | 18 types |
Effects | Reverb x 12 types, Variation x 76 types, Insertion (A, B) x 76 types*, Master Effect x 15 types *A/D part insertion x 71 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands) |
Hands-On Controls | Master Volume, AD Input Gain knob, USB Volume, Pitch Bend wheel, Modulation wheel, Control Sliders x 4, Knobs x 4, Super Knob, Data dial |
Display | 7" TFT Color Wide VGA LCD touch screen |

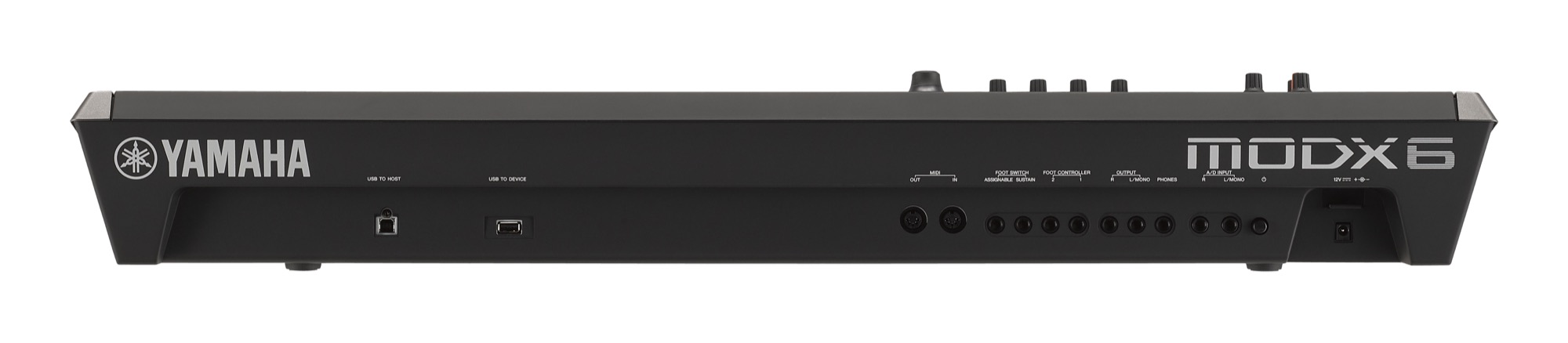

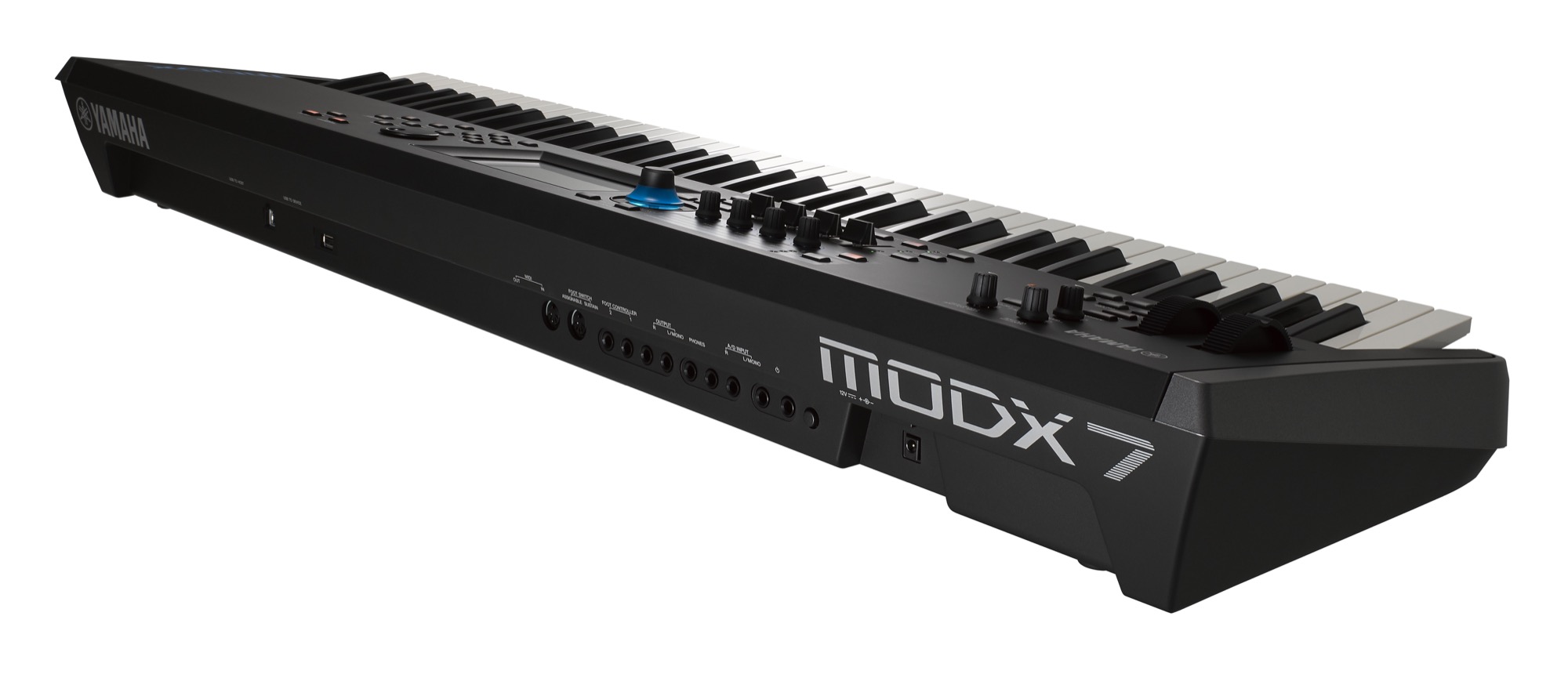

Connectivity | [USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks) |
Power Consumption | 16 W (when using PA-150B AC adaptor) |
Accessories | AC adaptor (PA-150B), Owner’s Manual, Cubase AI Download Information |
Live Sets | Preset: 256 and more, User: 2,048 |
Performance Recorder Tracks | 16 Sequence tracks, Tempo track, Scene track |
Recording type | Real time replace, Real time overdub, Real time punch in/out |
Note Capacity | Approx. 130,000 notes |
Note Resolution | 480 ppq (parts per quarter note) |
Tempo (BPM) | 5 – 300 |
Songs | 128 songs |
Arpeggio | Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types |
Sequence formats | MODX original format, SMF formats 0, 1 |
