Overview

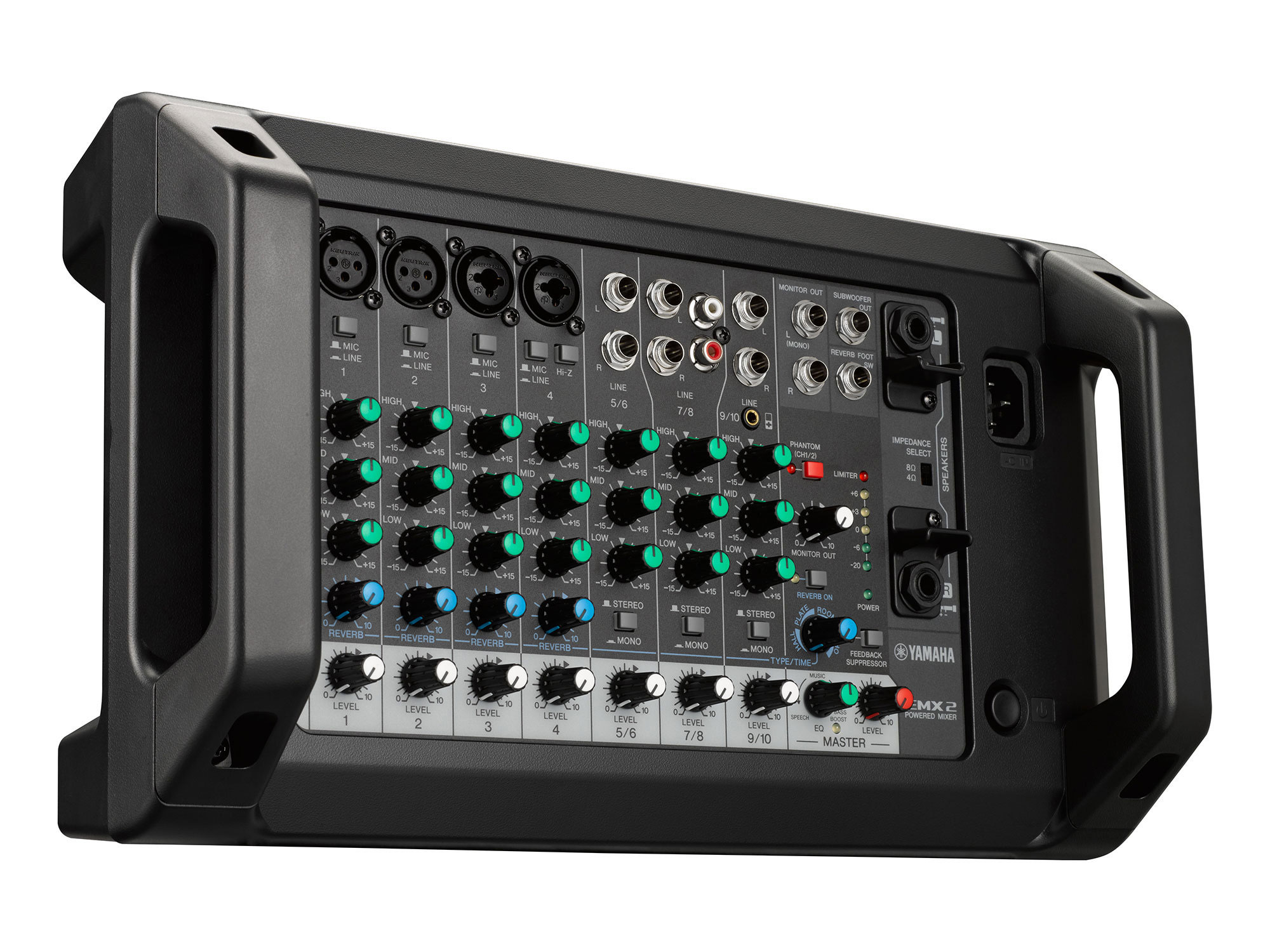

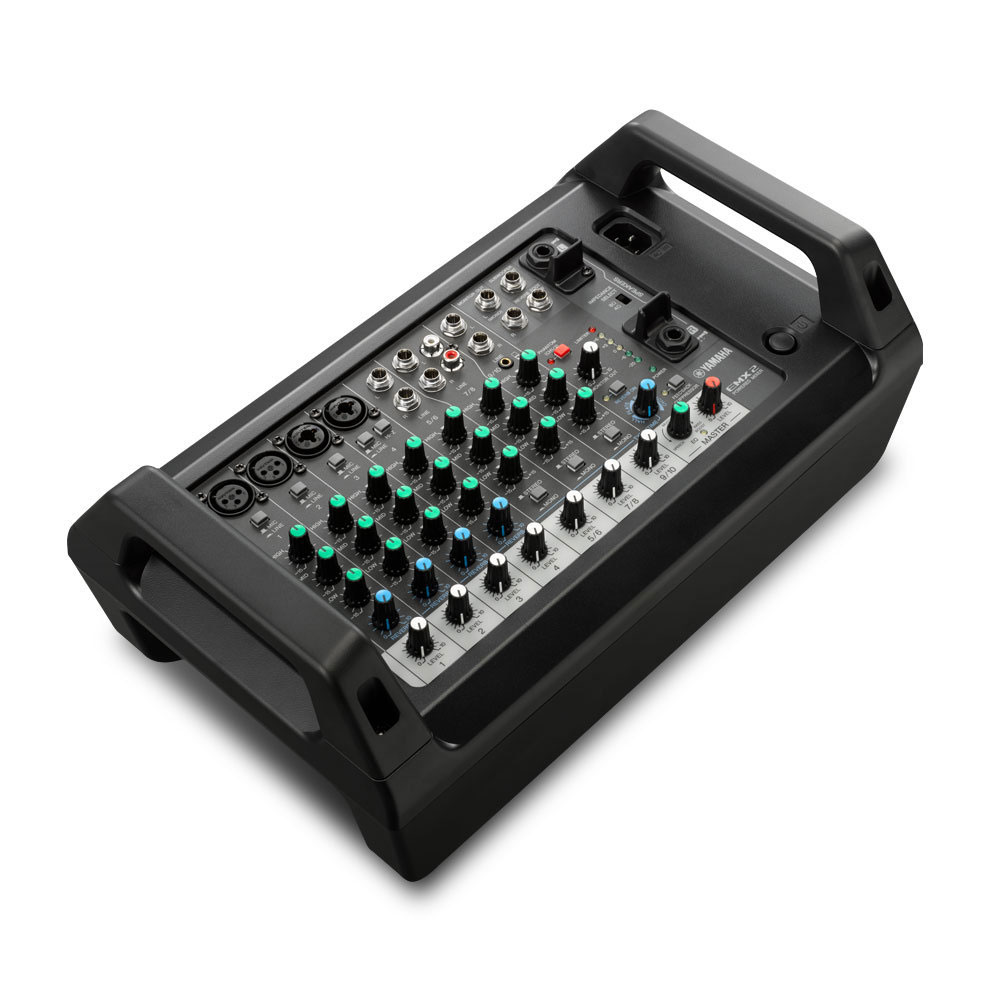

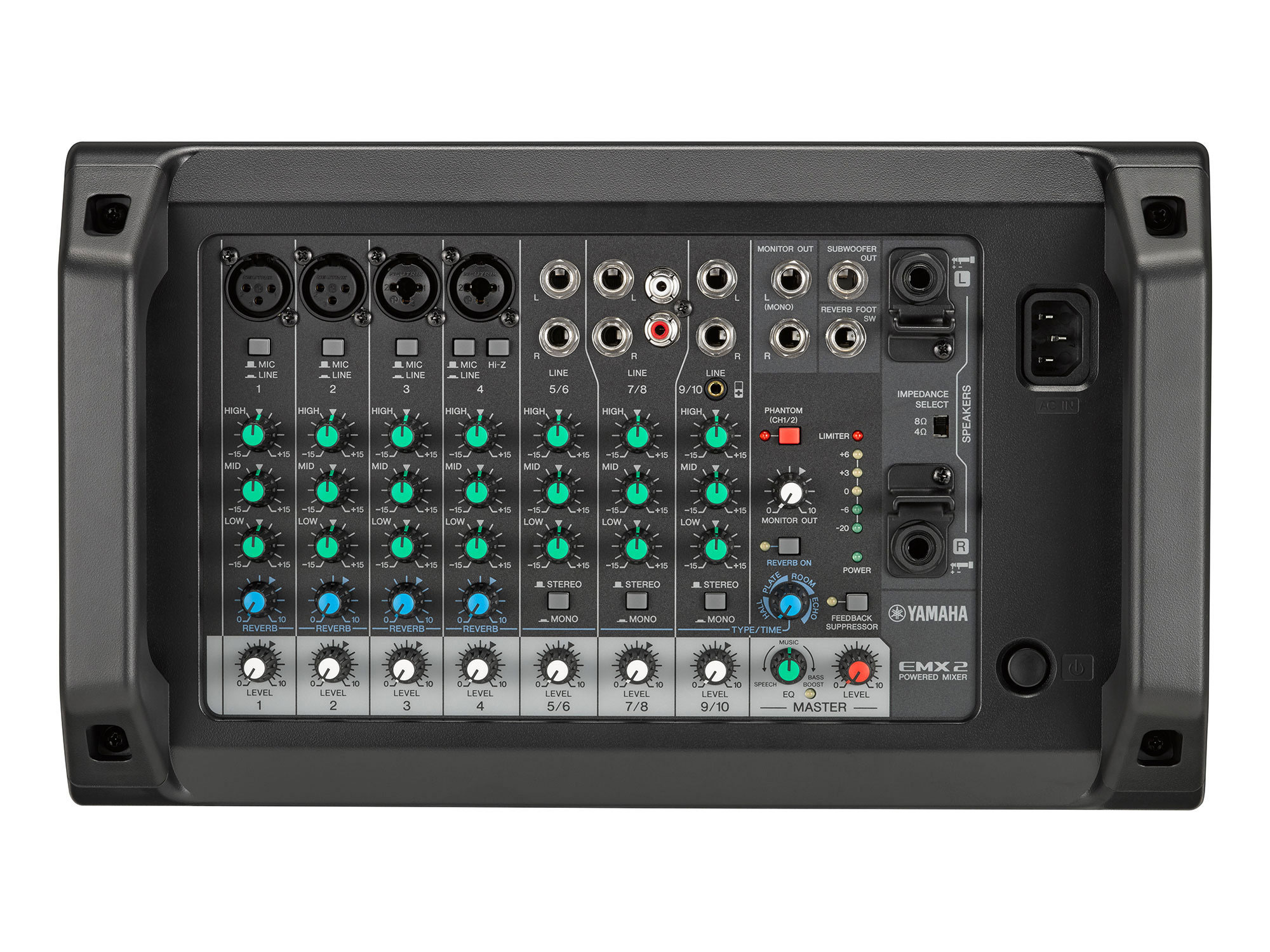

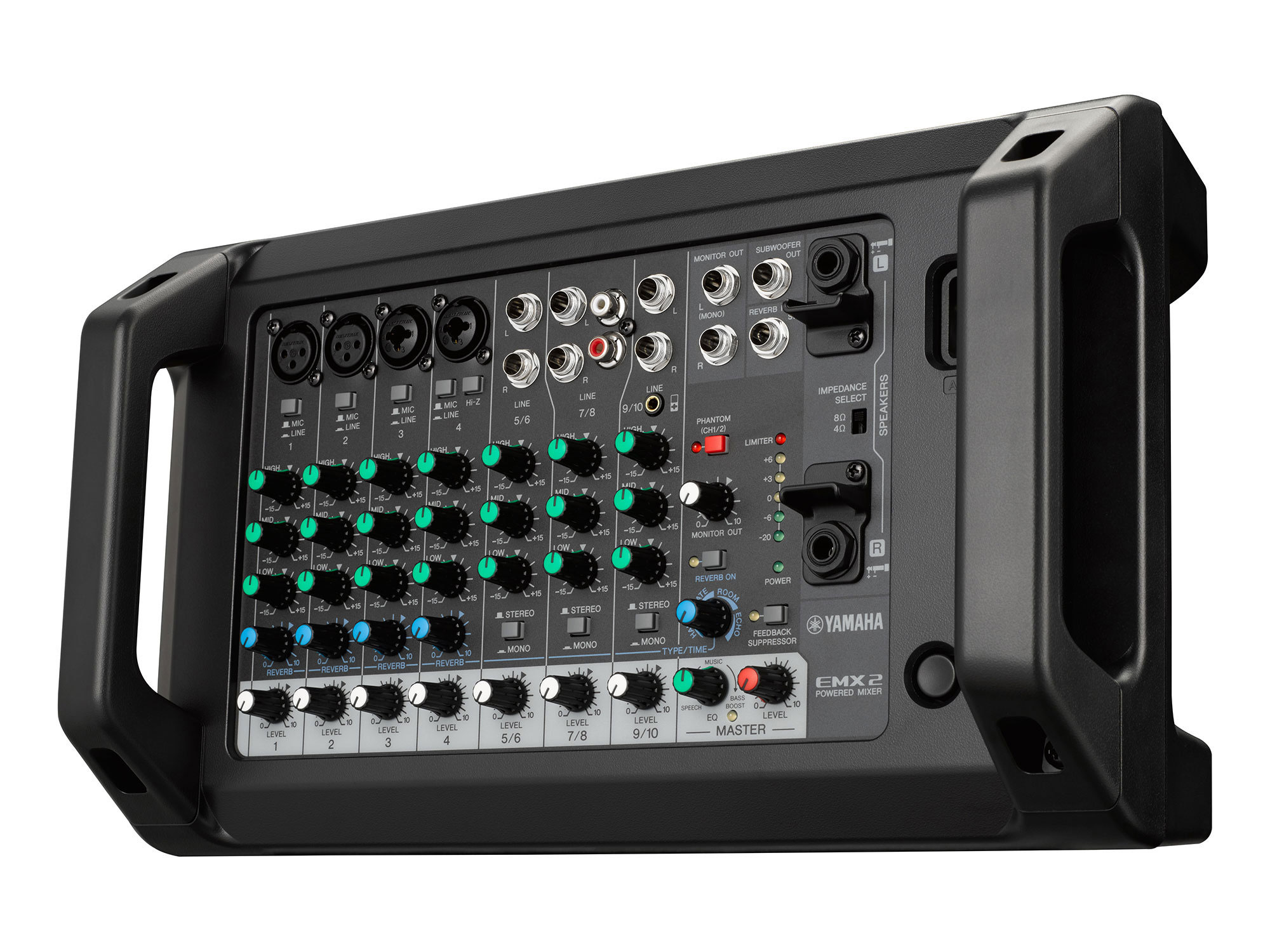

Yamaha EMX-2 powered mixer.
The EMX2 is both a mixer and a power amplifier. Its lightweight and portable design makes it very easy to carry and particularly useful for small to medium events.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: One Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Because the EMX2 is both a mixer and a power amplifier, you only need speakers and mics to have a fully functioning sound system. This makes it easy for newcomers and even first-time users with no previous audio experience to easily configure their own sound reinforcement system. The EMX2's all-in-one design ensures that by just plugging in a single power cable and making a few simple, intuitive connections, anyone can be their own sound engineer.
Premium Portability
Despite being a mixer and an amplifier in a single unit, the EMX2's dimensions (37.5cm x 22cm x 15cm / 14.8" x 5.8" x 8.7") are surprisingly compact, making it easy to fit along with speakers even in the boot of a small car. Its lightweight body also features handles for easy carrying.
From Speaking Engagements to Live Bands and DJ Events
The EMX2's flexible connectivity allows you to use up to 4 microphones for singing along with musical instruments, or speaking/ making announcements along with background music or recorded audio from an iPod, iPhone or other music player. The EMX2 comes equipped with Phantom Power and high-impedance input capability allowing you to use high-performance condenser microphones and connect guitars directly without any external gear. Because the EMX2 is also an power amplifier, you can easily connect passive speakers to complete your sound system.
4 Yamaha Reverbs for Additional Atmosphere
For decades, our sound specialists at Yamaha R&D have been developing high-quality reverb simlutions to add an atmospheric touch to our users' vocal and instrumental performances. The EMX2 features some of the most popular and practical reverb algorithms, using a single knob to easily select and control the depth for one of four effects.
- Hall mimics the sound characteristics of a large hall
- Plate offers a more classic, defined sound
- Room adds a more intimate sound to performances
- Echo gives instruments and vocals a more professional edge and is a great option for karaoke.
Feedback Supression
Few things spoil a live performance as quickly as the unwanted and embarrassing howl of feedback. To protect you, we've built feedback supression into the EMX2 that uses a unique type of Yamaha digital technology to instantly eliminate feedback with a single press of a button.
Shape Your Sound
For adding the final touch to your mix, the EMX2's Master EQ lets you apply optimised EQ settings with the simple turn of a dial:
- The Speech setting is designed for meetings, seminars and conferences, with a limited lower end for clear, defined speech
- The Music setting offers a more balanced sound, tailored to acoustic or band performances
- Bass Boost is ideal for DJ performances or audio playback that puts a priority on emphasising the low end
Flexible Setup for a Diverse Range of Applications
Using an optional rack-mount kit, you can seamlessly add the EMX2 to a rack configuration or an existing PA installation. You can even mount the EMX2 on a microphone stand using a simple mic-stand adaptor, giving you quick, convenient, manual control of all the relevant features.
Applications
Community Centres, Small Halls, Offices
- The EMX2's lightweight and portable design make it very easy to carry and particularly useful for sudden, emergency meetings, planned presentations, or seminars.
- The onboard feedback suppressor can automatically cancel out the uncomfortable howling that convention rooms or small halls are often prone too, giving first-time users the added confidence of worry-free setup.
- The 1-Knob Master EQ features a SPEECH setting for EQ optimized for speaking engagements with a simple turn of the knob.
- Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.
- EMX2's optional rack-mount kit lets you seamlessly add the EMX2 to a rack configuration or an existing installed application.
For DJ's at Parties or Small Outdoor Events
- The EMX2's lightweight and portable design make it very easy to carry and particularly useful for parties or DJ events when a fast and easy setup is desired.Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.
- The onboard feedback suppressor can automatically cancel out uncomfortable howling, for a worry-free performance.
- The EMX2's 1-Knob Master EQ can help bring out the best in your bass with the optimized Bass Boost setting.
- For more bass-heavy performances, the EMX2 comes equipped with a dedicated port for fast and easy connection to a Yamaha DXS Series powered subwoofer.
Band Performance With Vocal ,Keyboard, Guitar, and Bass
- The EMX2's lightweight and portable design make it very easy to carry and particularly useful for shows where a speedy set up time is a factor.
- Phantom power lets users connect high-quality condenser mics to add a more professional edge to their performances.
- High-impedance input capability allows users to connect guitars or basses directly into the EMX2.
- Users can easily mix in audio from a PC or external audio source using AUX inputs along with mic inputs.
- The onboard feedback suppressor can automatically cancel out uncomfortable howling, for a worry-free performance.
- Choose from the EMX2's four reverb algorithms and add more atmosphere to your sound with the turn of a single knob.
- 1-Knob Master EQ™ lets you shape the sound of your final mix with selectable 3-band EQ settings, including MUSIC which is optimized for band performances.
Karaoke
- The EMX2's lightweight and portable design make it ideal for fast and convenient setup at a party or karaoke event.
- Phantom power lets users connect high-quality condenser mics to add a more professional edge to their performances.
- The onboard 1-knob reverb features 4 different reverb effects, including an ECHO/ delay—ideal for Karaoke enthusiasts.
- The onboard feedback suppressor can automatically cancel out uncomfortable howling, for fun,worry-free Karaoke.
- The EMX2 can be mounted easily on a microphone stand using a simple mic-stand adaptor.
Specs
Outline
| I/O | Inputs | TOTAL 10ch : Mono (MIC/LINE):4, Stereo(LINE):3 |
|---|
| Phantom power | CH1, 2 : +30 V |
|---|
| Outputs | SPEAKERS [L, R], MONITOR OUT [L,R], SUBWOOFER OUT |
|---|
| Control and others | FOOT SW : Effect Mute on/off |
|---|
| Bus | Stereo: 1, Effect: 1 |
|---|
| Input Channel Function | PAD | 26 dB (CH1-4) |
|---|
| Hi-Z | Supported (CH4) |
|---|
| EQ HIGH | 8kHz +15dB / -15dB |
|---|
| EQ MID | 2.5kHz +15dB / -15dB |
|---|
| EQ LOW | 100Hz +15dB / -15dB |
|---|
| On-board processors | DSP | SPX Algorithm Reverb 4 programs, MASTER EQ (SPEECH to MUSIC), Feedback suppressor |
|---|
| On-board amplifiers | Maximum output power @4ohms | 1kHz THD+N less than 10% (CEA2006) : 250 W + 250 W, 1kHz THD+N less than 1% : 110 W + 110 W |
|---|
| Maximum output power @8ohms | 1kHz THD+N less than 10% (CEA2006) : 170 W + 170 W, 1kHz THD+N less than 1% : 110 W + 110 W |
|---|
| Level Meter | 6points (-20, -6, 0 , +3, +6, LIMITER) |
|---|
General specifications
| Frequency response | Input to SPEAKERS : +1 dB/-4 dB (40Hz to 20kHz), Input to MONITOR OUT : +0.5 dB/-1.5 dB (20Hz to 20kHz) , refer to the nominal output level @ 1 kHz |
|---|
| Total harmonic distortion | Input to SPEAKERS : 0.2 % @ 13.8 W (40Hz to 20kHz), 0.4 % @ 23.2W (1kHz), Input to MONITOR OUT : 0.05 % @ +10 dBu (20Hz to 20kHz) 0.009 % @ +20 dBu (1kHz), (THD+N, Measured with 22 kHz LPF) |
|---|
| Hum & noise level | Equivalent input noise | -115 dBu |
|---|
| Residual output noise | Input to SPEAKERS : -68 dBu (40Hz to 20kHz, MASTER: min), Input to MONITOR OUT : -99 dBu (20Hz to 20kHz, MONITOR: min) |
|---|
| Crosstalk | -80 dB (1 kHz, Measured with 1 kHz band pass filter) |
|---|
| Protection circuit | Load protection | DC-fault |
|---|
| Amplifier protection | Over heat protection, Over current protection |
|---|
| Power requirements | AC 100-240V, 50Hz/60Hz |
|---|
| Power consumption | 35W (Idle) / 90W (1/8 Power) |
|---|
| Dimensions | W | 375 mm (14.8") |
|---|
| H | 147 mm (5.8") |
|---|
| D | 220 mm (8.7") |
|---|
| Net weight | 4.2 kg (9.3 lbs.) |
|---|
| Accessories | Owner’s Manual, Technical Specifications, Power Cord (2m) |
|---|
| Options | Foot Switch: FC5, Mic Stand Adaptor: BMS-10A, Rack mount kit RK-EMX2 |
|---|
| Others | Operating Temperature : 0 to +40℃ |
|---|
