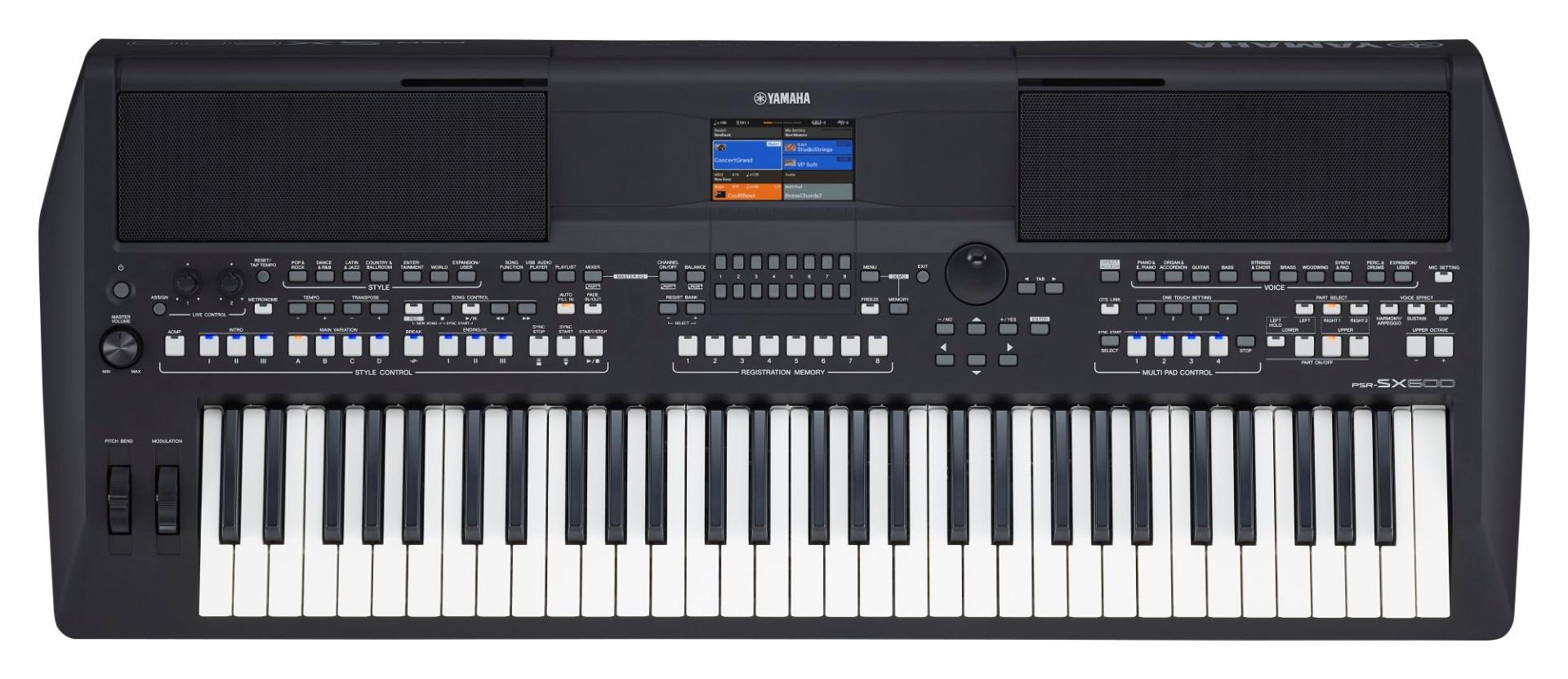

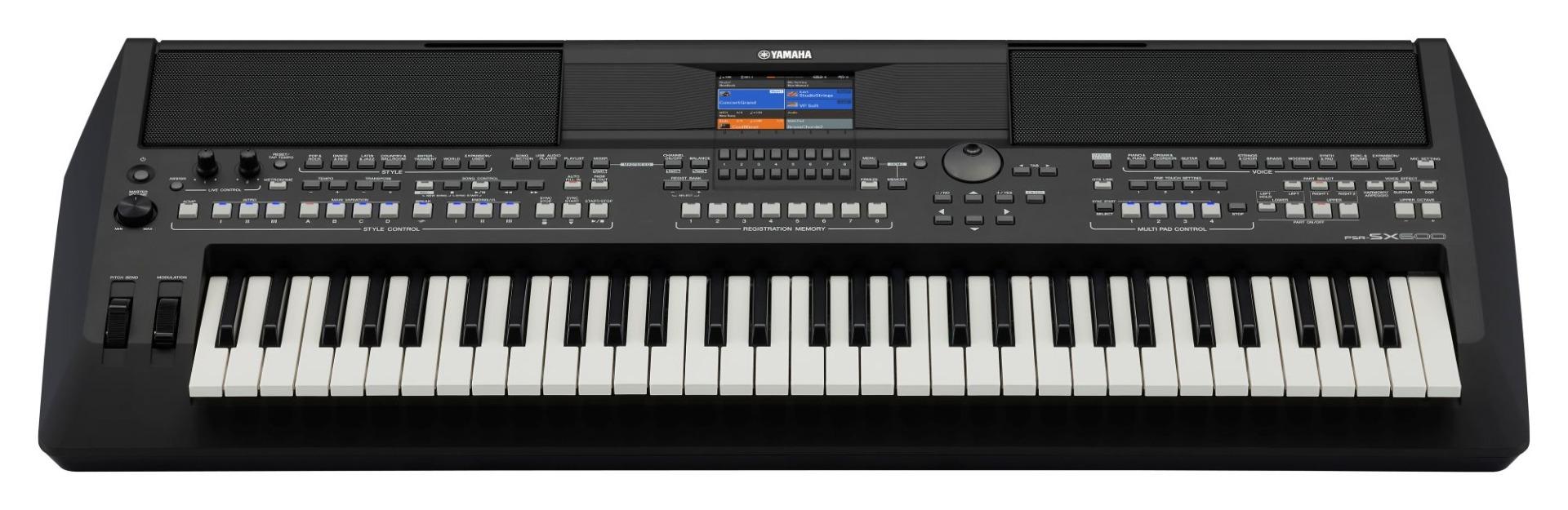

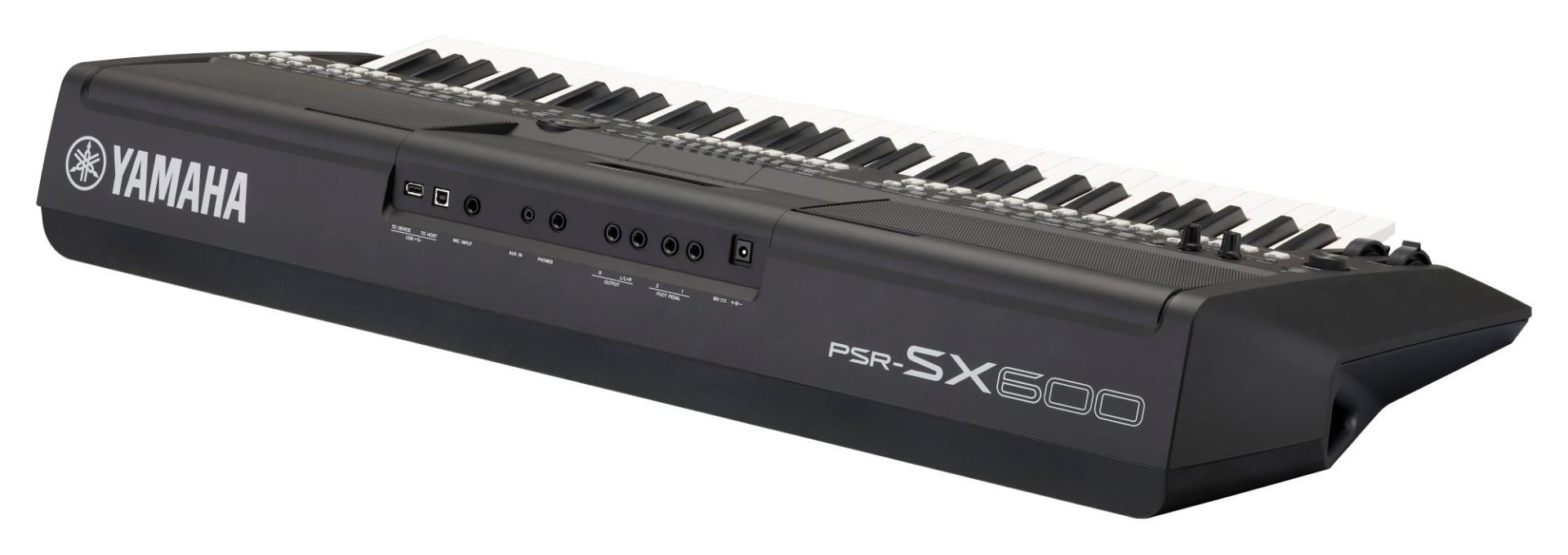

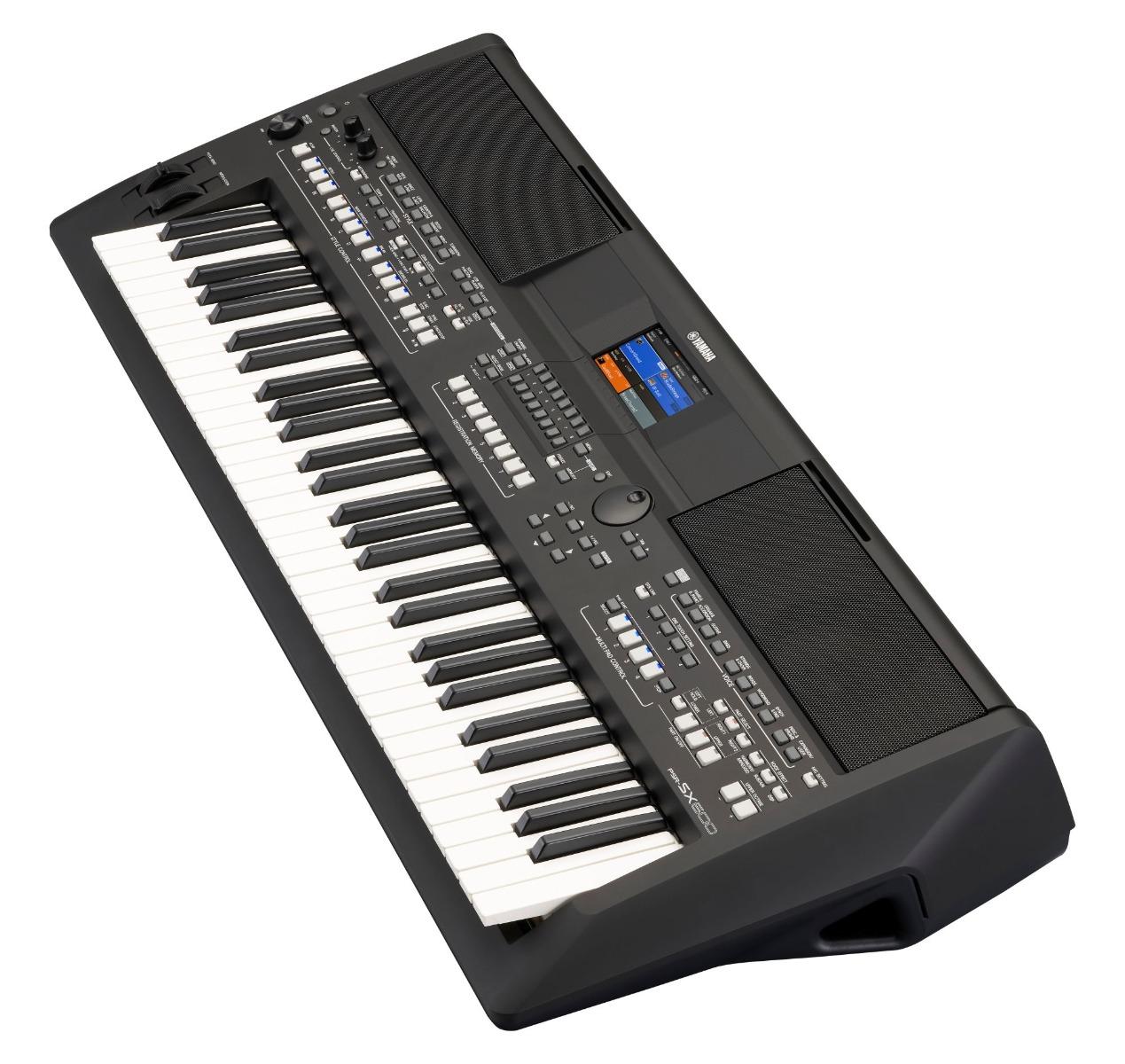

Yamaha PSR-SX620 Arranger workstation

Finance

Features

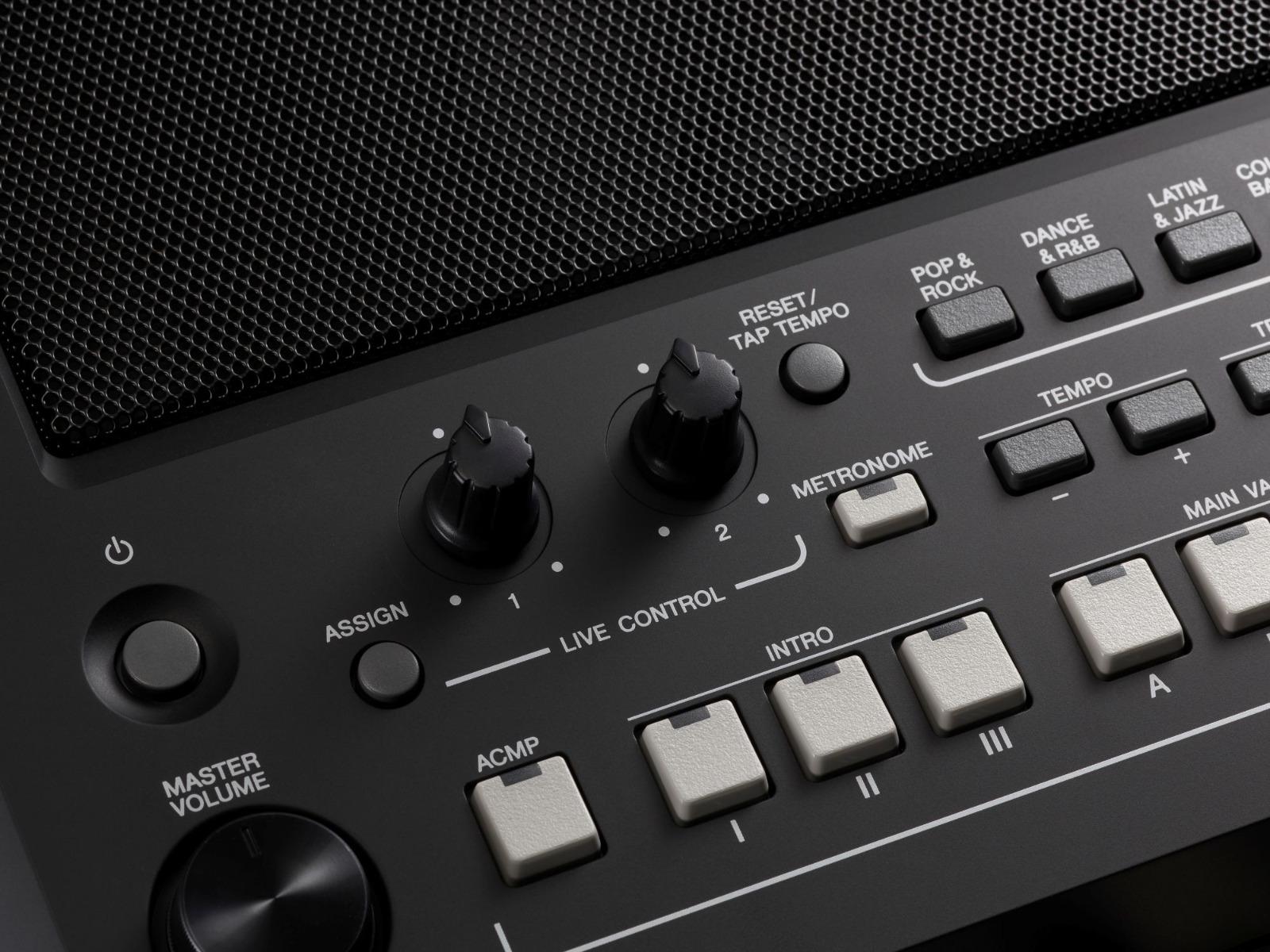

Live Control Knobs & Joystick
Control your performance in real time with Live Control knobs and Joystick Controller.

Take hands-on control of your performance with two assignable Live Control knobs and the Joystick Controller. Shape your sound in real time by adjusting brightness, tone, effects and more. The joystick adds expressive pitch and modulation control, making it easy to add nuance and movement to your playing.

Chord Looper
The new panel buttons provide quick access to recording and playing back chord sequences in real time. Whether you wish to free up your left hand to play full piano, build up sections of a song or practise a difficult piece of music, the Chord Looper enables you to store up to 8 chord sequences in each bank for easy access during your performance.

You can create an unlimited number of banks with your own chord progressions, or choose from a range of built-in presets.

Multi-Pads
Multi Pads let you trigger rhythmic phrases, melodic patterns and loops to add energy and variety to your performance. Alongside built-in MIDI phrases, Audio Link Multi Pads allow you to assign your own WAV audio, making it easy to launch custom sounds and samples on the fly. Whether accenting a groove or enhancing a song, Multi Pads bring extra creativity to every performance.

Bluetooth® Audio
Wirelessly stream music from your device to play along with your favourite songs. You can even capture your entire session using the built-in audio recorder.

Smart Chord
Turn a single note into a full chord. Easily perform with professional accompaniment by playing only the root note.

Expansion Packs
Sign up for a Yamaha Music ID to access a growing library of Expansion Content for the PSR-SX620.

Playlist
Playlist makes it easy to organise your songs and settings for instant recall. By grouping Registration Memory banks into custom Playlists, you can quickly call up the right Voices, Styles and settings for each song with a single touch. Whether you’re performing live, rehearsing or managing a large repertoire, Playlist helps you stay organised and focused on your music, not your setup.

MIDI Song to Style
Convert any standard MIDI file to a ready-to-play Style, complete with intros, endings, main sections and fill-ins.

Specs

Size/Weight

• Dimensions (W x D x H) ~ 993mm × 404 mm × 143mm
• Weight ~ 8.1 kg

Control Interface

• Keyboard - Number of Keys ~ 61
• Keyboard - Type ~ Organ, Initial Touch
• Keyboard - Touch Response ~ Normal, Soft1, Soft2, Hard1, Hard2
• Other Controllers
• Joy Stick ~ Yes
• Knobs ~ 2 (Assignable)
• Display - Type ~ TFT Color WQVGA LCD
• Display - Size ~ 480 × 272 dots (4.3 inch)
• Colour ~ Colour
• Display - Language ~ English, German, French, Spanish, Italian, Chinese
• Panel - Language ~ English, Chinese

Voices

• Tone Generation - Tone Generation Technology ~ AWM Stereo Sampling
• Polyphony - Number of Polyphony (Max.) ~ 128
• Preset - Number of Voices ~ 1,002 Voices + 51 Drum/SFX Kits + 480 XG Voices
• Preset - Featured Voices ~ 137 S.Articulation!, 34 MegaVoice, 31 Sweet!, 74 Cool!, 89 Live!
• Expandability - Expansion Voice ~ Yes Approx 380 MB)
• Editing ~ Voice Set
• Compatibility ~ XG, GM, GM2 (for Song Playback)
• Part ~ Right 1, Right 2, Left

Effects

• Reverb Block ~ 59 Presets + 30 User
• Chorus Block ~ 106 Presets + 30 User
• DSP Block ~ 322 Presets + 30 User
• Master Compressor ~ 5 Presets + 30 User
• Master EQ ~ 5 Presets + 30 User
• Part EQ ~ 27 Parts
• Mic Effects ~ Noise Gate x 1, Compressor x 1, 3 -Band EQ x 1
• Arpeggio ~ Yes

Style
Preset - Number of Styles ~ 450

• Preset - Featured Styles ~ 416 Pro Styles, 33 Session Styles, 1 FreePlay Style
• Preset - Fingering ~ Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard, Smart Chord
• Preset - Style Control ~ INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
• Compatibility ~ Style File Format (SFF), Style File Format GE (SFF GE)
• Expansion Style ~ Yes (Internal Memory)

Other Features

• Chord Looper ~ Yes
• Style section Reset ~ Yes
• One Touch Setting (OTS) ~ 4 for each Style

Songs

• Preset - Number of Preset Songs ~ 1 Demo song, 2 Preset Songs
• Recording - Number of songs ~ Unlimited (depends on drive capacity)
• Recording - Number of Tracks ~ 16
• Recording - Data Capacity ~ approx. 1 MB/Song
• Recording - Recording Function ~ Quick Recording, Multi Track Recording
• Data Format - Playback ~ SMF (Format 0 & 1), XF
• Data format - Recording ~ SMF (Format 0)

Multi Pads

• Preset - Number of Multi Pad Banks ~ 226 Banks × 4 Pads
• Audio - Audio Link ~ Yes

Functions

• Voices - Harmony ~ Yes (with Arpeggio)
• Voices - Panel Sustain ~ Yes
• Voices - Mono/Poly ~ Yes
• Voices - Voice Information ~ Yes

Styles
Style - Style Creator ~ Yes

• Styles - OTS Information ~ Yes
• Styles - Song Creator ~ Yes
• Styles - Score Display Function ~ Yes
• Styles - Lyrics Display Function ~ Yes
• Multi Pads - Multi Pad Creator ~ Yes
• Registration Memory - Number of Buttons ~ 8
• Registration Memory - Control ~ Registration Sequence, Freeze
• Playlist - Number of Records (max.) ~ 500 (max.) Records per Playlist file
• Search ~ Registration bank

Functions

• USB Audio Player/Recorder - Recording Time (max.) ~ 80 minutes/Song
• USB Audio Player/Recorder - Recording ~ *only on USB .wav (WAV format:44.1 kHz, 16-bit, stereo)
• USB Audio Player/Recorder - Playback ~ *only on USB .wav (WAV format:44.1 kHz, 16-bit, stereo)
• USB Audio Player/Recorder - Time Stretch ~ Yes
• USB Audio Player/Recorder - Pitch Shift ~ Yes
• USB Audio Player/Recorder - Vocal Cancel ~ Yes
• Demonstration ~ Yes
• Overall Controls - Metronome ~ Yes
• Overall Controls - Tempo ~ 5 – 500, Tap Tempo
• Overall Controls - Transpose ~ -12 – 0 – +12
• Overall Controls - Tuning ~ 414.8 – 440.0 – 466.8 Hz
• Overall Controls - Octave Button ~ Yes
• Overall Controls - Scale Type ~ 9 Types

Miscellaneous

• Direct Access ~ Yes
• Text Display Function ~ Yes
• Bluetooth ~ Yes
• Lesson/Guide ~ Follow Lights, Any Key, Karao-Key, Your tempo

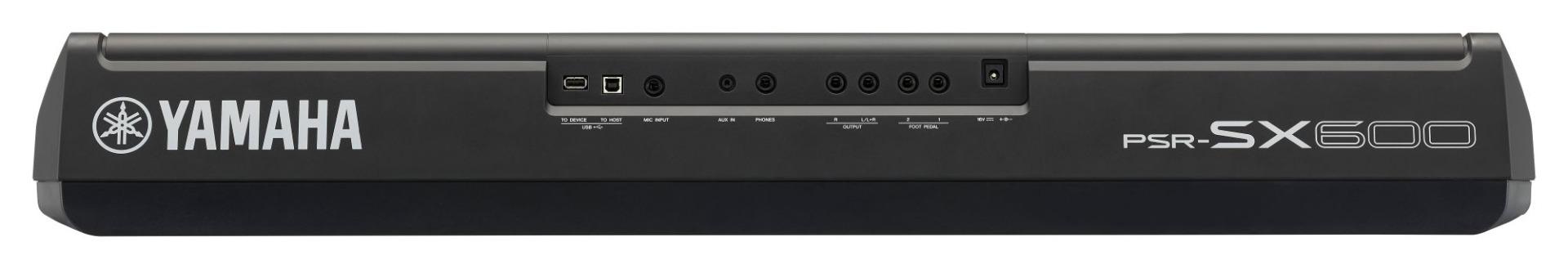

Storage and Connectivity

• Storage - Internal Memory ~ Yes (approx. 20MB max.)
• Storage - External Drives ~ USB flash drive
• Connectivity - Headphones ~ Standard stereo phone jack

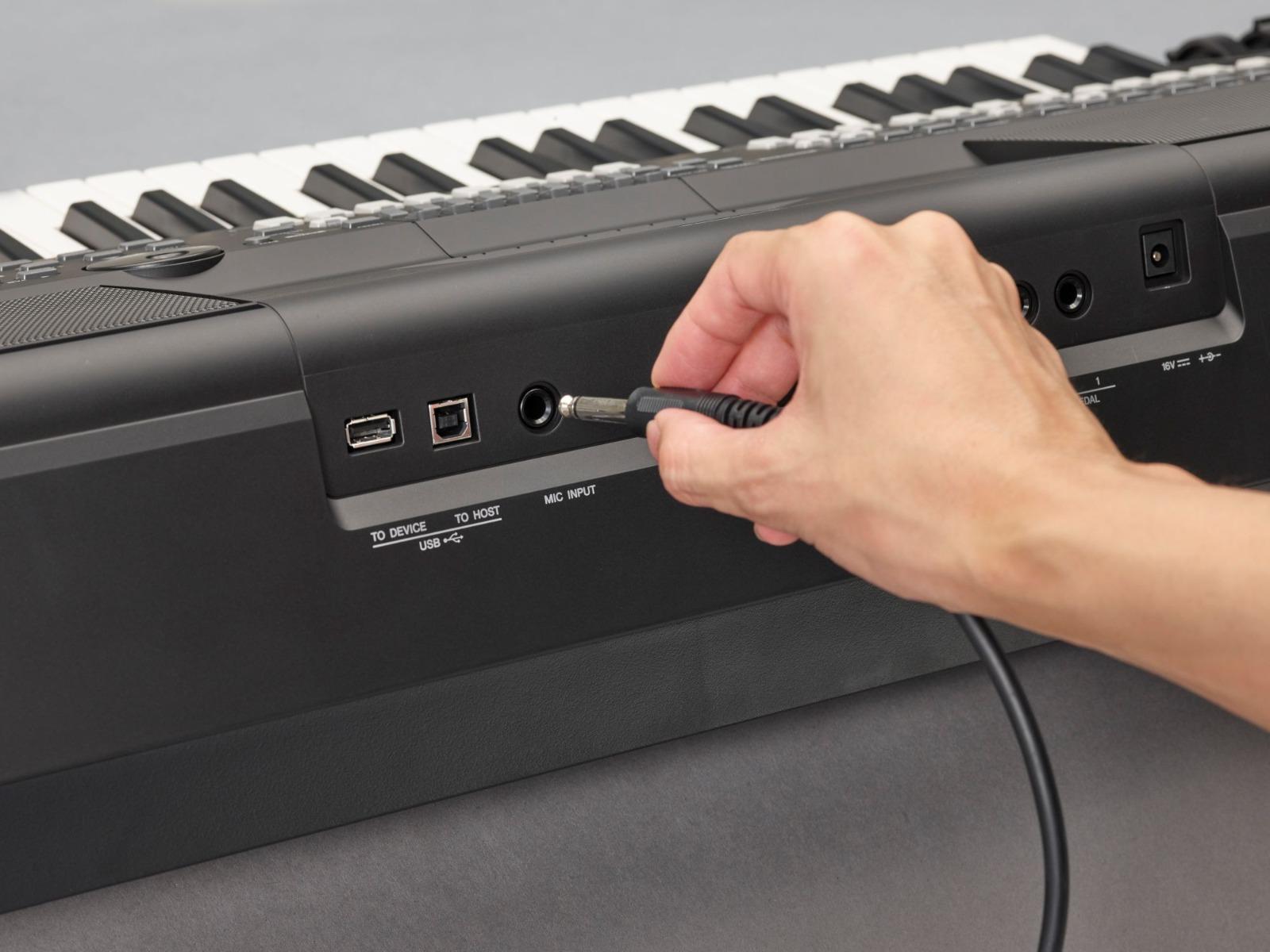

• Connectivity - Microphone ~ Microphone x 1
• Connectivity - AUX IN ~ Stereo mini jack
• Connectivity - LINE OUT ~MAIN OUTPUT L/L+R, R
• Connectivity - FOOT PEDAL ~ 1 (Sustain), 2 (Unison), Function Assignable
• Connectivity - USB TO DEVICE ~ Yes
• Connectivity - USB TO HOST ~ Yes

Amplifiers/Speakers

• Amplifiers ~ 15 W × 2
• Speakers ~ 12 cm × 2

Power Supply

• Adaptor ~ PA-300C or an equivalent recommended by Yamaha)
• Power Consumption ~ 18 W (When using PA-300C AC adaptor)
• Auto Power Off ~ Yes

Included Accessories

• Owner’s Manual (this book), Online Member Product Registration, Music Rest, AC adaptor* (PA-300C or an equivalent recommended by Yamaha), Power cord*

*May not be included depending on your area. Check with your Yamaha dealer.

Separately Sold Accessories

• AC adaptor: PA-300C or an equivalent recommended by Yamaha, Headphones: HPH-50/HPH-100/HPH-150, Footswitches: FC4A/FC5, Foot controller: FC7, USB wireless LAN adaptor: UD-WL01, Wireless MIDI adaptor:UD-BT01, Subwoofer: KS-SW100, Keyboard stand: L-6/L-7B

(The exterior size of the PSR-SX600 is beyond the limits as described in the L-6 Assembly Instructions. However, we have determined through tests that the stand can be safely used for the instrument.)
