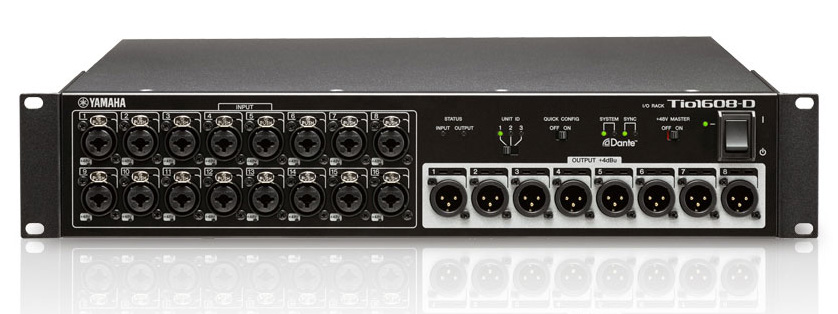

Yamaha Tio1608-D Dante-Equipped I/O Unit & Stagebox For TF Series Mixers

16x Mic In, 8x Line Out Connectivity Rack

£1,219.00
incl. VAT

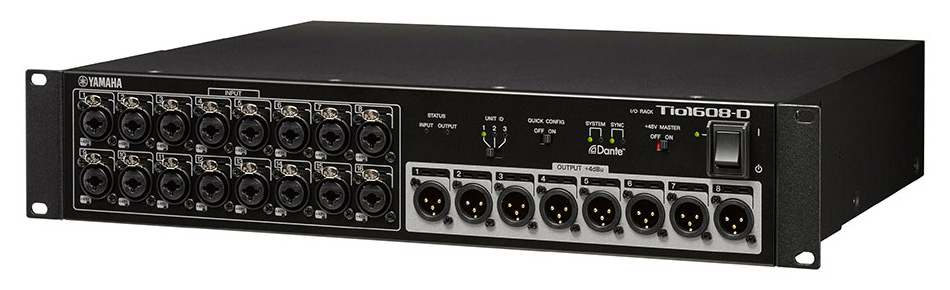

Tio1608-D Dante-Equipped I/O Unit & Stagebox For TF Series Mixers
Tio1608-D Dante-Equipped I/O Unit & Stagebox For TF Series Mixers Tio1608-D Dante-Equipped I/O Unit & Stagebox For TF Series Mixers Tio1608-D Dante-Equipped I/O Unit & Stagebox For TF Series Mixers

Why we love it…

Adding huge scaleability to the ground-breaking TF Series mixers, the Tio1608-D both simplifies cable-routing on stage (allowing you to route all inputs and outputs through a single cable to the console) and allows expansion of inputs and outputs - all whilst maintaining complete control over every aspect via the console.

Overview

Able to act both as a stagebox (massively simplifying on-stage setup) and as means to increase the I/O of your TF Series mixer, the Dante-equipped Tio1608-D features 16 microphone/line inputs and 8 line outputs. It features the same recallable D-PRE microphone preamplifiers used in the TF Series mixers allowing it to deliver extraordinarily natural and musical sound.

When used in conjunction with the TF Series consoles (fitted with the NY64-D Expansion unit), up to 3 Tio1608-D racks can be quickly connected.

Finance

Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.

Click here for more information

Finance agreements are available to UK residents aged 18 or over, subject to status.

Deposit £0.00 (0%)

Duration - please choose one


Representative Example

Purchase Price:£2,026.00 Deposit:£239.00
Amount of Credit:£1,787.00 24 Monthly Payments:£89.44
Total Repayable:£2,385.56 Agreement Duration:24 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£2,289.00 Deposit:£260.00
Amount of Credit:£2,029.00 36 Monthly Payments:£73.64
Total Repayable:£2,911.04 Agreement Duration:36 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£1,125.00 Deposit:£300.00
Amount of Credit:£825.00 6 Monthly Payments:£137.50
Total Repayable:£1,125.00 Agreement Duration:6 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£3,545.00 Deposit:£240.00
Amount of Credit:£3,305.00 9 Monthly Payments:£367.22
Total Repayable:£3,545.00 Agreement Duration:9 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£1,260.00 Deposit:£200.00
Amount of Credit:£1,060.00 12 Monthly Payments:£92.93
Total Repayable:£1,315.16 Agreement Duration:12 Months
Rate of Interest (Fixed):9.89% pa 9.89% APR Representative
Purchase Price:£1,499.00 Deposit:£199.00
Amount of Credit:£1,300.00 18 Monthly Payments:£83.12
Total Repayable:£1695.16 Agreement Duration:18 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative



Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.

V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.

Features

Digital Stagebox System with a Maximum of 3 units

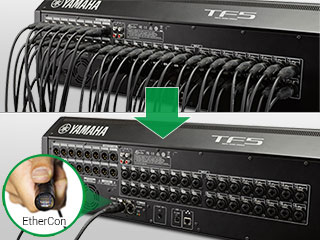

Simplify your setup by using the Tio1608-D as a high quality stage box Users wishing to expand on the TF's already extensive input/output capability can easily add up to 3 units with the optional NY64-D expansion card and Tio1608-D I/O racks. Daisy-chaining the main console offstage and Tio1608-D I/O racks on stage using lightweight CAT5e Ethernet cables allows low-latency, high-quality sound transmission without the time-consuming transport and setup of bulky analog snakes.

Dante High Reliability Network Audio Protocol

Dante has been adopted by the leading manufacturers and professionals in the sound reinforcement industry for its low jitter, low latency, and high sampling accuracy. Using the Tio1608-D you can easily configure a high-performance Dante stagebox system with little or no IT networking knowledge. Thanks to the flexibility of the Dante network protocol, TF Series consoles can be connected to an extensive range of Dante-enabled equipment such as R Series I/O racks.

Fast and Easy QUICK CONFIG Mode

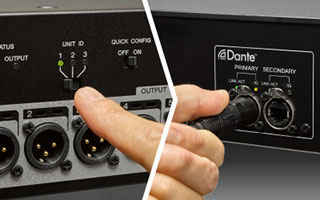

Quickly configure up to 3 Tio1608-D units with a single TF Series mixerBy enabling the QUICK CONFIG mode on the Tio1608-D, all the connection settings such as network settings and audio patching are set automatically making system configuration easy. After confirming QUICK CONFIG mode is activated on the TF console and Tio racks, simply set a UNIT ID for each Tio1608-D, then daisy chain the TF console and the Tio racks. Turn on the power and you're ready to go!

Simple and Flexible Input Selection

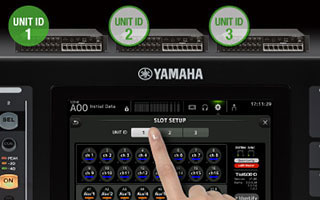

Easy On-Screen Setup with the TF Series MixerOnce the basic configuration is completed you can easily assign inputs to best suit your system setup. By using the ALL INPUT function, users can assign all inputs to the Tio racks, the TF console or a PC/Mac device instantly. Users can also change each input to receive signal from multiple locations so that users can effectively use all inputs.

Recallable D-PRE preamplifiers

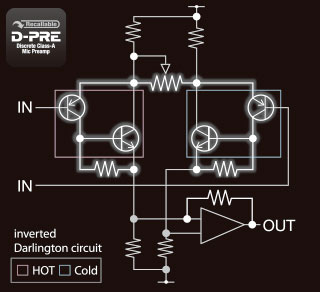

World-Class D-PRE Pre-AmpsThe Tio1608-D inherits the natural, musical sensibility that we pursued in the development of the TF Series. Mechanical construction, circuit board layout, power supply, grounding, and parts selection have all been executed with meticulous attention to detail and quality, combined with exhaustive performance and listening tests at each stage of development. The Tio1608-D features the same recallable D-PRE microphone preamplifiers as the TF Series to provide a consistent, natural, musical sound throughout the entire system.

Flexible system expansion via Dante

Dante Network Audio Protocol has been adopted, not only in TF, but also in other Yamaha digital mixing consoles such as CL/QL. Combining these I/O racks and the various consoles can significantly increase the flexibility of system designs. Patching can be enabled via Dante Controller while Remote HA can be controlled by “R Remote” software.
In the future, audio patching and Remote HA will be controlled not only from TF but also from CL/QL thanks to scheduled firmware updates. Please note that Remote HA of the Tio1608-D can be implemented only via the Primary port. (It is not possible via Secondary port).

System expansion with Tio1608-D

Easy System ExpansionTio1608-D allows you to easily expand a TF digital mixer system up to 40ch inputs/24ch outputs. System setup uses a Plug In & Play method. Simply connect Cat5e cable, select the device IDs and the system is ready. Remote HA control is available via Cat5e. StageMix App allows wireless remote control of the console from the arena, the stage or the audience etc.

Specs

General specifications

Sampling frequency rateExternal44.1kHz or 48kHz
Signal delayLess than 3ms INPUT to OUTPUT, connect with TF5 and NY64-D using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Total harmonic distortionLess than 0.1% +4dBu@20Hz-20kHz into 600Ω, Gain=+66dB / Less than 0.05% +4dBU@20Hz-20kHz into 600Ω, Gain=-6dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18dB/octave filter @80kHz
Frequency response+0.5, -1.5dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT, Fs=44.1kHz or 48kHz
Dynamic range108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA Converter
Hum & noise levelEquivalent input noise-128dBu, Gain=+66dB *Measured with A-weighting filter
Residual output noise-88dBu, ST master off *Measured with A-weighting filter
Crosstalk-100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB *Measured with a -30dB/octave filter @22kHz
Heat dissipation100-240V, 50/60Hz, 43.5kcal/h
Power requirements100-240V, 50/60Hz
Power consumption50W
DimensionsW480mm (18-7/8")
H88mm (3-4/8")
D364mm (14-3/8")
Net weight5.7kg (12.6lbs)
AccessoriesOwner’s Manual, Power Cord(2.5m), Rubber stoppers(4)
OthersTemperature Range: Operating temperature range: 0 - 40℃, Storage temperature range: -20 - 60℃

Analog input characteristics

Input TerminalsGAINActual Load
Impedance
For Use With
Nominal
Input LevelConnectorBalanced /
Unbalanced
Sensitivity*1NominalMax. before clip
INPUT1-16+66dB7.5kΩ50-600Ω Mics &
600Ω Lines
-82dBu (61.6μV)-62dBu (0.616mV)-42dBu (6.16mV)Combo Jack (XLR-3-31 type *2
or TRS phone *3)
Balanced
-6dB-10dBu (245mV)+10dBu (2.45V)+30dBu (24.5V)

In these specifications, 0dBu = 0.775Vrms.
+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.
*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain.
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND

Analog output characteristics

Output TerminalsActual Source
Impedance
For Use With
Nominal
Output LevelConnectorBalanced /
Unbalanced
NominalMax. before clip
OUTPUT 1-875Ω600Ω Lines+4dBu (1.23 V)+24dBu (12.3V)XLR-3-32 type*1Balanced

In these specifications, 0dBu = 0.775Vrms.
*1.1: GND,2: HOT, 3: COLD

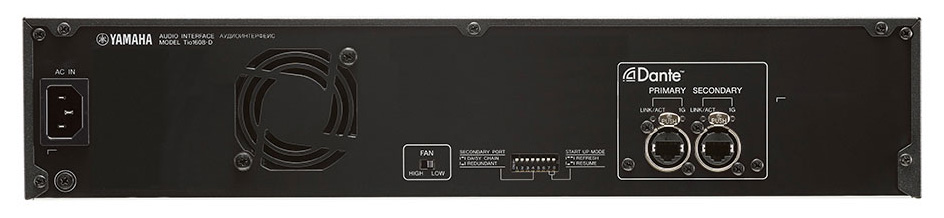

Digital Input & Output Characteristics

TerminalFormatData lengthLevelAudioConnector
Primary/SecondaryDante24bit or 32bit1000Base-T16ch ( Tio1608-D to other devises)
8ch (Other devises to Tio1608-D)
etherCON Cat5e
Product IDCTIO1608DUK
